Flap Hinges

1.5 Hours

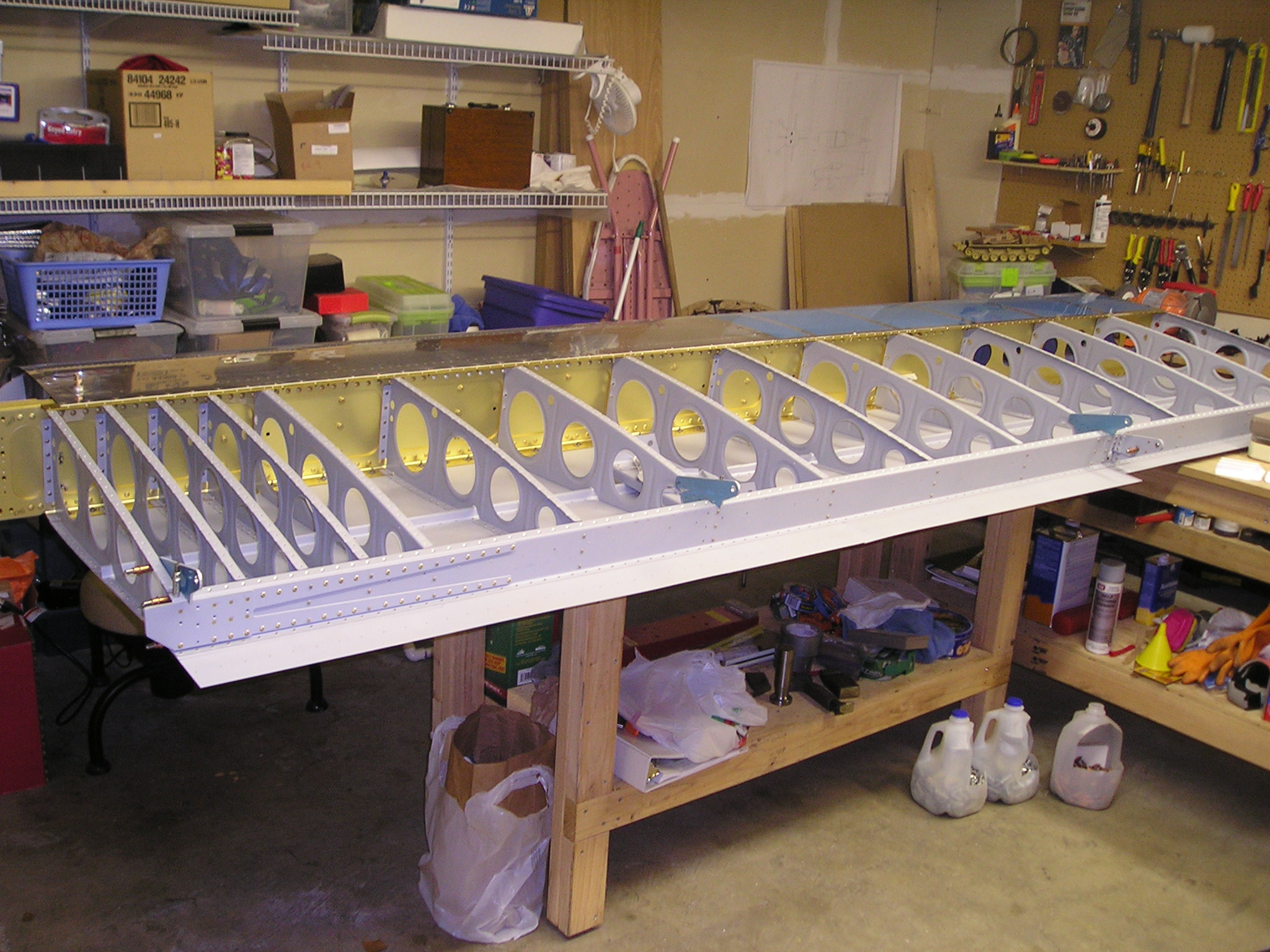

Flap hinges cleco'd in place full size

The inner and outer flap hinges are cleco'd in place, then match drilled

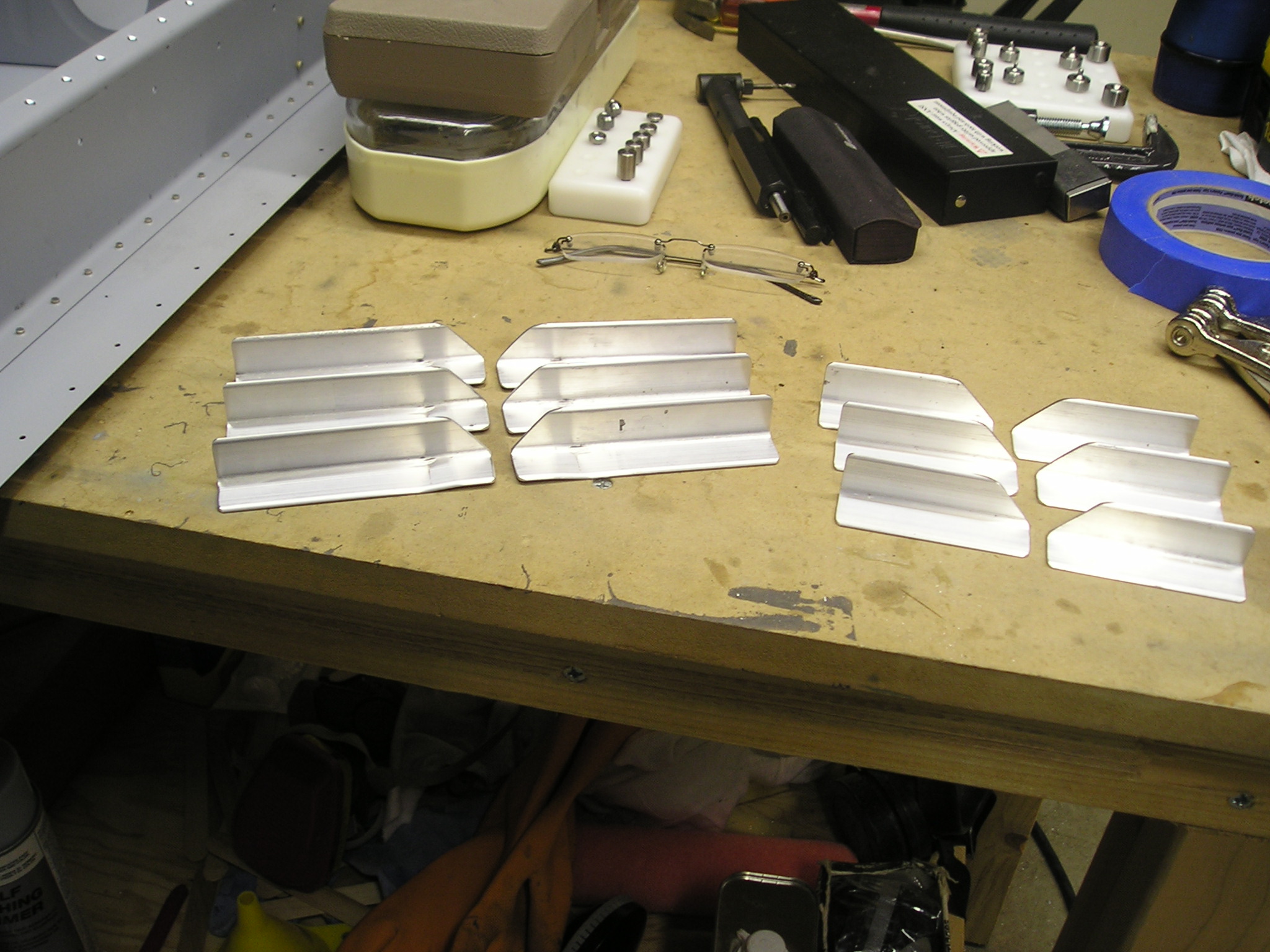

Flap hinge angles full size

Parts need to be fabricated for the flap hinges. Here they are all done, filed, and scotch-brited, ready for match drilling in place

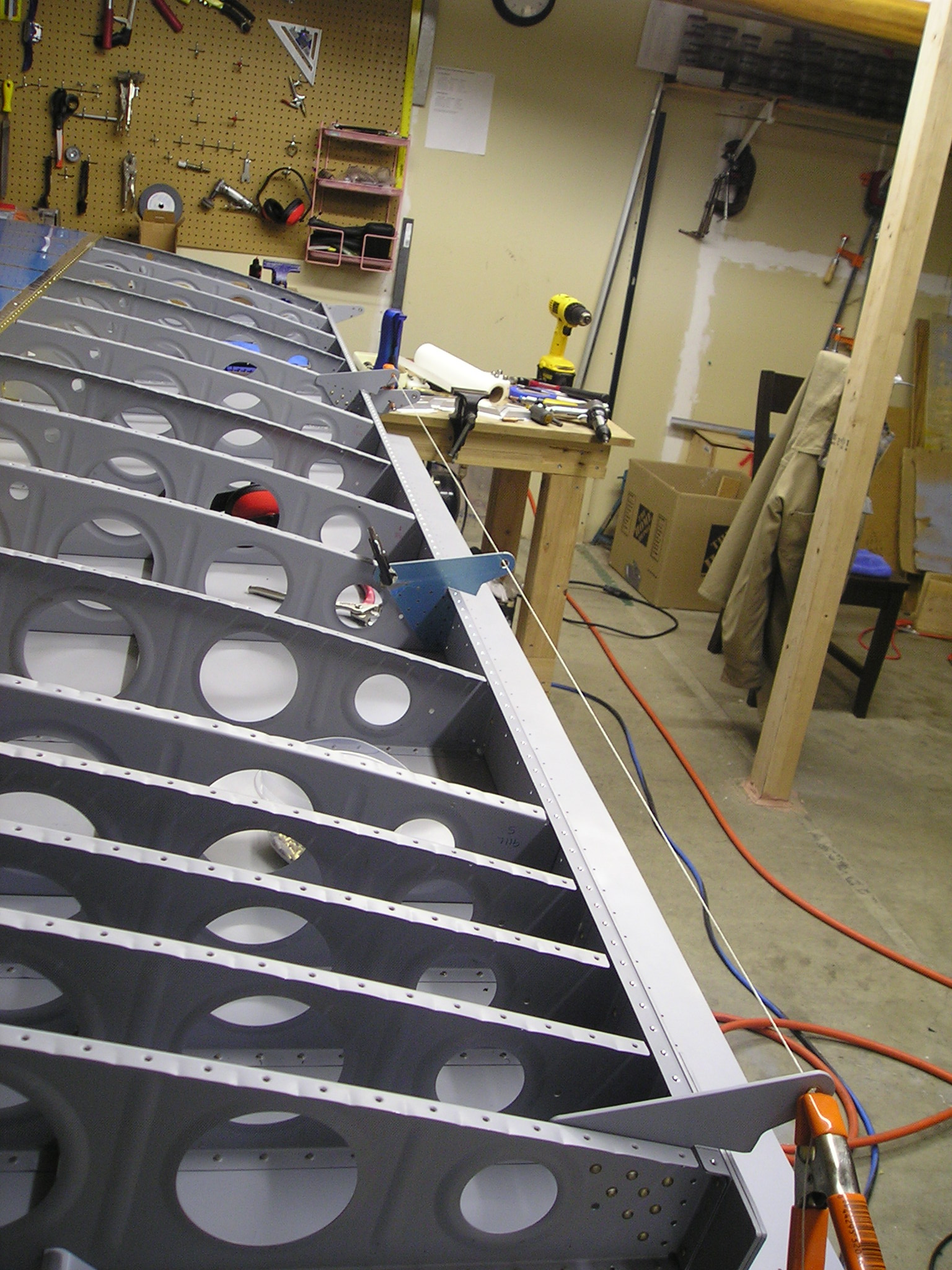

Aligning center flap hinge full size

I have finished the inner and outer flap hinge. Next is to place a string through the bushings and line up the center hinge. Here they are lined up, ready to drill the middle hinge.

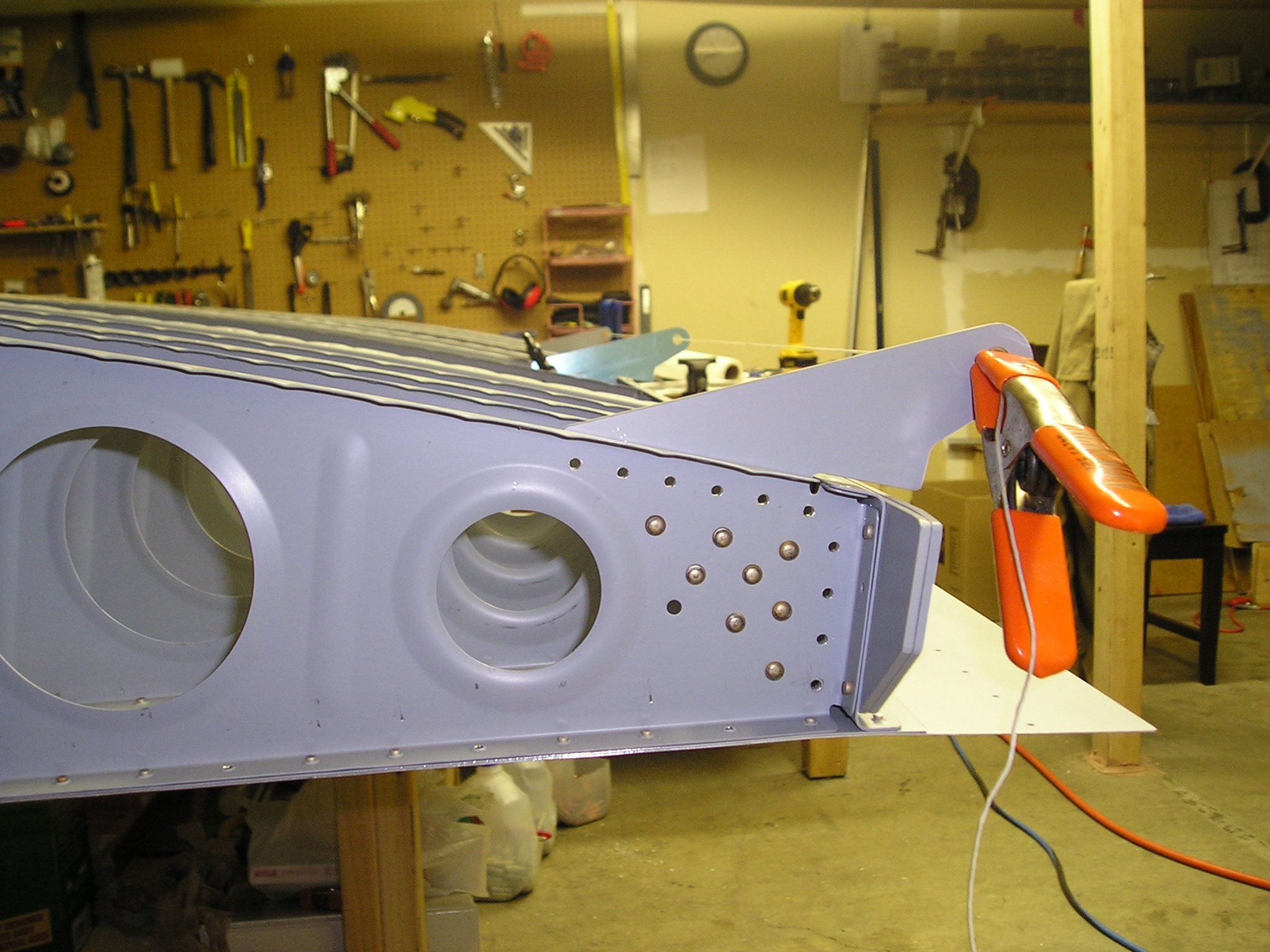

Inner hinge full size

A close up of the inner hinge

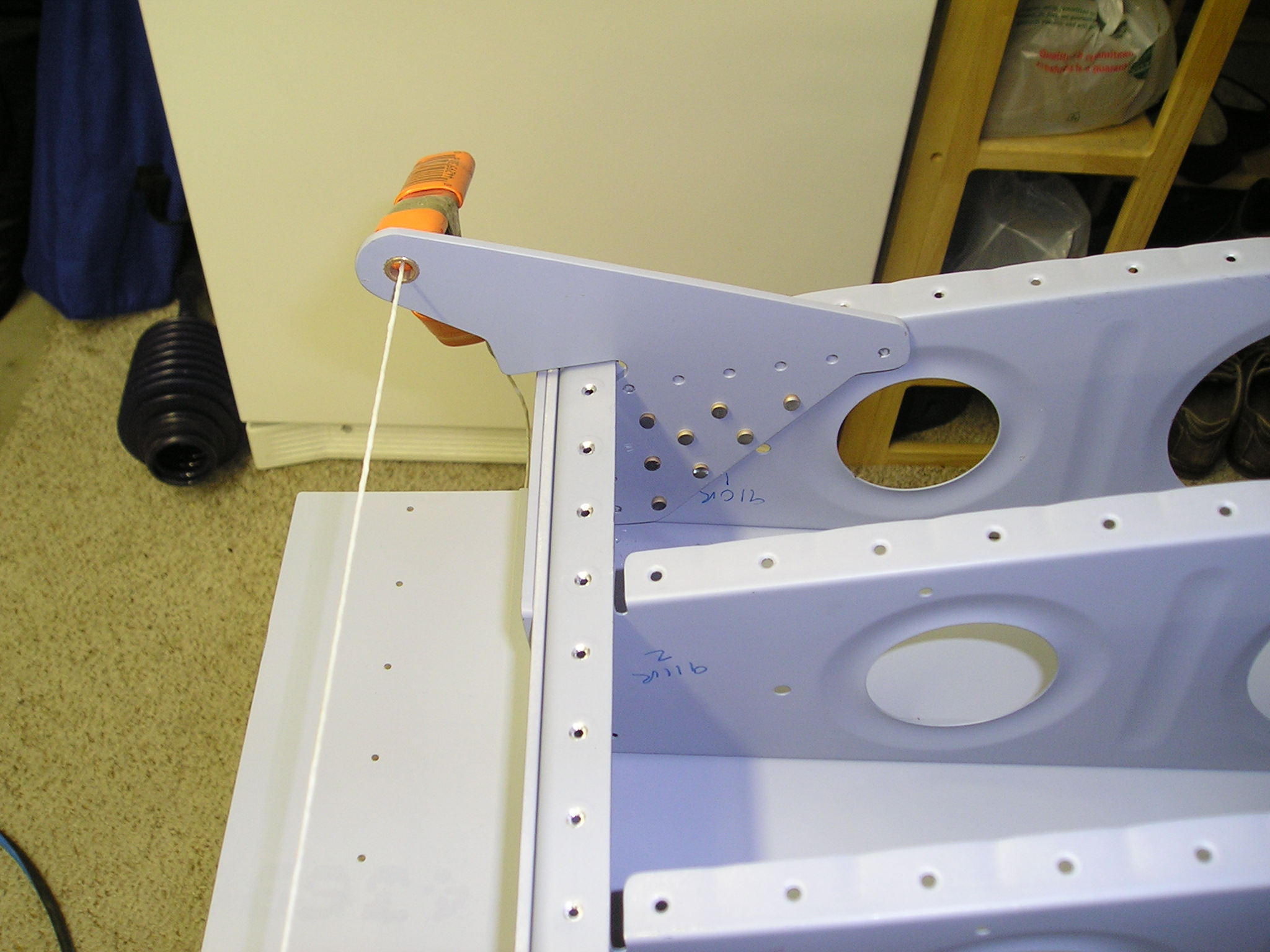

Inner hinge from inboard full size

Another closeup of the inner hinge
