Flap hinge angles
2.0 Hours

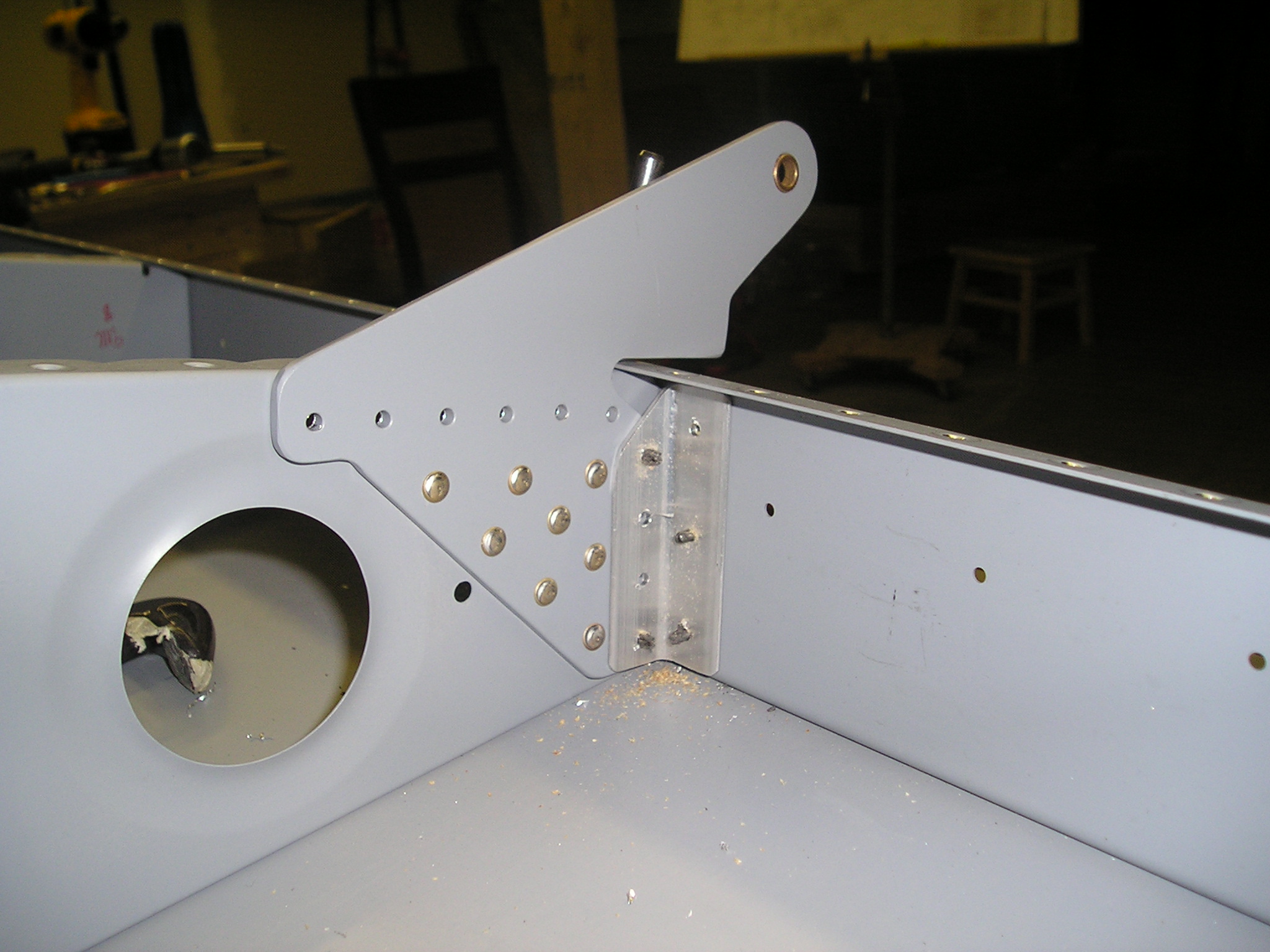

Match drilling hinge attach angle full size
After the hinges are riveted to the rib, I fit the attach angles and match drill them to the hinge and rear spar

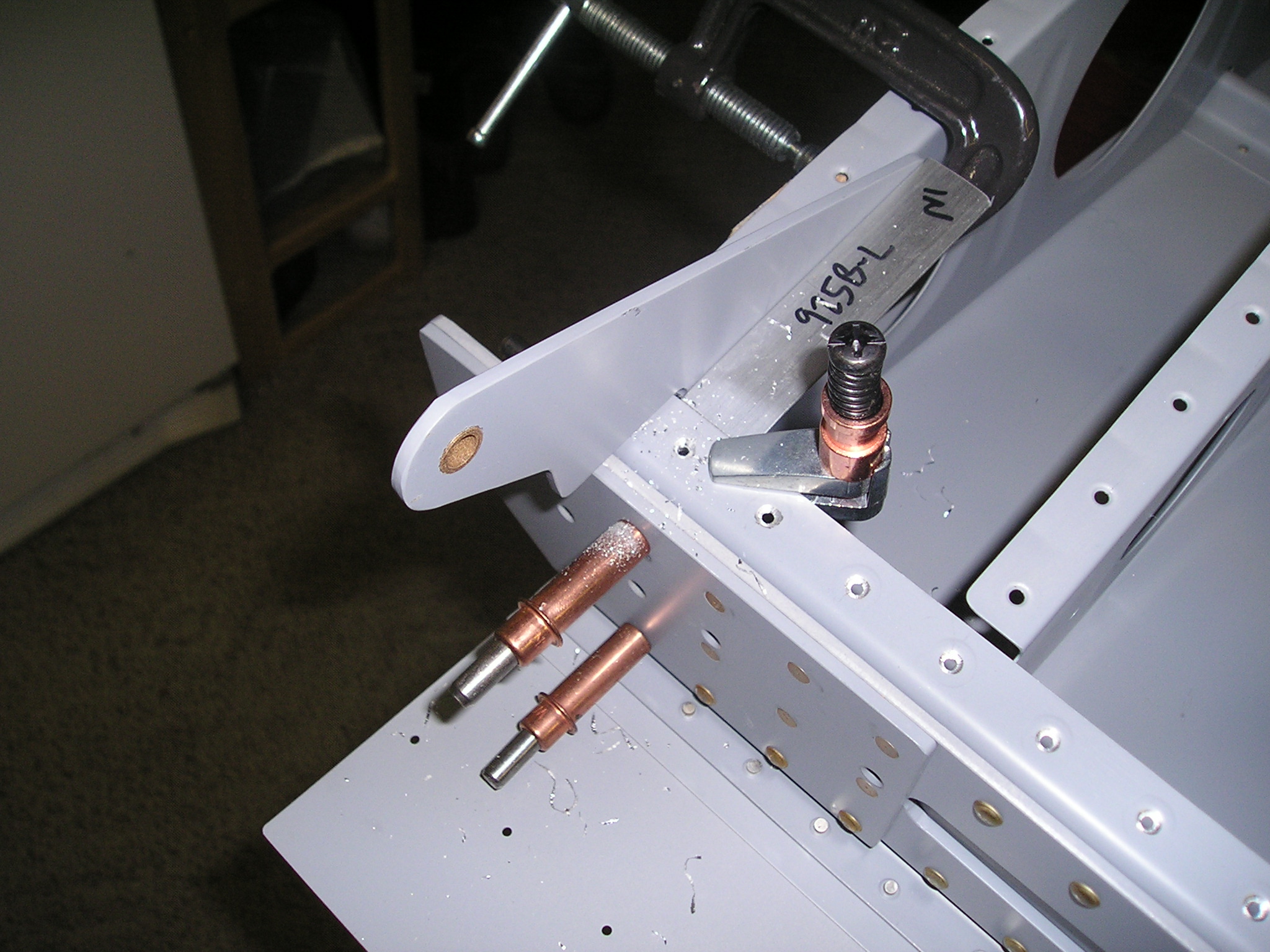

Fitting of hinge angle full size
The angle that fits with the lower skin is then cleco'd into place.

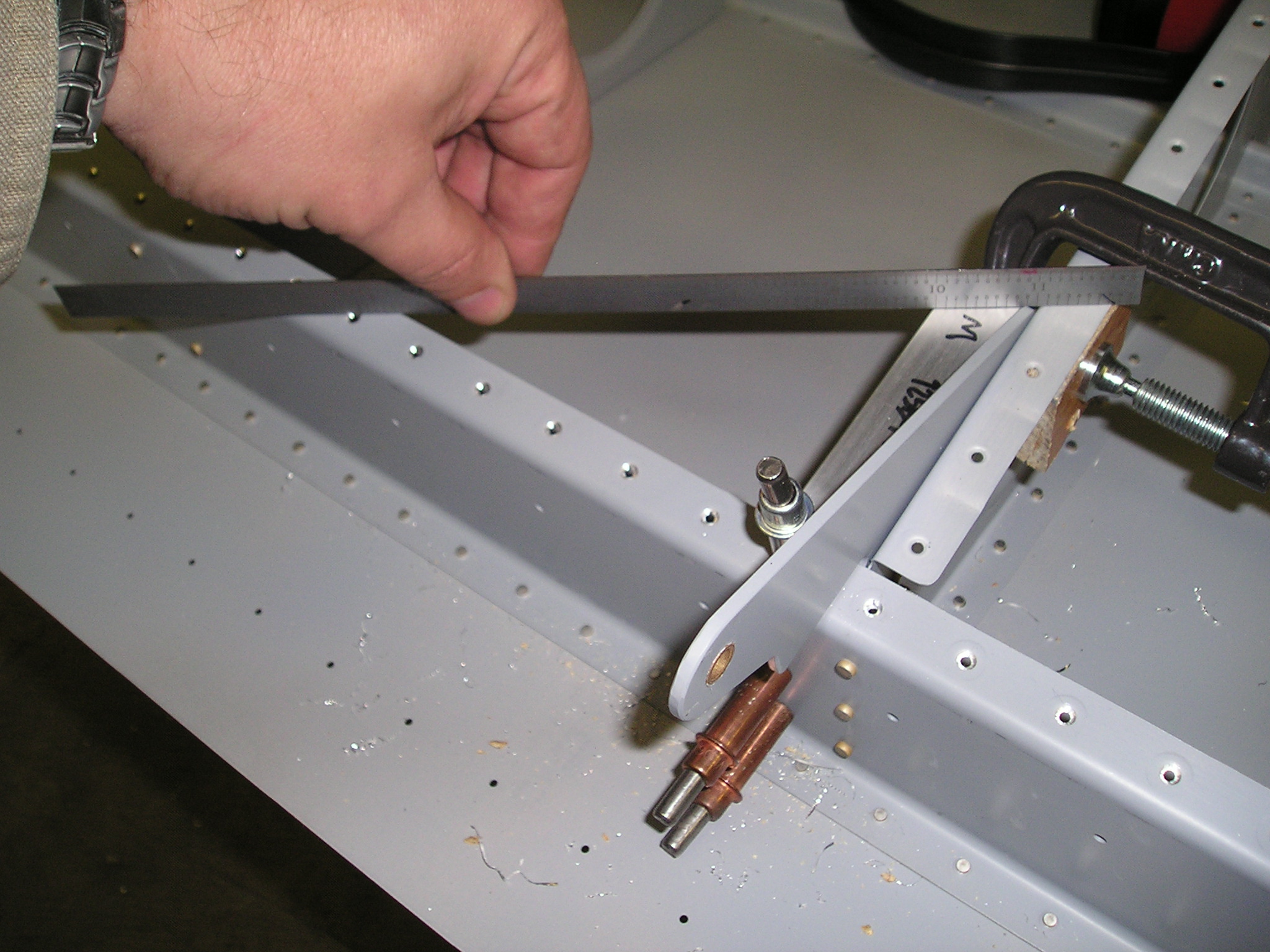

Aligning angle full size
A straight edge is placed on the rear spar and rib to make sure that the angle is in the right place.

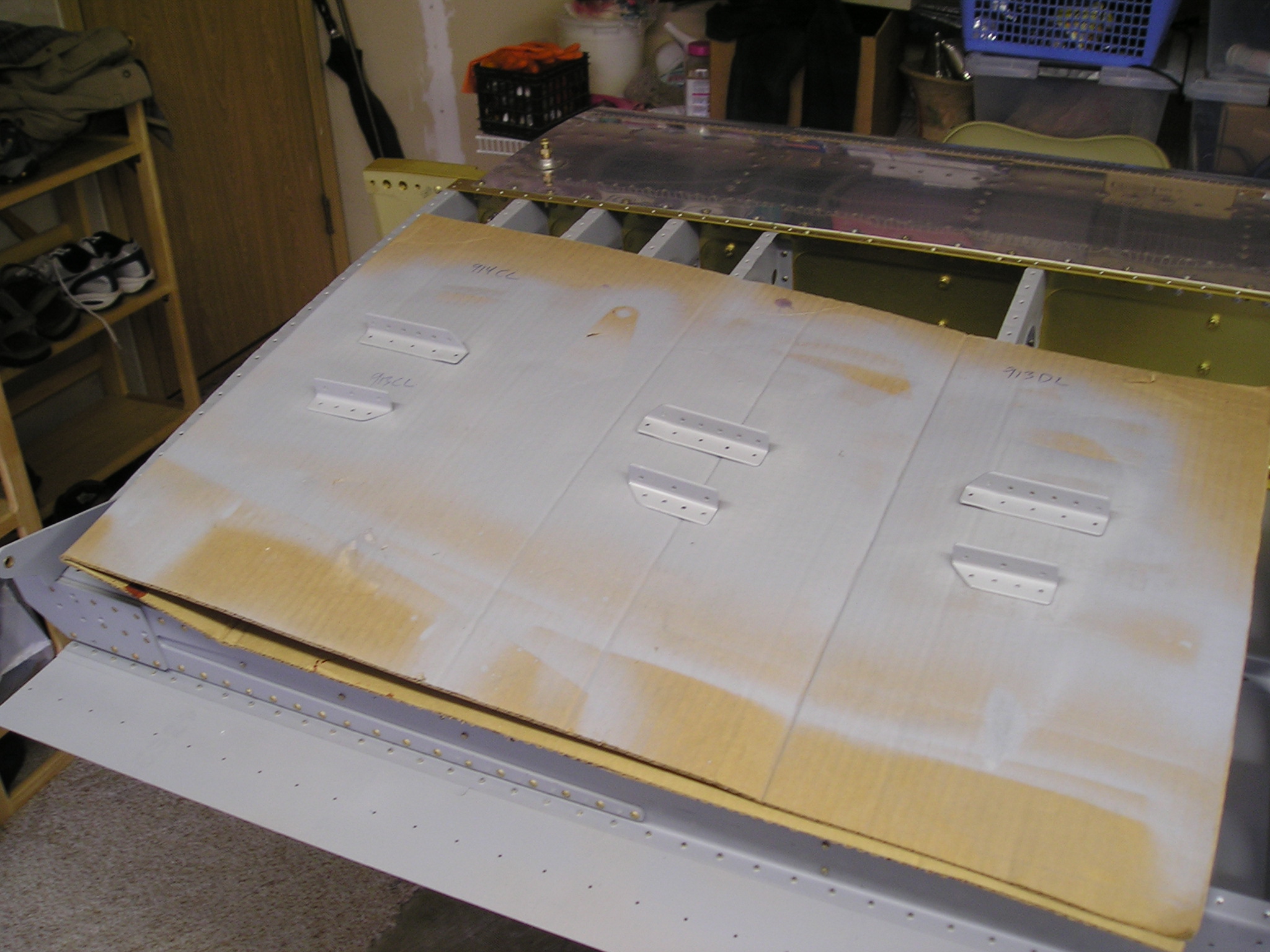

Priming the angles full size
After drilling, deburring, and countersinking where necessary, the angles are ready to install

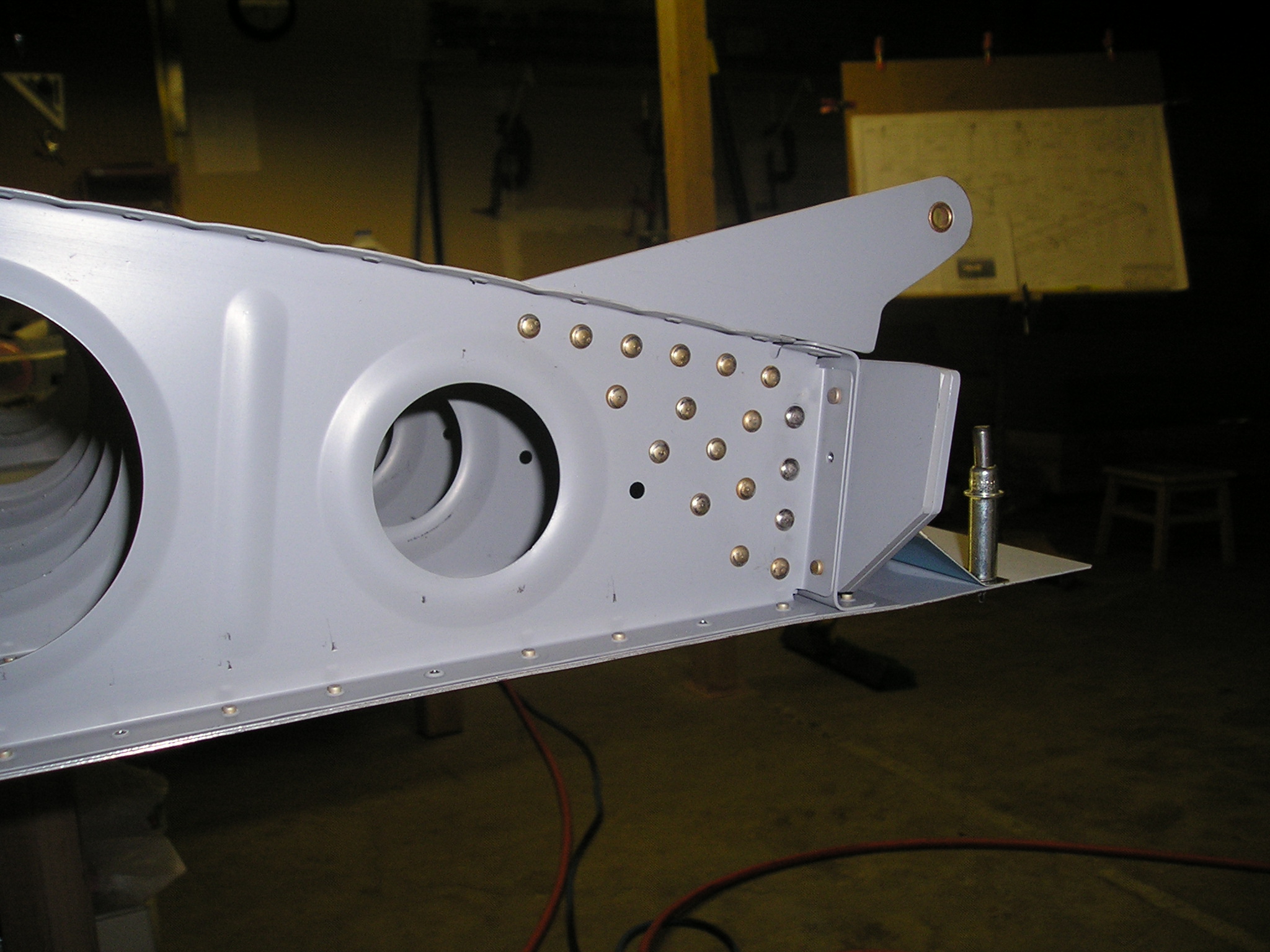

Finished inner flap hinge full size
I riveted the angles in place. This shows the inner hinge

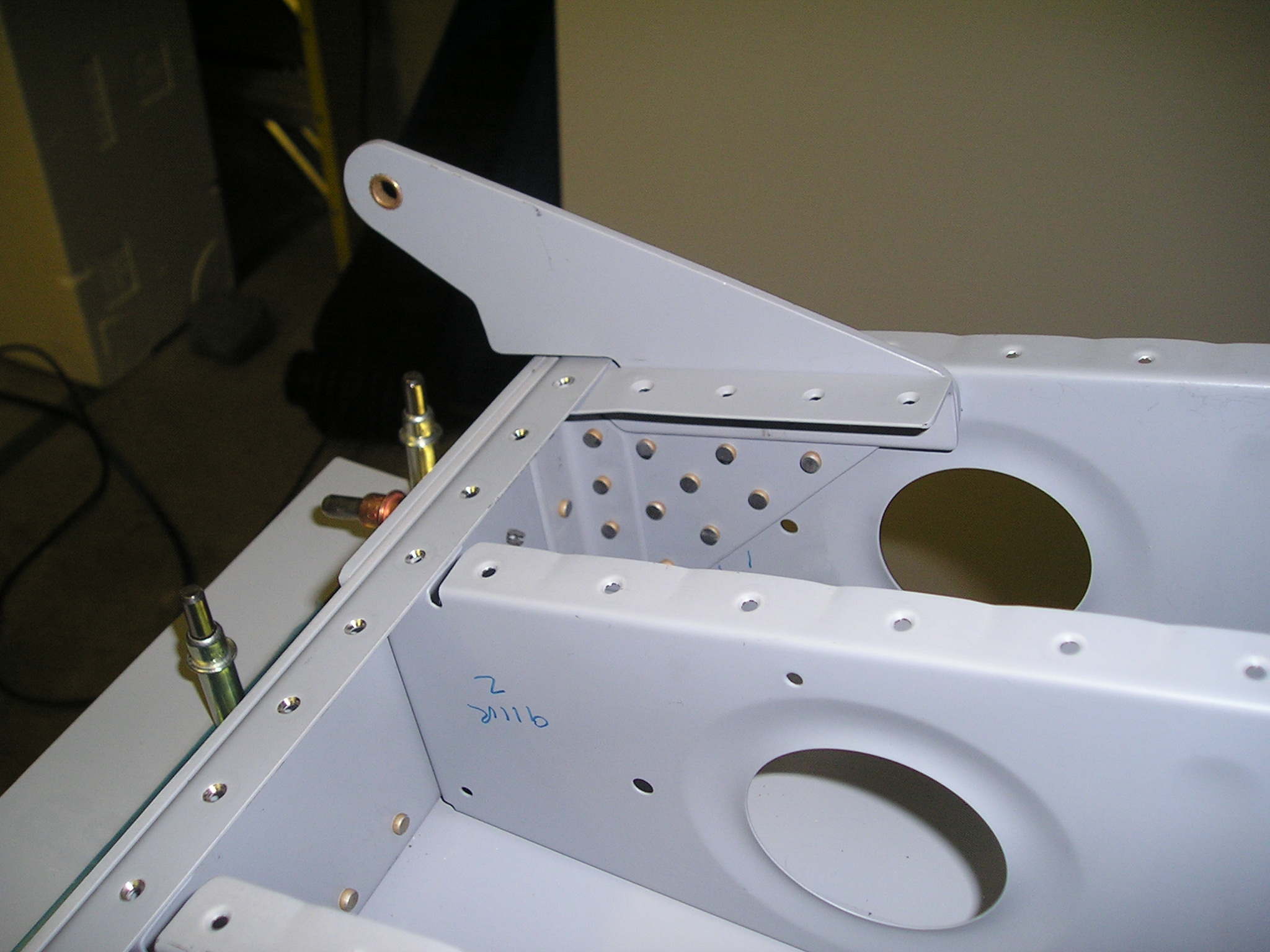

Inner flap hinge, another view full size
The other side of the inner hinge
