Aileron Hinges
2.0 Hours

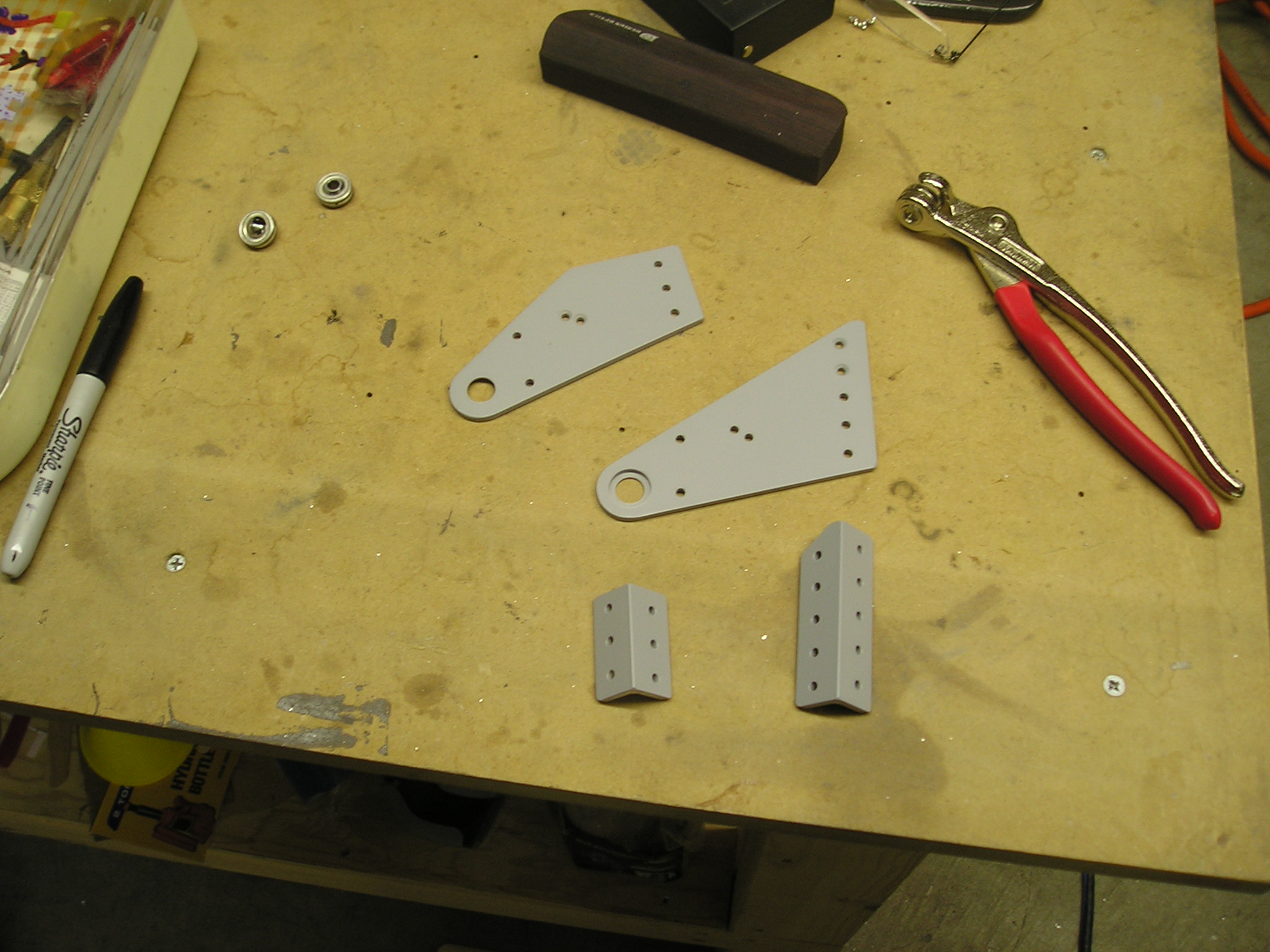

Inboard aileron hinge full size
The inboard hinge parts have been cleaned and primed

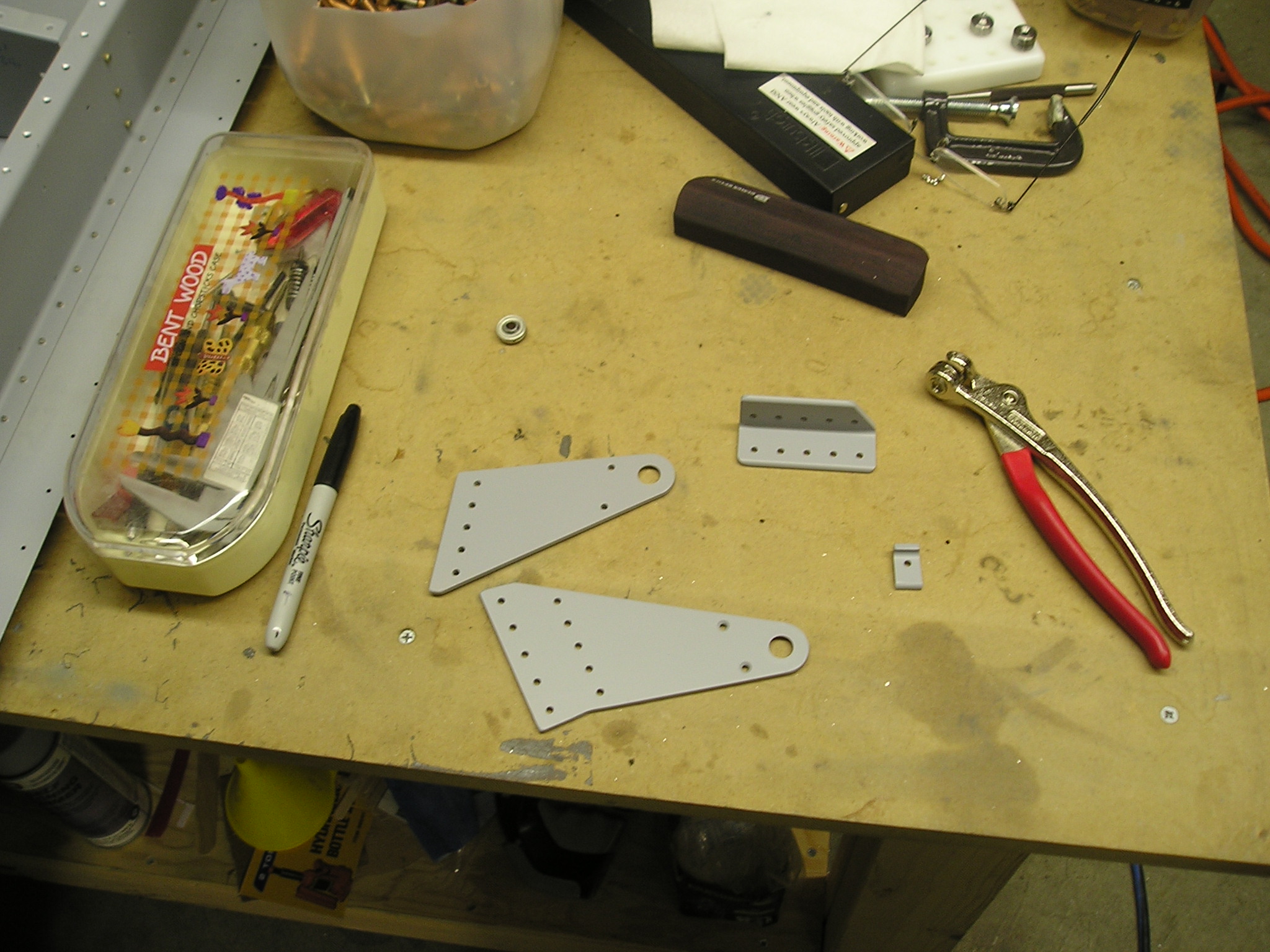

Outboard aileron hinge full size
The outboard hinge parts also cleaned and primed

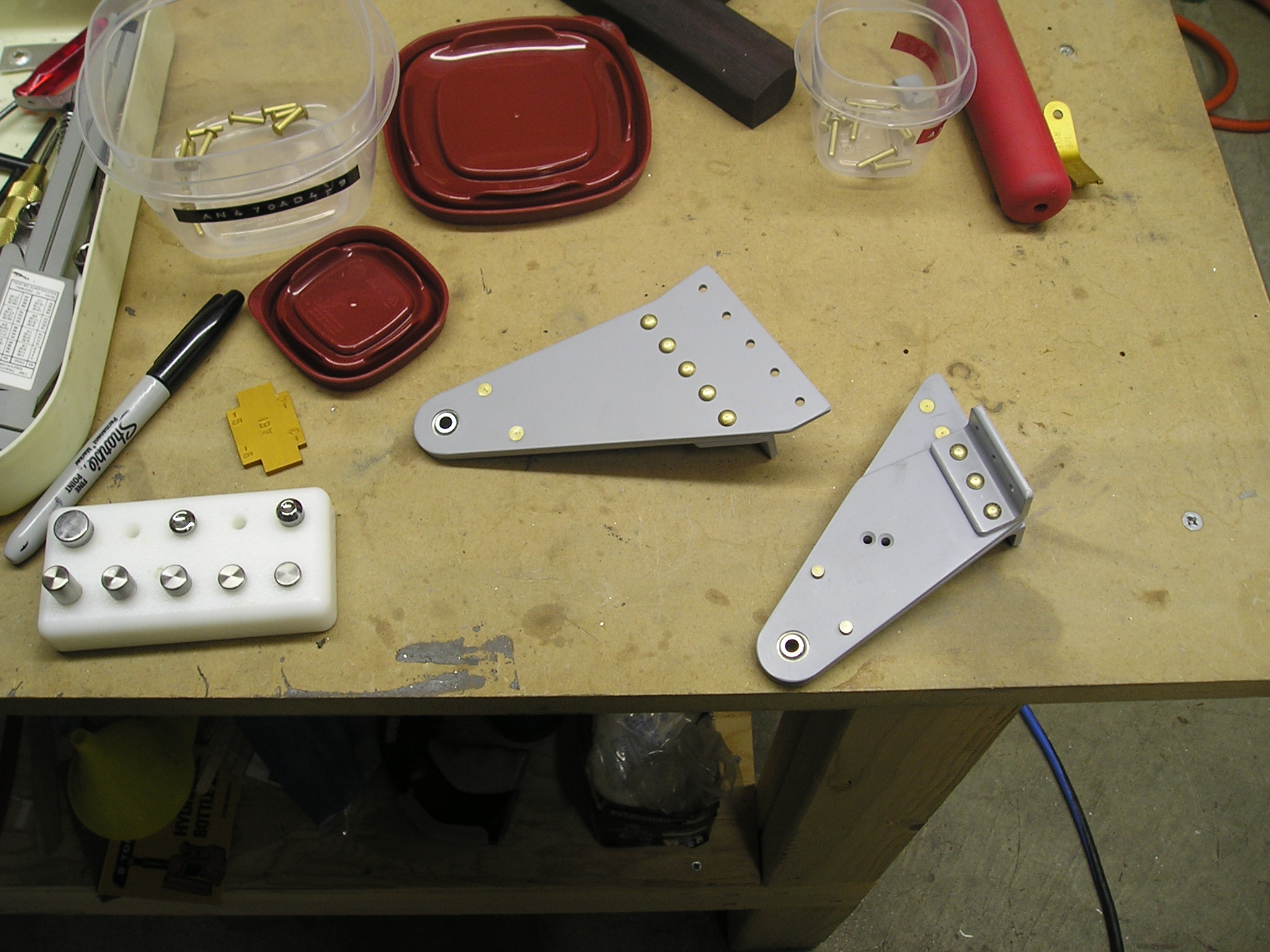

Hinges riveted together full size
First step is to rivet the assemblies together. Here are both of the hinges put together, ready to rivet to the wing.

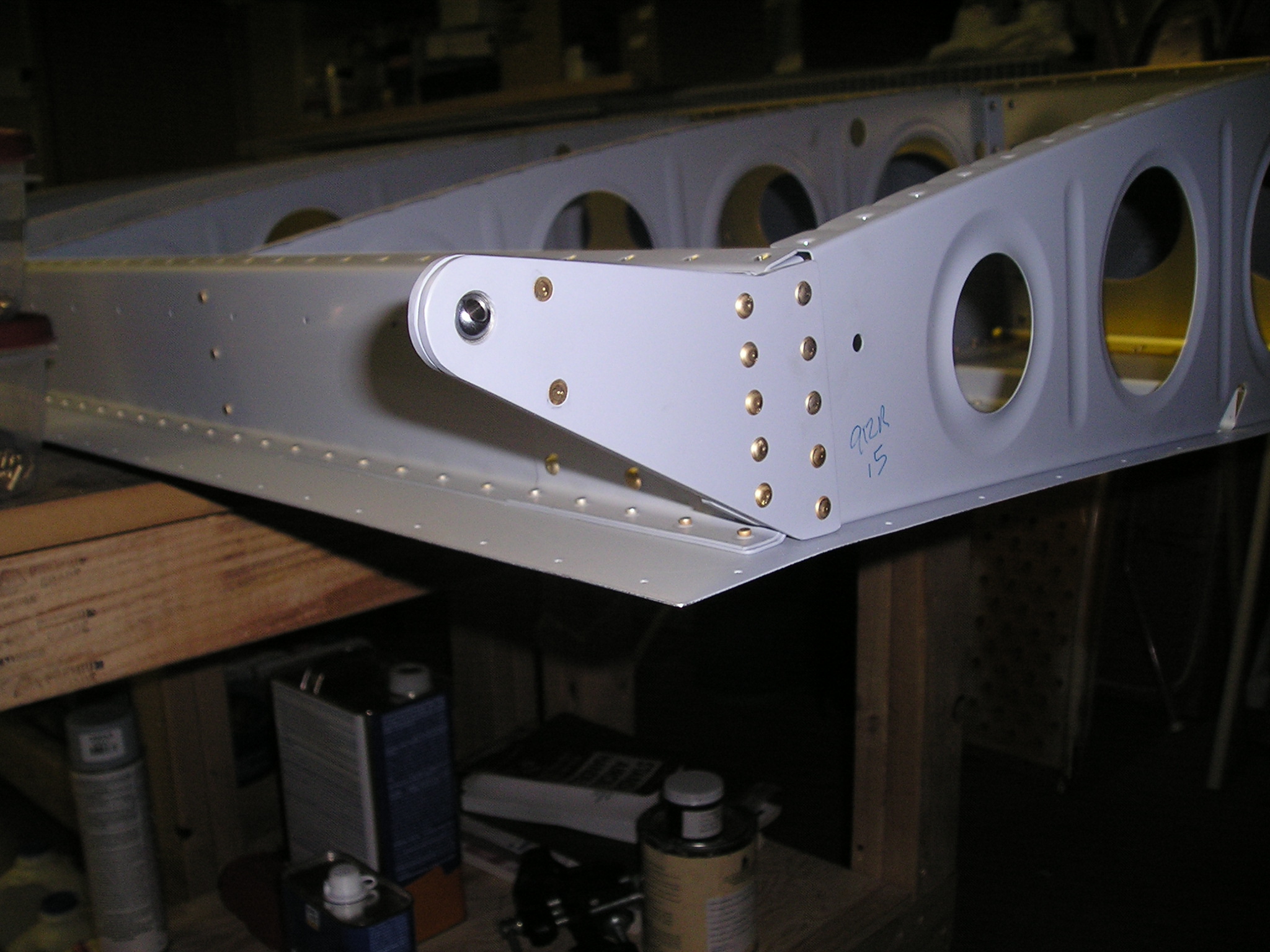

Outboard hinge full size
The outboard hinge is now riveted to the wing

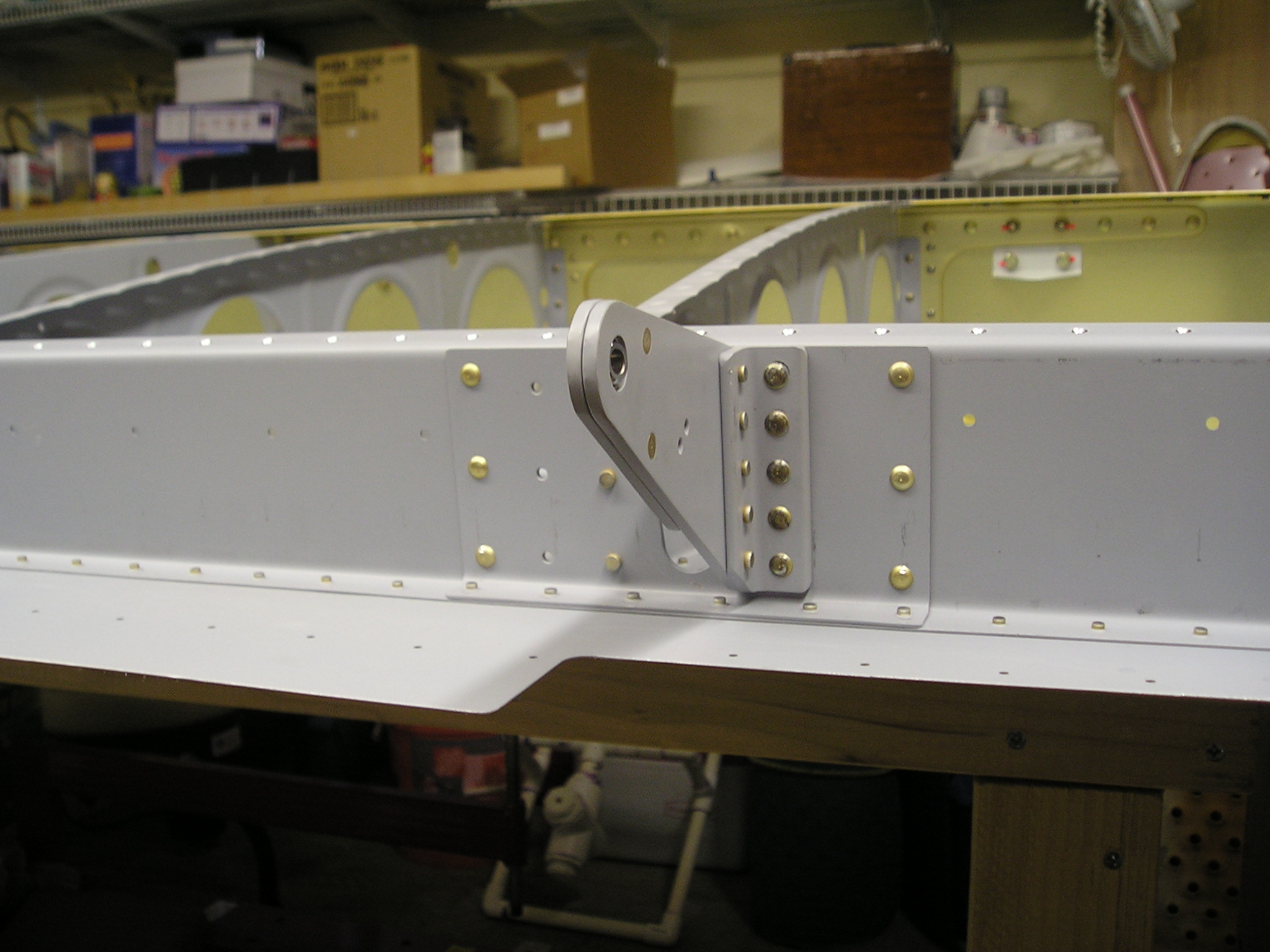

Inboard hinge full size
The inboard hinge is now riveted to the wing also.
