Fabricating fuel pickup tube

2.0 Hours

Fuel level pickup full size

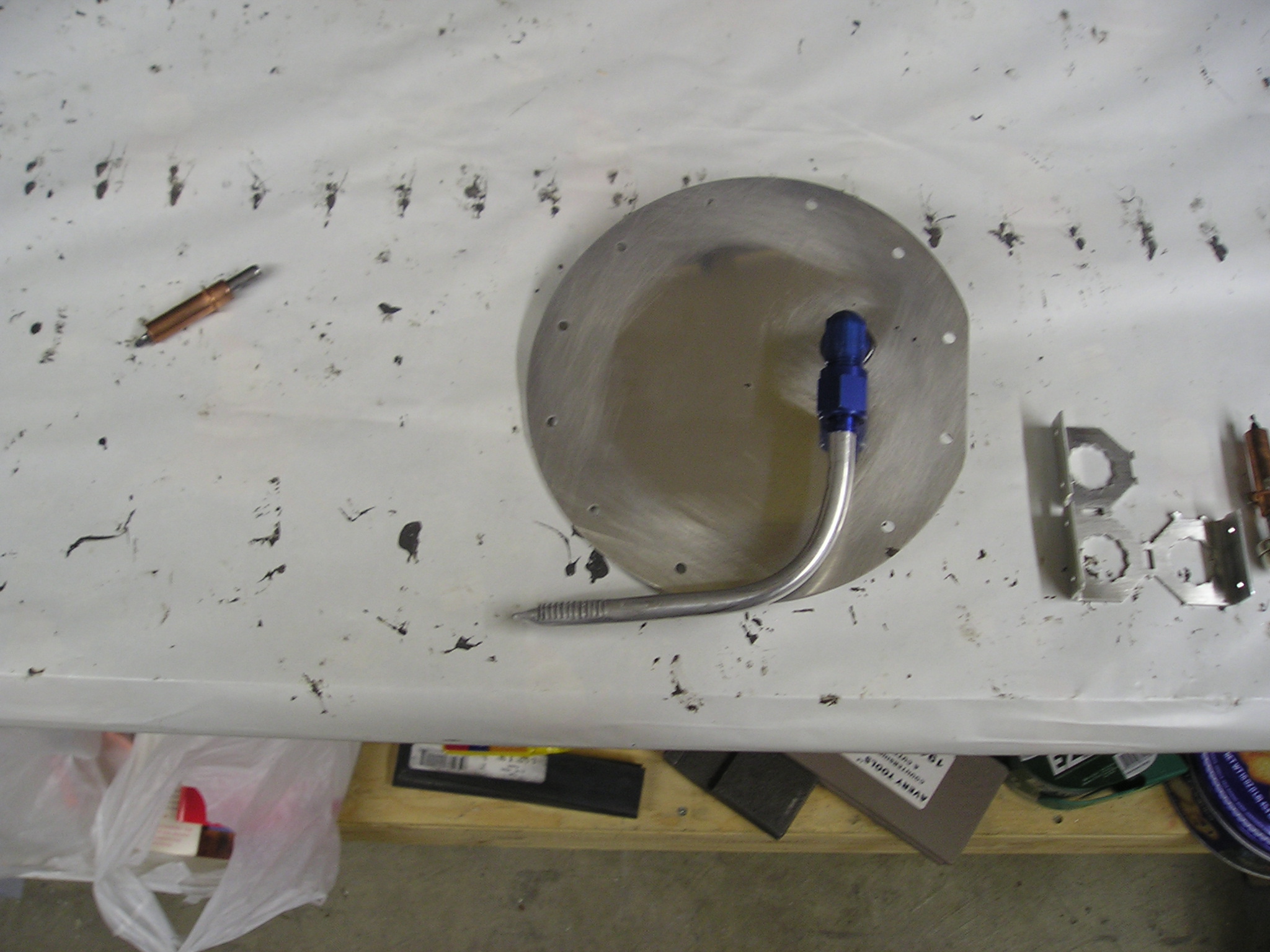

The fuel level pickup is made from a piece of tubing. Flare one end. Squeeze the other end shut, then make a series of saw cuts in the end of the tube for a crude strainer. I had to make it twice as I got the bend wrong the first time. Here it is on the tank cover.

Tank cover in place to verify fuel pickup tube full size

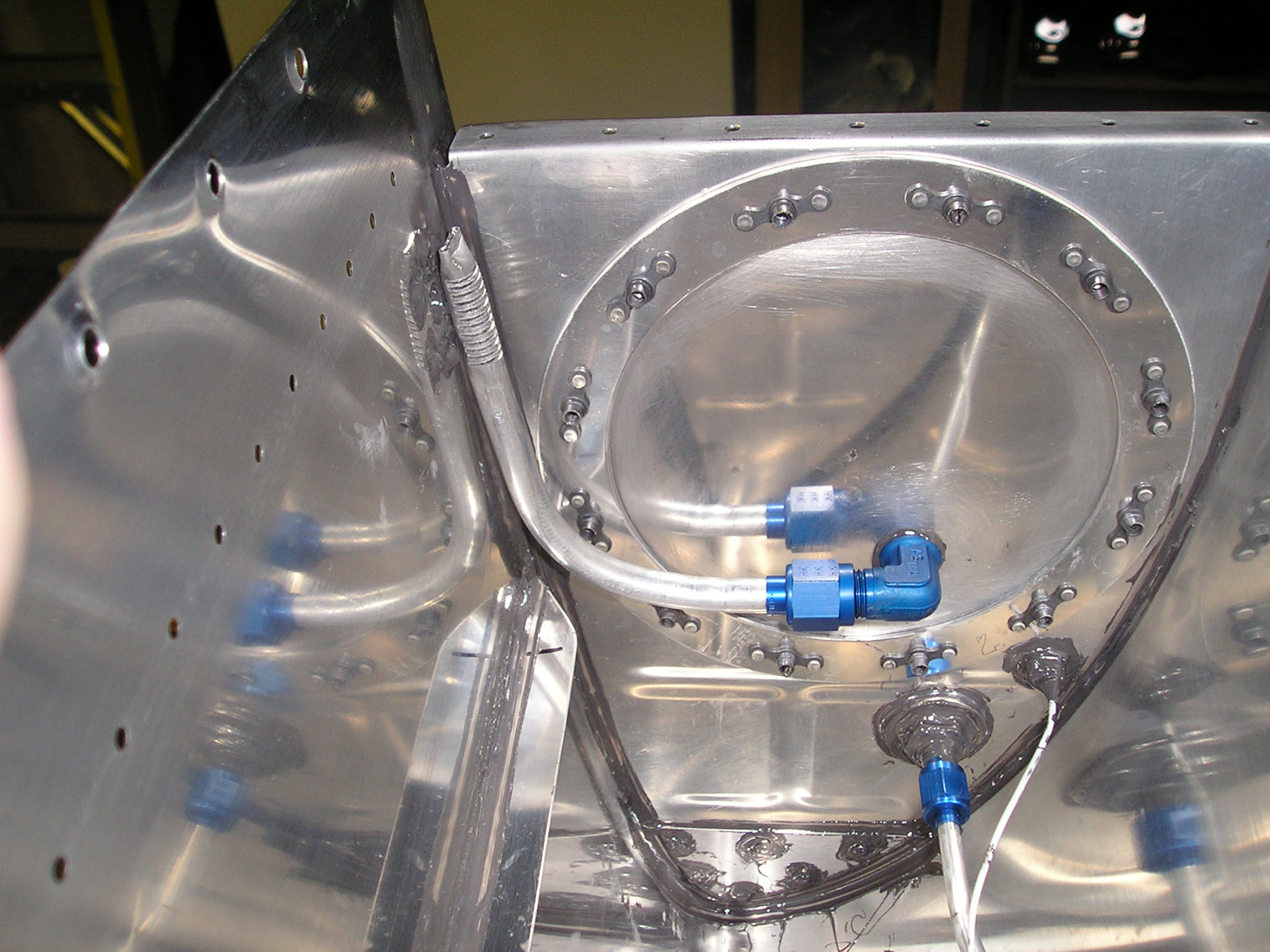

Temporarily screwed the cover on and fit the tube.

The anti-rotation bracket full size

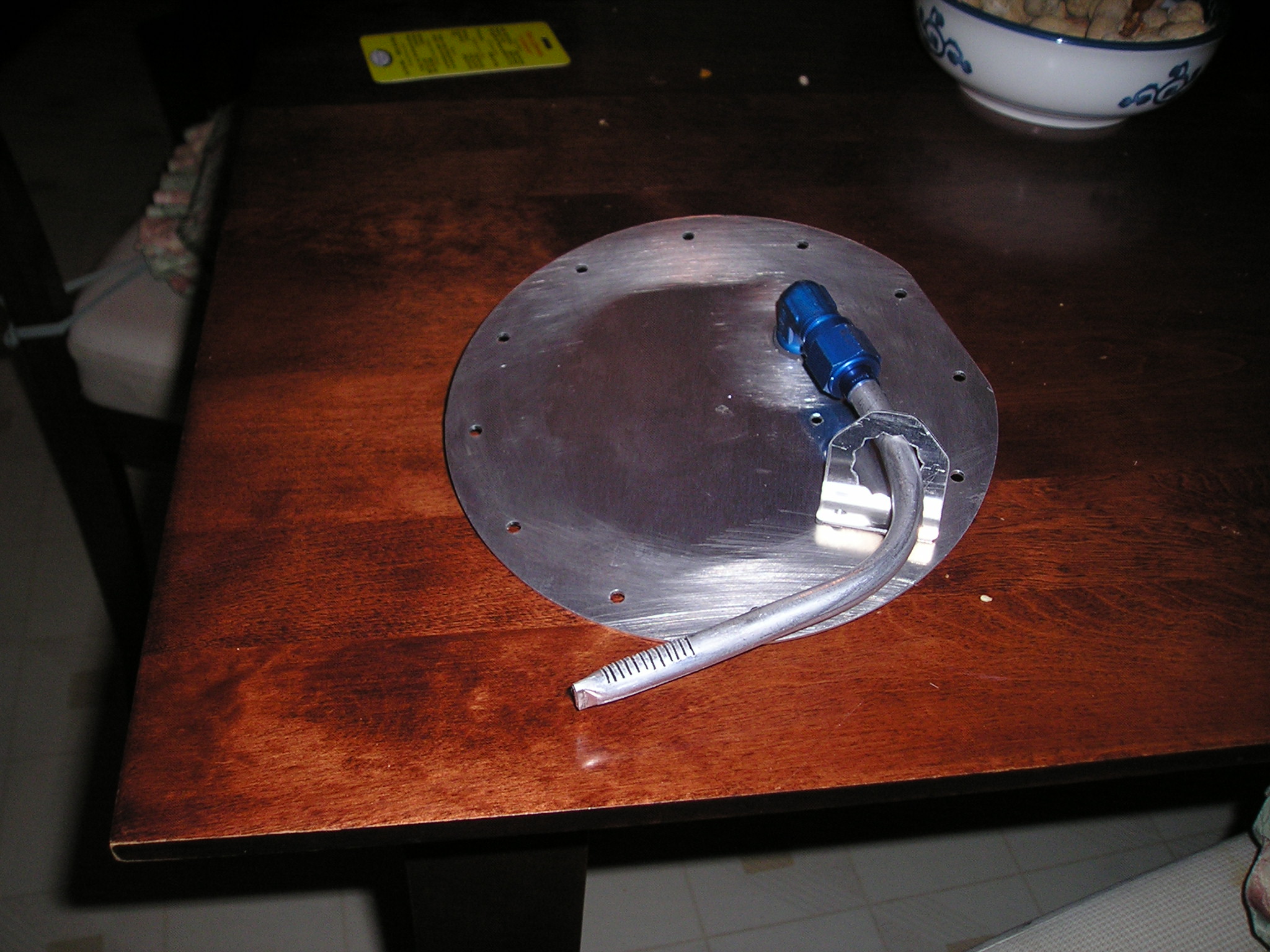

Next was selecting the right anti-rotation bracket from those provided. This will be riveted later.
