Installing baffle

3.2 Hours

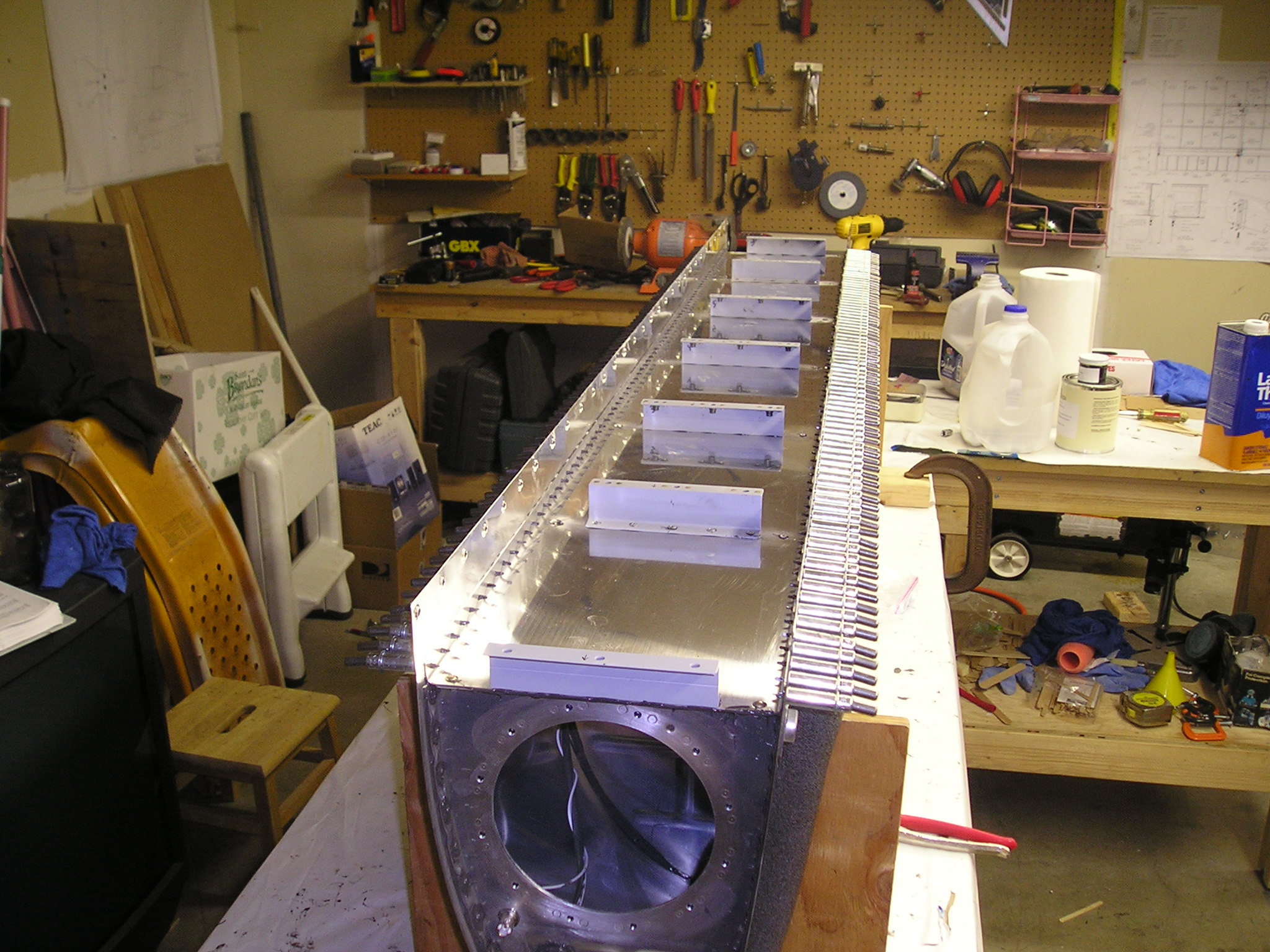

Baffle installed, T-912 brackets installed full size

Cleaned and scotch-brighted baffle and tank skin. Then installed the baffle with lots of black goo. Next installed the T-912 brackets and blind-riveted them into place. They also get some black goo. I also riveted the anti-rotation bracket on the tank cover (not shown).

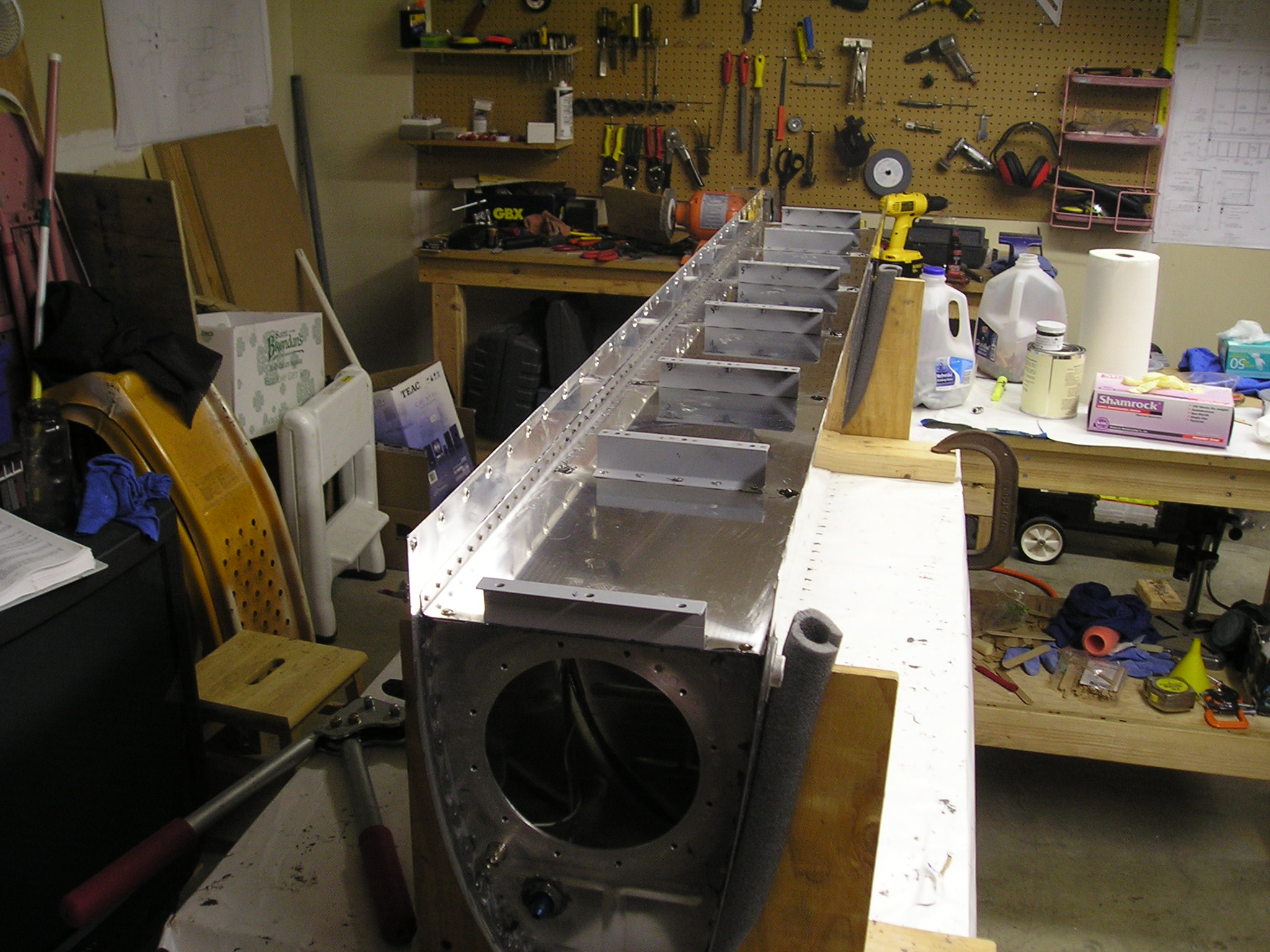

Baffle riveted full size

Riveted all the 3/32 rivets to the skin and baffle using the squeezer.
