20.7 Hours

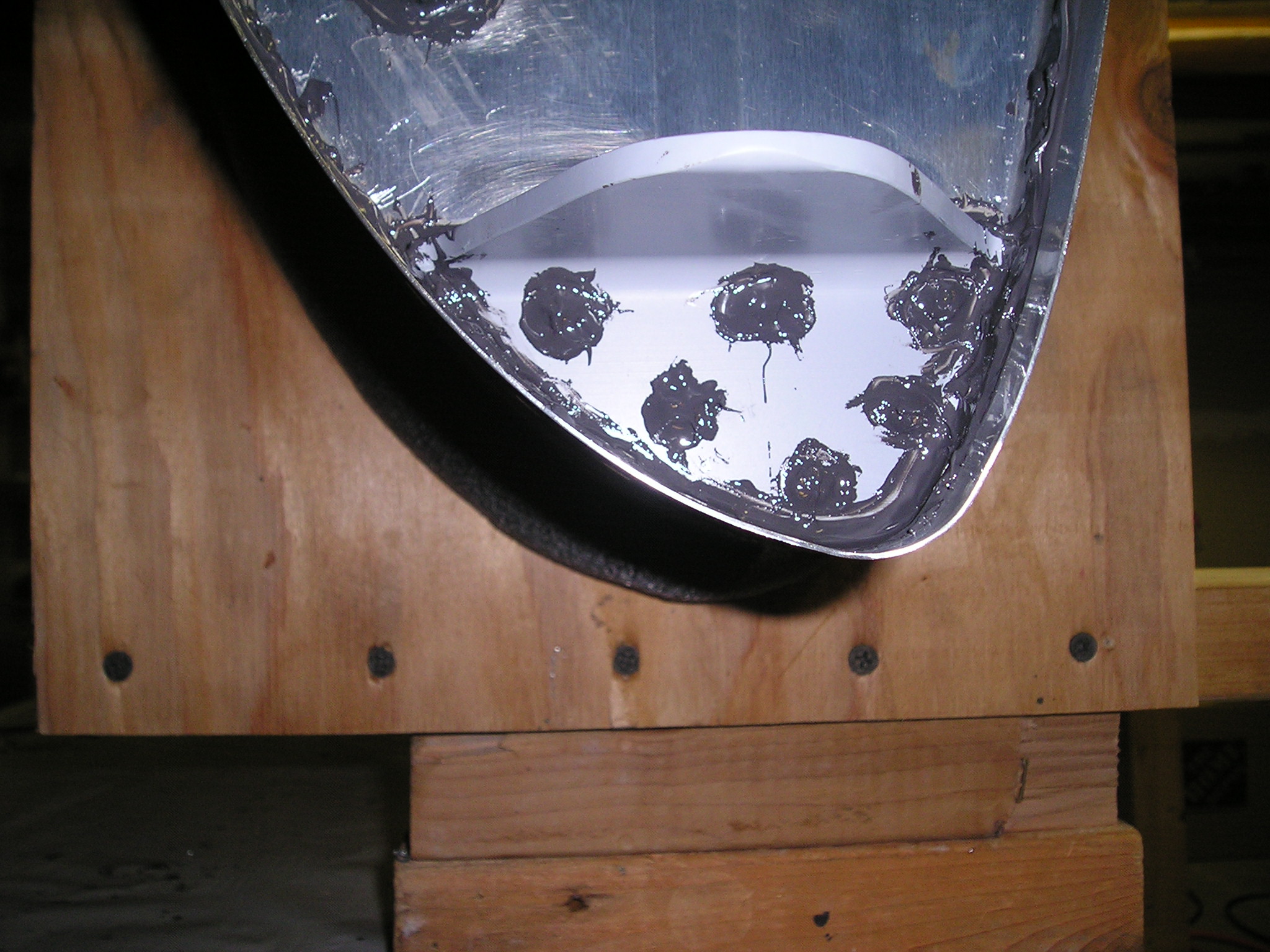

T-905R installed on inner rib

T-905R installed on inner rib full size

I accidently erased pictures, so this is a compilation of all the work done on 1/19, 1/23, 1/24, 1/28, 1/29, 1/30, 1/31, 2/1, 2/2, 2/5 and 2/6. I started by cleaning and scotchbrighting the fittings, and skin. Next was riveting on the stiffeners to the skin. Then more skin cleaning. Primed the z-brackets and T-905. Taped the skin for sealing the ribs. Then I started teh rib installation. I also between rib install, riveted the nutplates onto the T-912 brackets. When installing the outer rib, i also put on the tooling hole cover, and the BNC fitting and vent fitting on rib 1. Finally i riveted rib 1 into place with T-905R on the outside and T-410 on the inside.

Final rib installation

Final rib installation full size

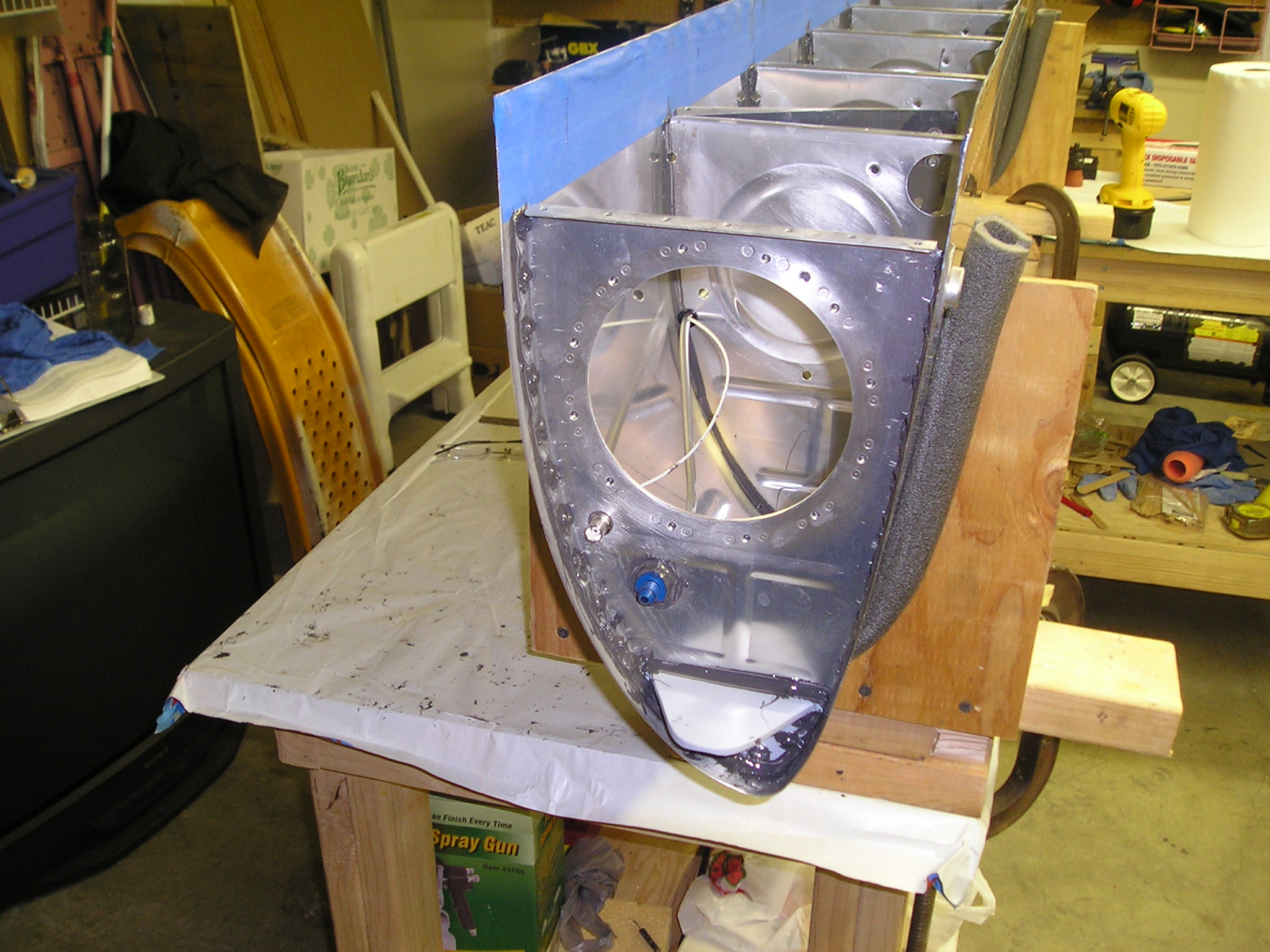

Here is rib 1 riveted into place.

Working on fuel level sensing

Working on fuel level sensing full size

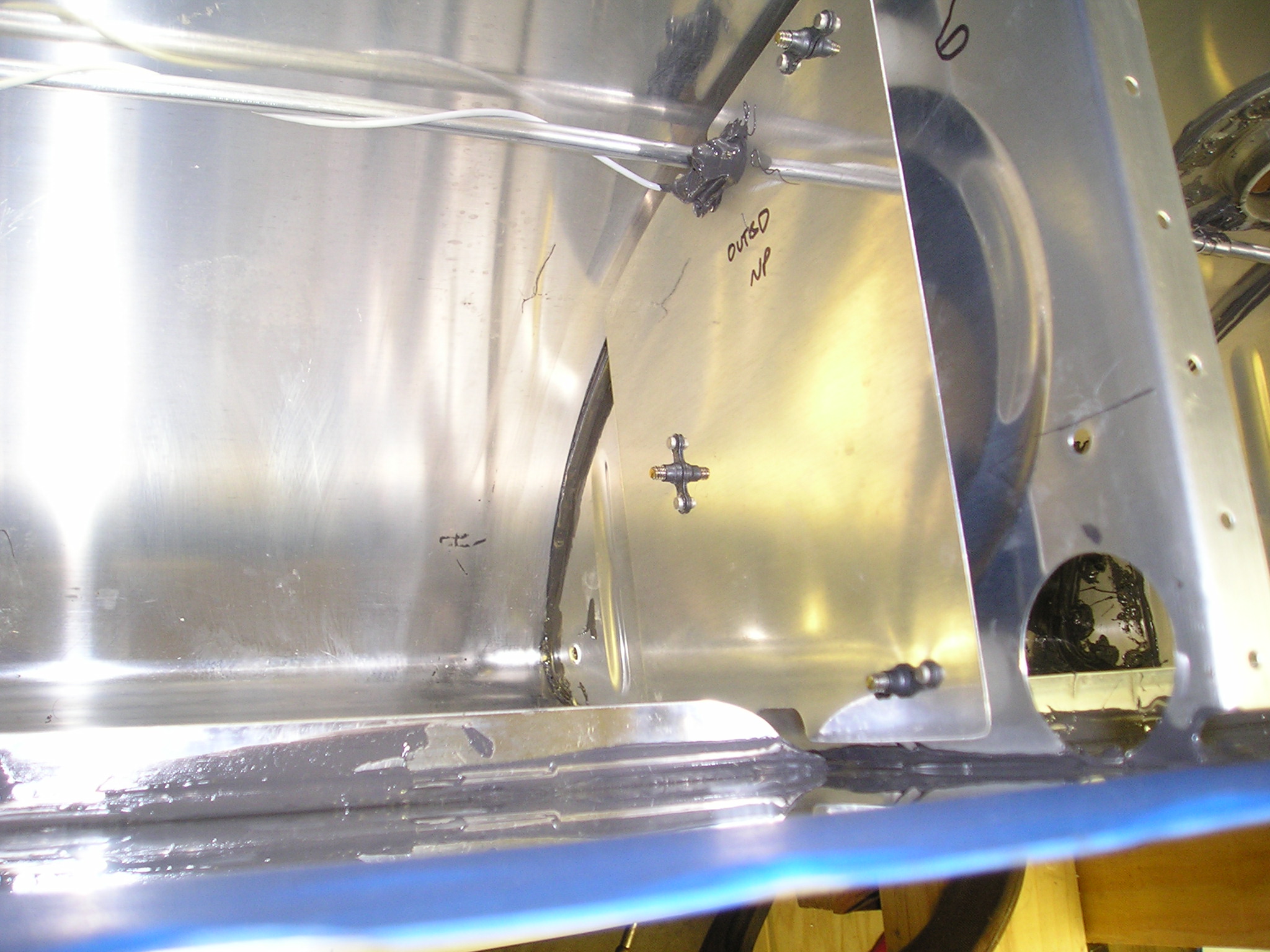

Here is the outer sensor plate installed so that I can run the wiring.

Outer sensor plate installed

Outer sensor plate installed full size

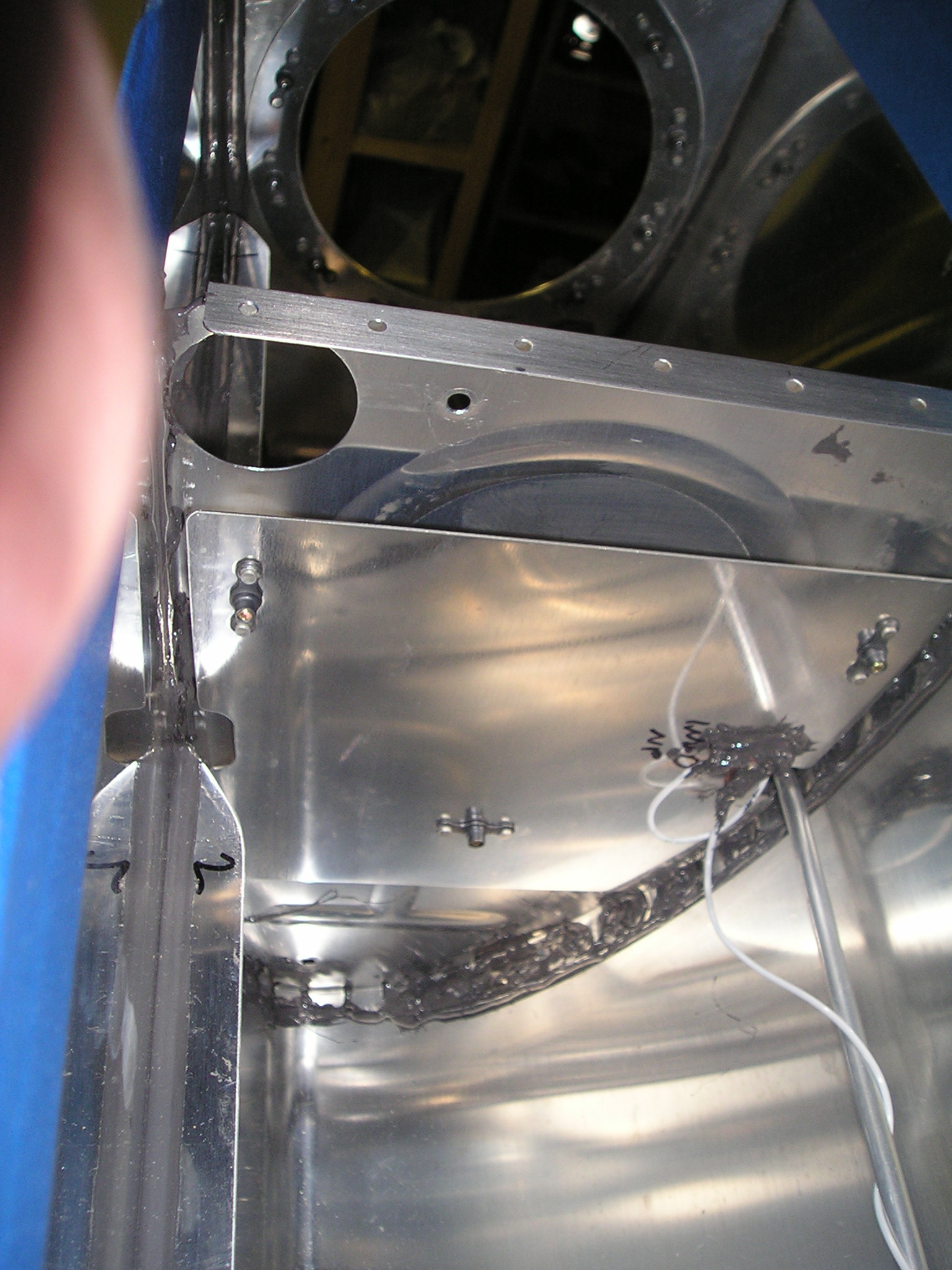

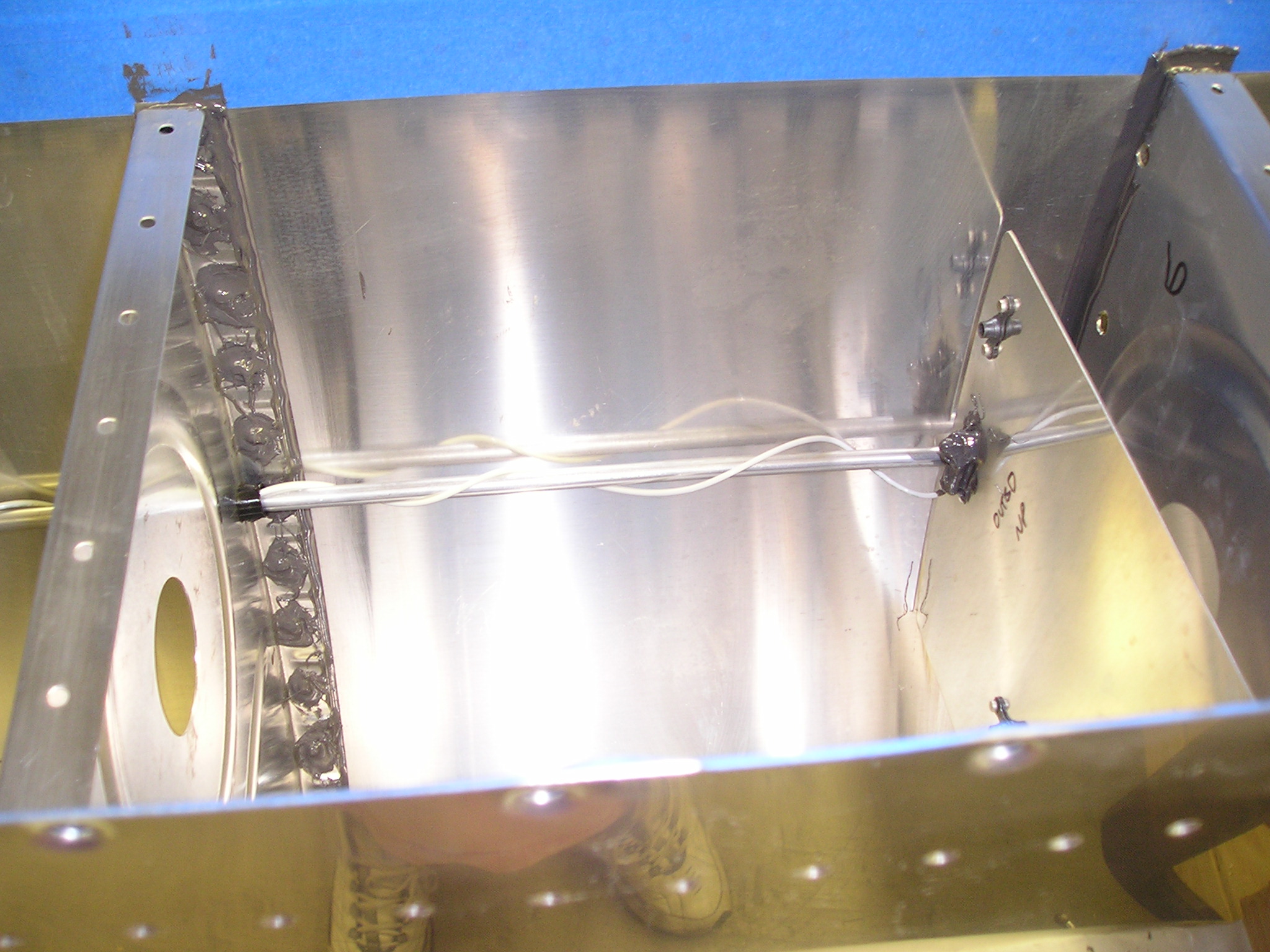

After running the wiring, bolted the plate onto the rib

Inner sensor plate

Inner sensor plate full size

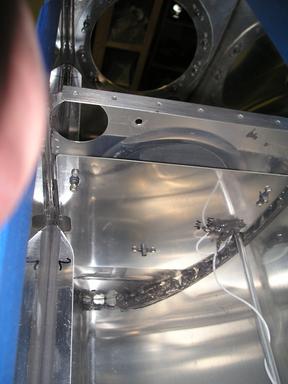

I soldered the connectors onto the wires, then screwed the wires to the plate. Then bolted the plate to the rib.
