Drilling upper skins

3.0 Hours

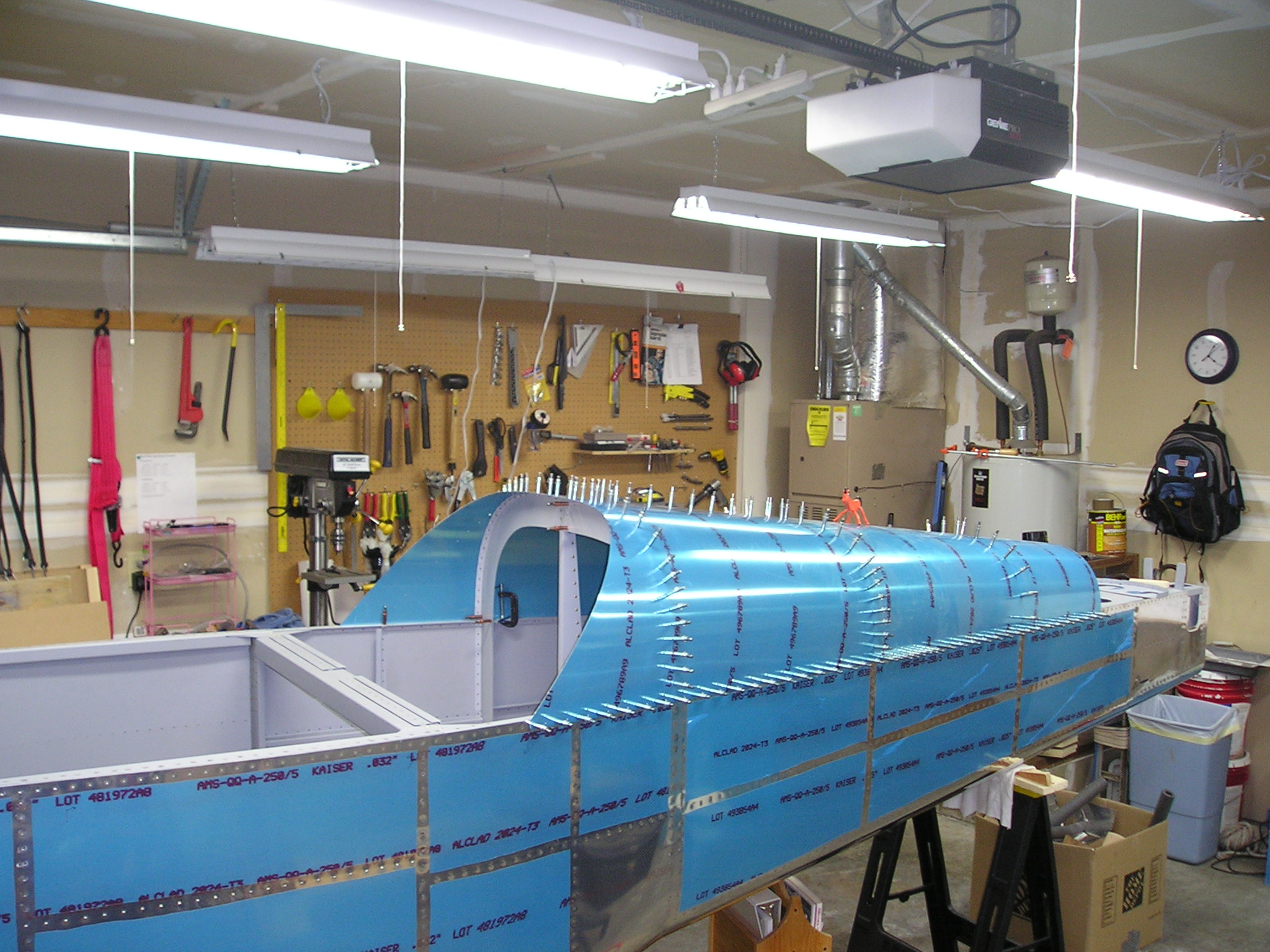

Cleco'd F-7112 upper skin in position full size

Put the upper skin in place. Drilled all holes common to skins and fuselage. Drilled the F-656-L/R to the F-706 bulkhead. Deburred and dimpled the bulkhead and gussets.

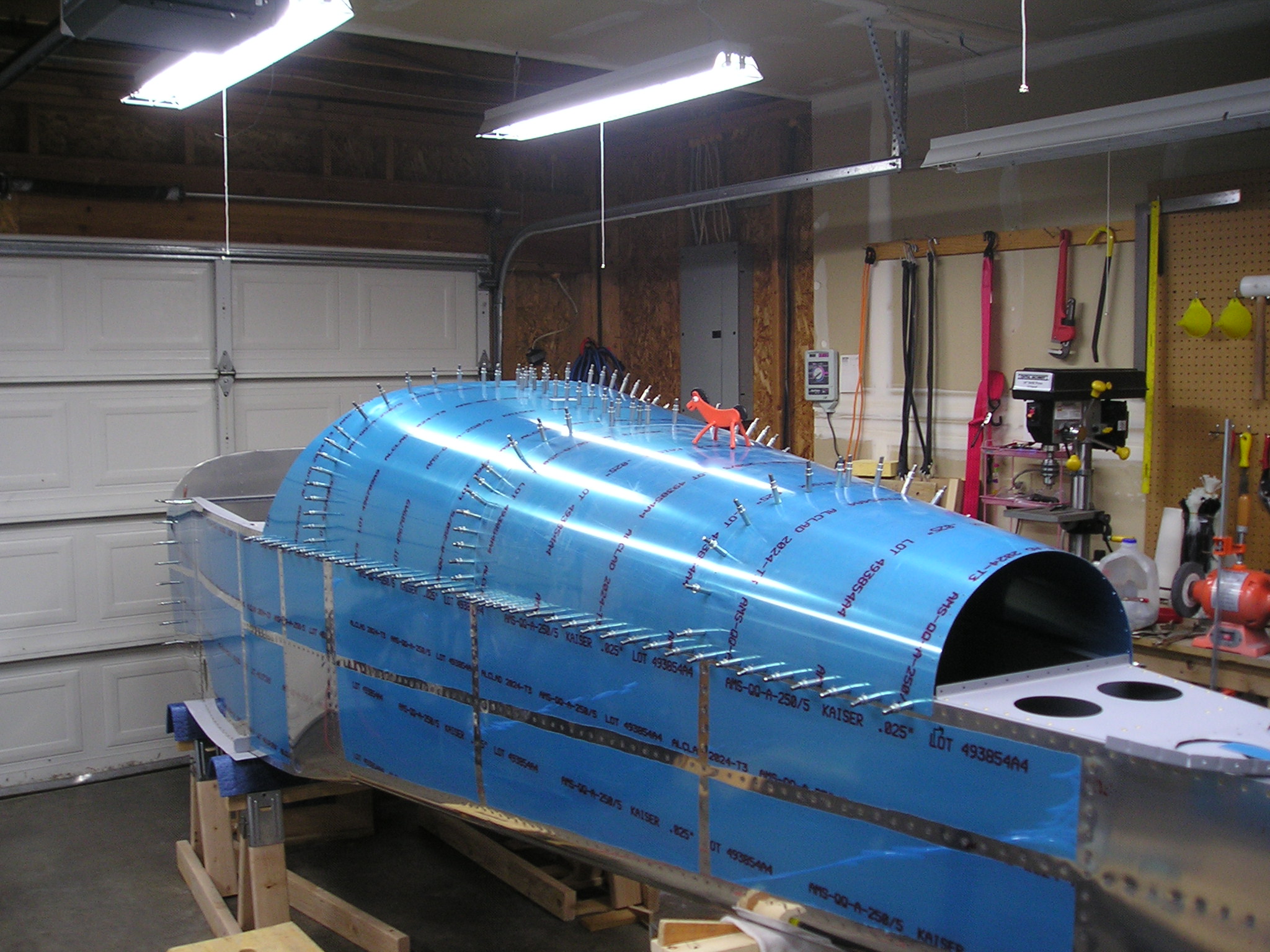

Another view of upper skins full size

ditto

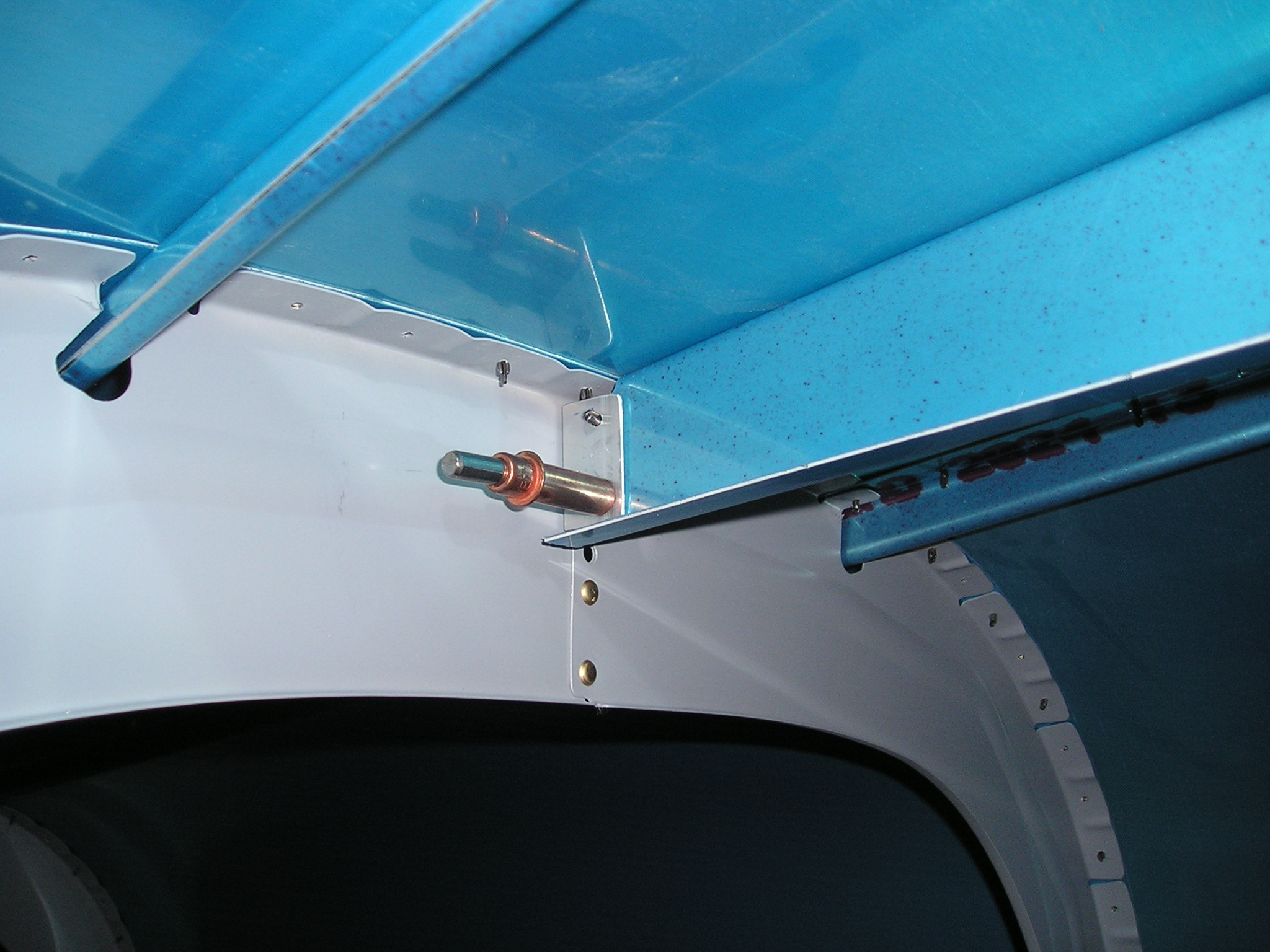

F-707B clip full size

Fabricated the F-707B clip, then drilled to the F-787 rib and F-707 bulkhead.

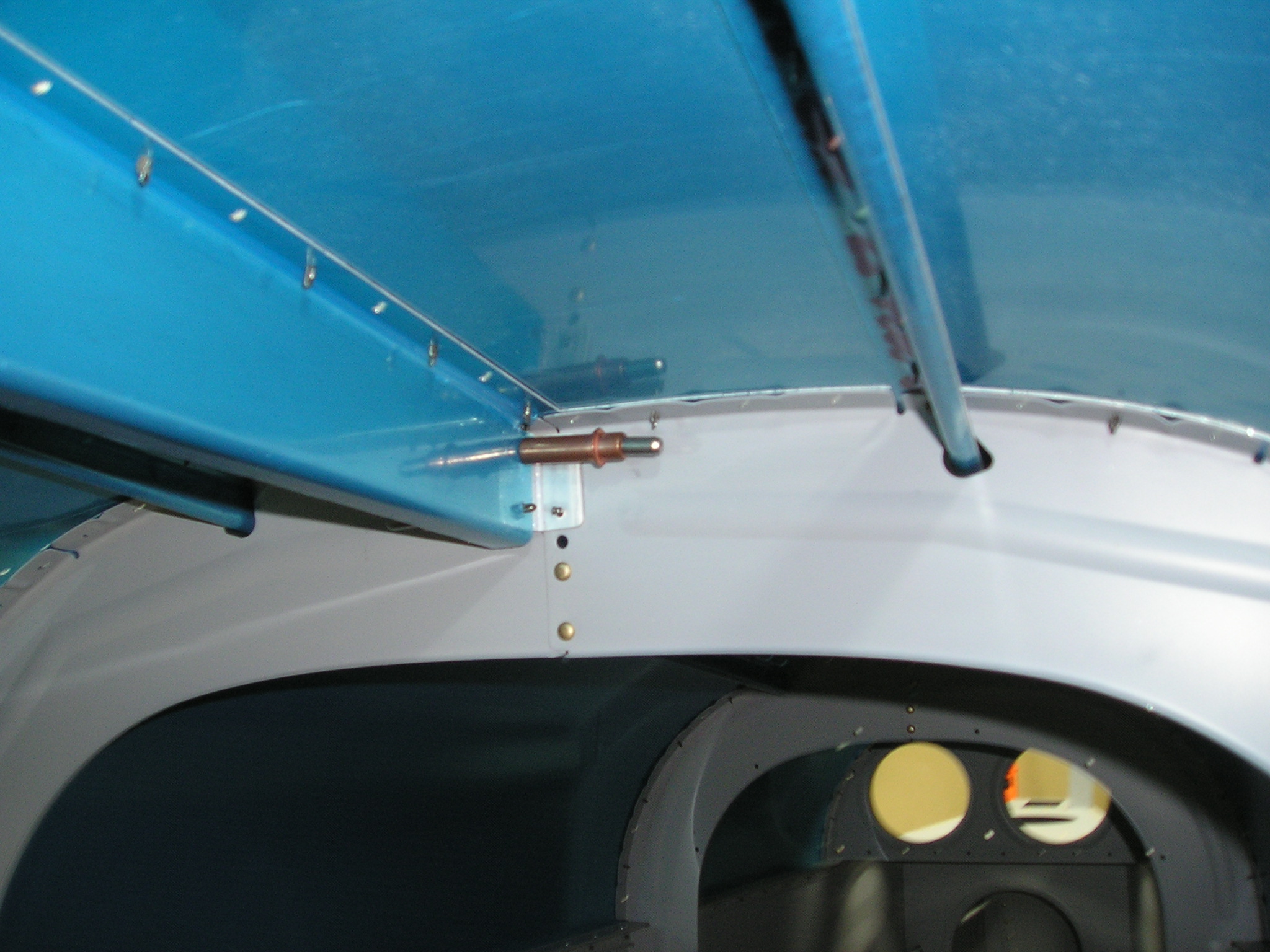

Other side of F-787 rib full size

Also cleaned and primed bellcrank parts
