2.5 Hours

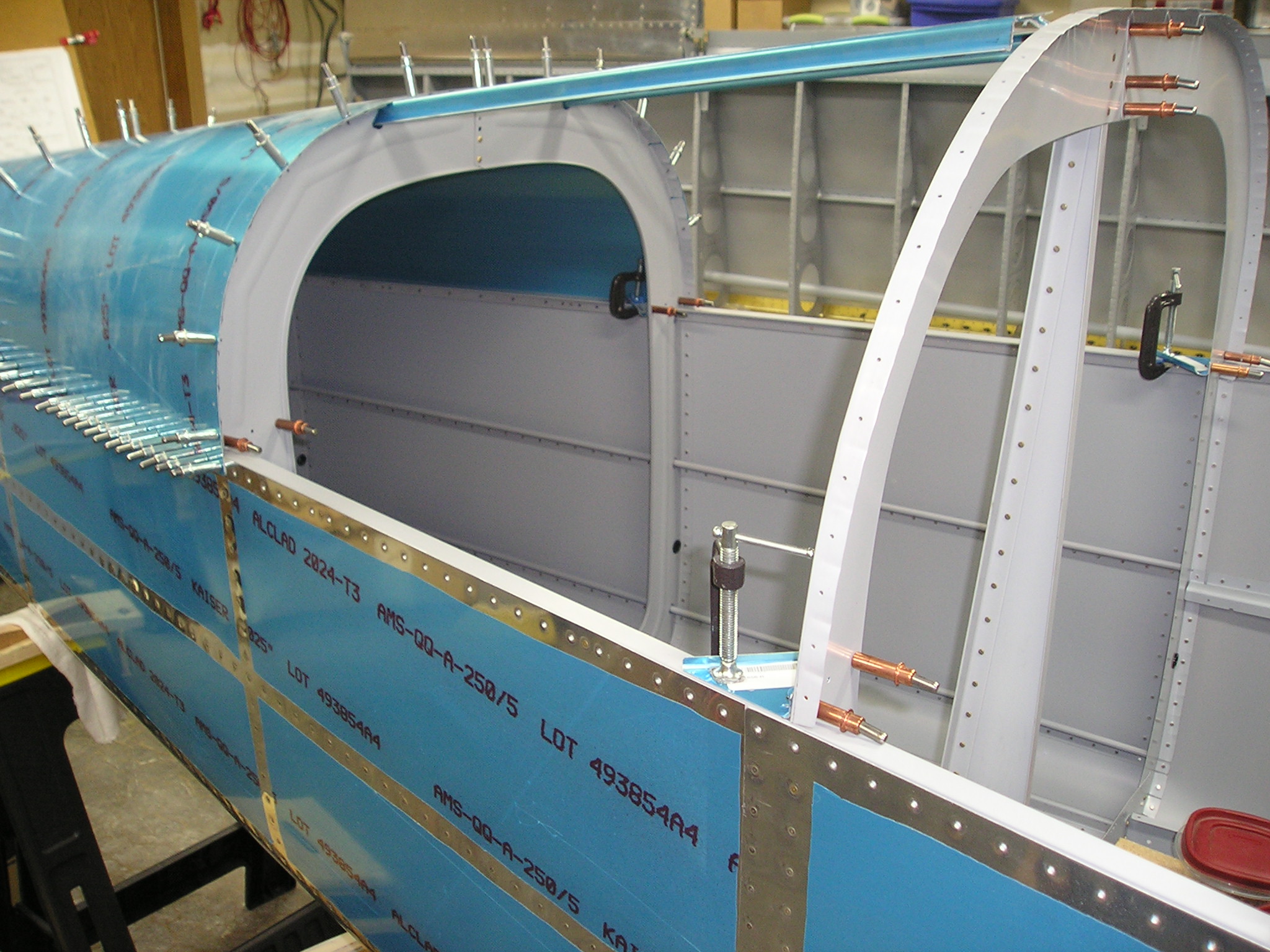

Fitting F-656 Gussets

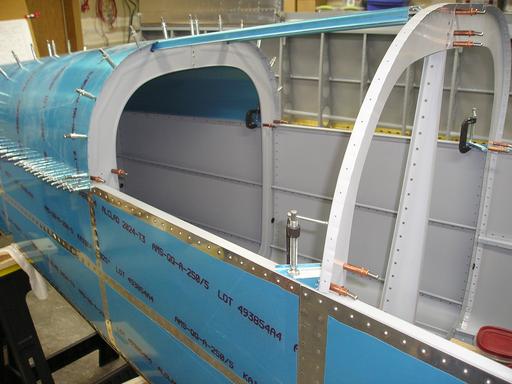

Fitting F-656 Gussets full size

Clamped these gussets in place. Drew a Centerline on the F-786A J stringers. I had cut them to length the same time as the ones in the tailcone many months ago. Cleco'd the F-775 skin into place

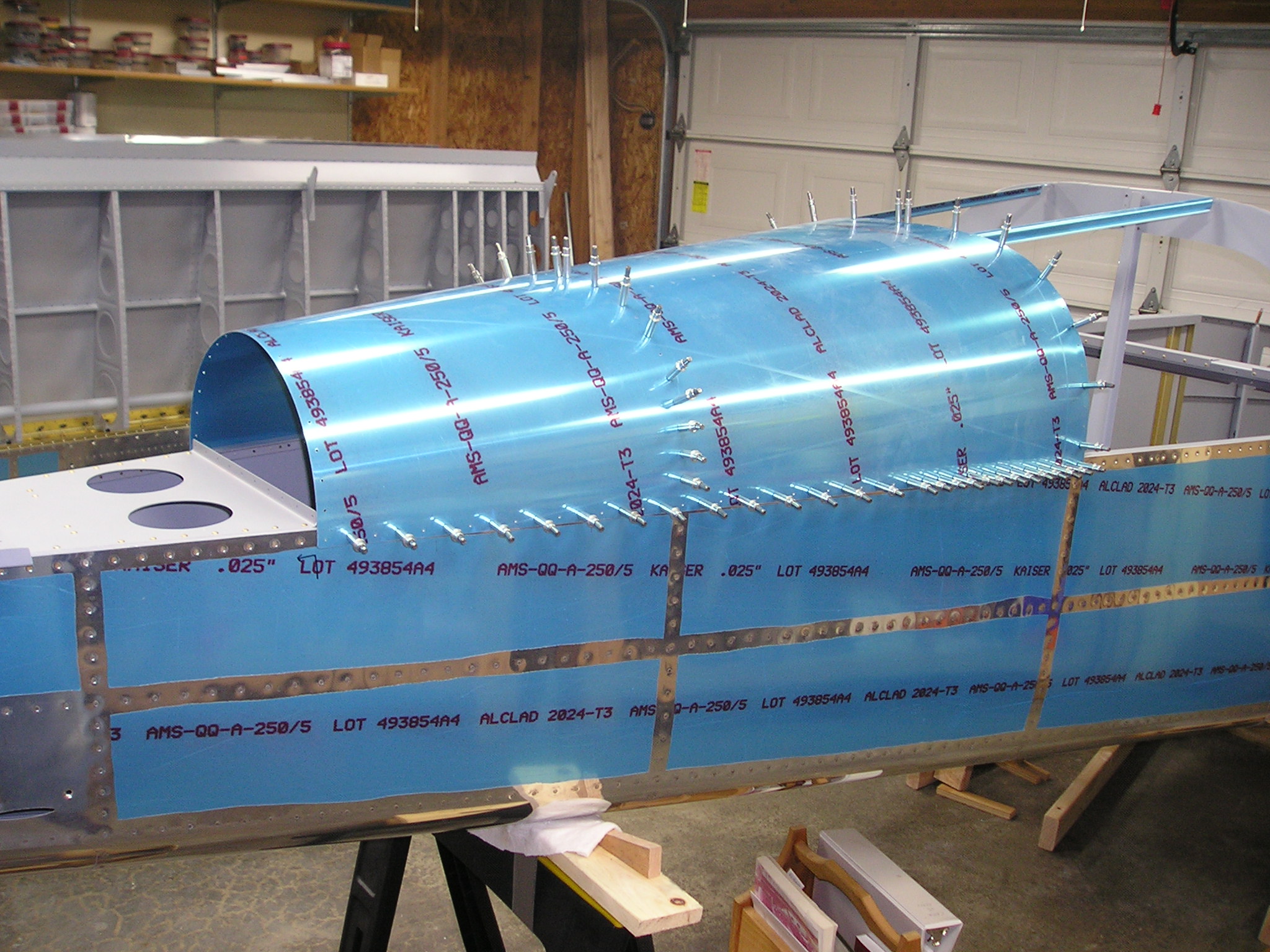

F-775 cleco'd in place

F-775 cleco'd in place full size

This skin is fit into place. Had to use a lot of cleco's to get it to come down into position. Drilled the F-656-L/R to the F-707 bulkhead when skin was in place.
