Bellcrank work
3.0 Hours

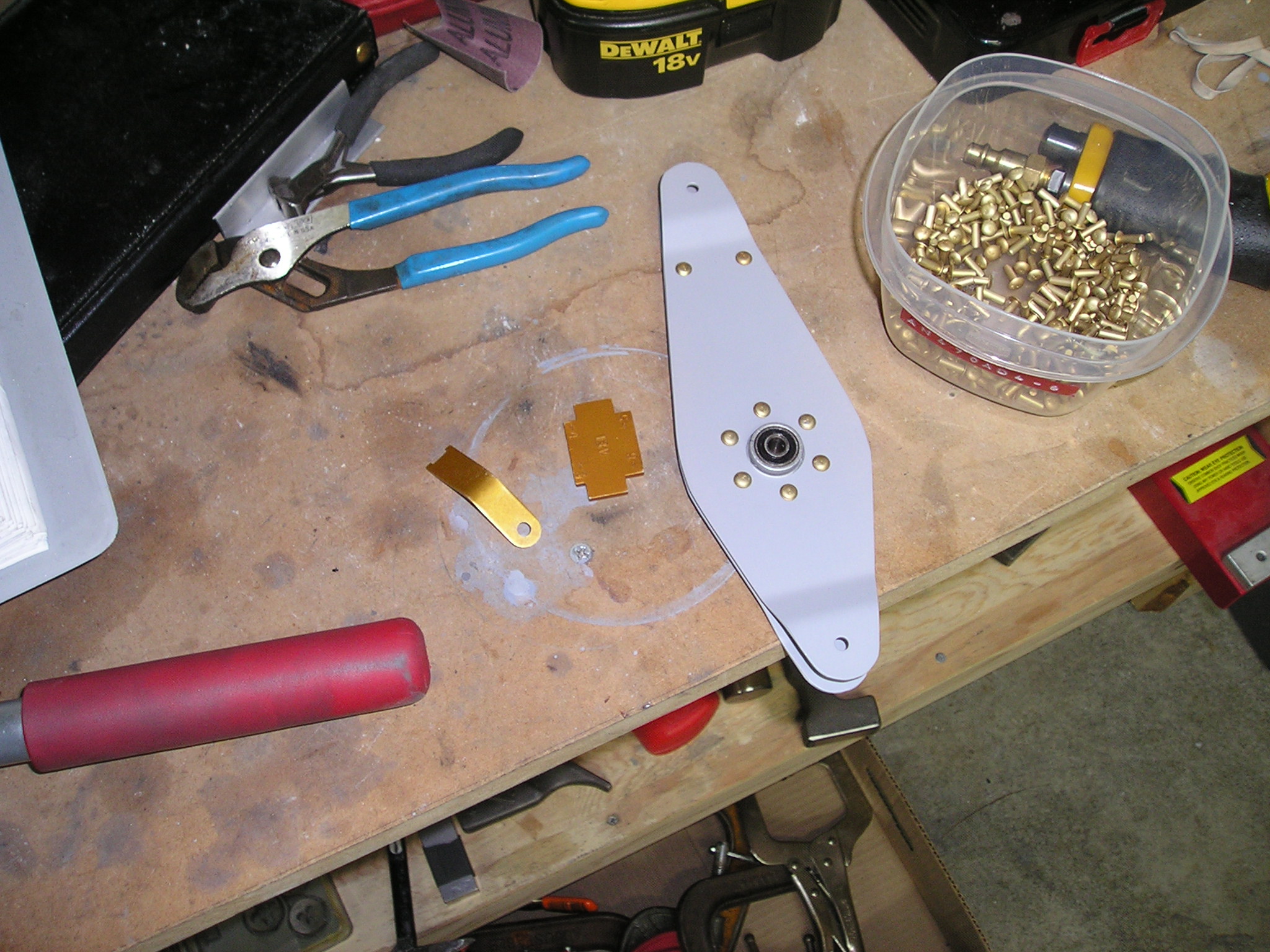

Bellcrank riveted together full size
Using the hand squeezer.

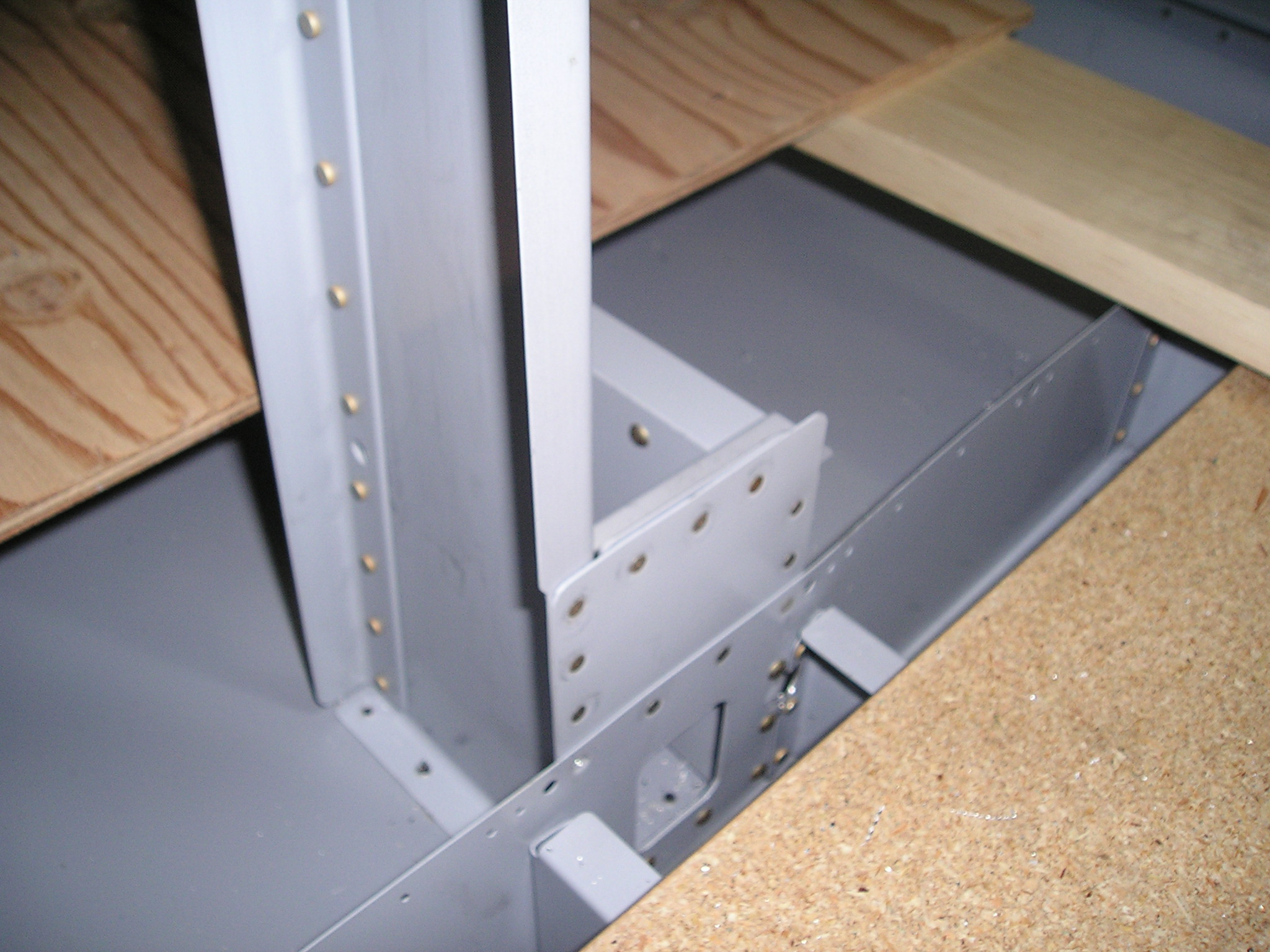

F-729C riveted full size
I had to make a new one of these as the old one was drilled incorrectly. Here is is in place and riveted. Also riveted the F-728A to the fuselage.

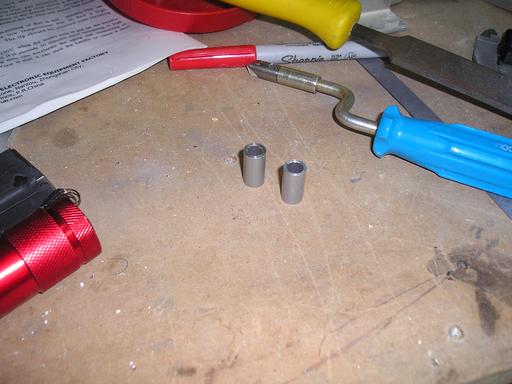

F-635C spacers full size
These go on either side of the bellcrank.

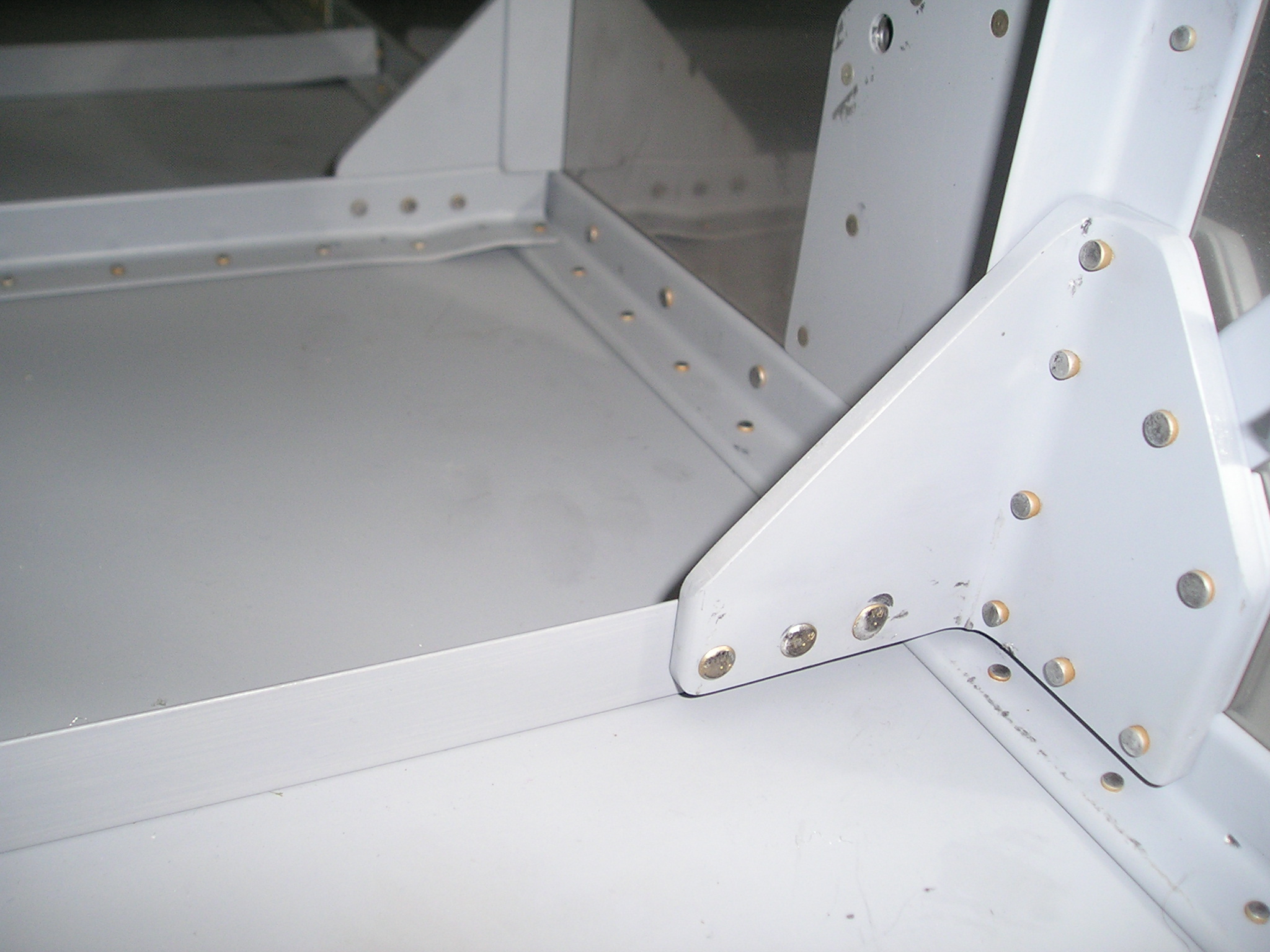

Riveting F-972B full size
Finished riveting the F-972B-L/R to the carry through bulkhead brackets.

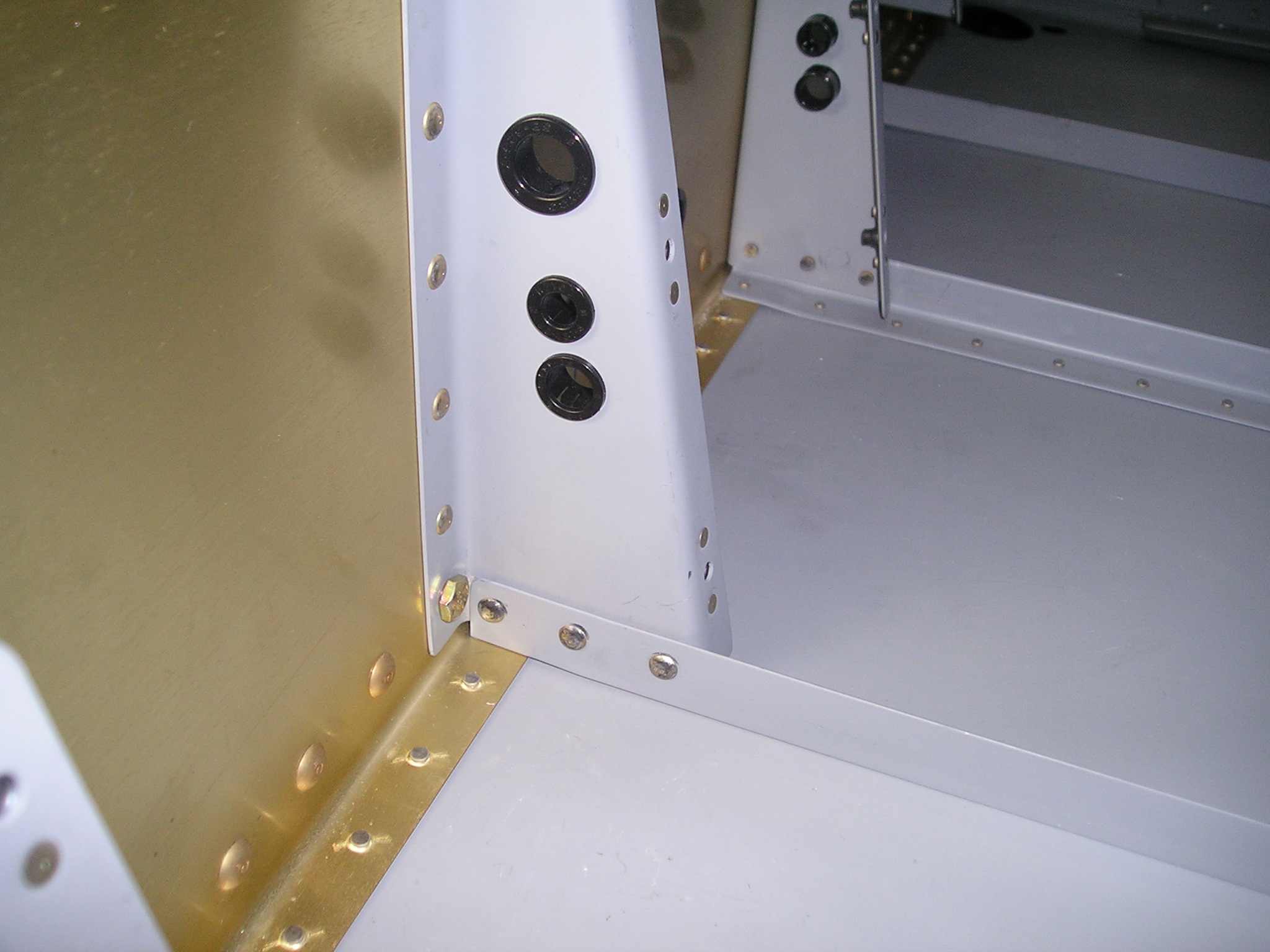

More riveting F-972B full size
The other end of the F-972B-L/R are riveted to the brackets on the firewall.

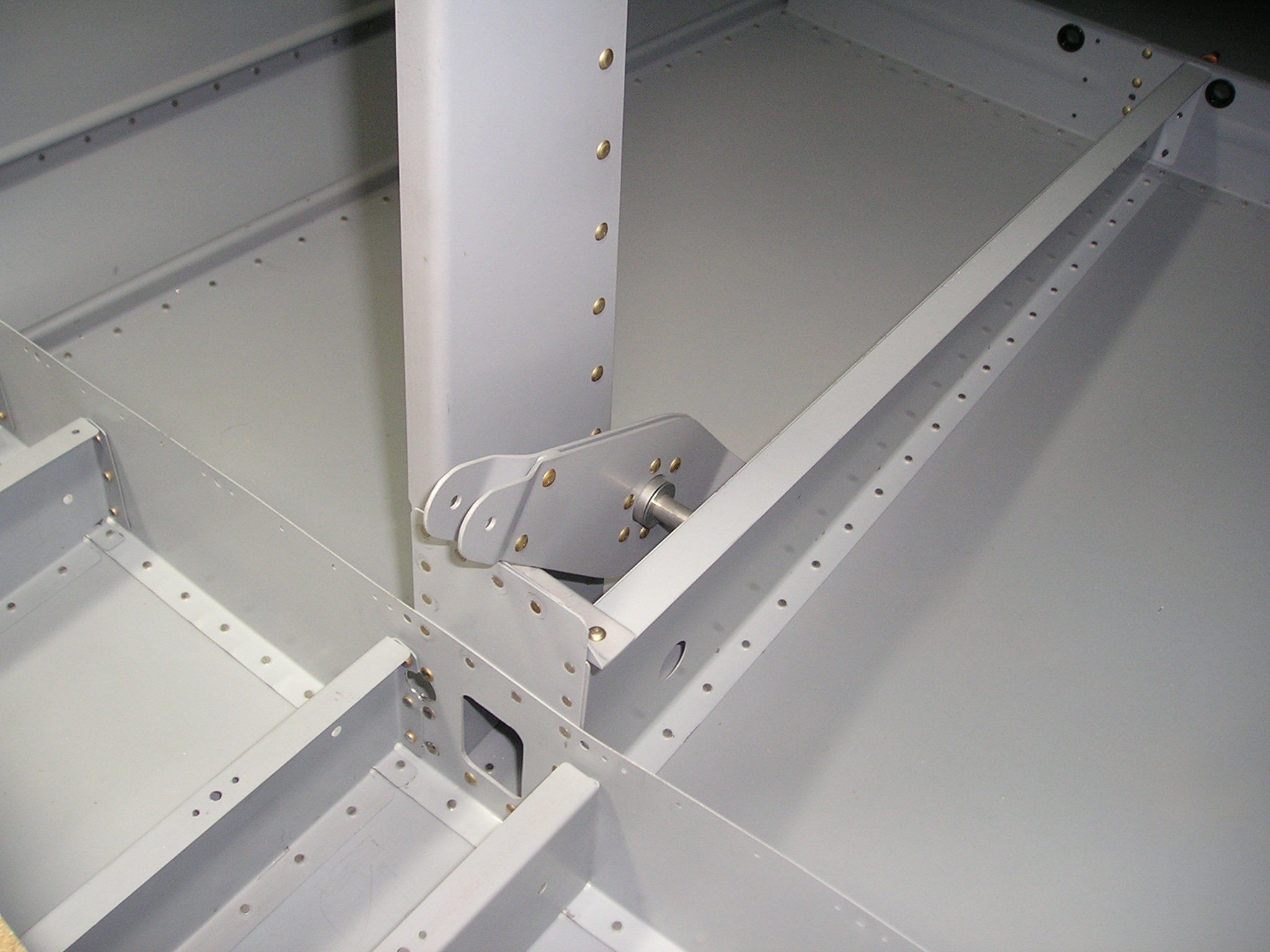

Bellcrank test fitting full size
The bellcrank fit and put into place
