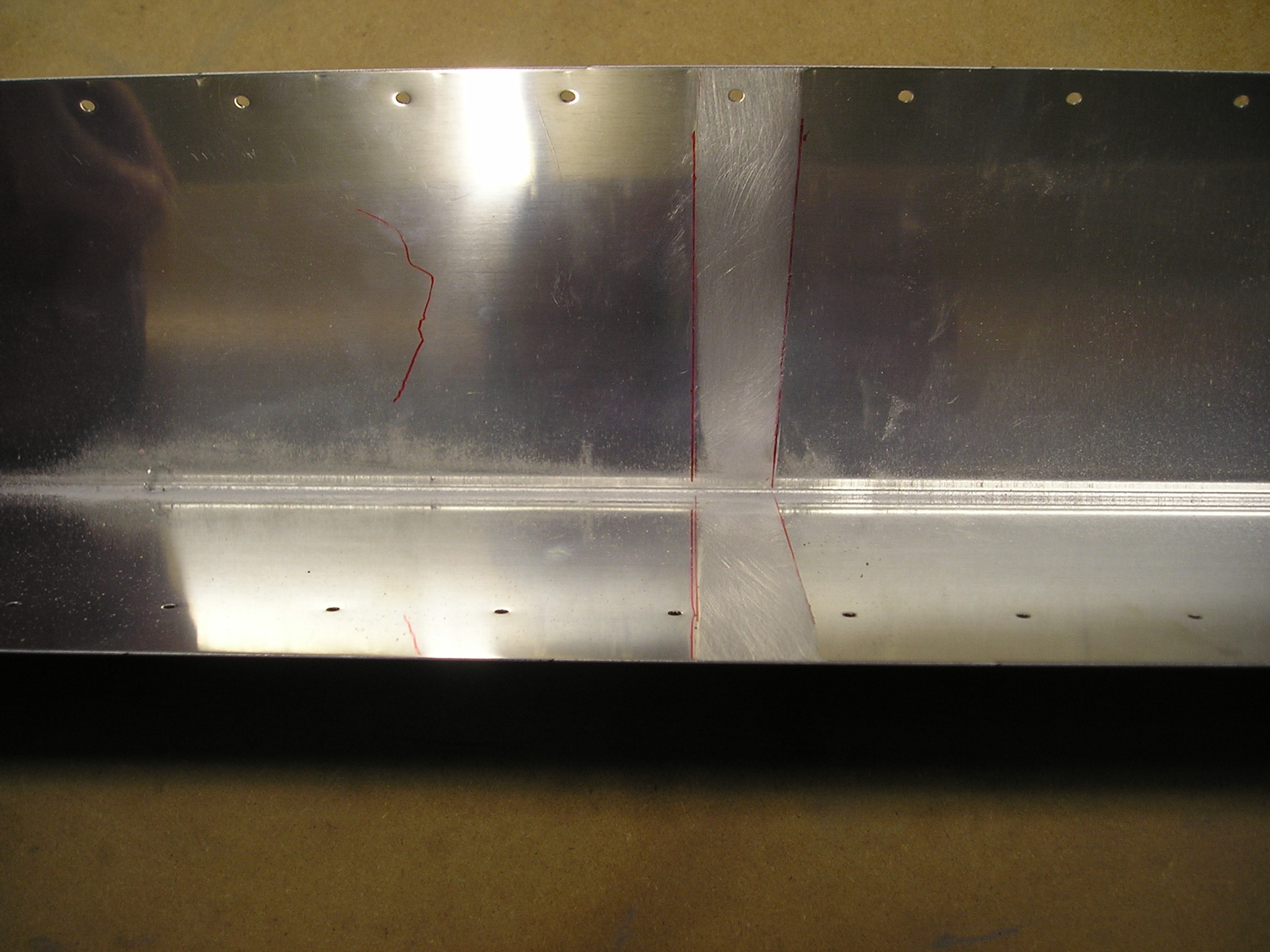

Roughing trim tab skin for ribs

Roughing trim tab skin for ribs full size

The trim tab skin is roughed up with 150 grit sandpaper where the foam ribs are located

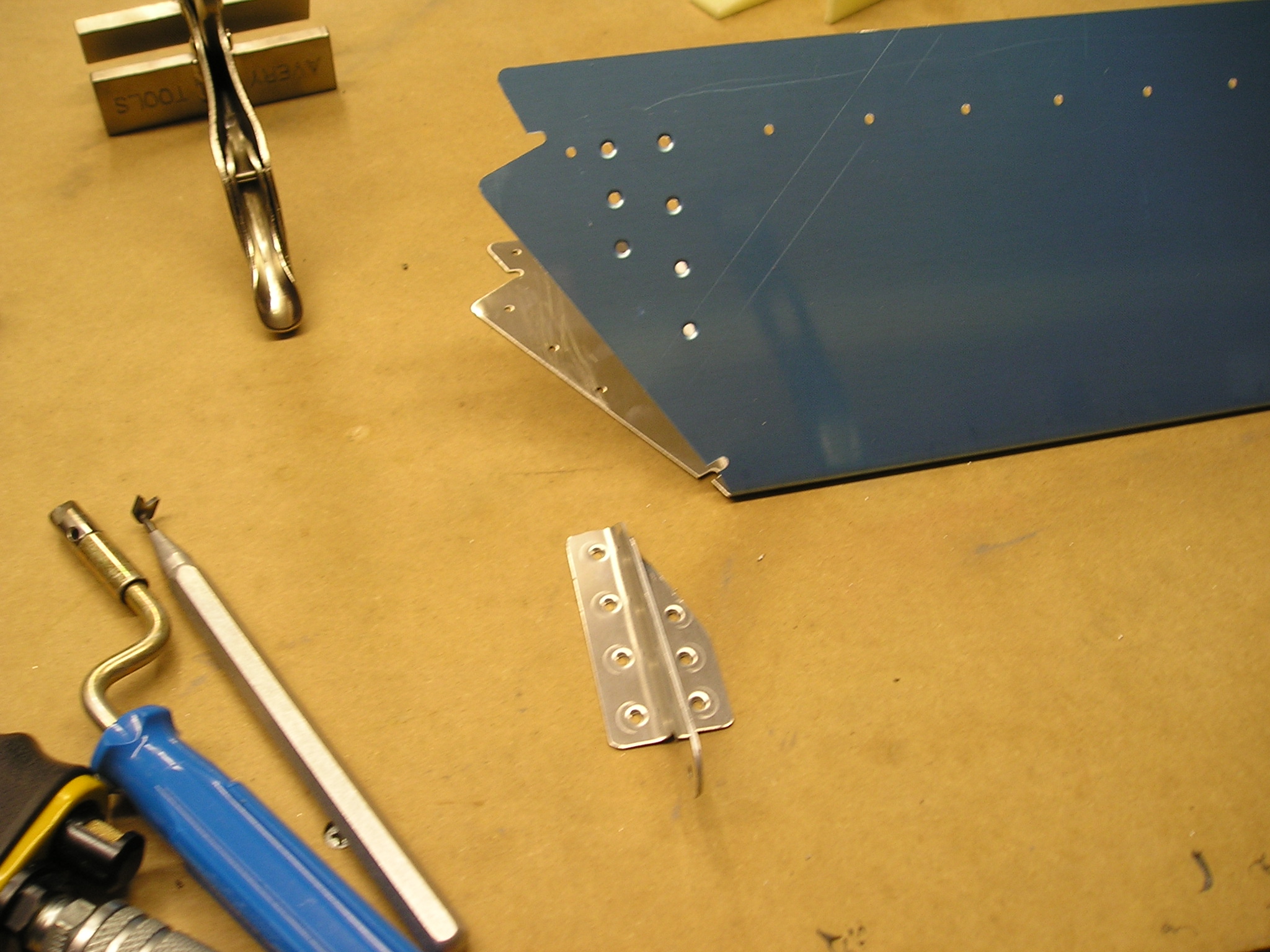

Match drilling, dimpling trim tab horns

Match drilling, dimpling trim tab horns full size

Fitted the two trim tab control horns to the skin, match drilled then dimpled them

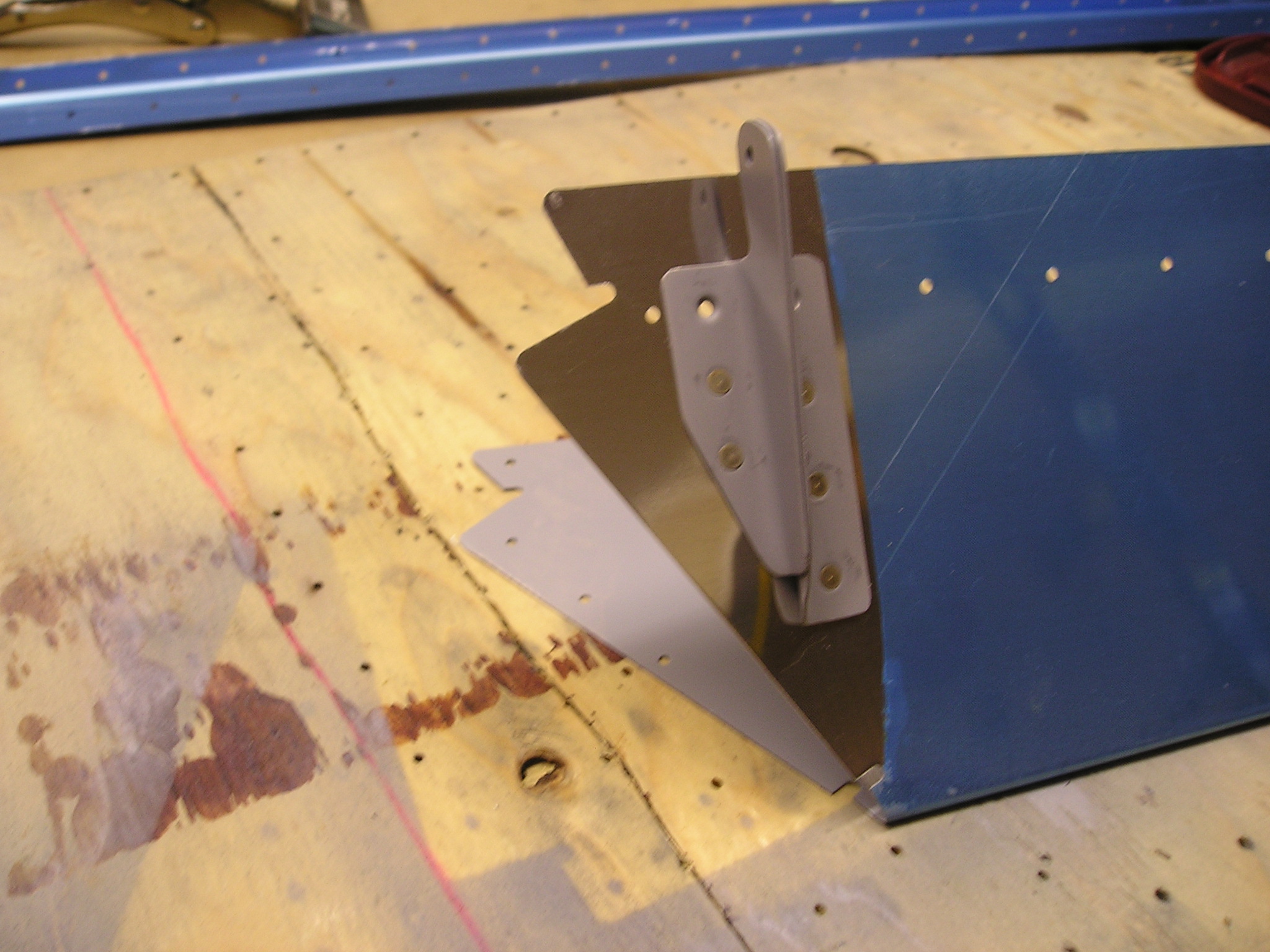

Priming skin and trim tab horns

Priming skin and trim tab horns full size

Primed the skin and horns. The garage temperature was 32, so I moved the parts and the paint into the house to warm them up before doing the priming. Worked ok.

Riveted horns to skin

Riveted horns to skin full size

I next riveted the horns to the skin. Turned out to be a mistake, as I can't bend the ends of the skin with the horns on, so I had to drill out the rivets.

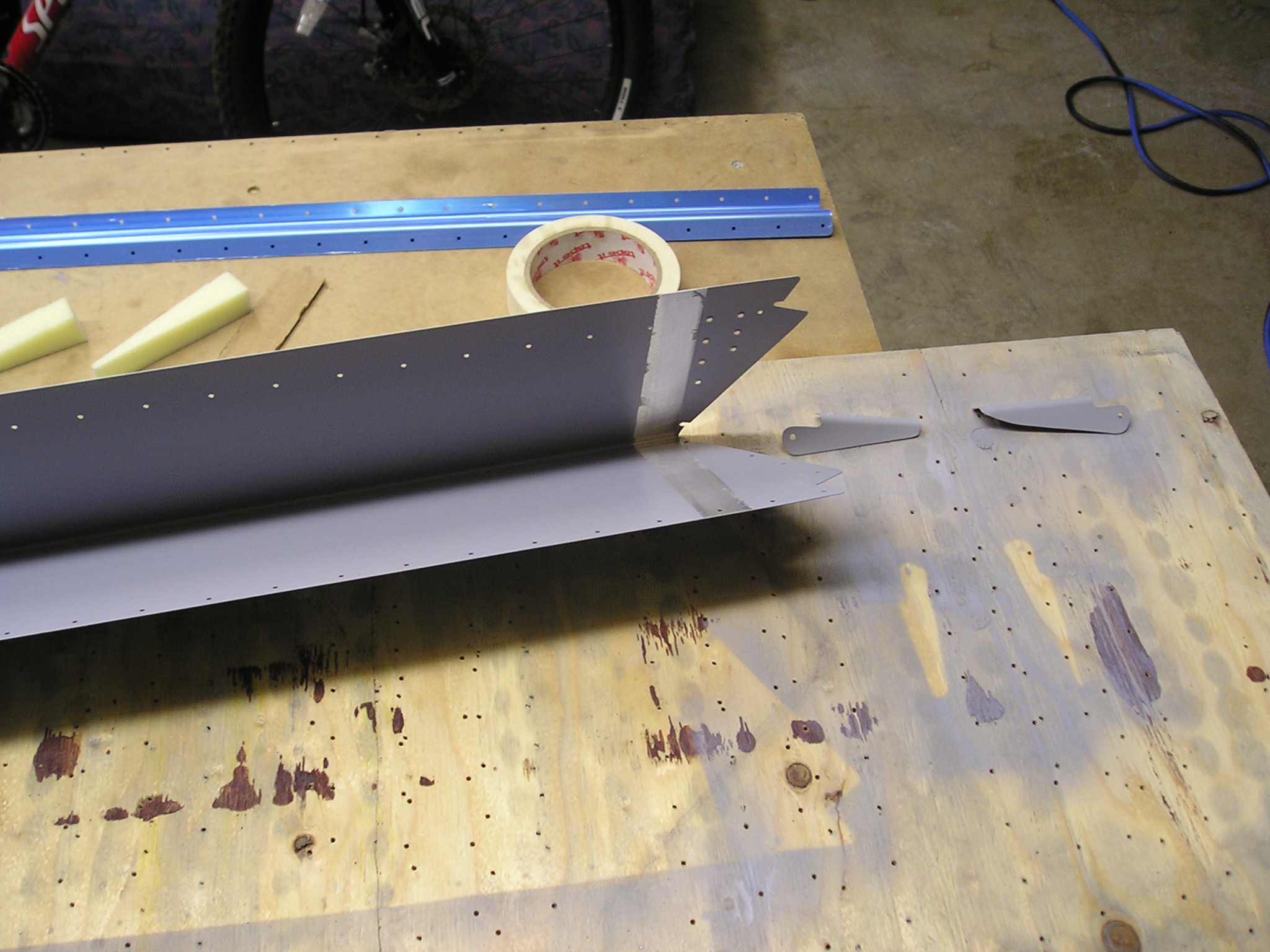

Bending ends of trim tab skin

Bending ends of trim tab skin full size

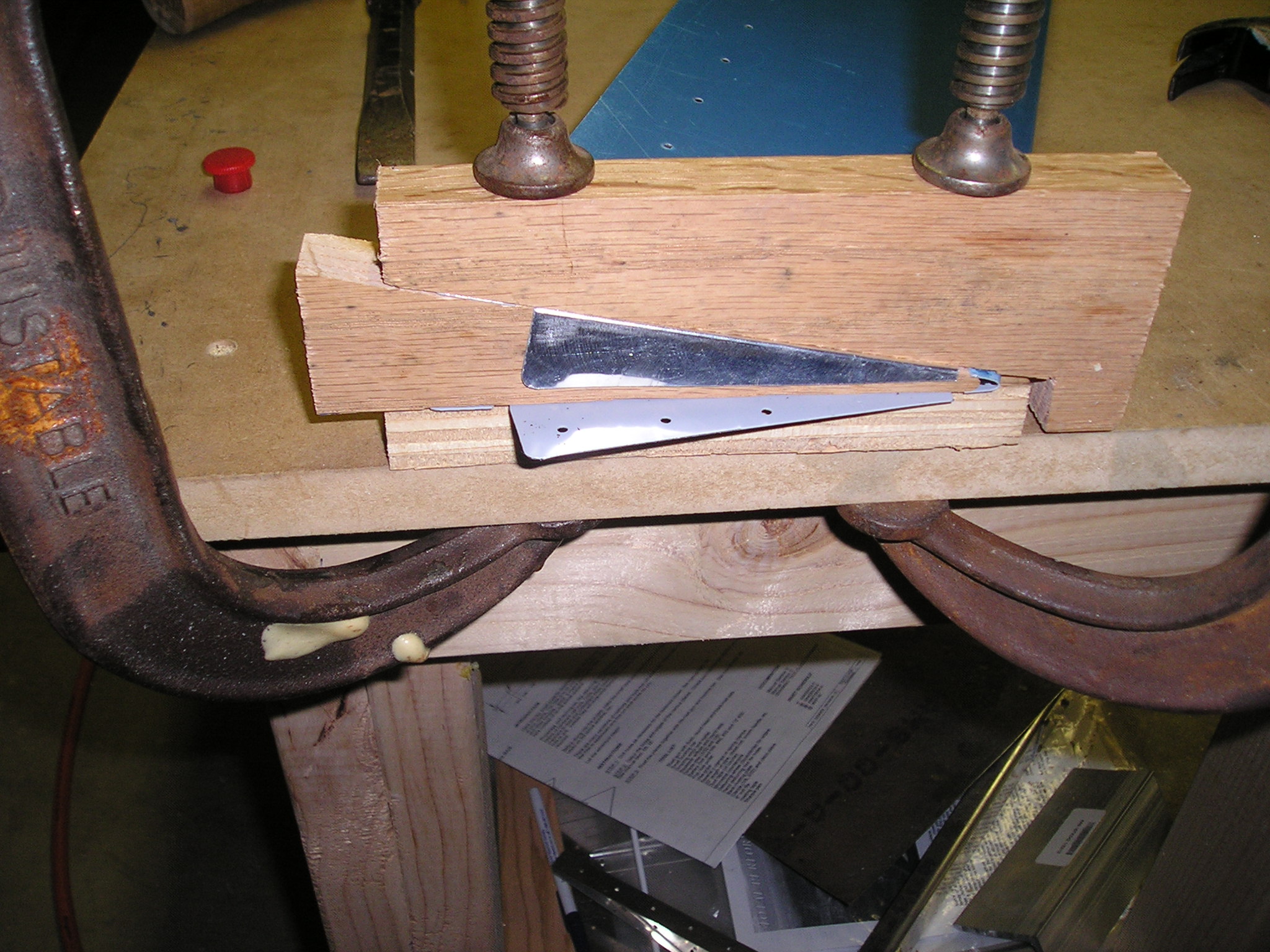

Sawed out a bend form block from a small piece of oak. Then I clamped the skin and bent the ends of the skin to form the end ribs. It came out ok.

Match drilling spar and skin

Match drilling spar and skin full size

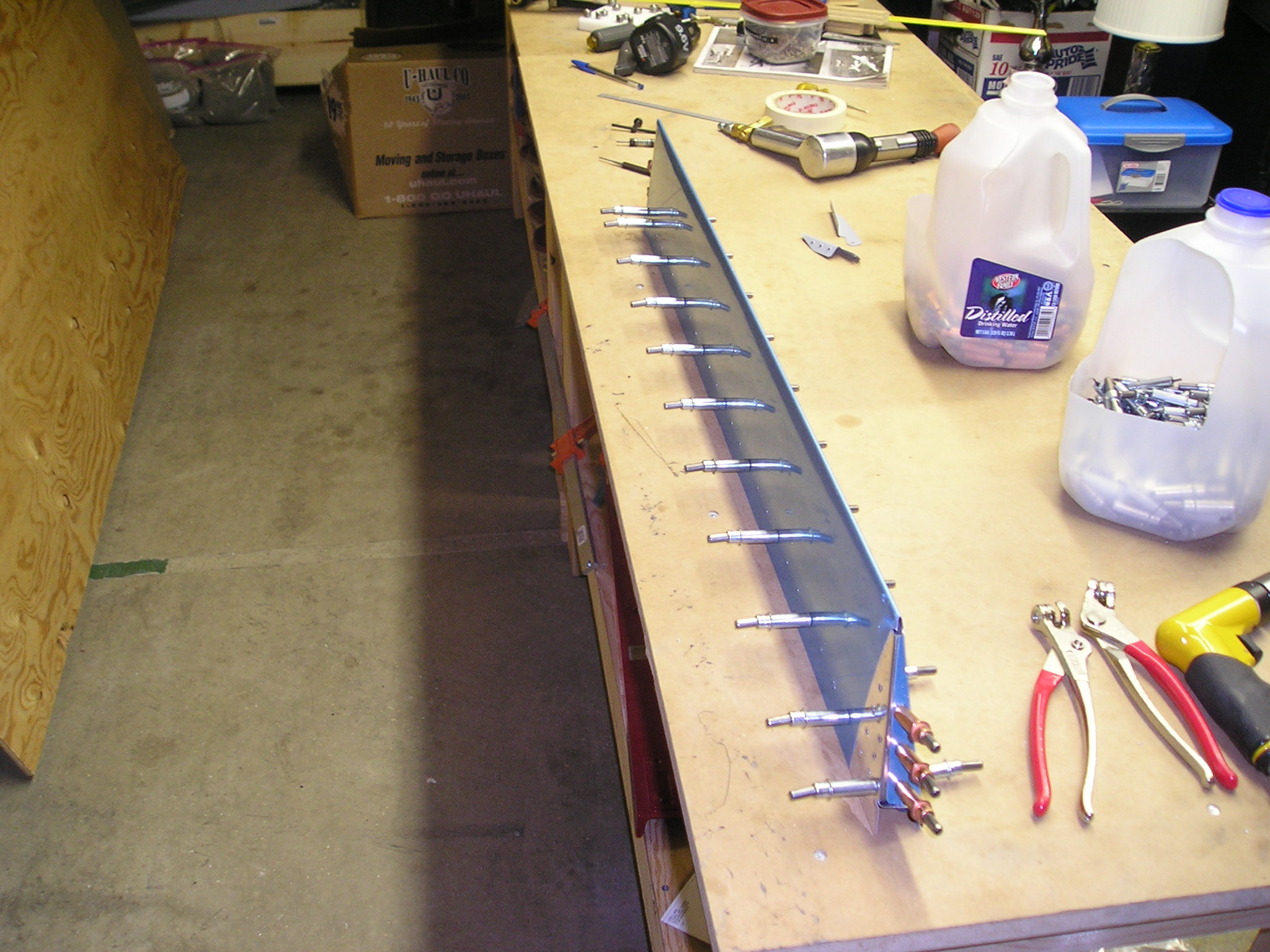

Cleco'd on the trim tab spar and match drilled the holes. Next I drilled the holes in the ends of the trim tab where I just bent the tabs.
