Riveting Trim tab

2.5 Hours

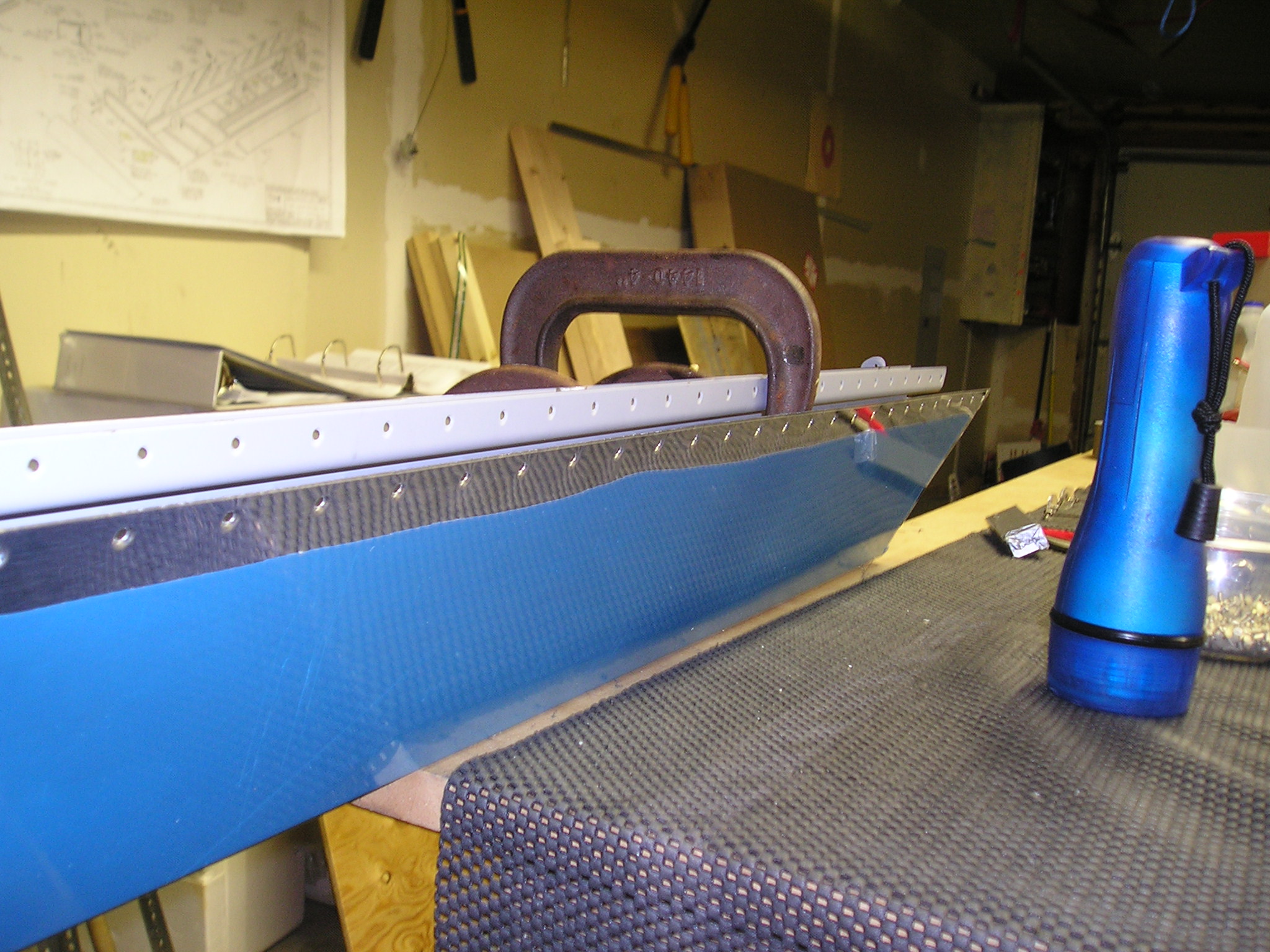

Bottom of spar and skin riveting full size

After disassembling the tab, deburred, dimpled, and primed the skin and spar. Then riveted on the trim tab horns using the squeezer. Next was to do the bottom skin to spar rivets. The access was a little tight but the tungsten-steel rivet bar fit in nicely and it worked out ok This picture shows the setup for holding the assembly while I was putting in the rivets

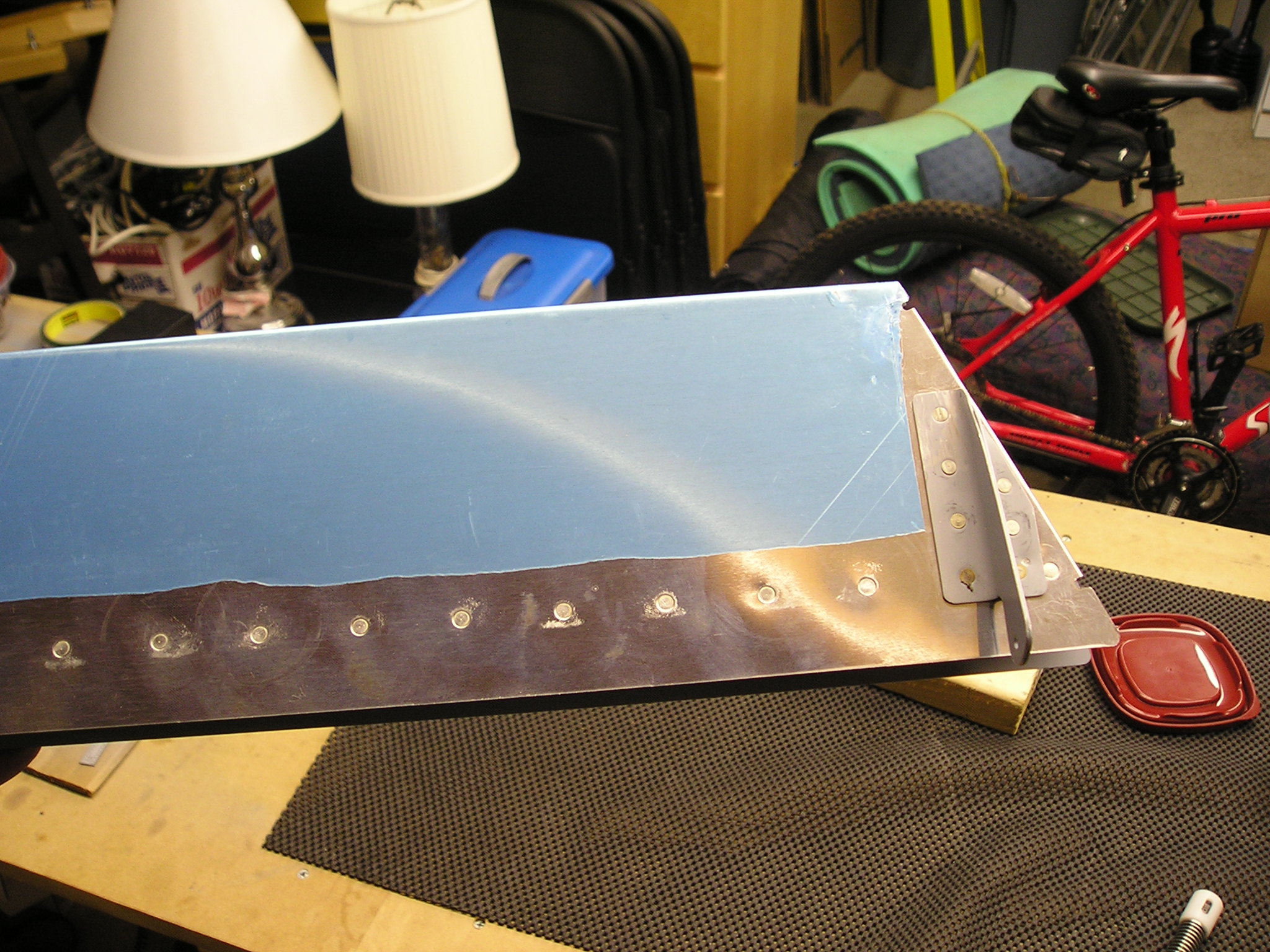

Finished rivets on bottom of trim tab full size

Here is a shot of the installed rivets on the bottom of the tab
