4.0 Hours

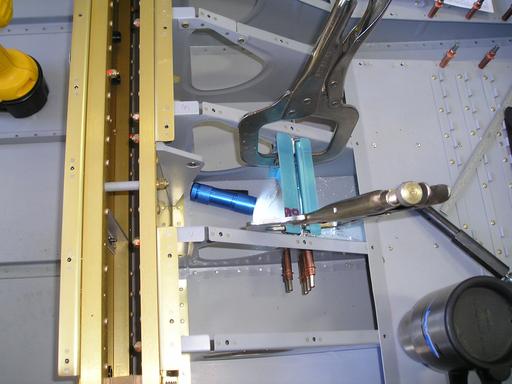

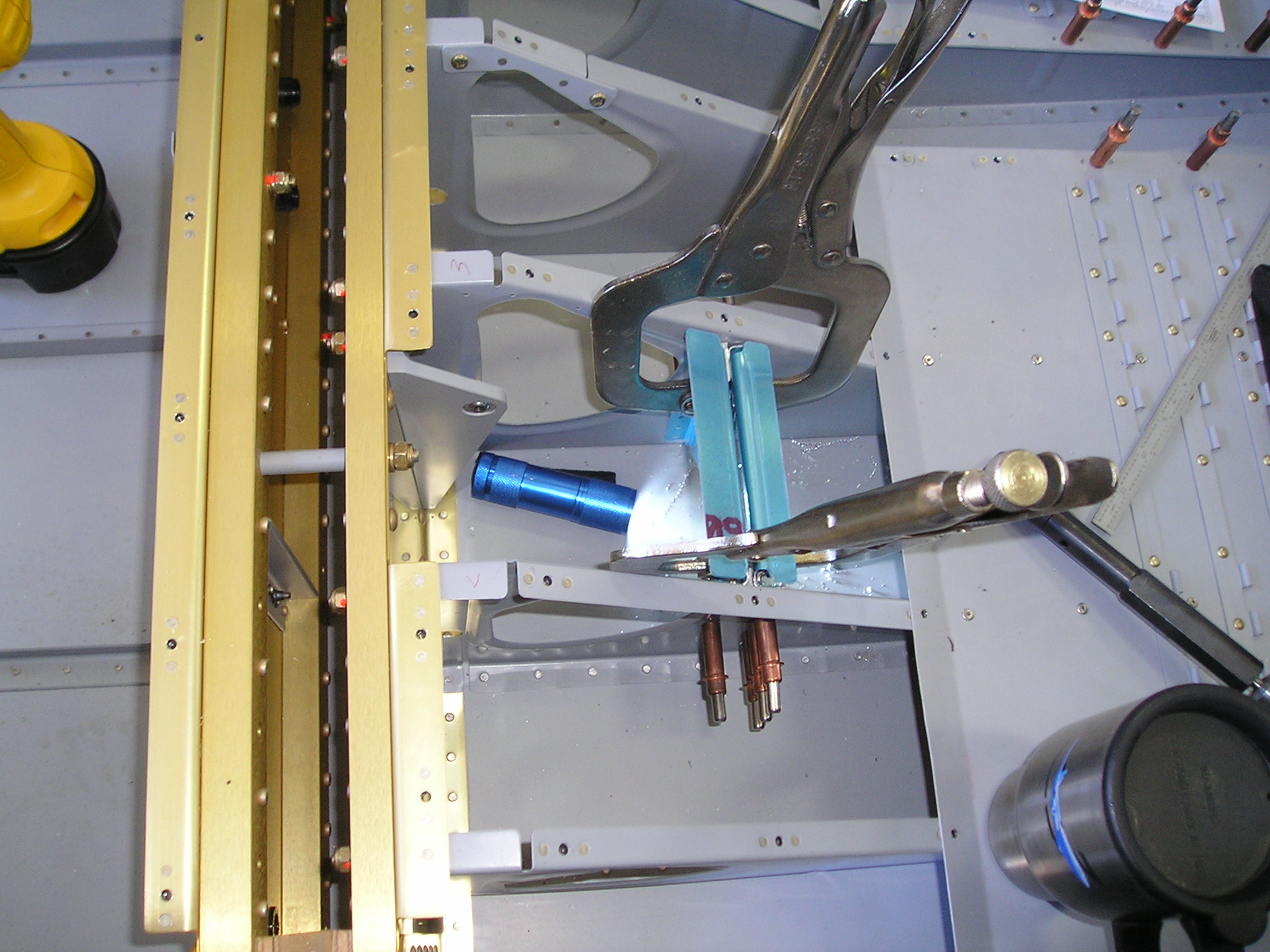

Locating F-7117A/B

Locating F-7117A/B full size

Clamping F-7117A/B seatbelt attach brackets in place for drilling.

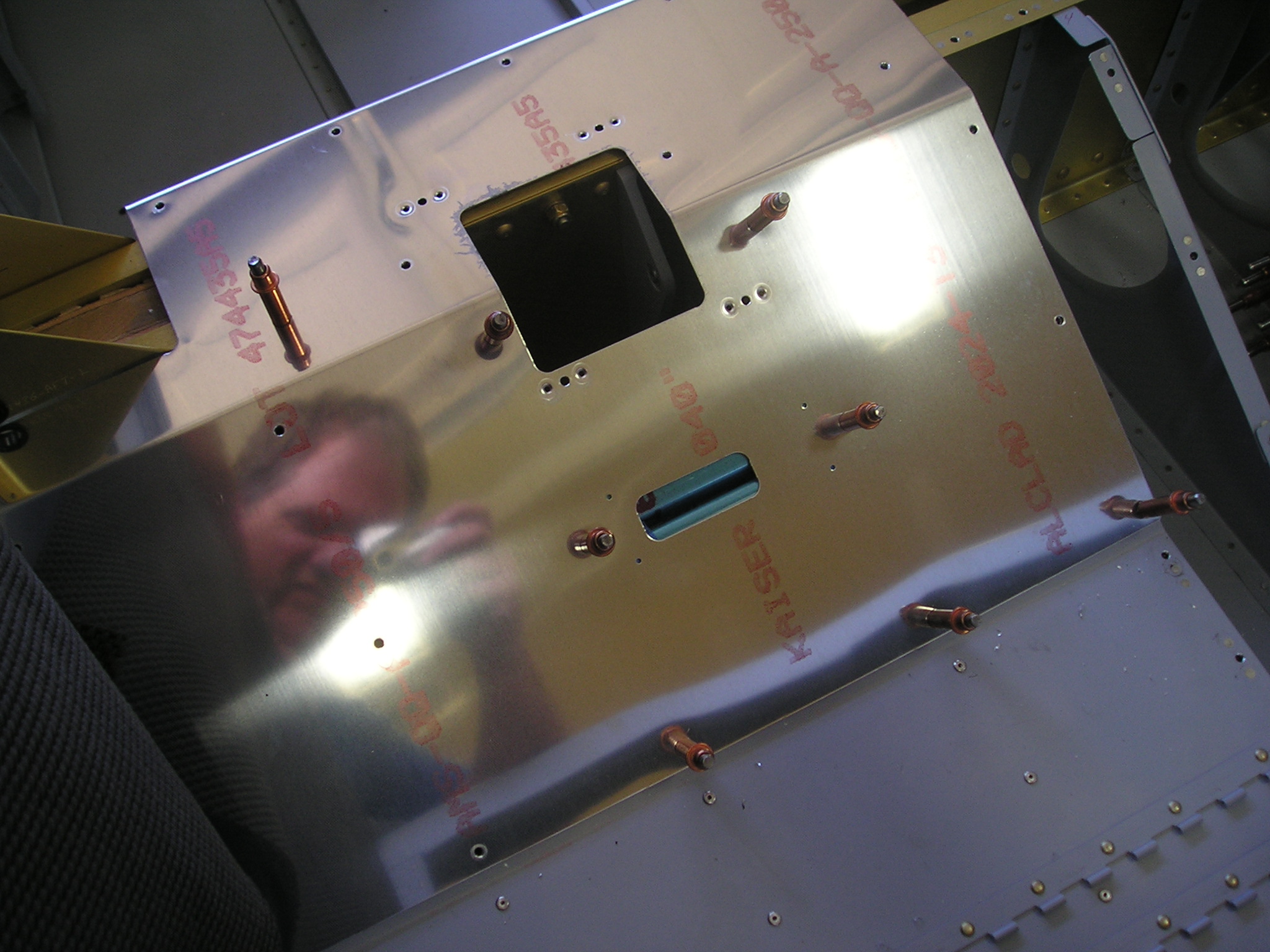

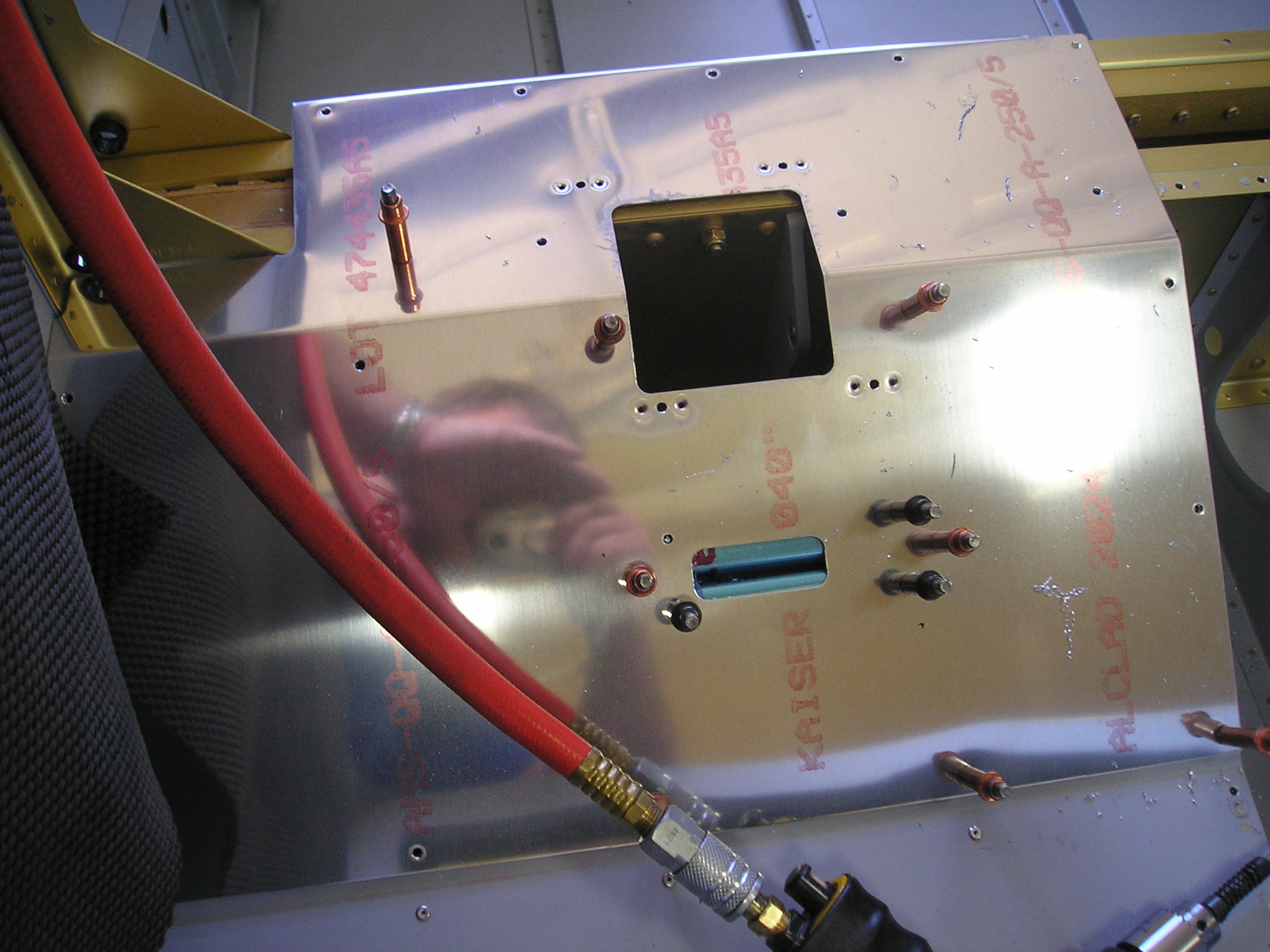

Drilling seat floors

Drilling seat floors full size

After the brackets are drilled to ribs, put on the seat floors and drilled them for the seatbelt attach brackets.

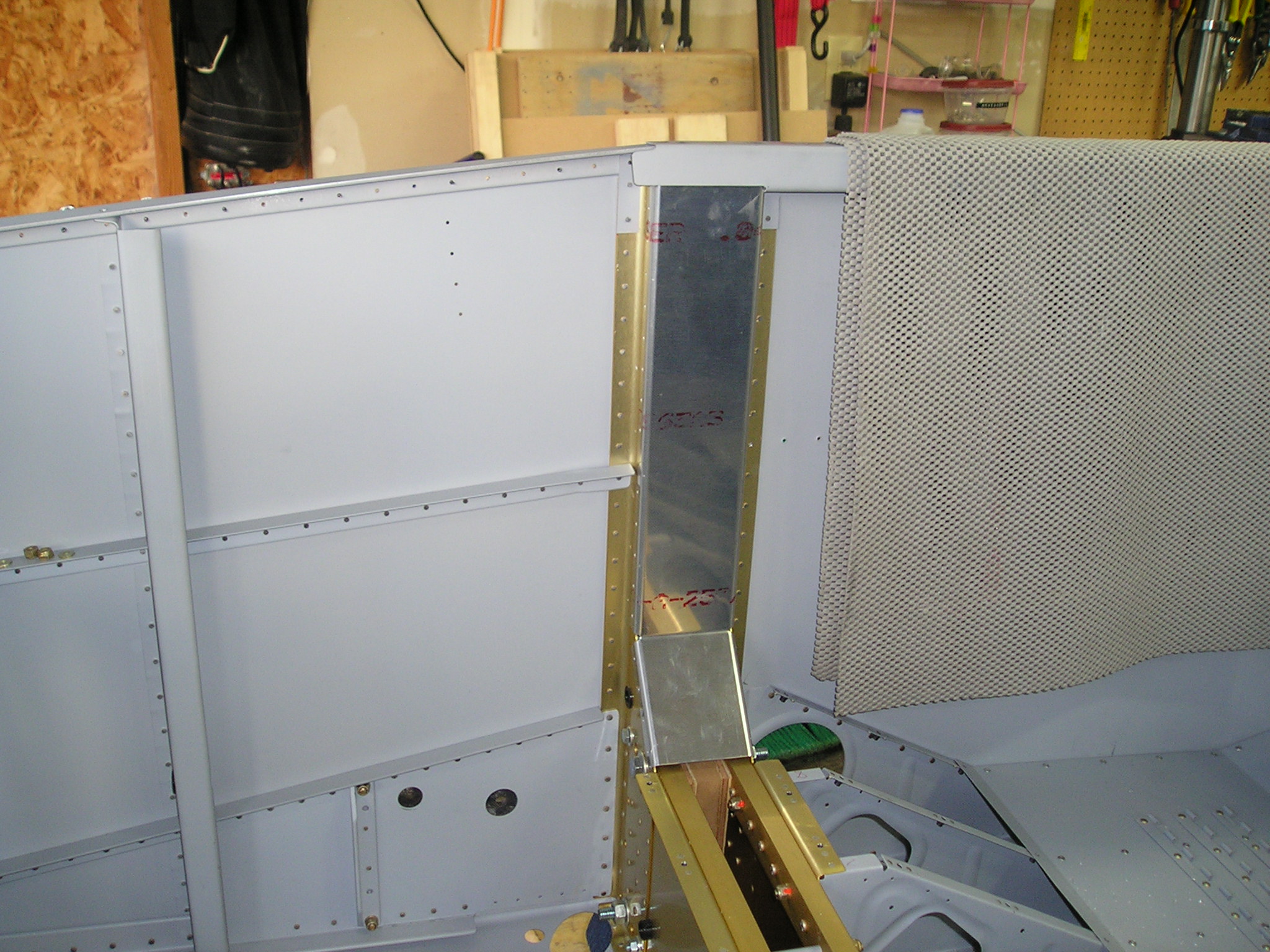

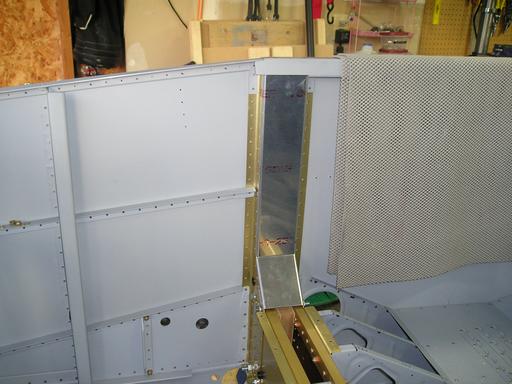

Seat belt brackets done

Seat belt brackets done full size

All holes drilled.

F-704K covers

F-704K covers full size

Deburred F-704K covers, fit in place. They will be permanentl installed later.
