Installing Seat Belt Brackets
5.7 Hours

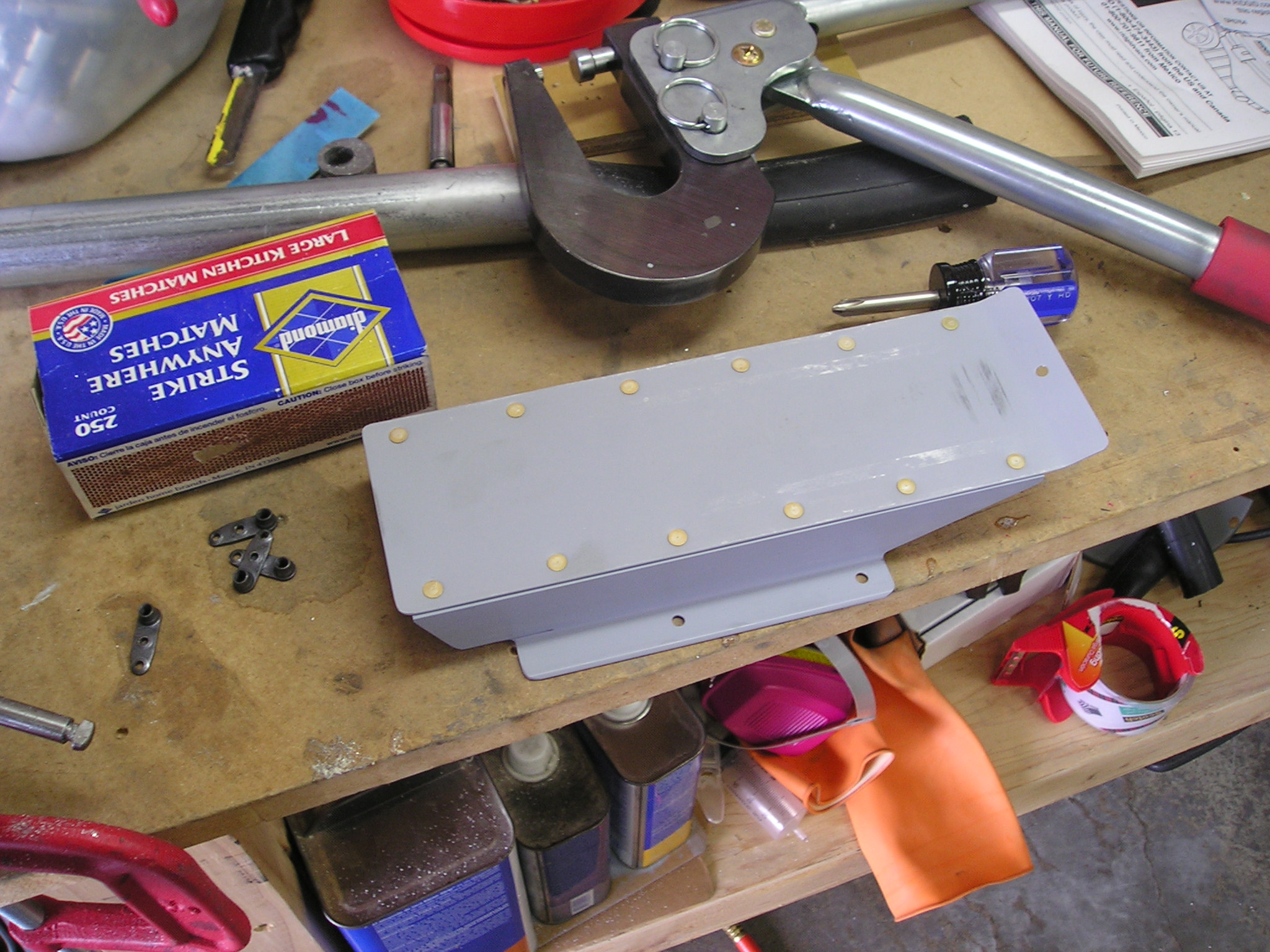

Riveted F-741A to F-741B full size
Cleaned and primed all seat belt brackets, and tunnel cover parts. Riveted together tunnerl cover.

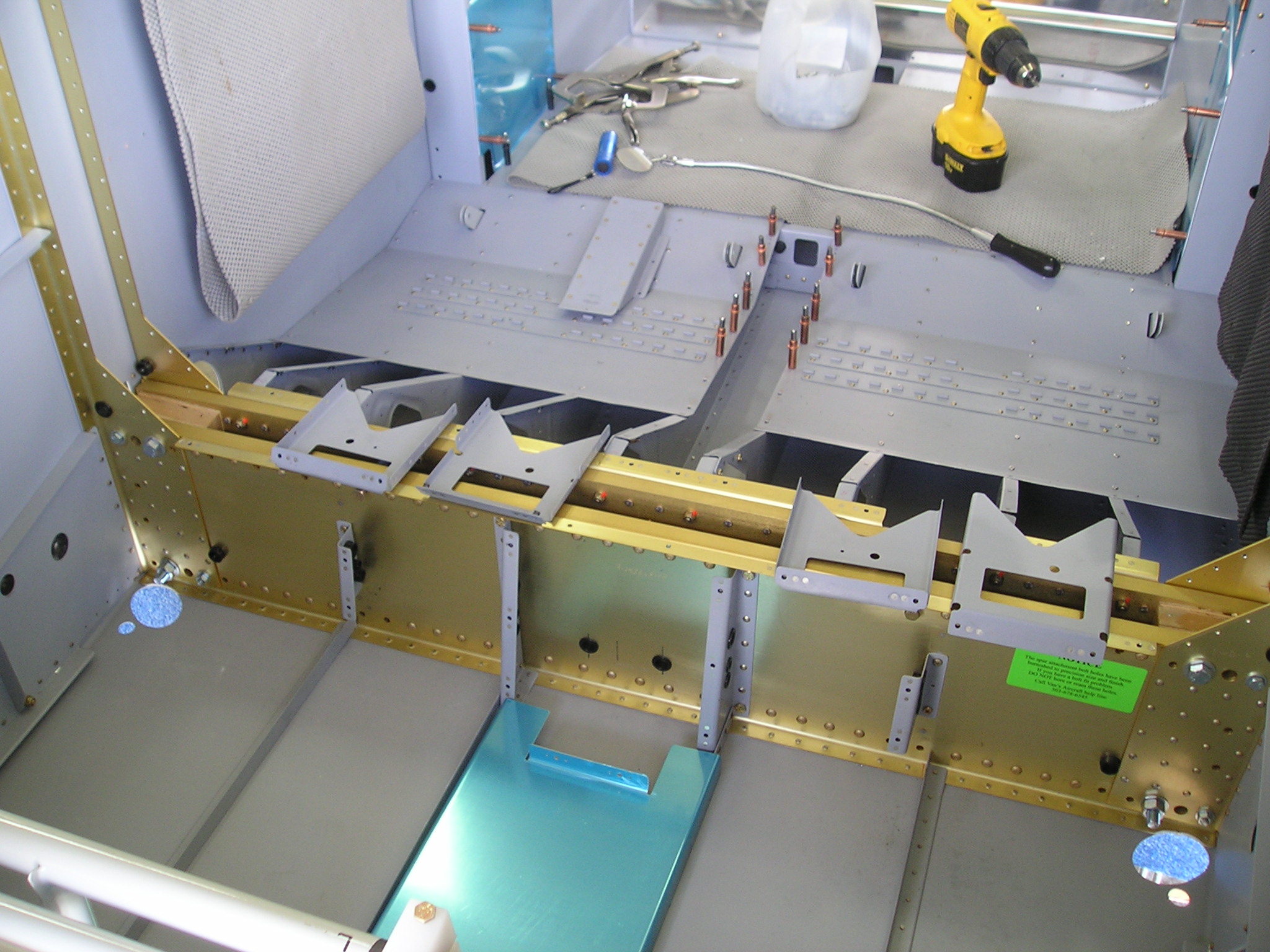

Seat belt brackets ready to go in full size
Now they are painted, ready to install them.

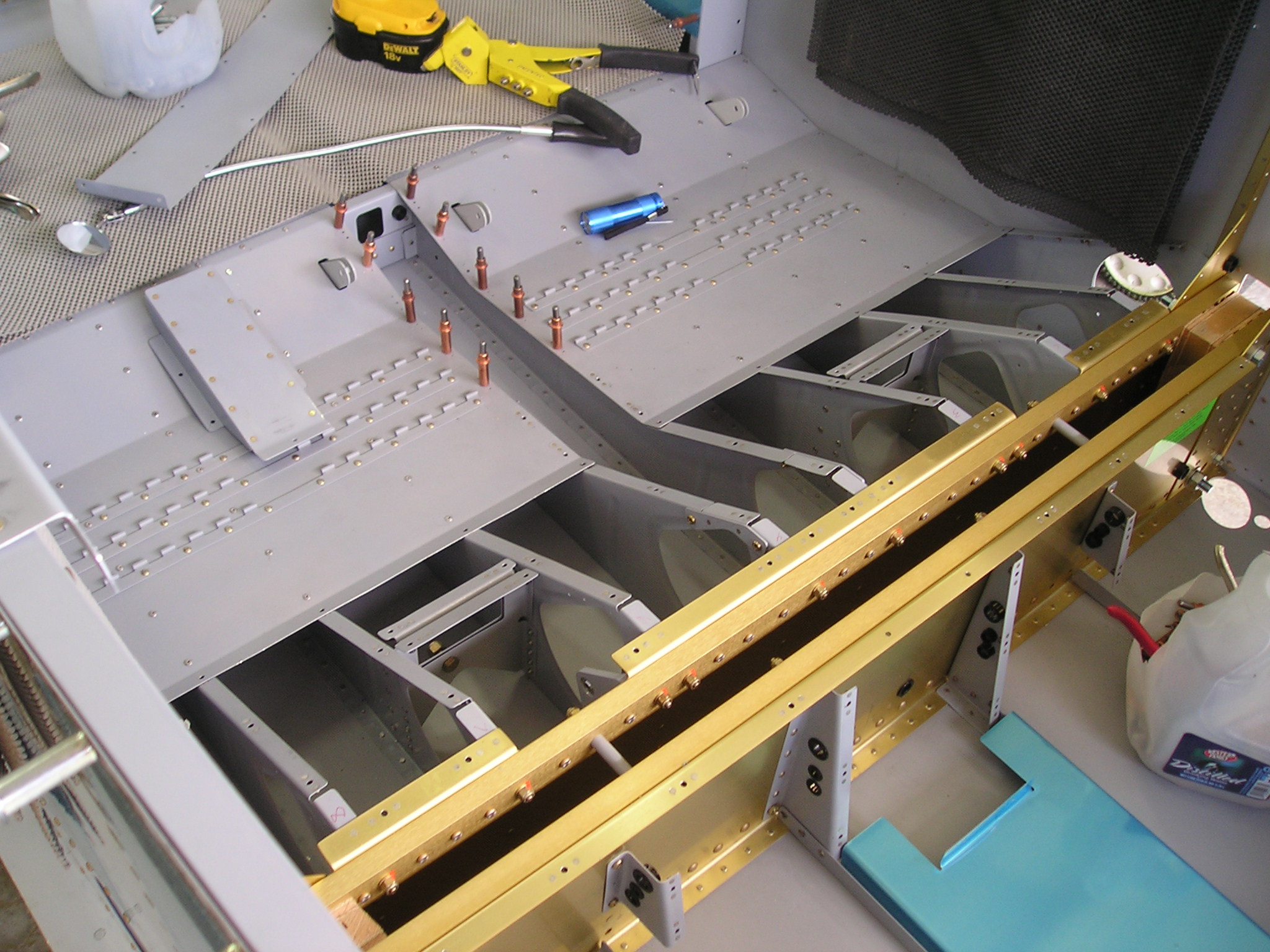

Seat belt brackets riveted in full size
These brackets are put in with blind rivets.

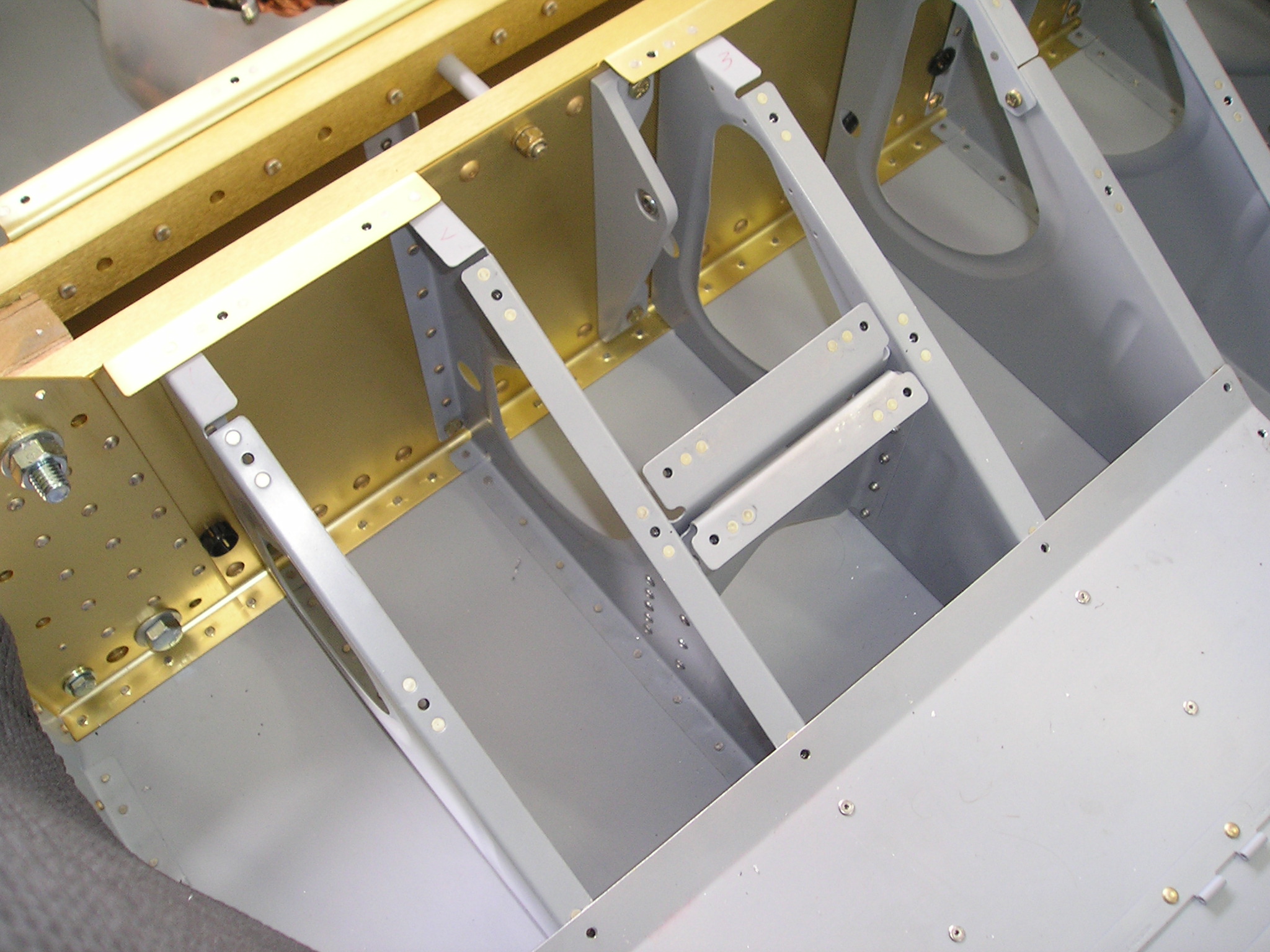

Another view of brackets full size
All done.

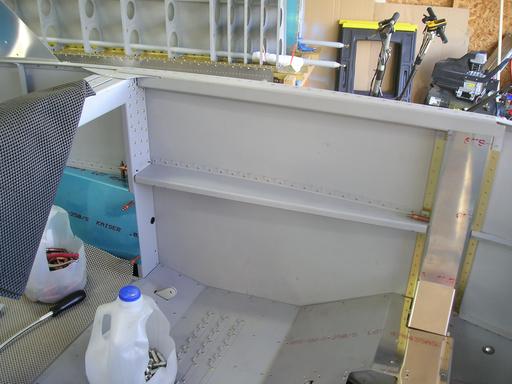

Arm rest in place full size
Riveted the F-920-L/R arm rests to the fuselage.
