Riveting trim tab hinge
2.0 Hours

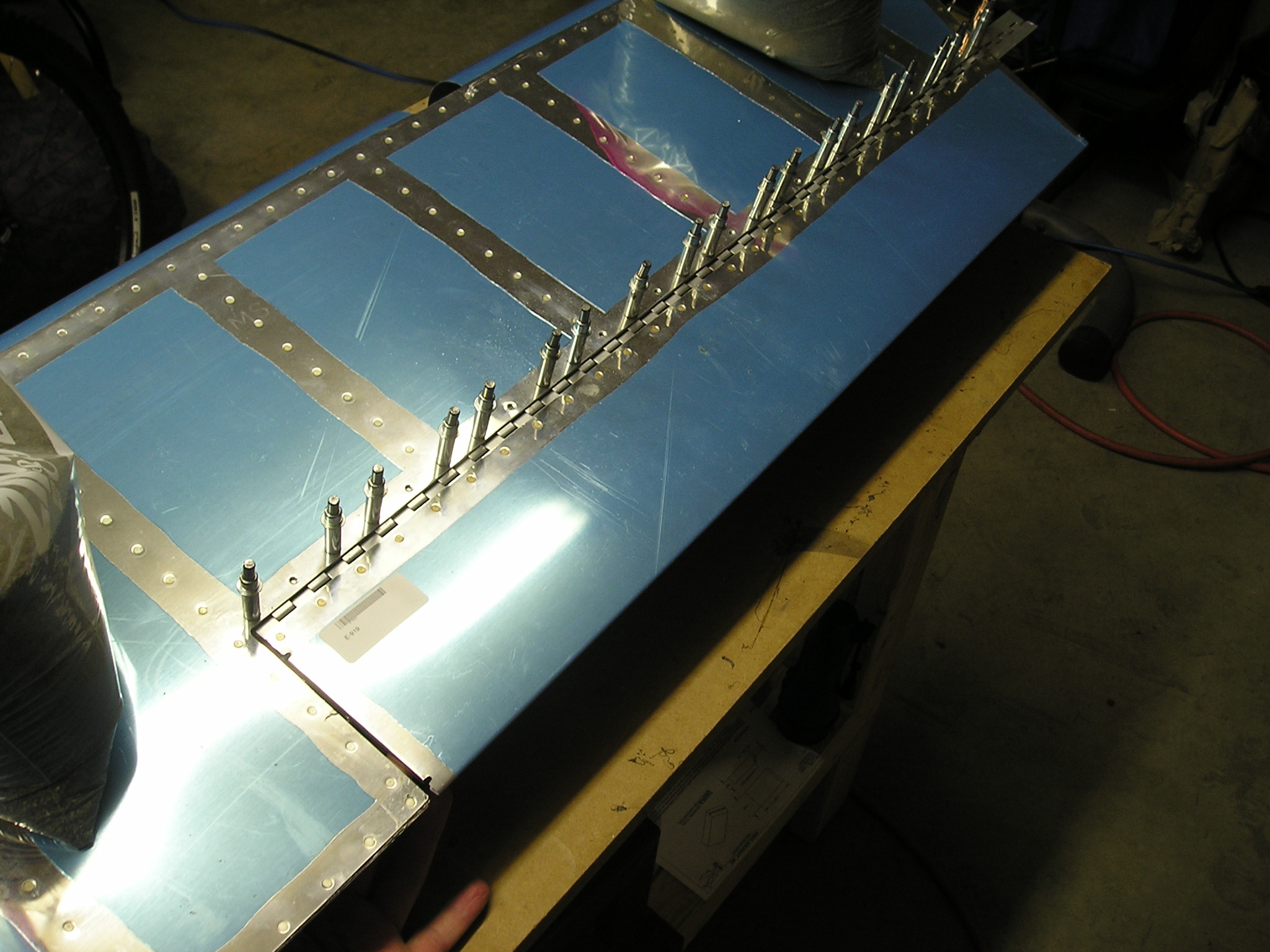

Drilling hinge full size
Fitted the trim tab to the elevator and drilled the hinge to the elevator

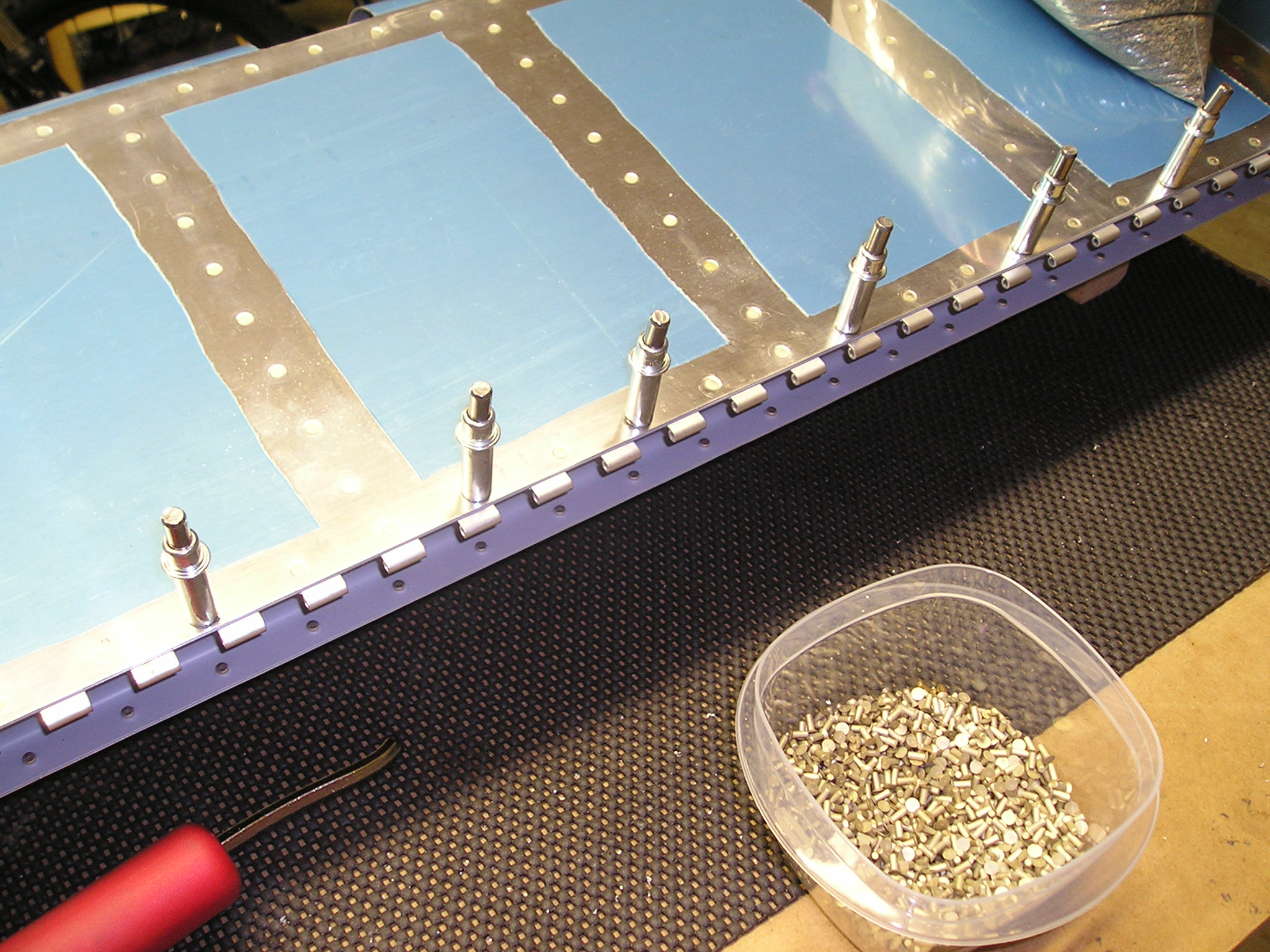

Riveting hinge to elevator full size
Deburred the hinge and cleco'd it to the elevator and put in the rivets these can be done with the squeezer

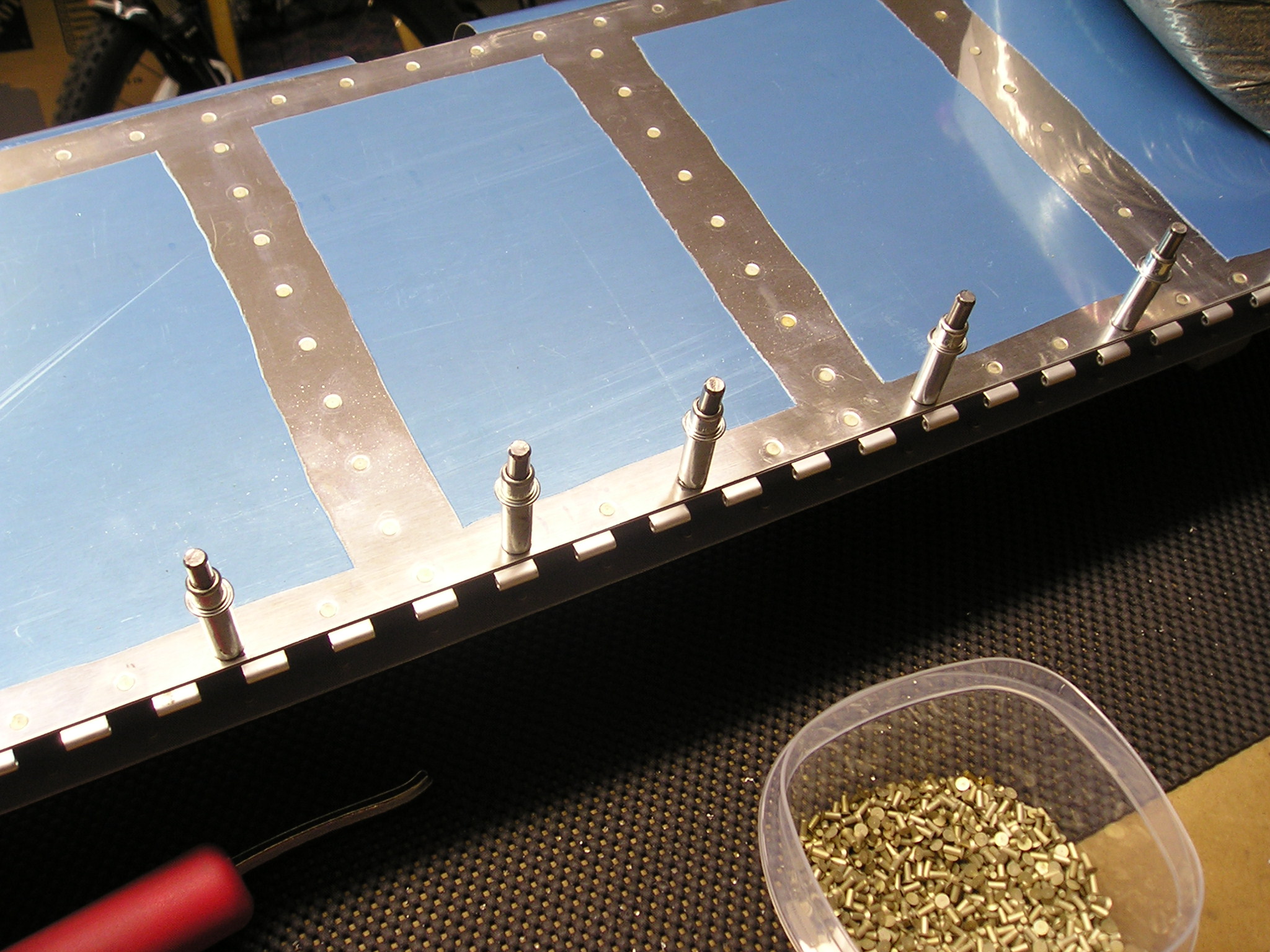

Rivets in hinge full size
Another shot of the hinge riveting in progress

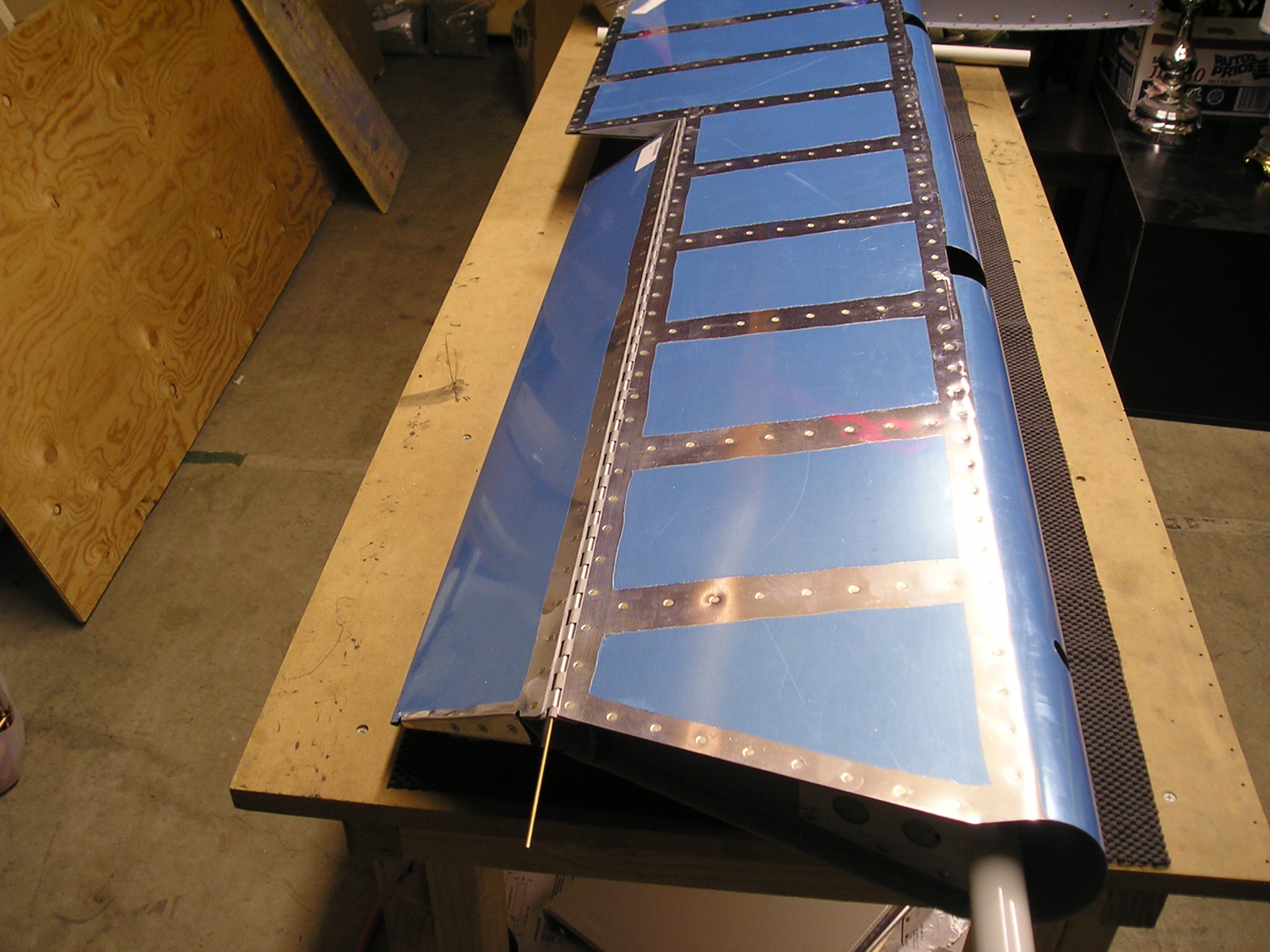

Trim tab assembled to elevator full size
A shot of the trim tab in place on the elevator
