Installing trim tab servo

3.0 Hours

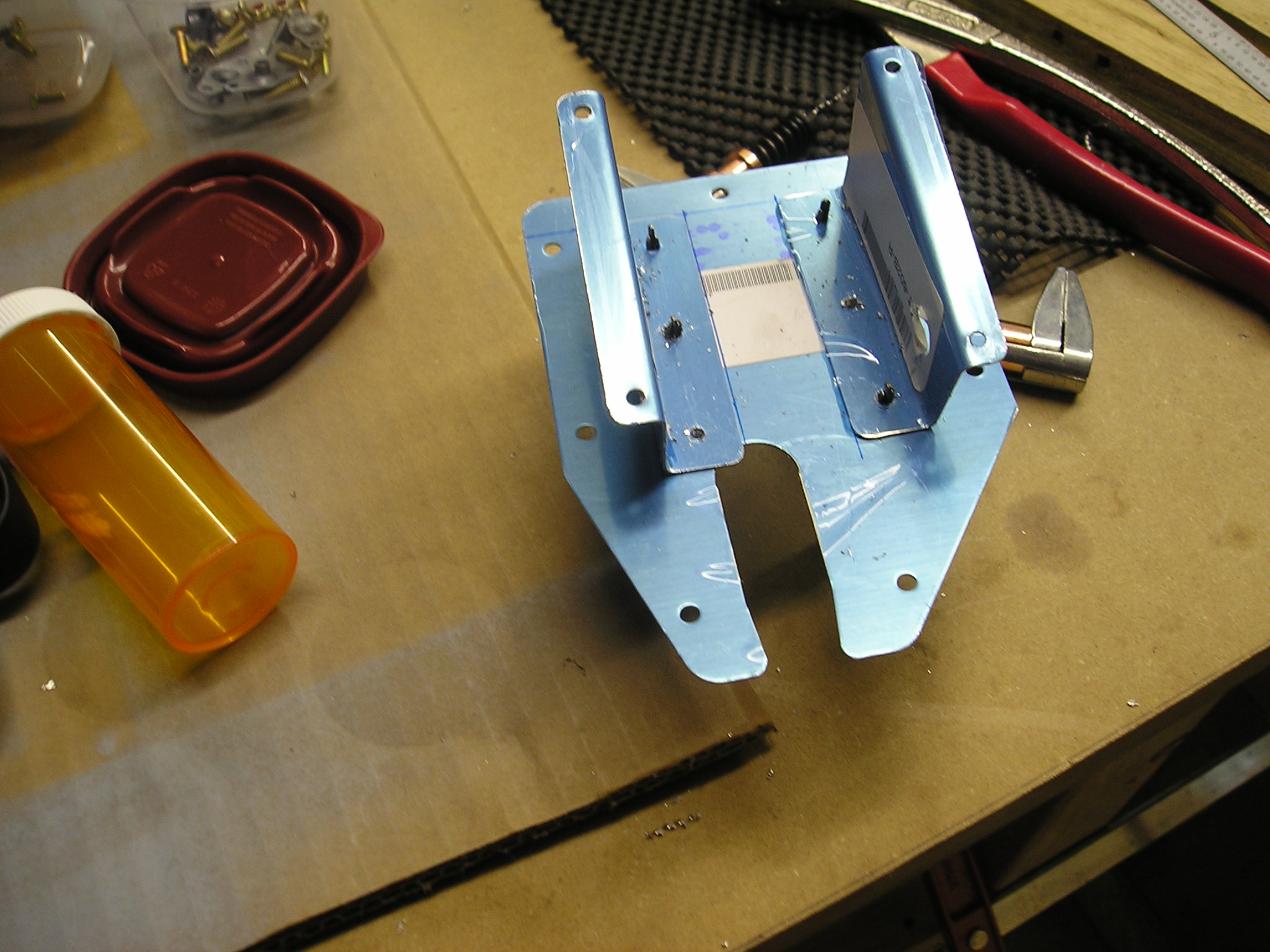

Fitting servo brackets to access door full size

I am using electric elevator trim so it is time to install the servo. The first step is to fit the brackets to the door. I clamped them in place then match drilled the parts

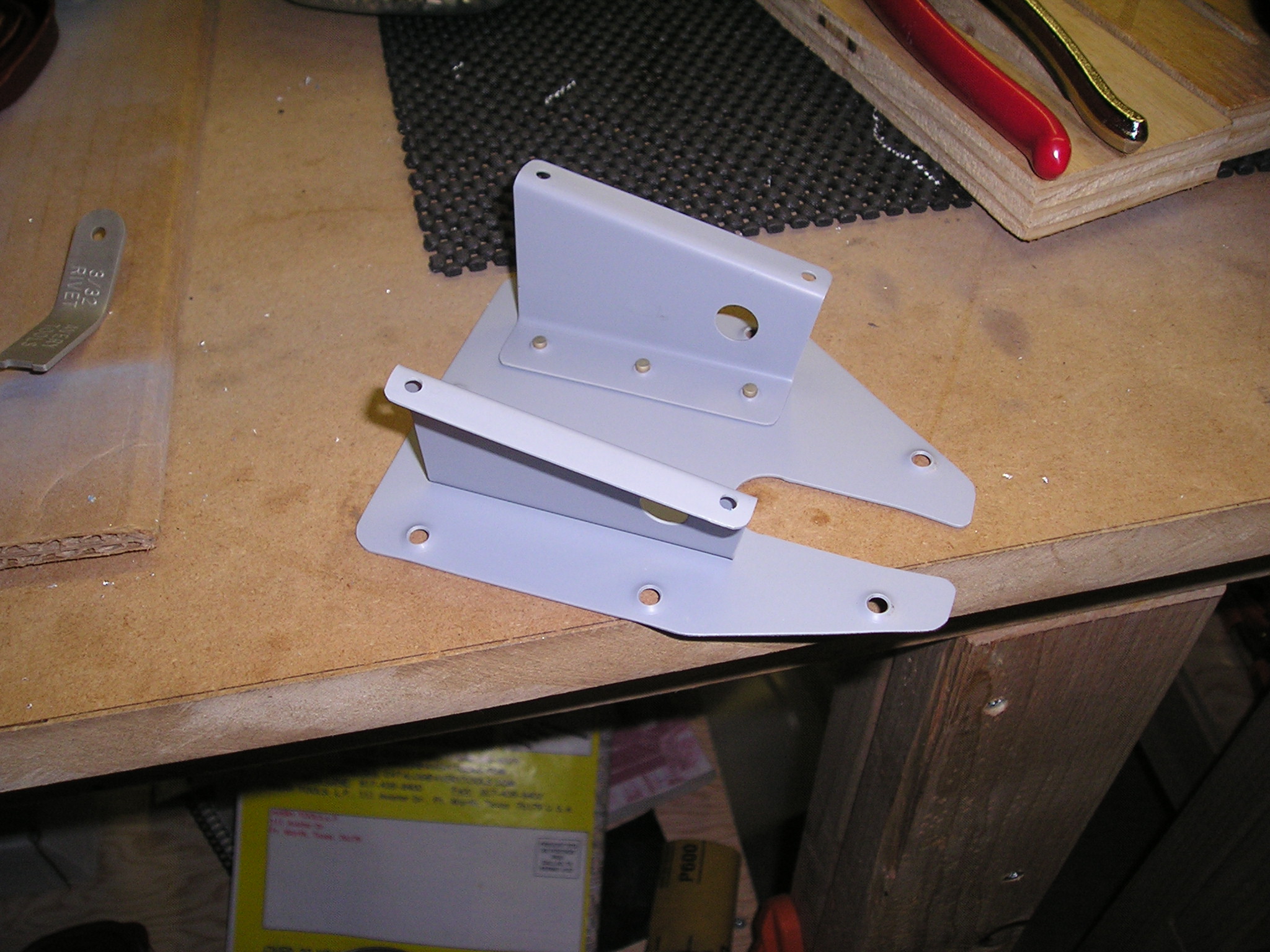

Riveted brackets to door full size

After match drilling, disassembled and did the deburring, dimpling, priming routine. Then riveted the parts together using the hand squeezer.

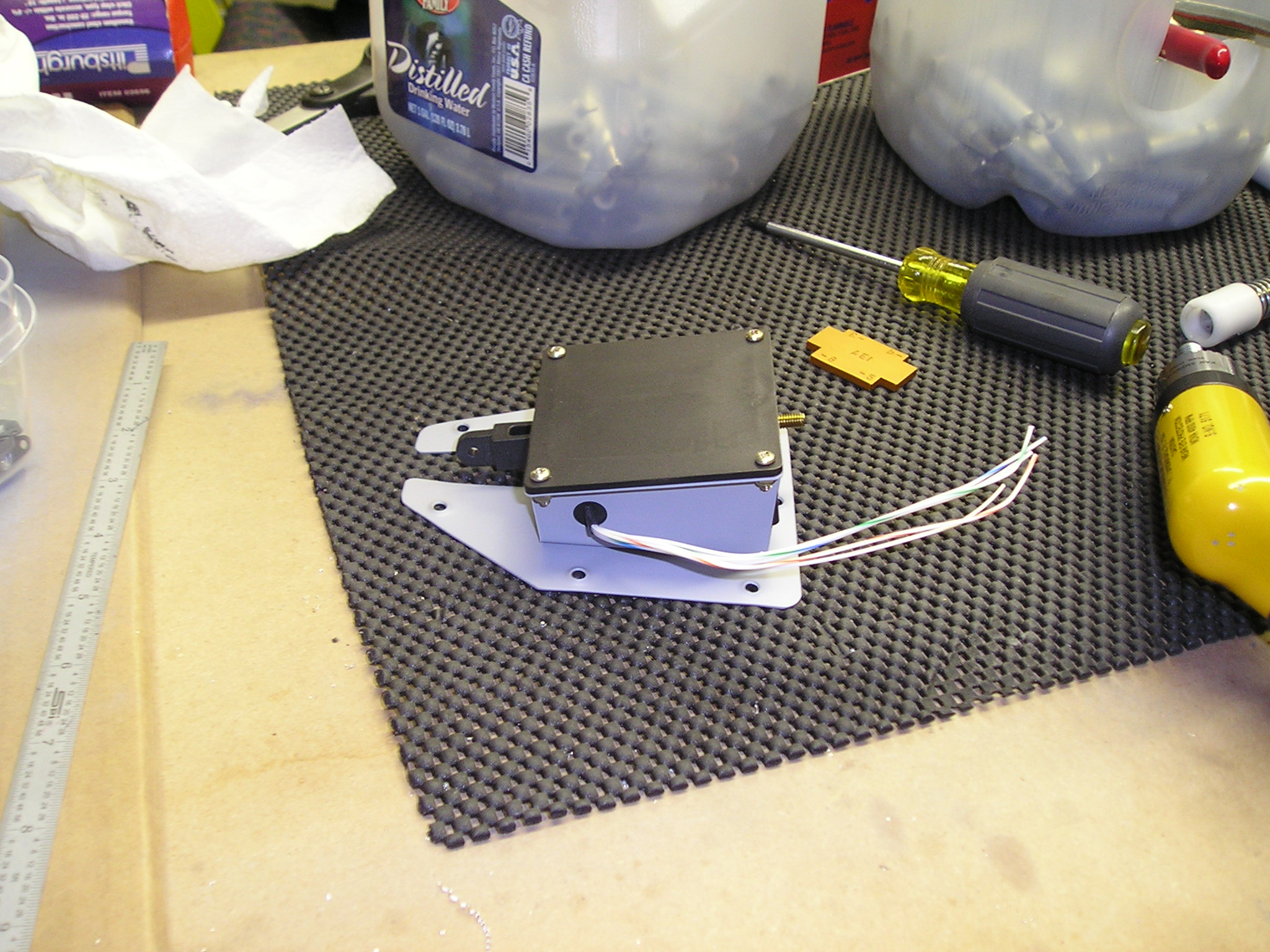

Attaching servo to panel assembly full size

Attached the servo to the brackets with supplied screws

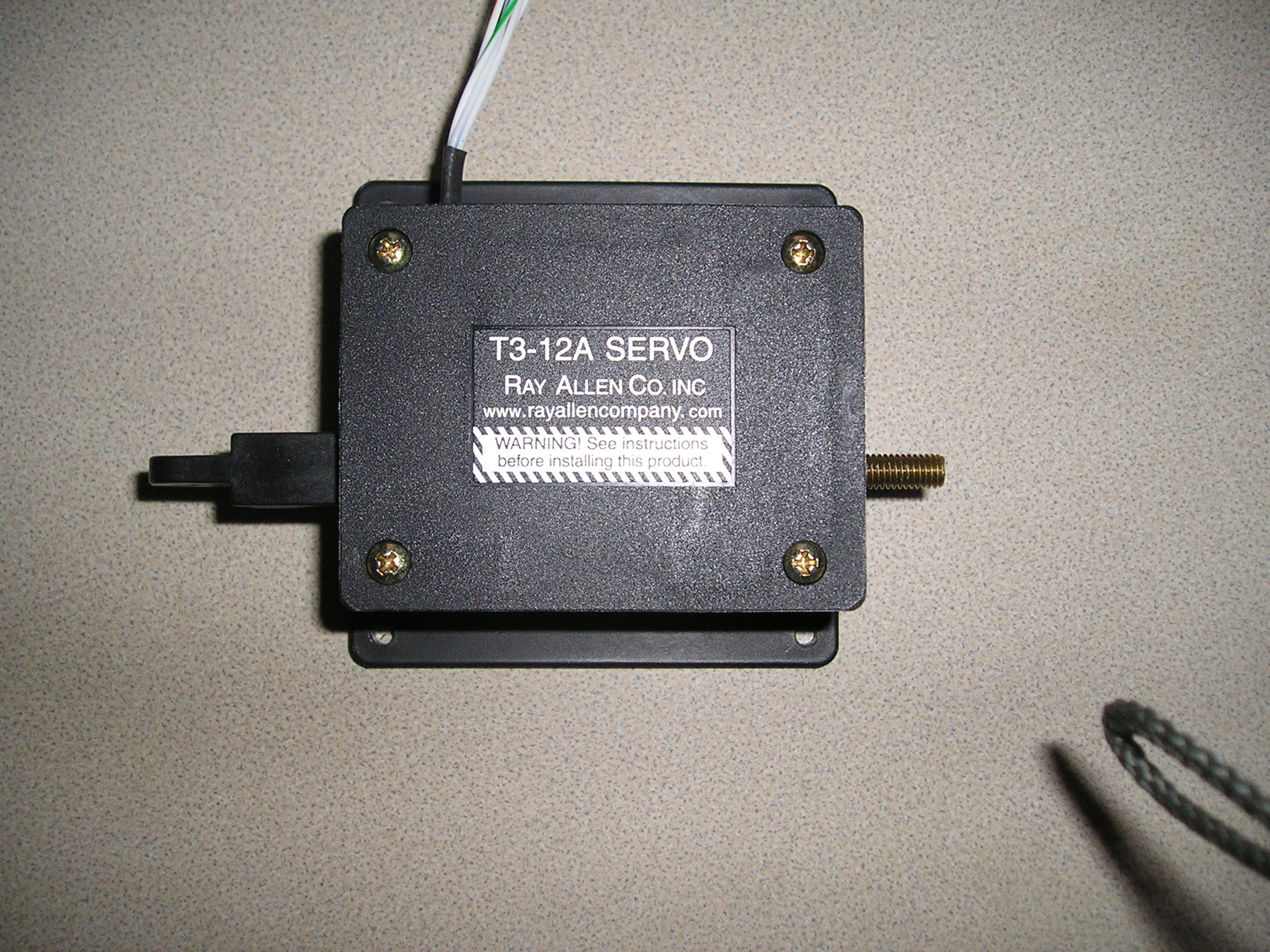

Label of trim servo full size

Here is the label of the trim servo, in case I need to see it after it is installed in the airplane
