5.0 Hours

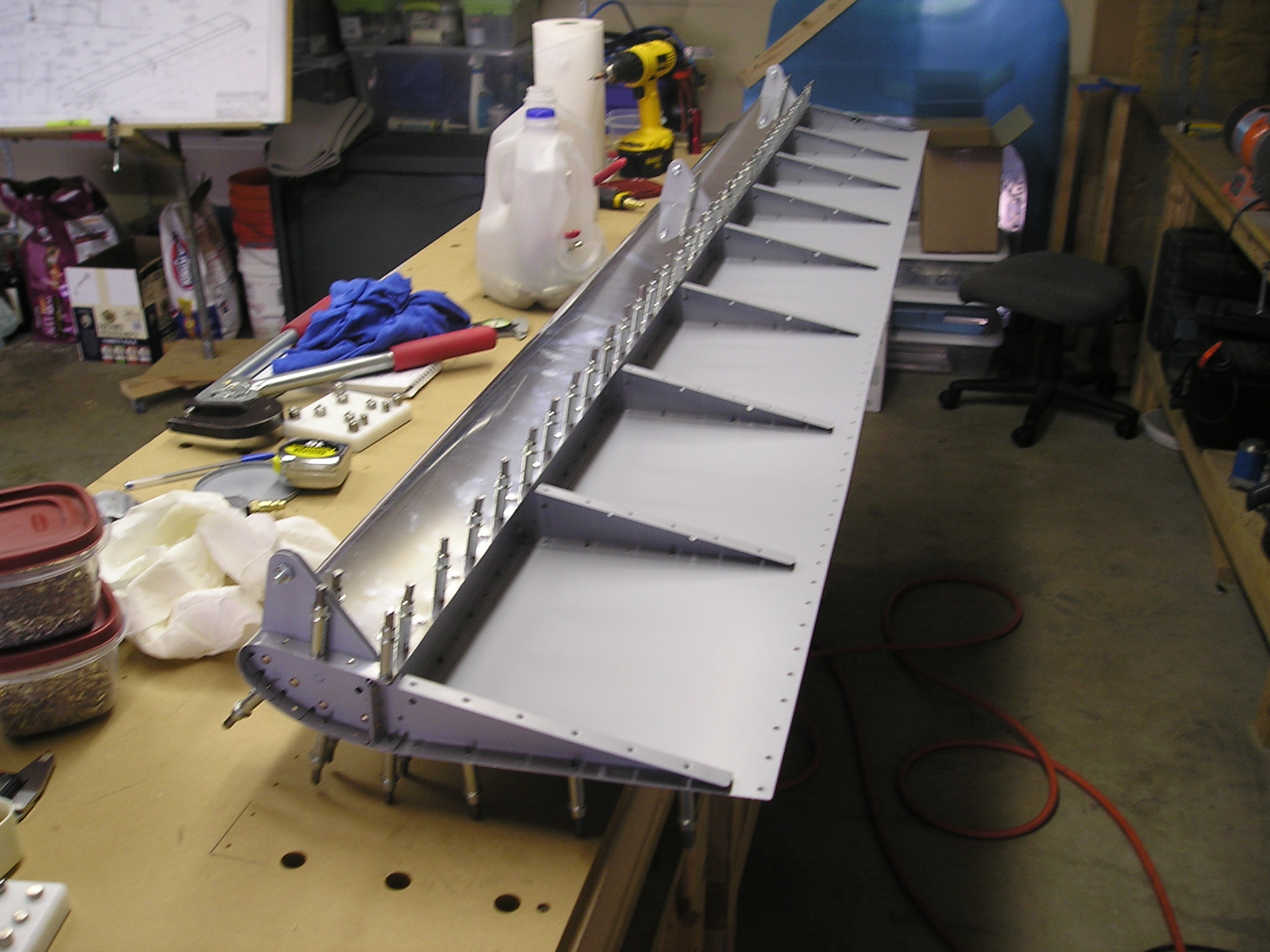

Cleco upper skin to assembly

Cleco upper skin to assembly full size

After riveting all the ribs, cleco the skins to the skeleton

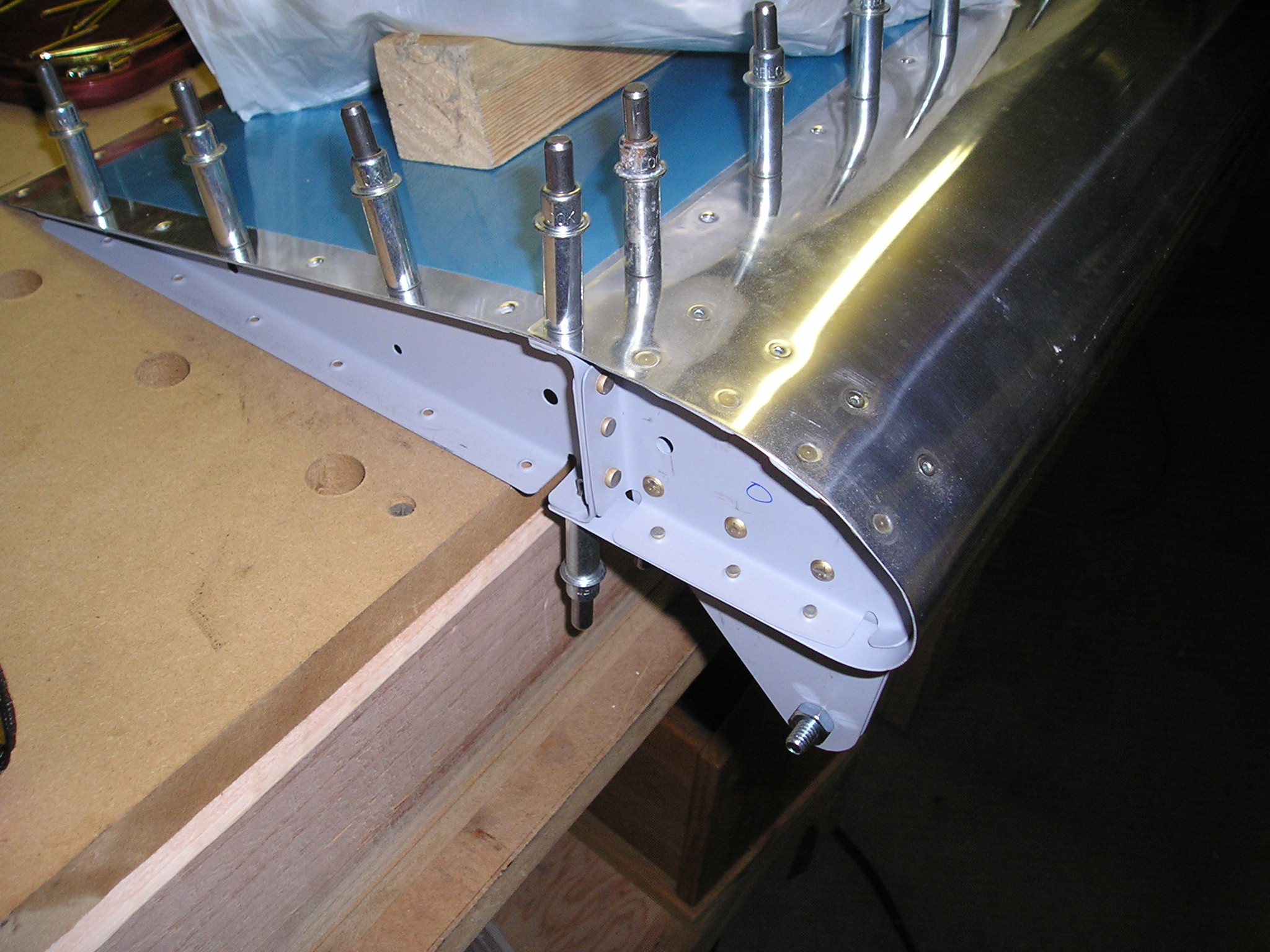

Rivet nose ribs to skins

Rivet nose ribs to skins full size

Flip the assembly over, and rivet the nose ribs to the skins

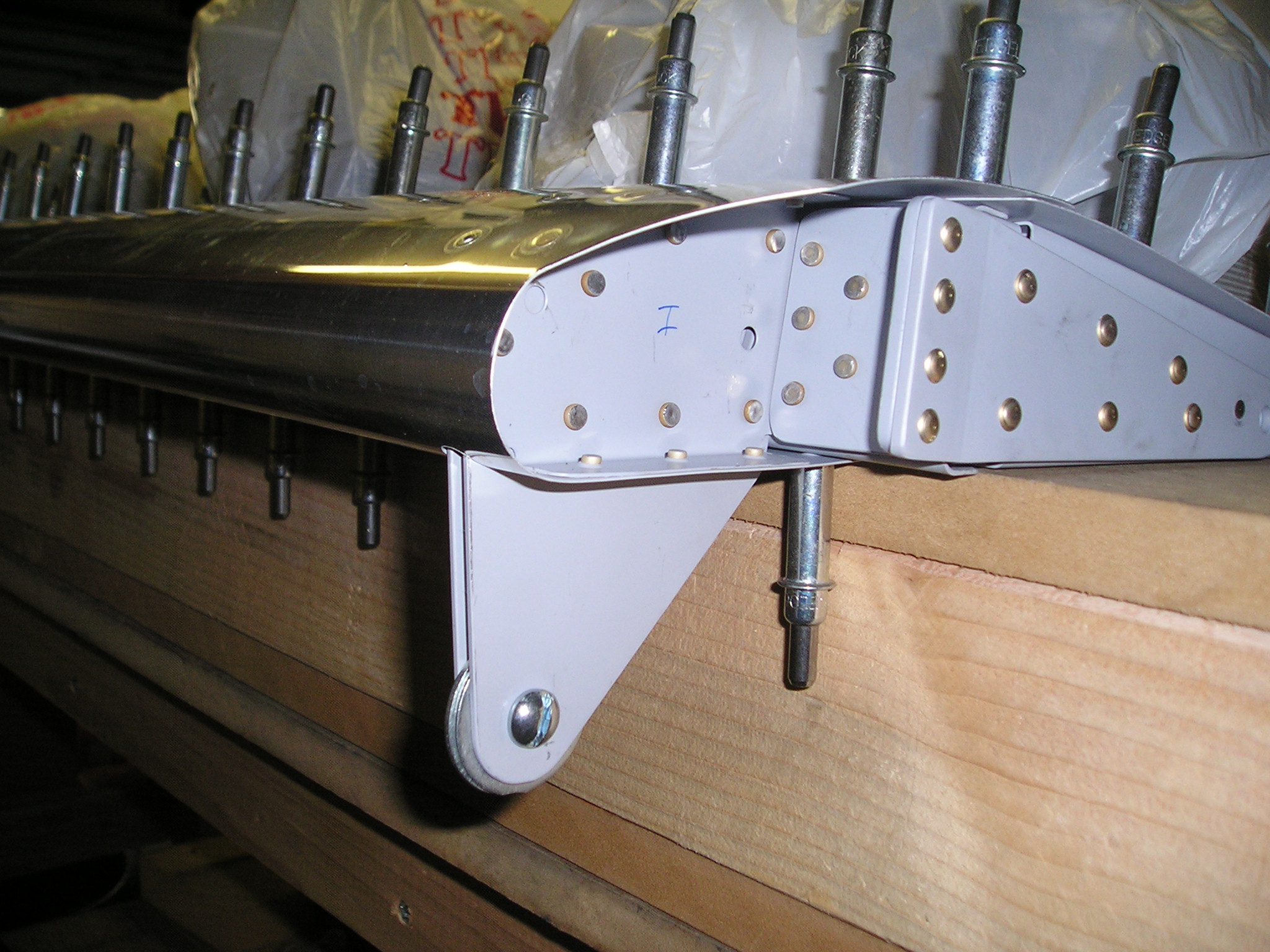

Another view of nose rib

Another view of nose rib full size

Another view of completed rivets

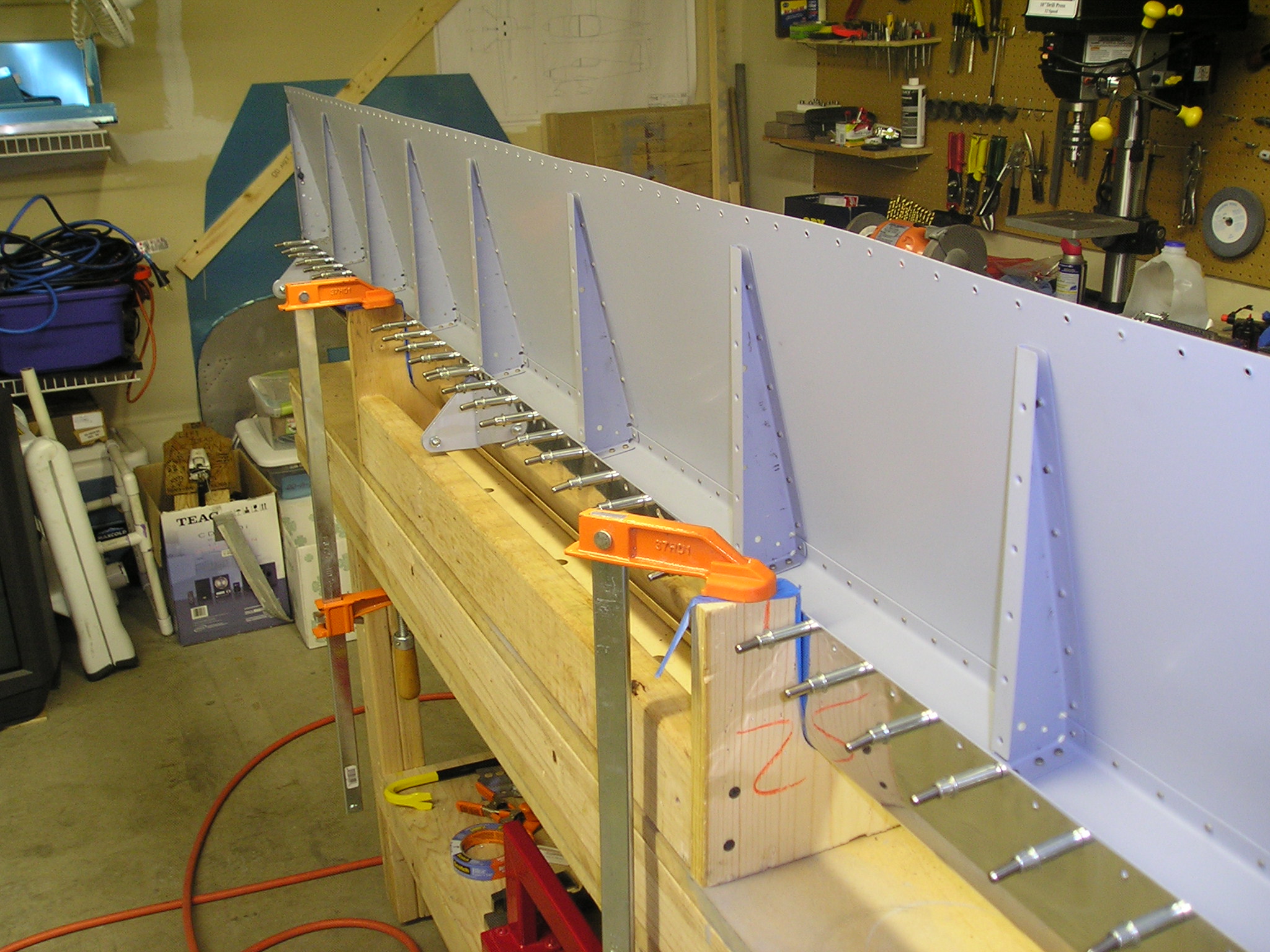

Rivet upper skin to assembly

Rivet upper skin to assembly full size

The upper skin is then riveted to the spar and ribs. The upper spar line is also riveted. This is it completed.
