Riveting flap lower skin part 2
Permalink: 2010-05-30 00:00:00-07:00 in RV9 tags: wings flaps

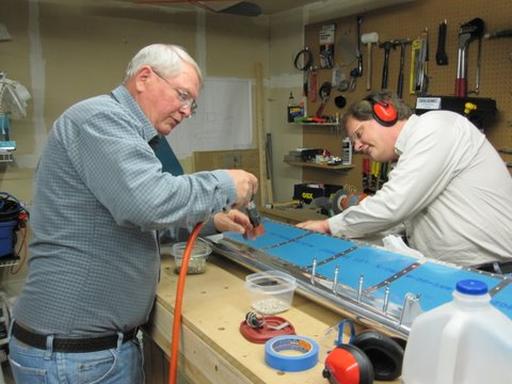

Riveting the lower skin to spar full size
My father came and helped me rivet the lower skin to spar. This flap got a slight twist in it, about 1/4". I'm not sure why all the others are very flat.

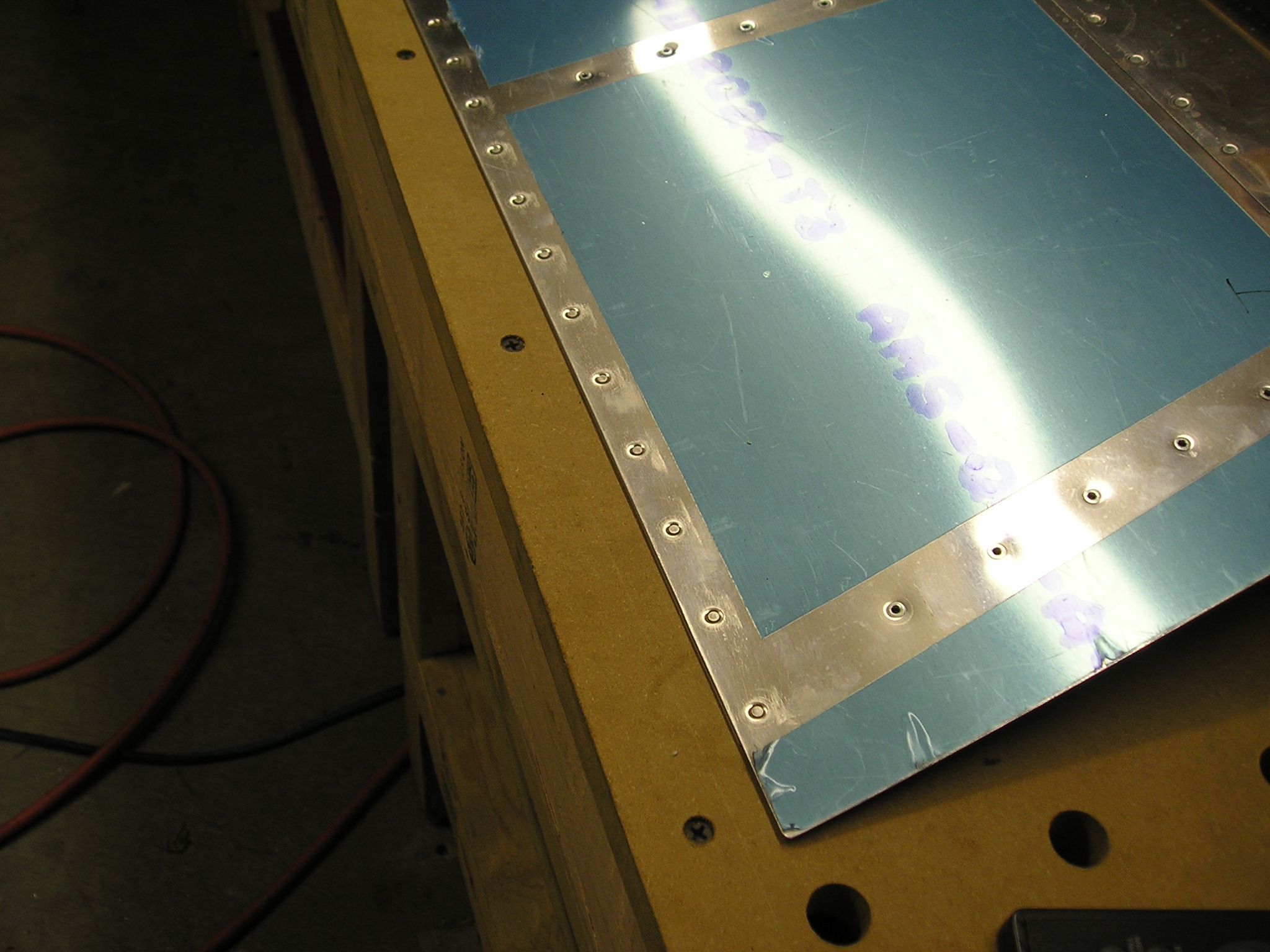

Installing rivets in trailing edge full size
Put in the rivets, then taped them with rivet tape

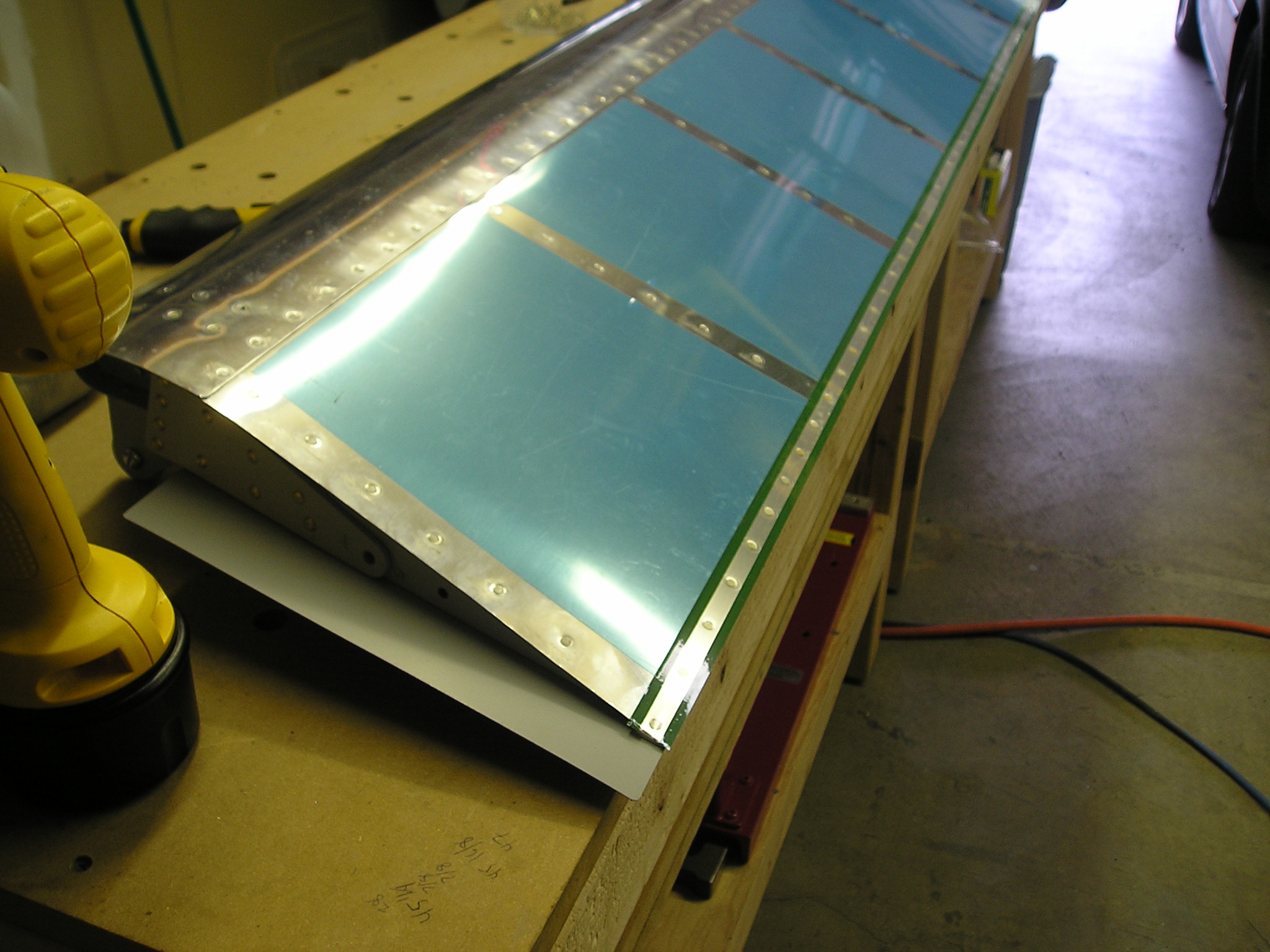

Finished trailing edge rivets full size
Then went through the two step back rivet halfway, flip over and use mushroom set with back rivet plate process to get the rivets in. All done.
