Riveting F-706 bulkhead
8.4 Hours

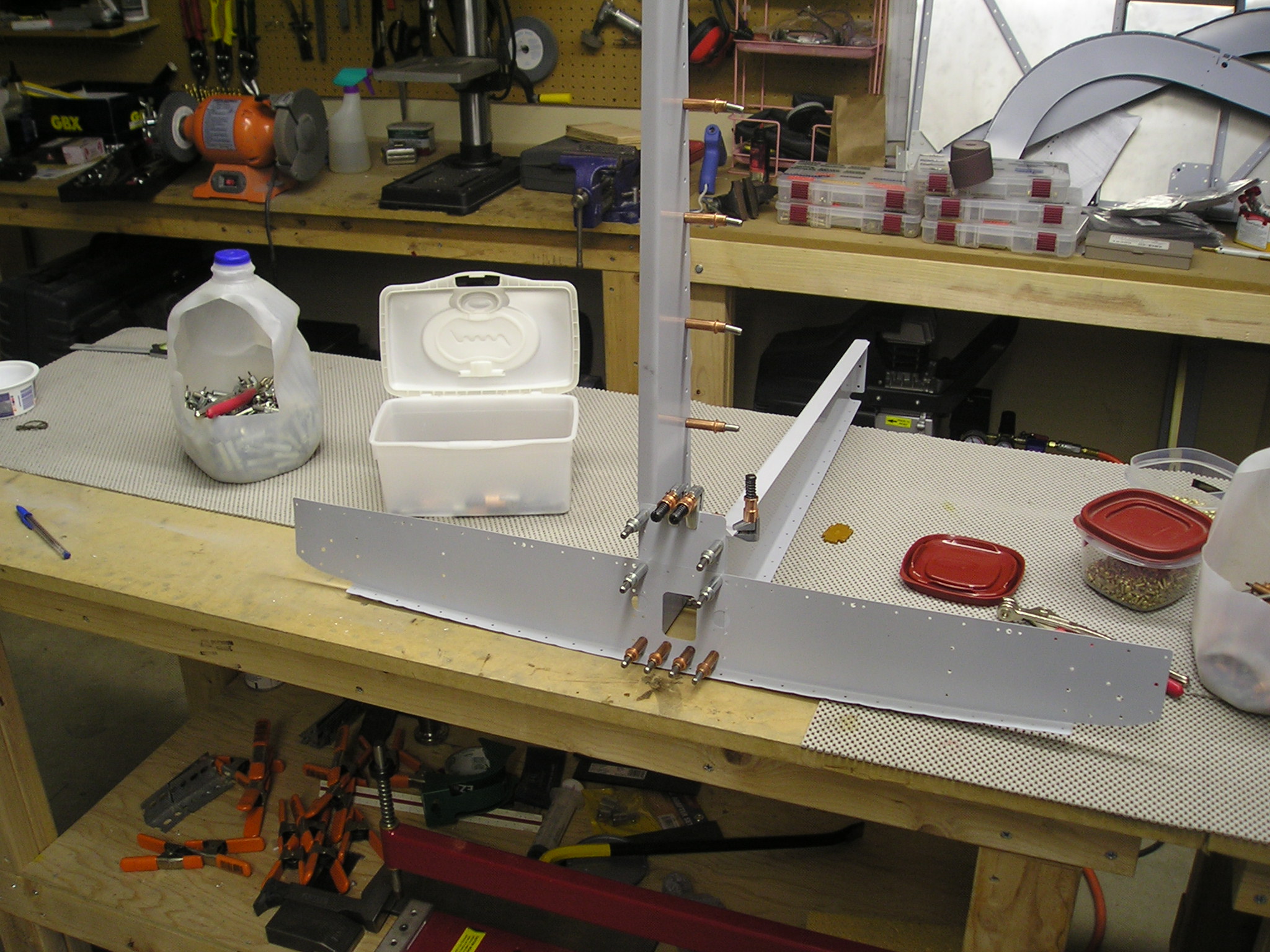

Assembling F-706, F-729, F-730, F-728 for drilling full size
Cleco'd these parts together and drilled the holes to full size

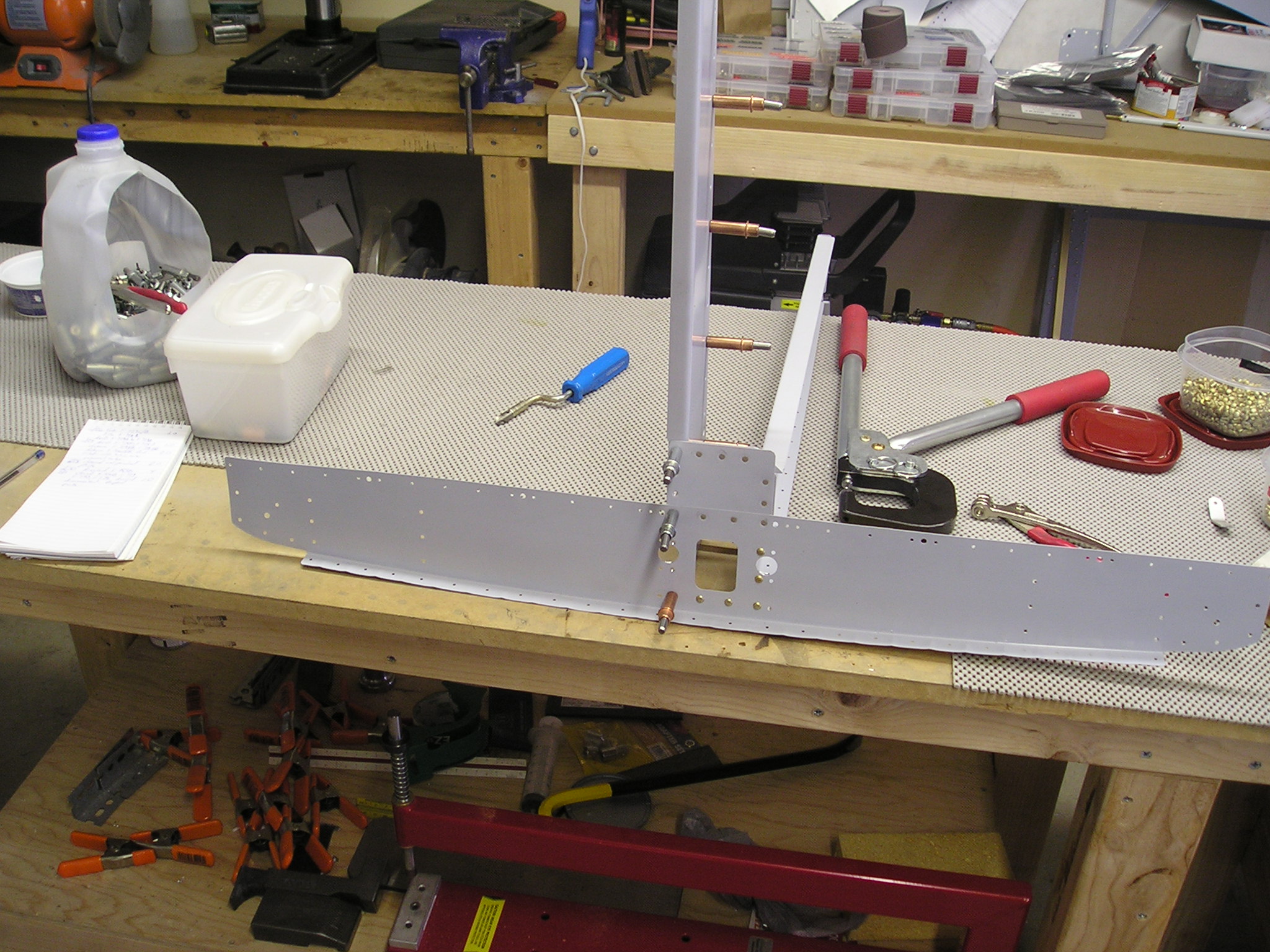

Riveting Bulkhead full size
After disassembling and dimpling. Put the parts back together. Riveted the F-730, F-706B, F-729C and F-729A together.

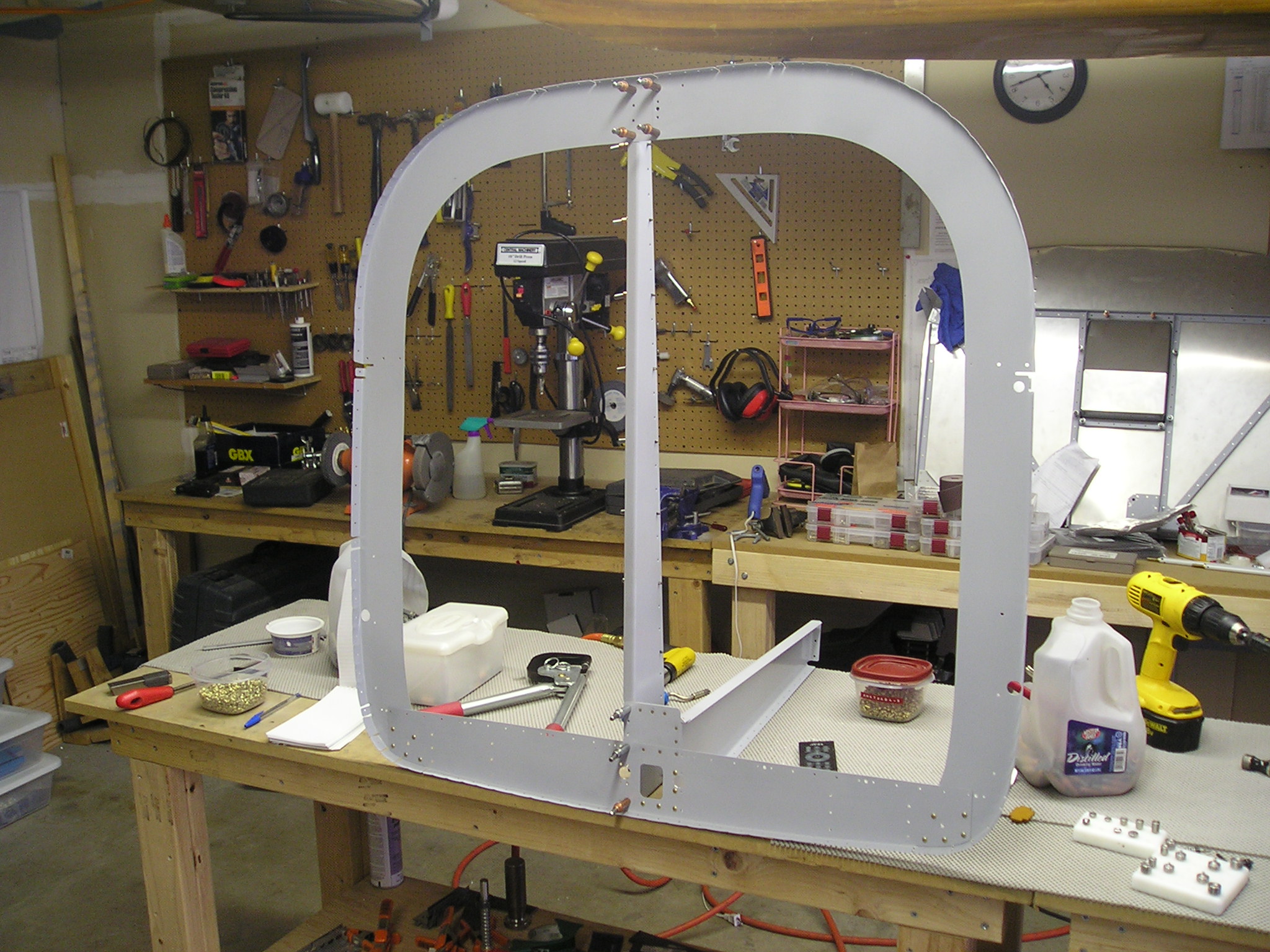

Assembled F-706 bulkhead full size
Fit and drilled the F-706A to F-706B. Riveted them together.

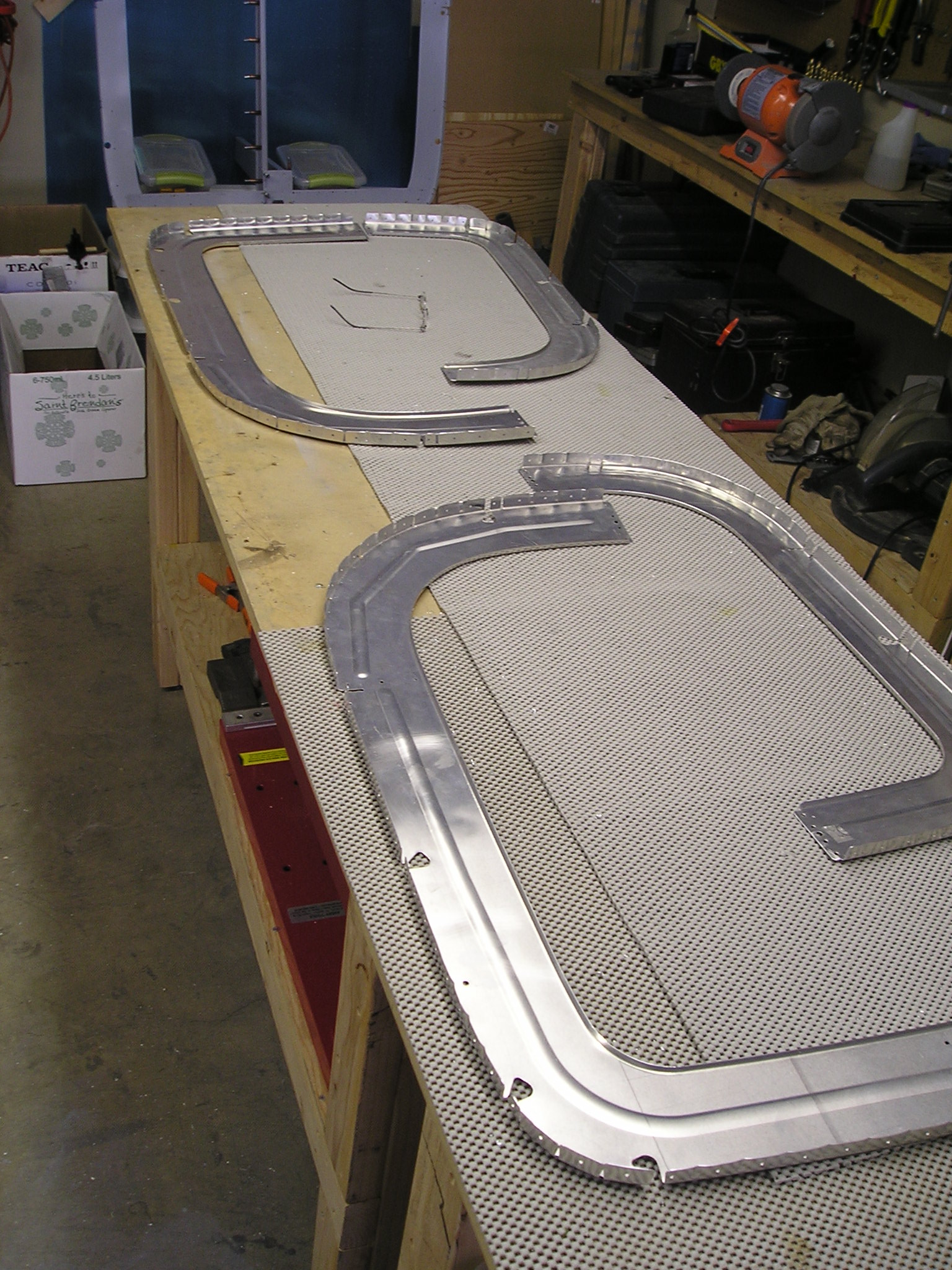

F-707 and F-708 full size
I deburred the edges of these bulkhead parts
