After Bulkhead parts
Permalink: 2010-07-11 00:00:00-07:00 in RV9 tags: fuselage bulkheads
F-711C full size

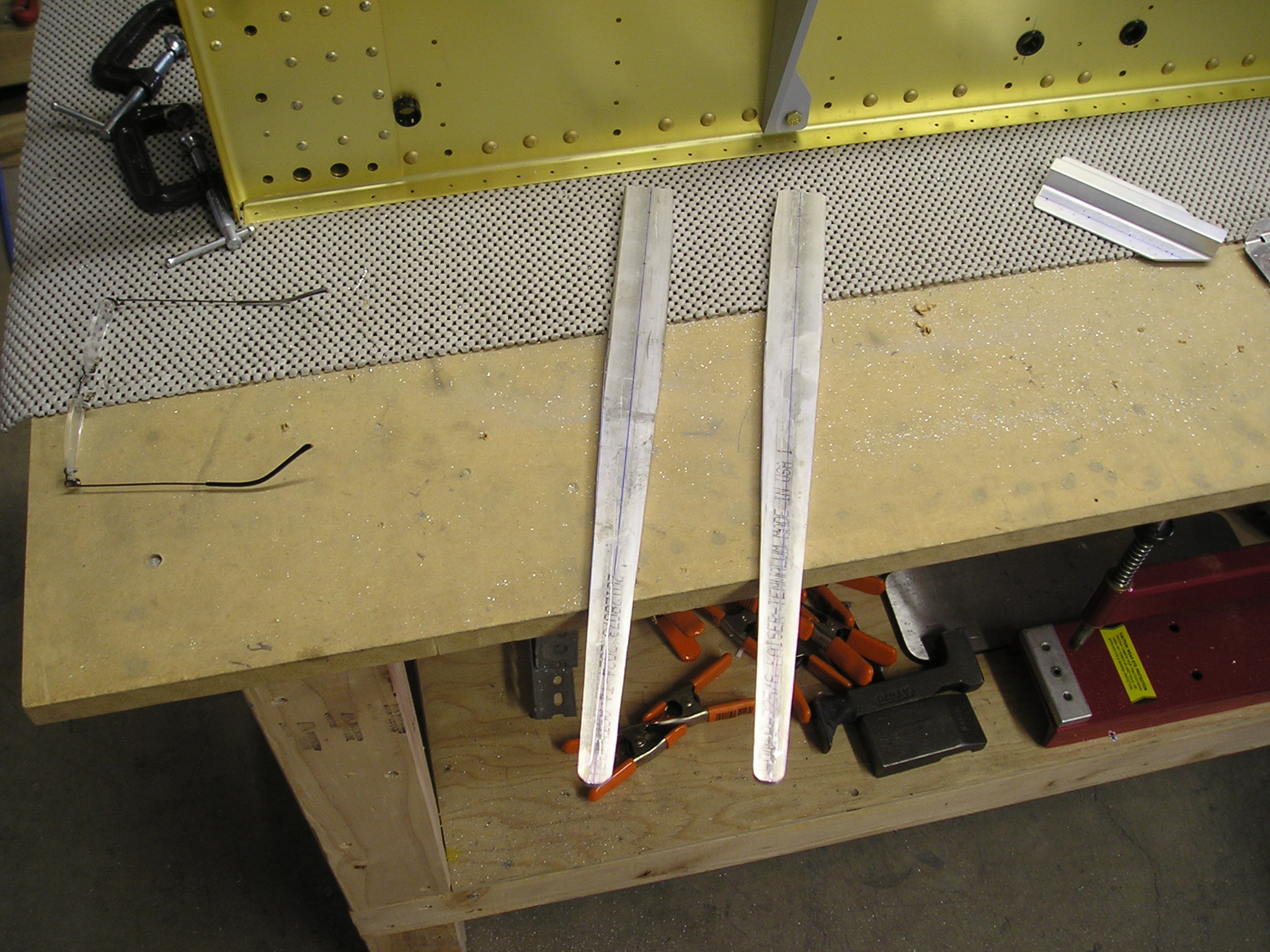

Laid out and cut F-711C Stab attach bars
F-710B full size

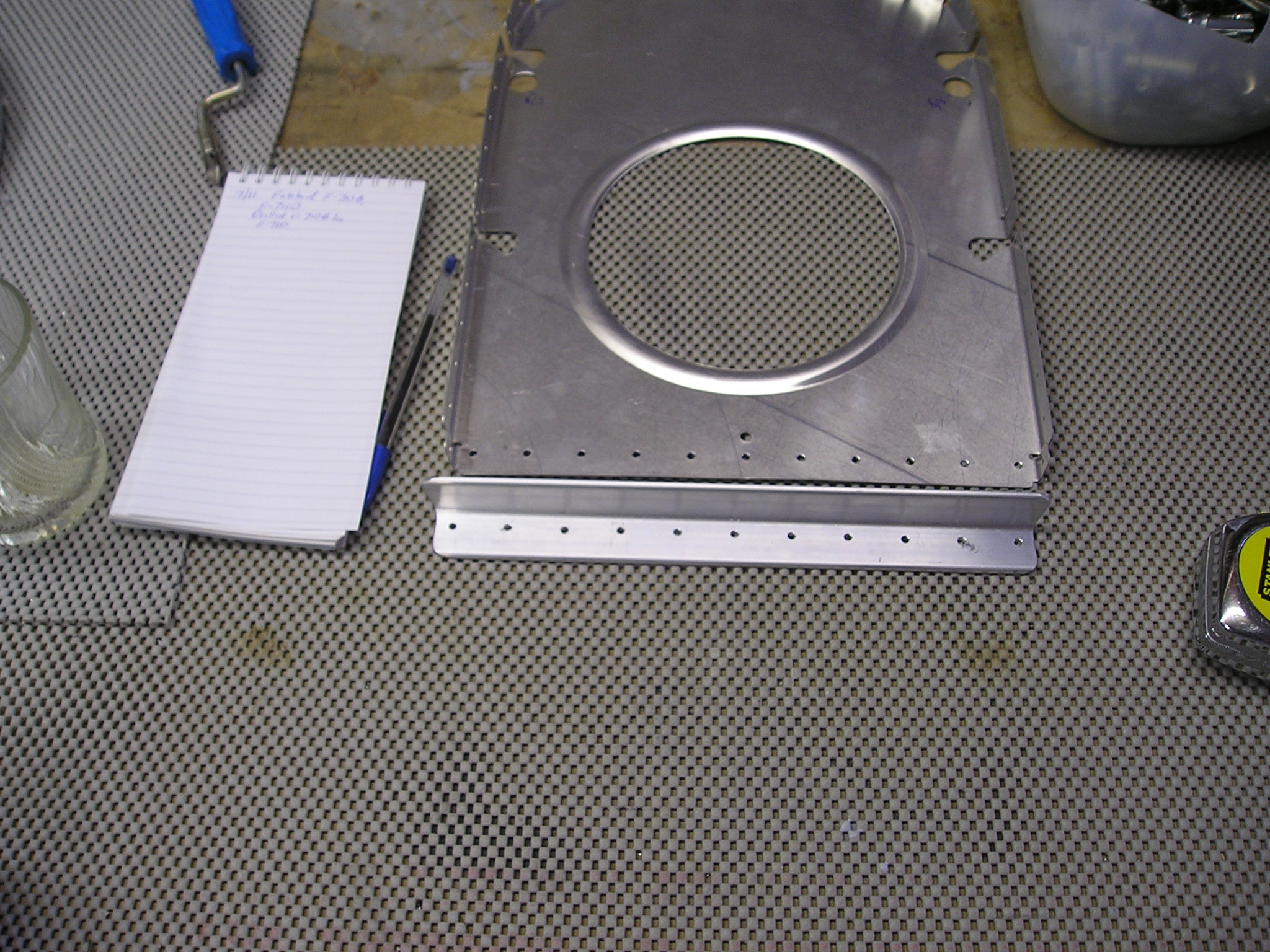

Laid out and cut F-710B angle for F-710 bulkhead Drilled the angle to the bulkhead. Deburred holes.
F-711 bulkhead full size

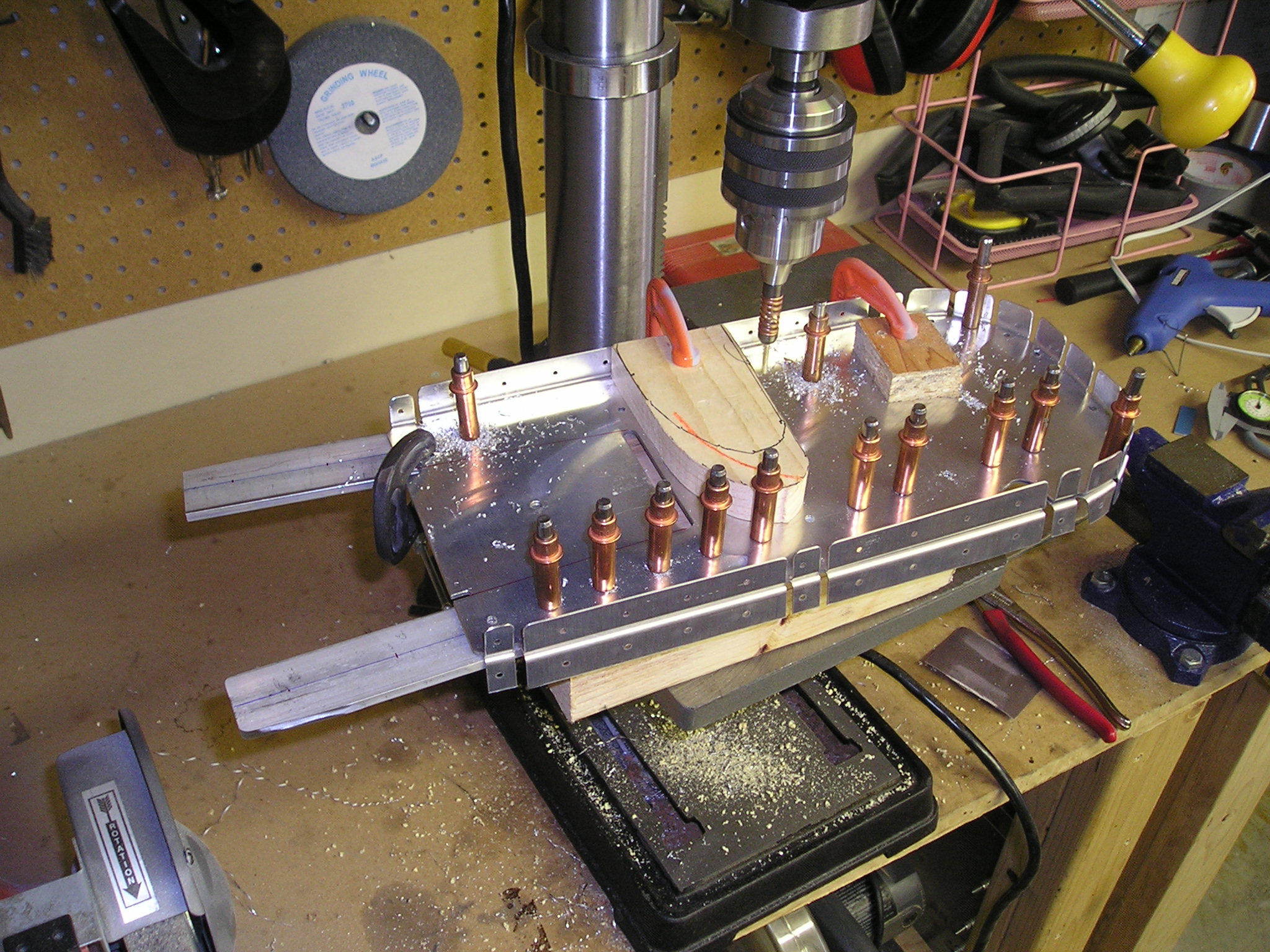

Cleco'd F-711A to F-711B, then drilled the F-711C attach bars to the assembled bulkhead.
F-712E full size

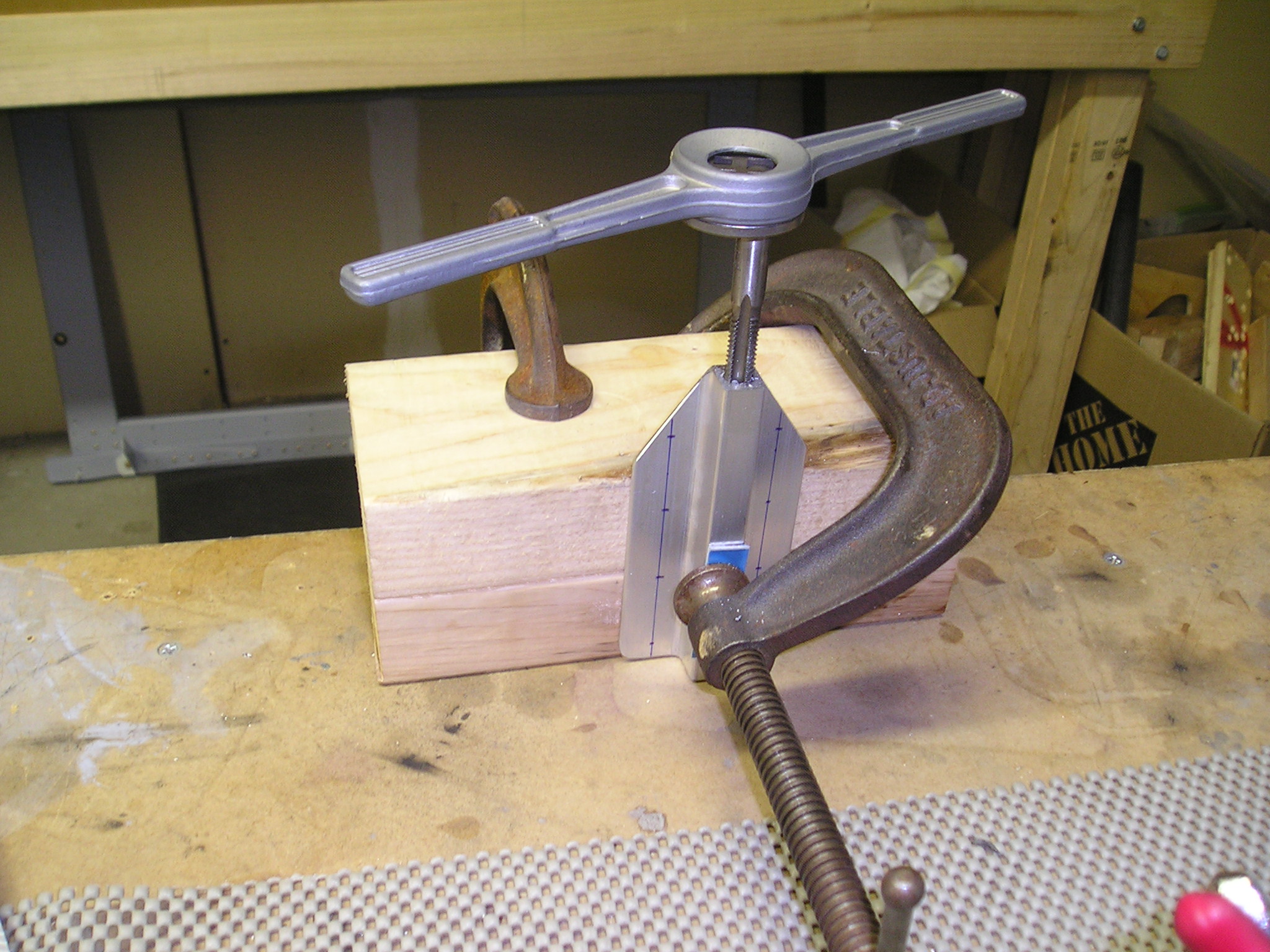

Laid out, cut F-712E. Tapped the hole for the tie down anchor.
