Installing nutplates on seat ribs

5.5 Hours

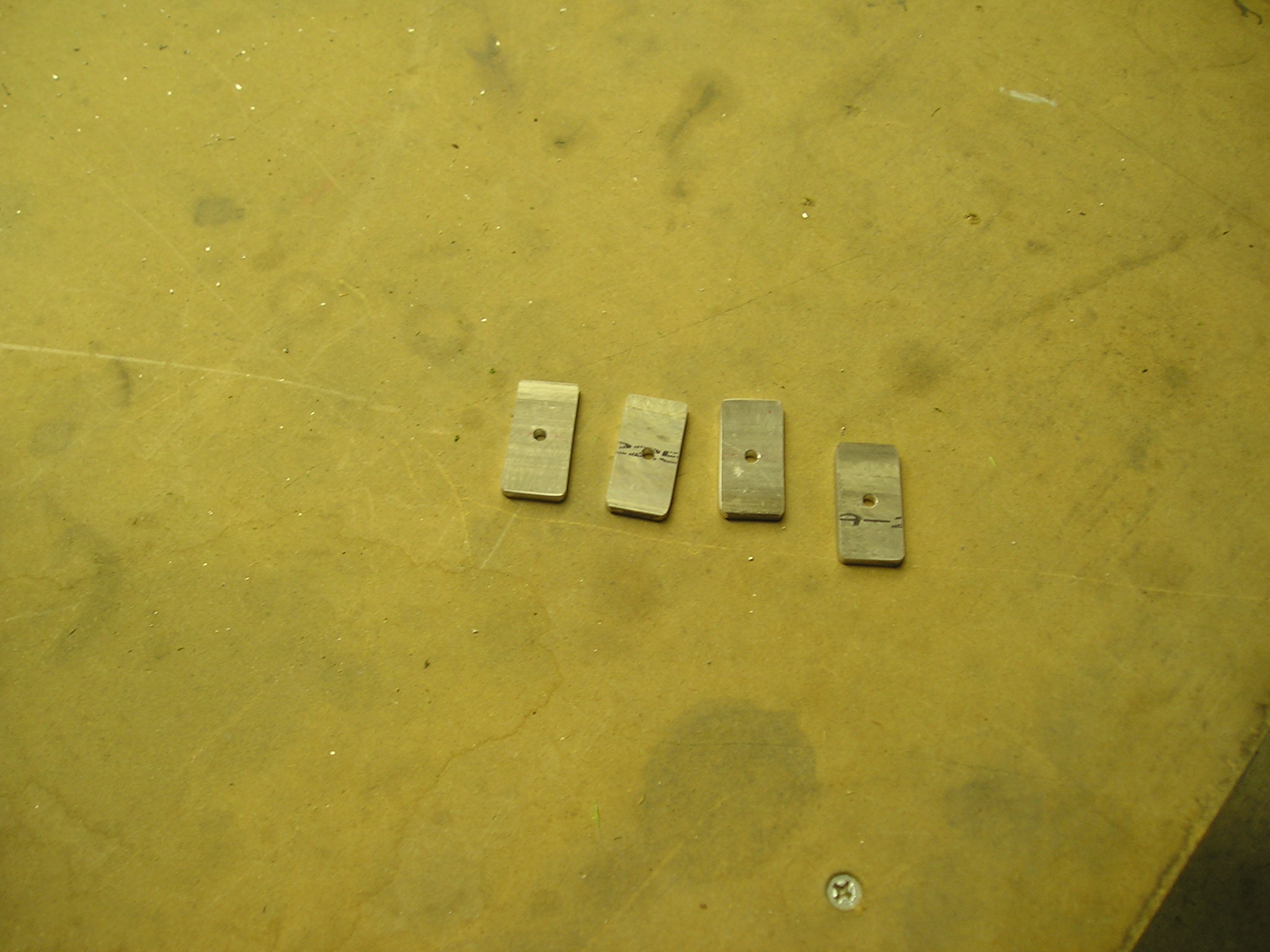

F-916C spacers full size

Made these from a piece of aluminum bar.

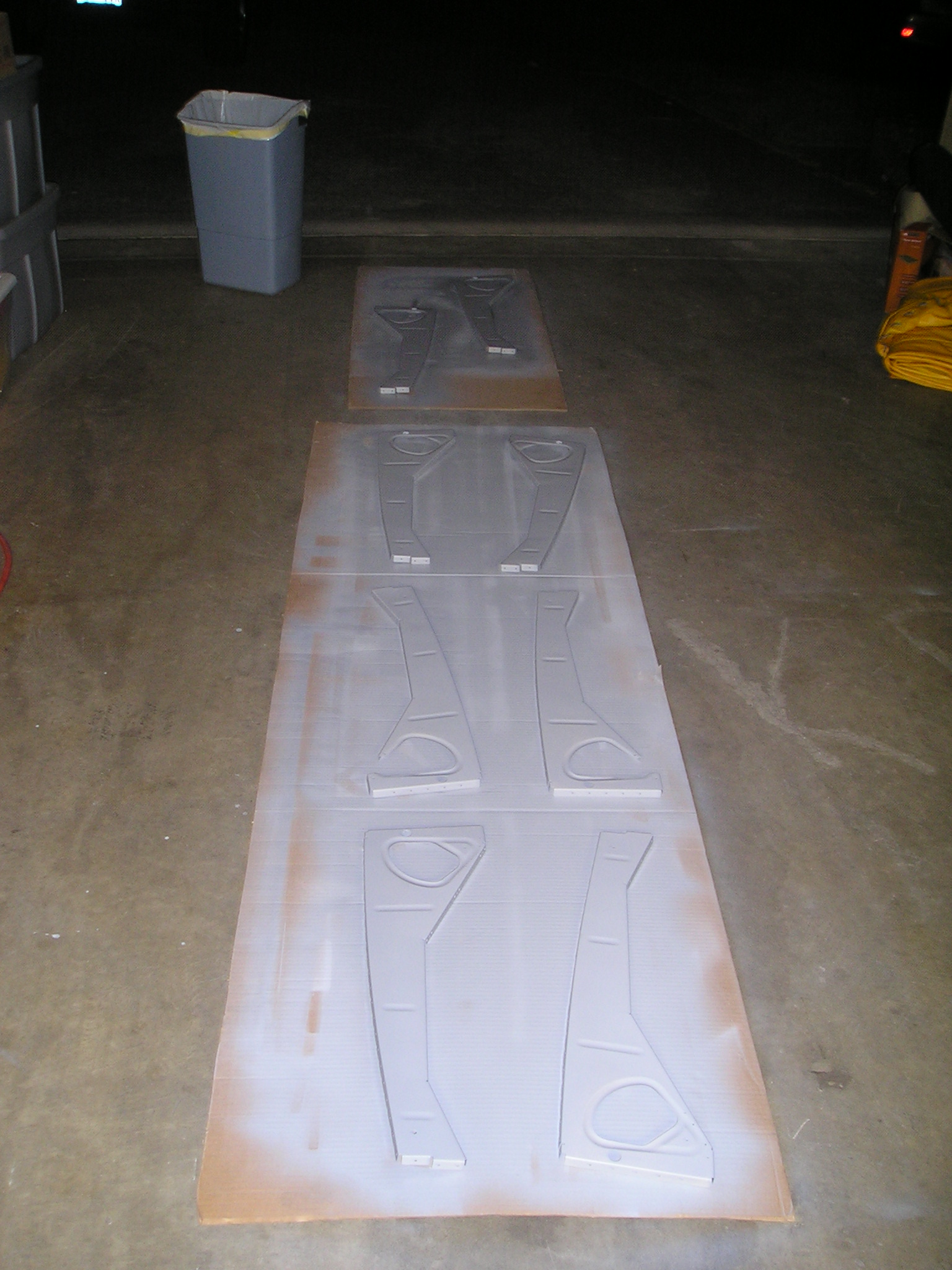

Priming seat ribs full size

Deburred, dimpled, cleaned and primed the seat ribs. I primed them now because nutplates need to be installed before assembling them for skin hole drilling. I also fluted the ribs to make them lie flat.

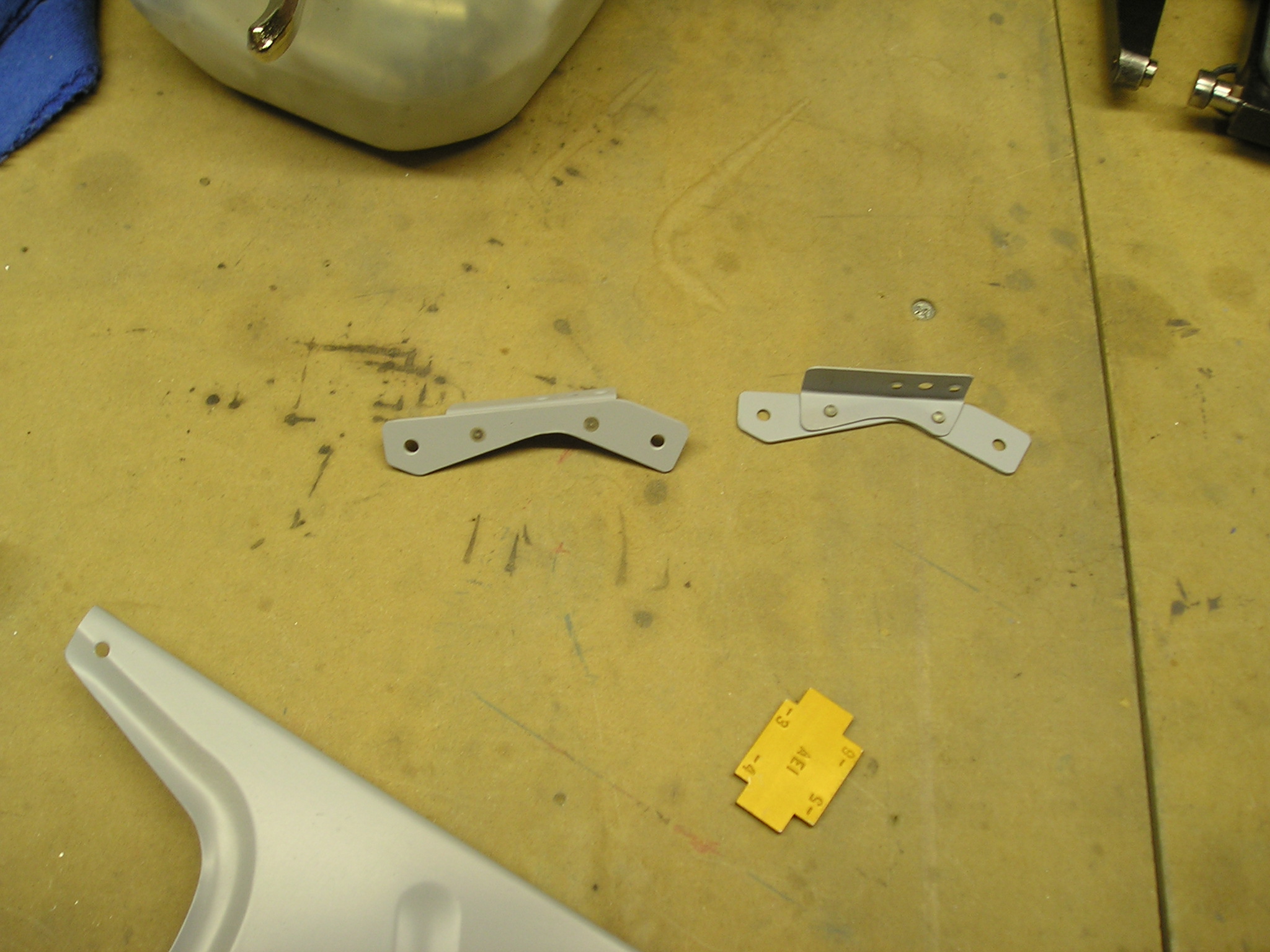

Inboard rib removable flange riveting full size

Those pieces of the flange on the inner ribs are riveted to a strap so they can be bolted in place. Riveted them together with the squeezer.

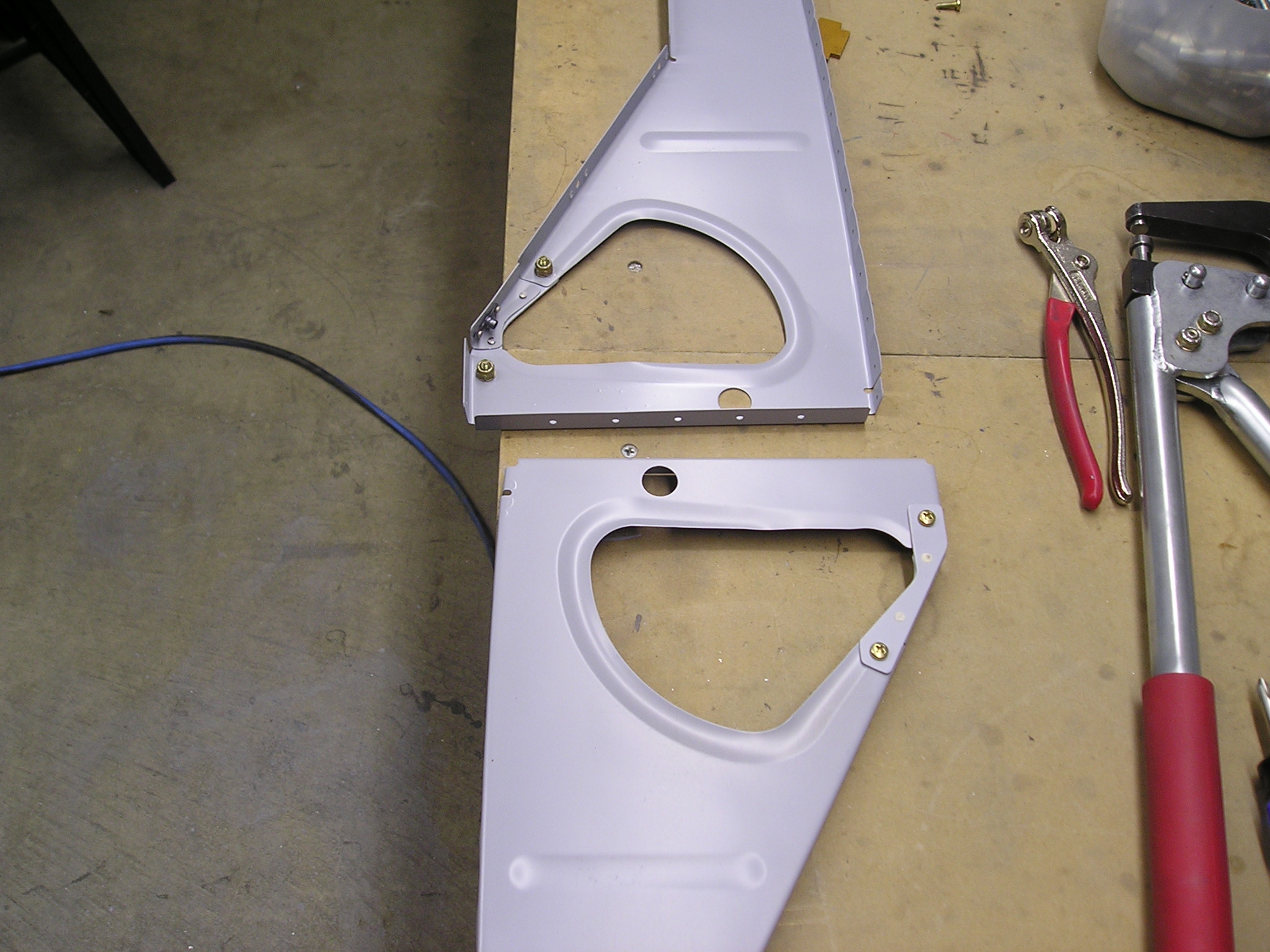

Flanges bolted back in place full size

ditto

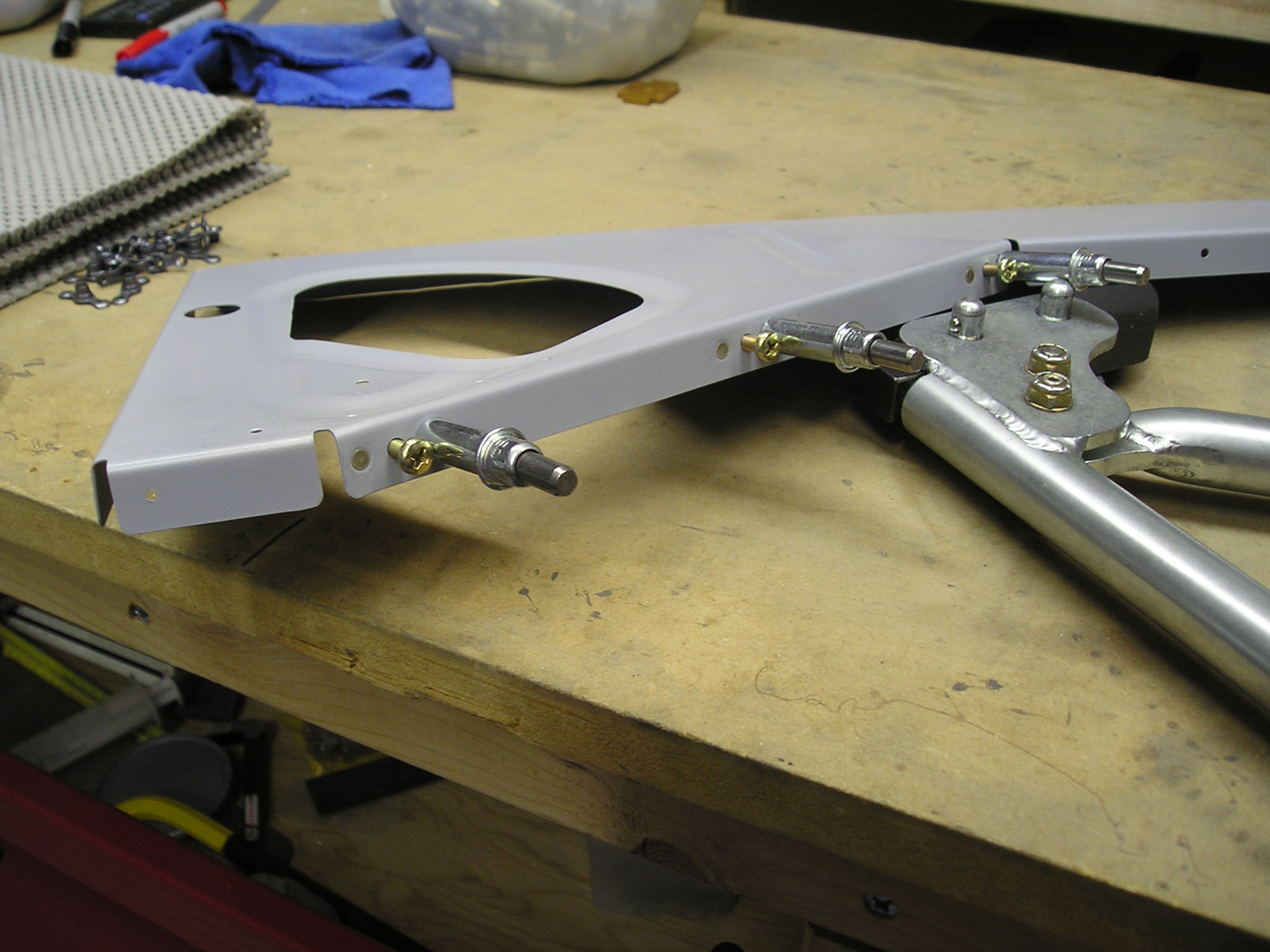

Riveting nutplates on ribs full size

Each of the ribs has 3 nutplates. Riveted those into place with the hand squeezer.
