Assembling Center section
4.0 Hours

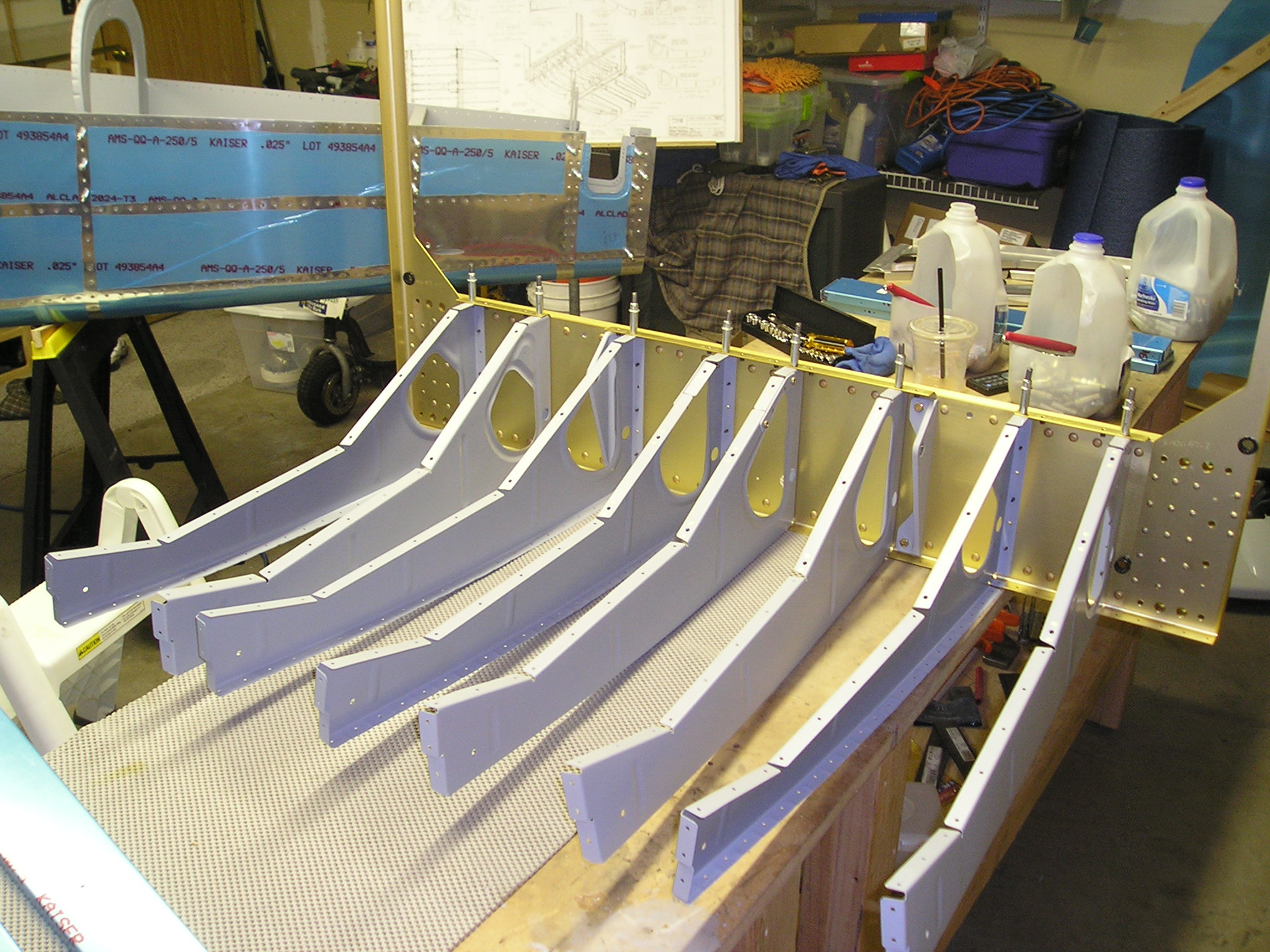

Seat ribs cleco'd in place full size
Making sure I have each one in the correct place, cleco'd the ribs to the F-904

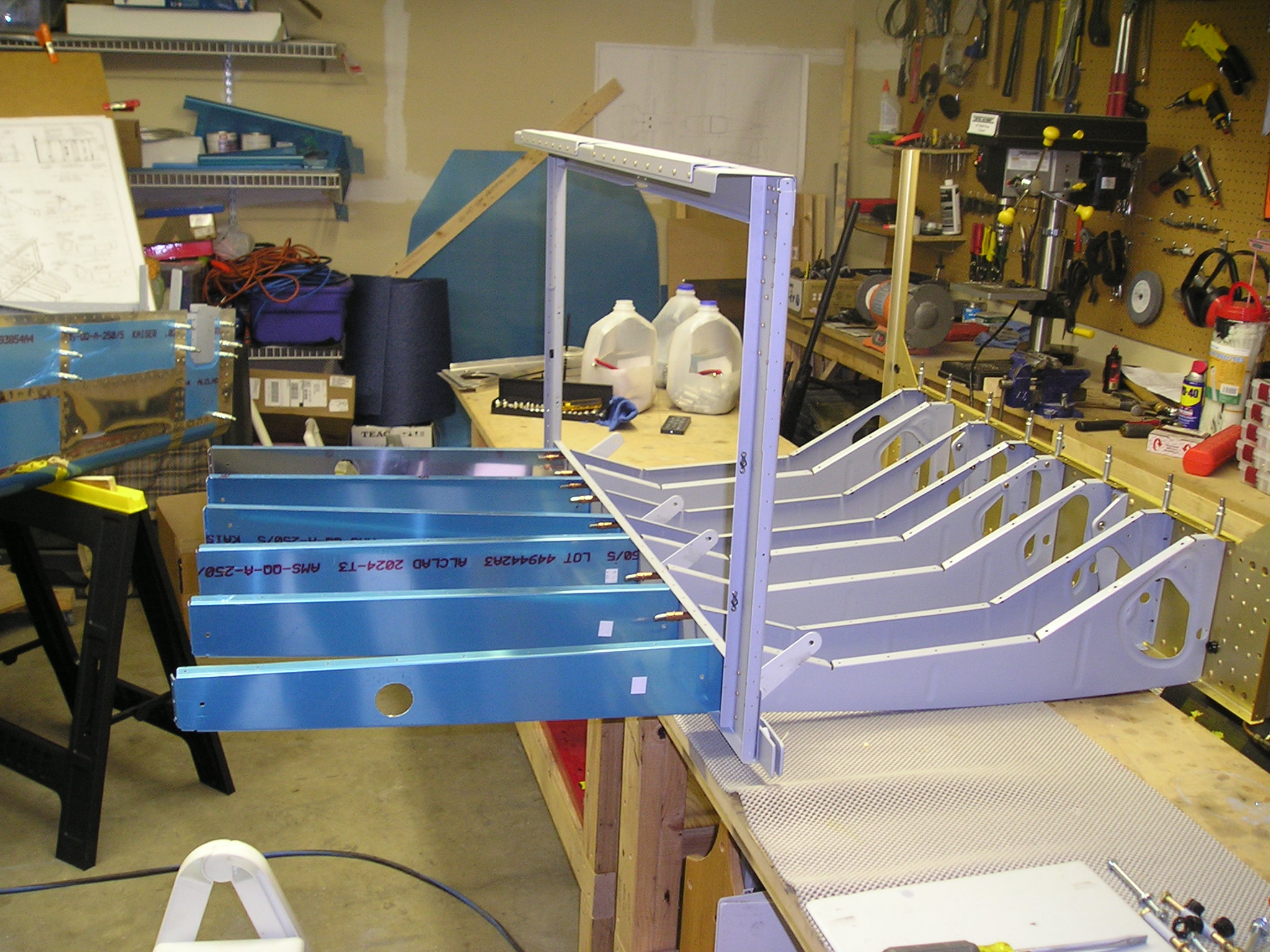

Installing baggage ribs full size
Drilled F-725L/R for the step tubes, then installed all of the ribs to the F-705 bulkhead. Once they are cleco'd into place, cleco't the whole thing to the seat ribs.

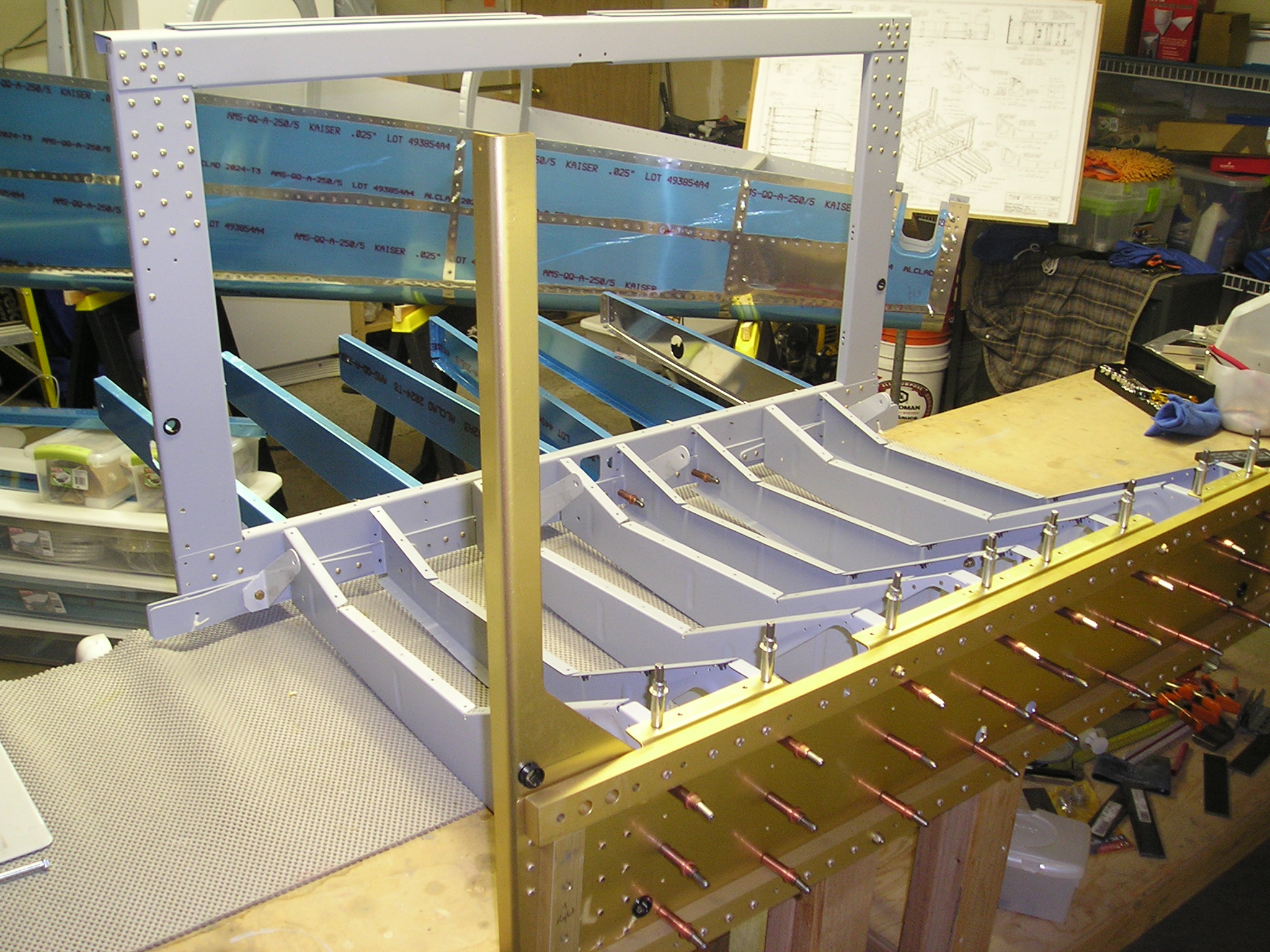

Front view of assembly full size
Another pic of the ribs and bulkheads

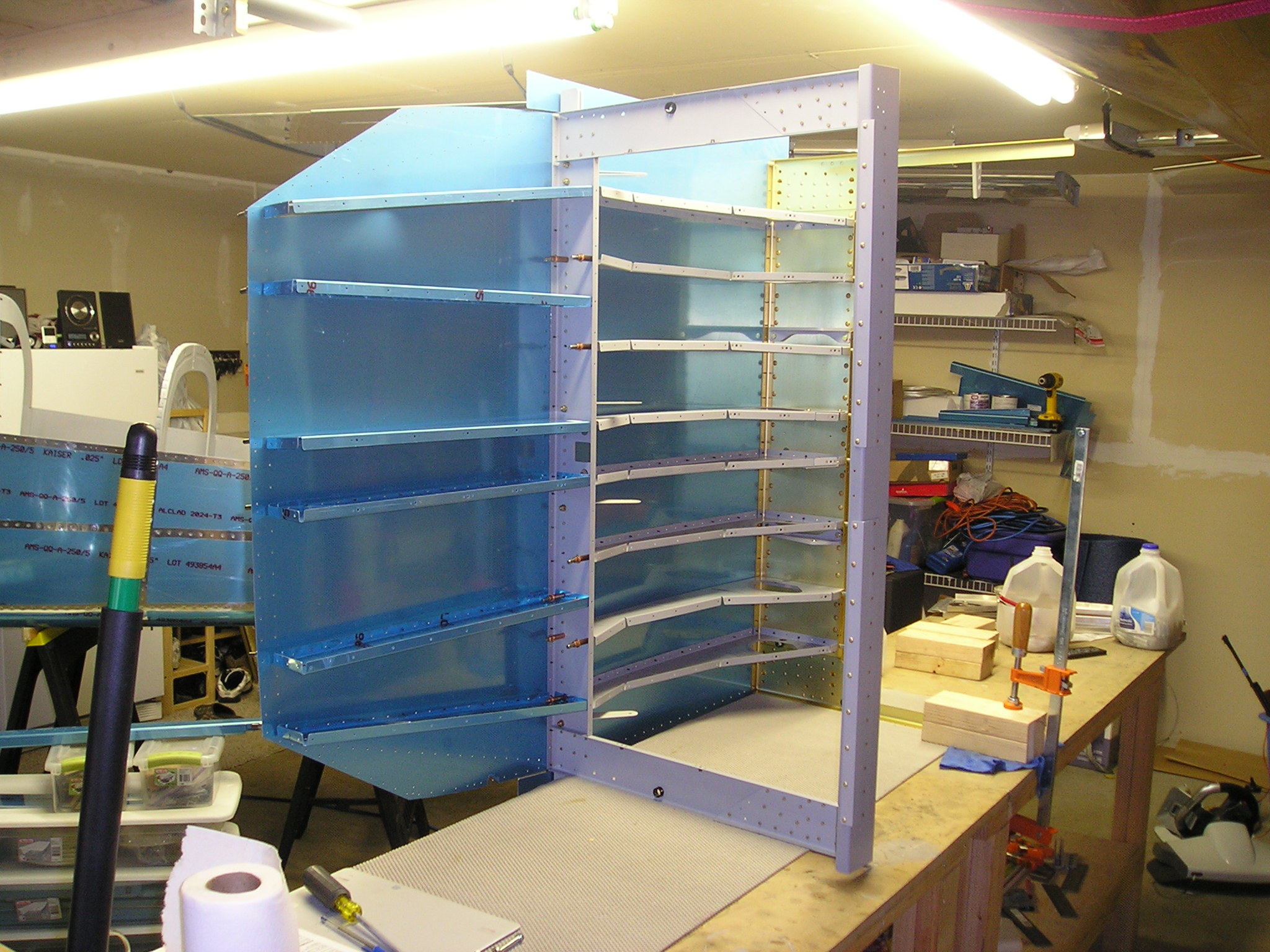

Lower skin cleco'd to the assembly full size
I put the assembly on it's side, then cleco'd the F-976 skin to the ribs and frames.
