Installing flap hinge angles
3.2 Hours

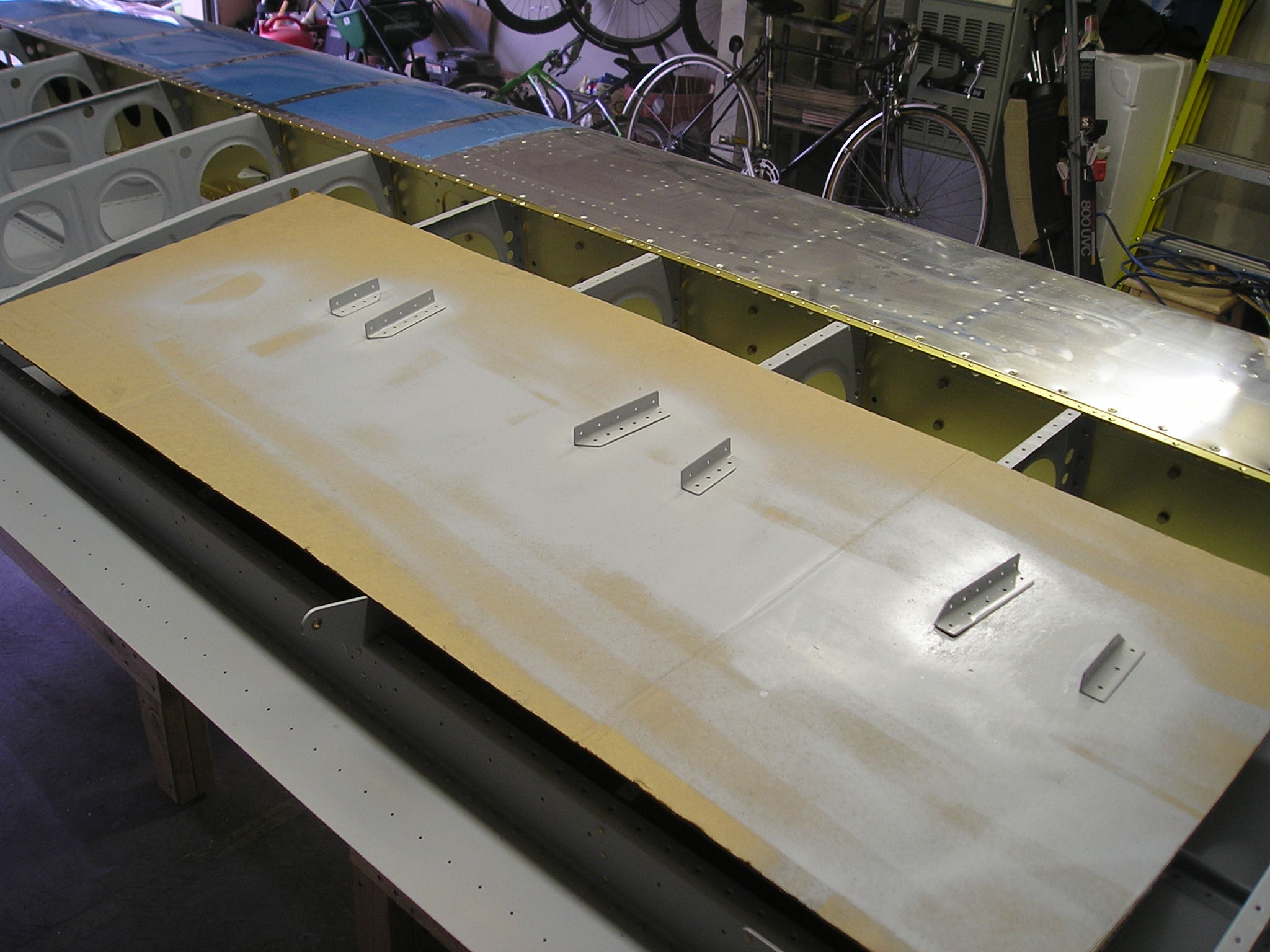

Priming flap hinge angles full size
The completed flap hinge angles. I then installed the W-925C pieces and the inboard W-925B.

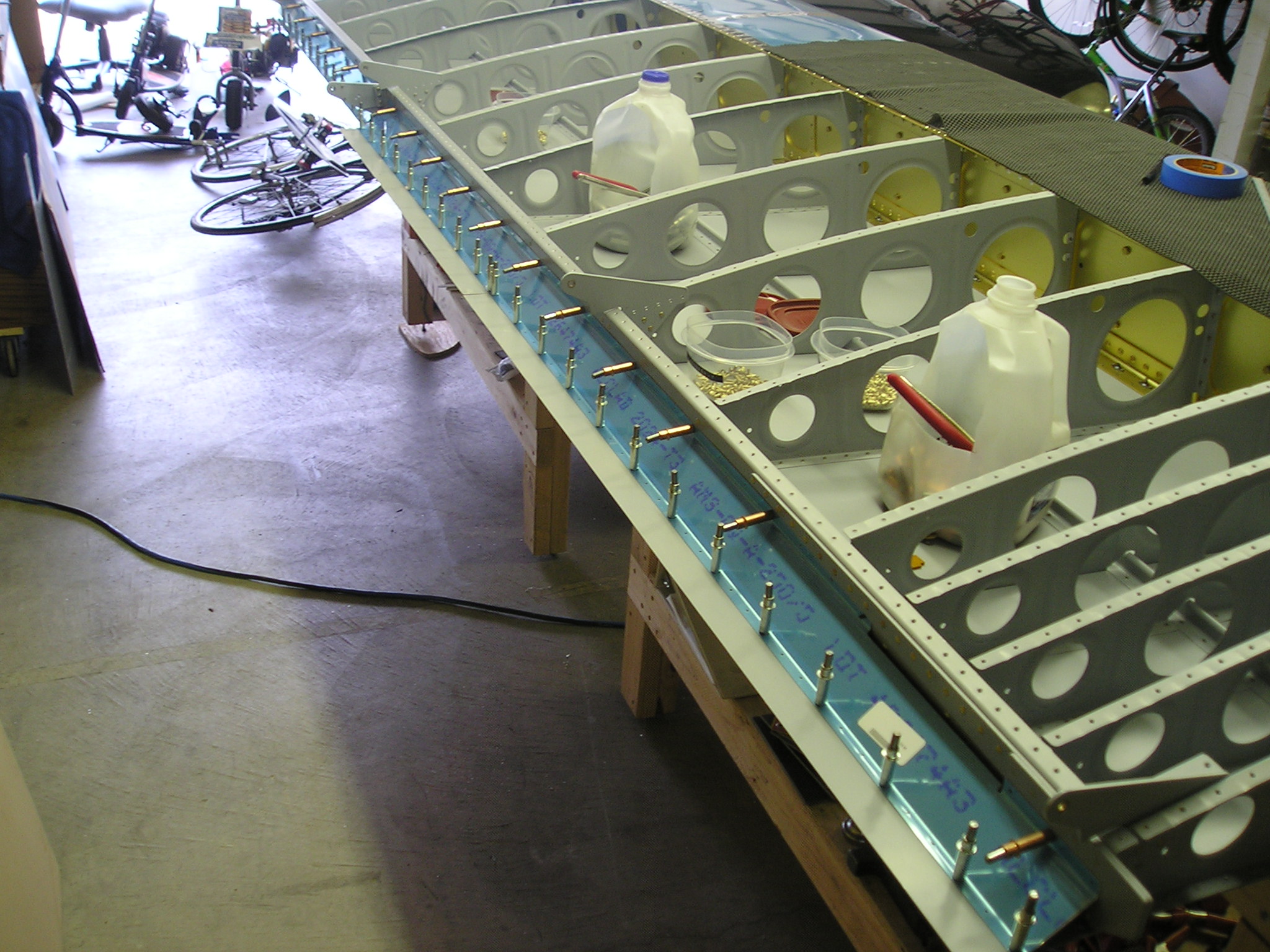

Fitting W-921R and W-924R gap fairings full size
The gap fairing are cleco'd into place, then the holes drilled. After drilling, removed the fairings and deburred them.

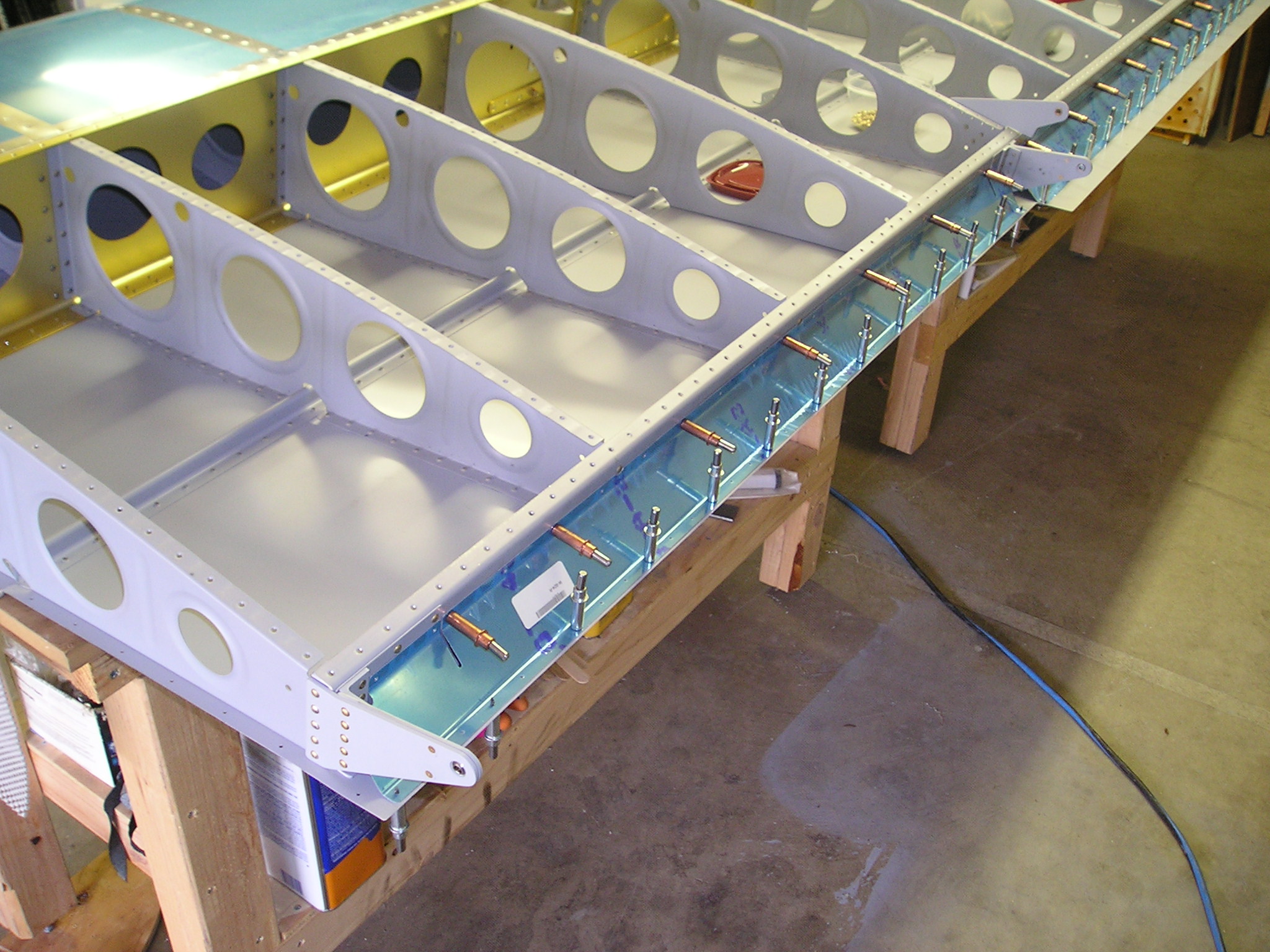

Aileron gap fairing full size
Here is a close-up of the aileron gap fairing
