Installing aileron hinges
3.7 Hours

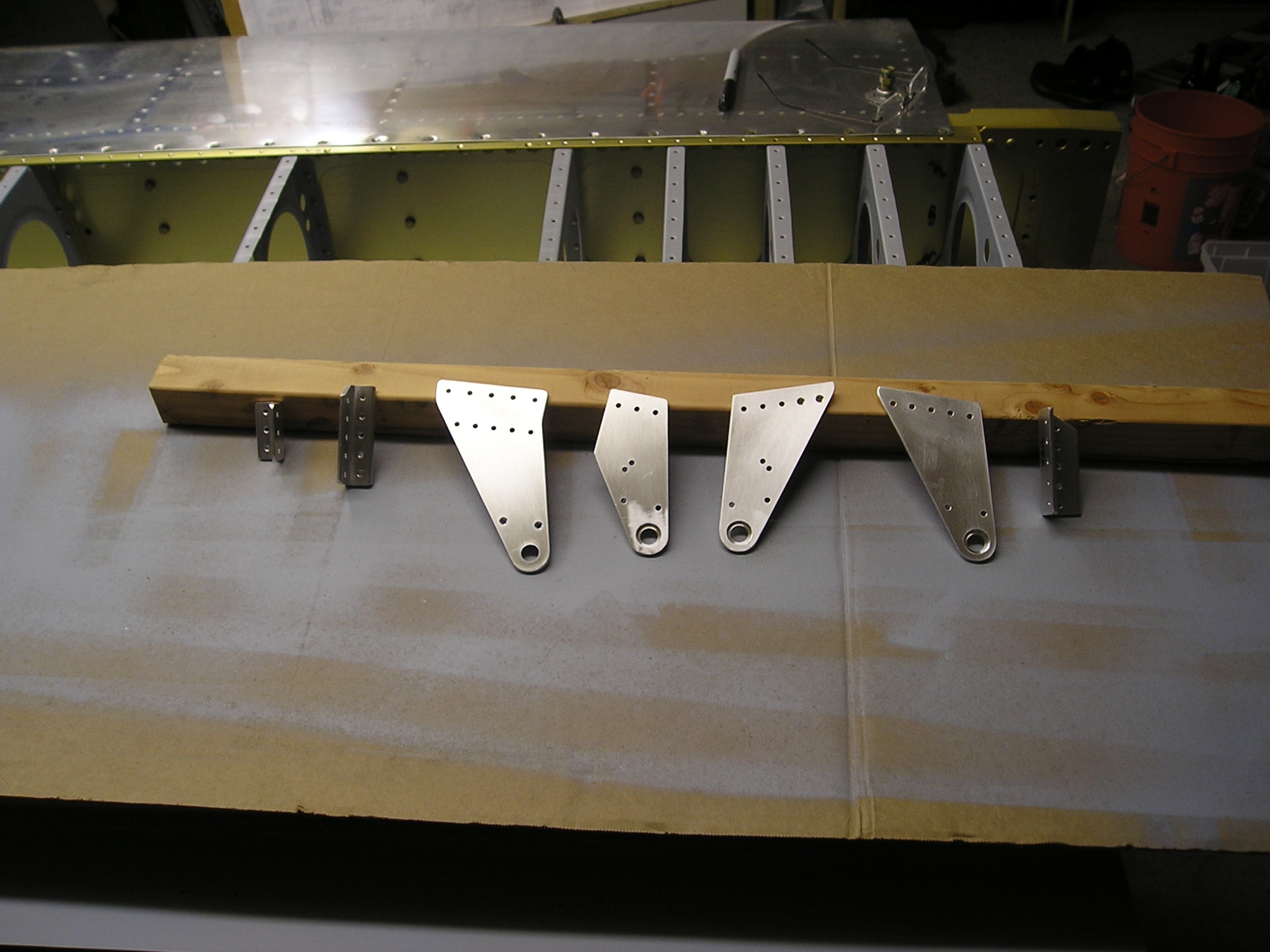

Aileron hinge parts drilled, cleaned, deburred full size
I installed the hinge parts, drilled them to full size, then removed, deburred, countersunk some of the holes and cleaned them

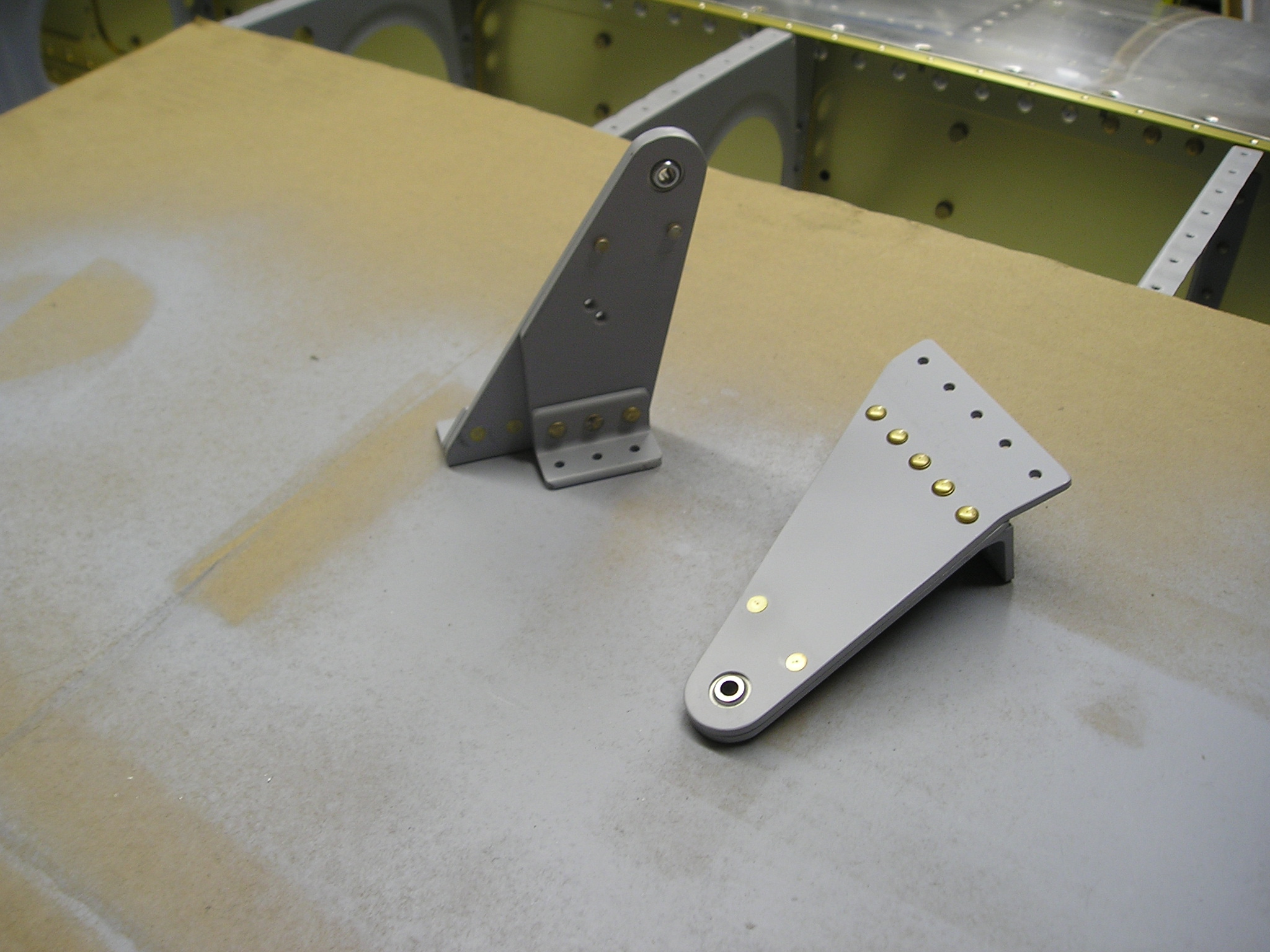

Completed aileron hinges full size
Primed the parts and assembled them.

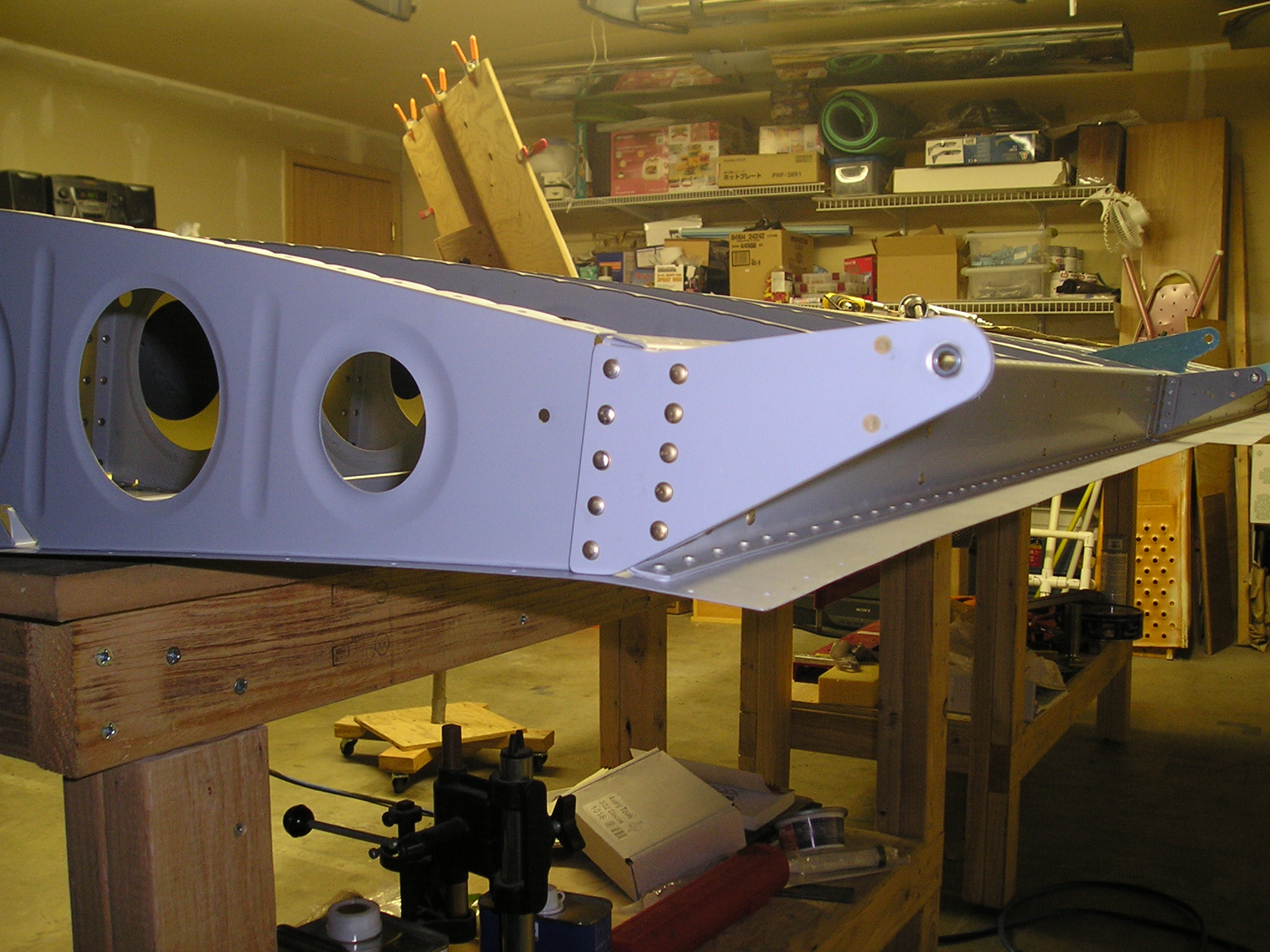

Installed inner aileron hinge full size
Here is the inner hinge riveted in place.

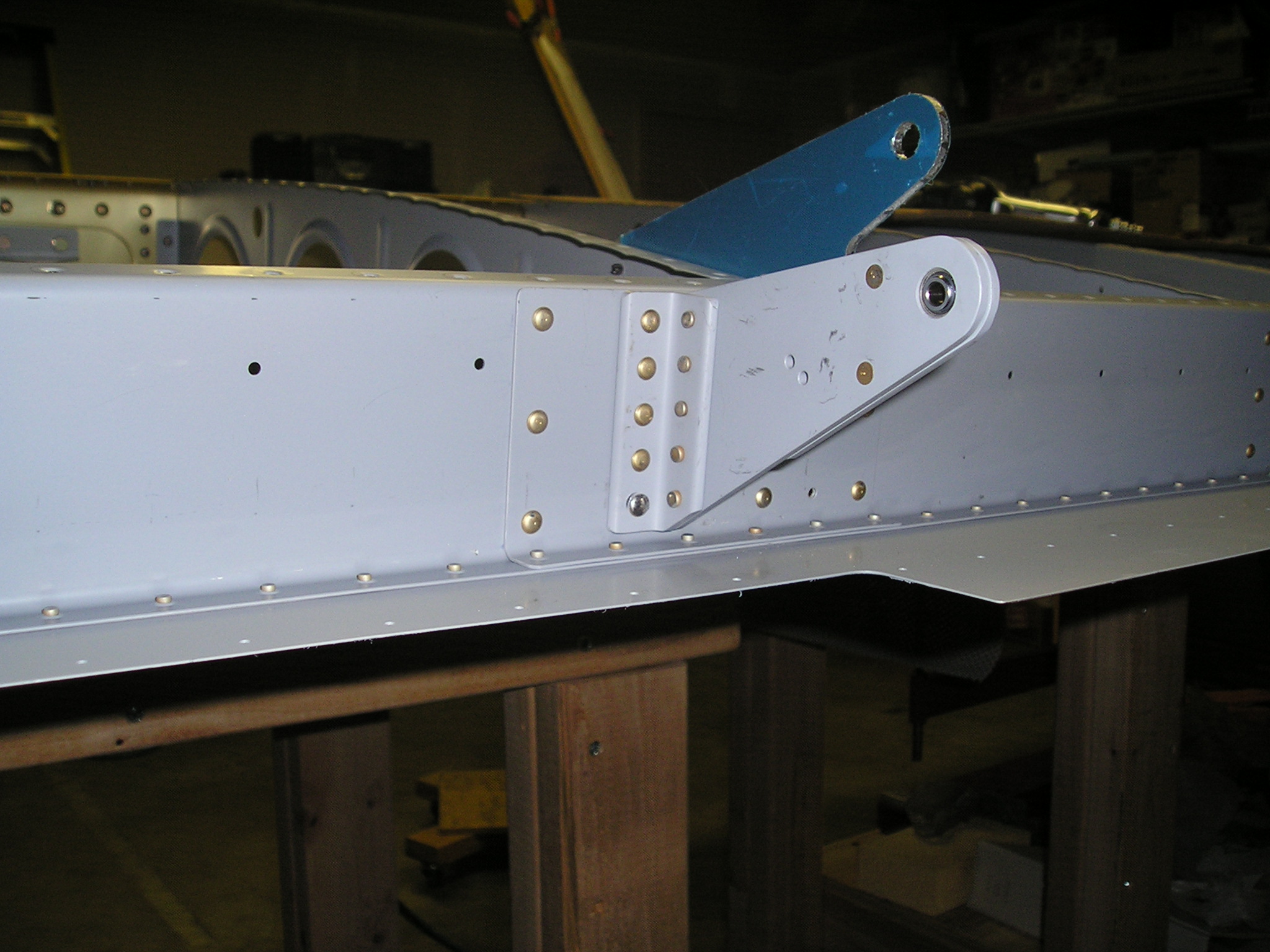

Outer hinge installed full size
The outer hinge riveted in place.
