Fuel Valve Housing

Permalink: 2011-07-19 00:00:00-07:00 in RV9 tags: fuselage floors-seats

1.5 Hours

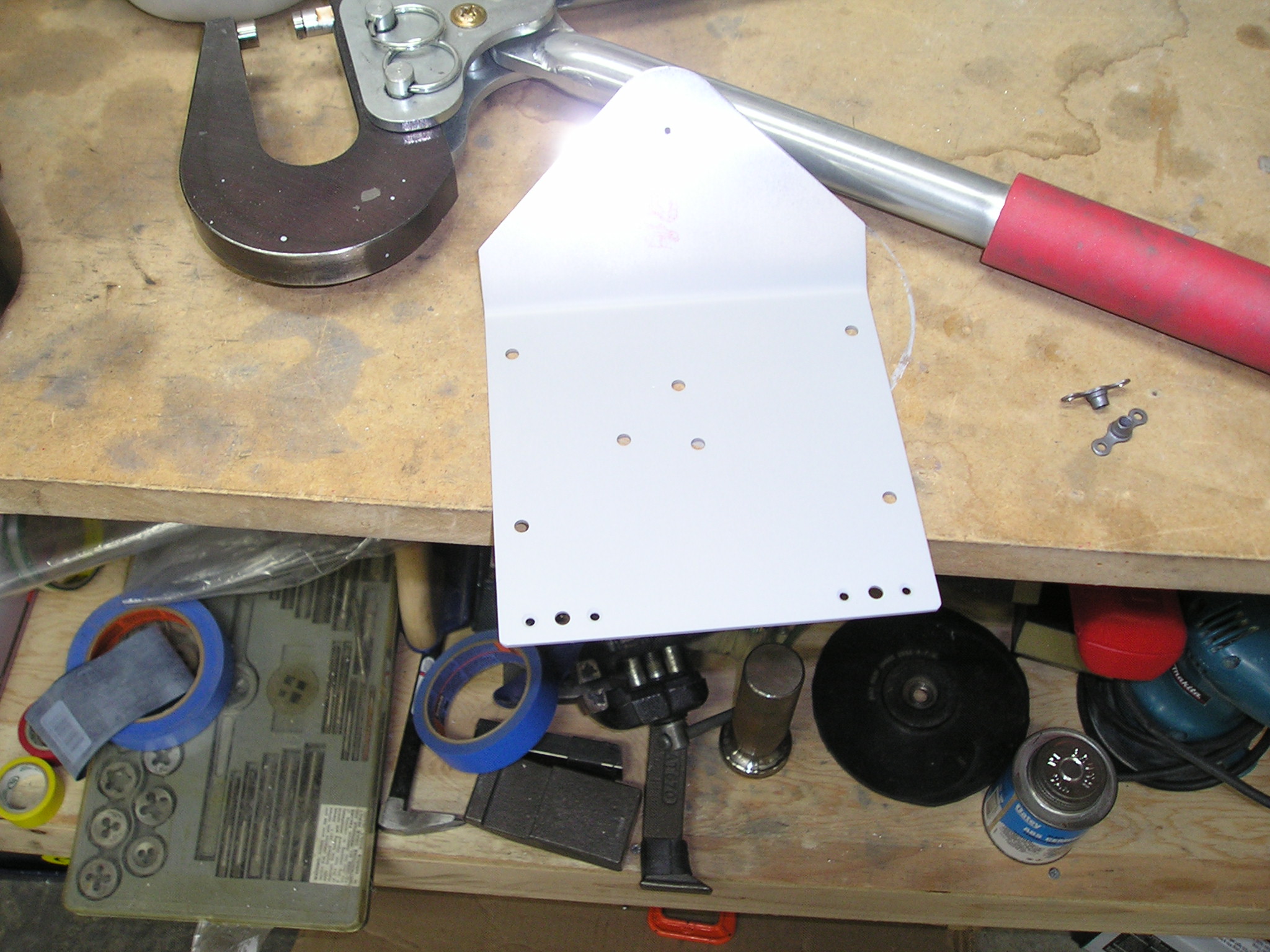

Fuel Valve Plate

Fuel Valve Plate full size

Cleaned and primed F-983A plate. Attached nutplates.

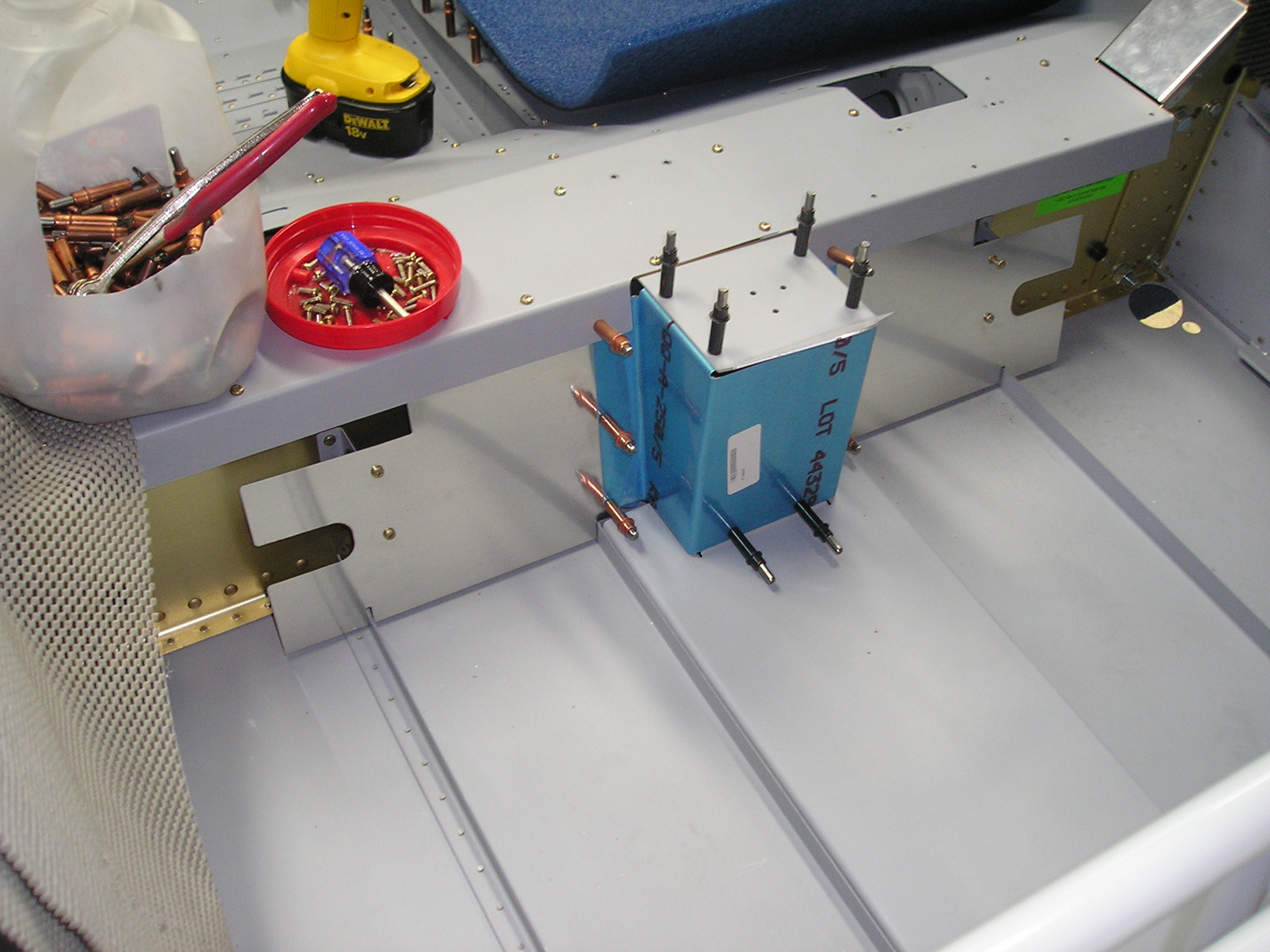

Fitting F-983C cover

Fitting F-983C cover full size

Fit F-983A and F-983C cover. Drilled holes in F-982C and F-972B angles.

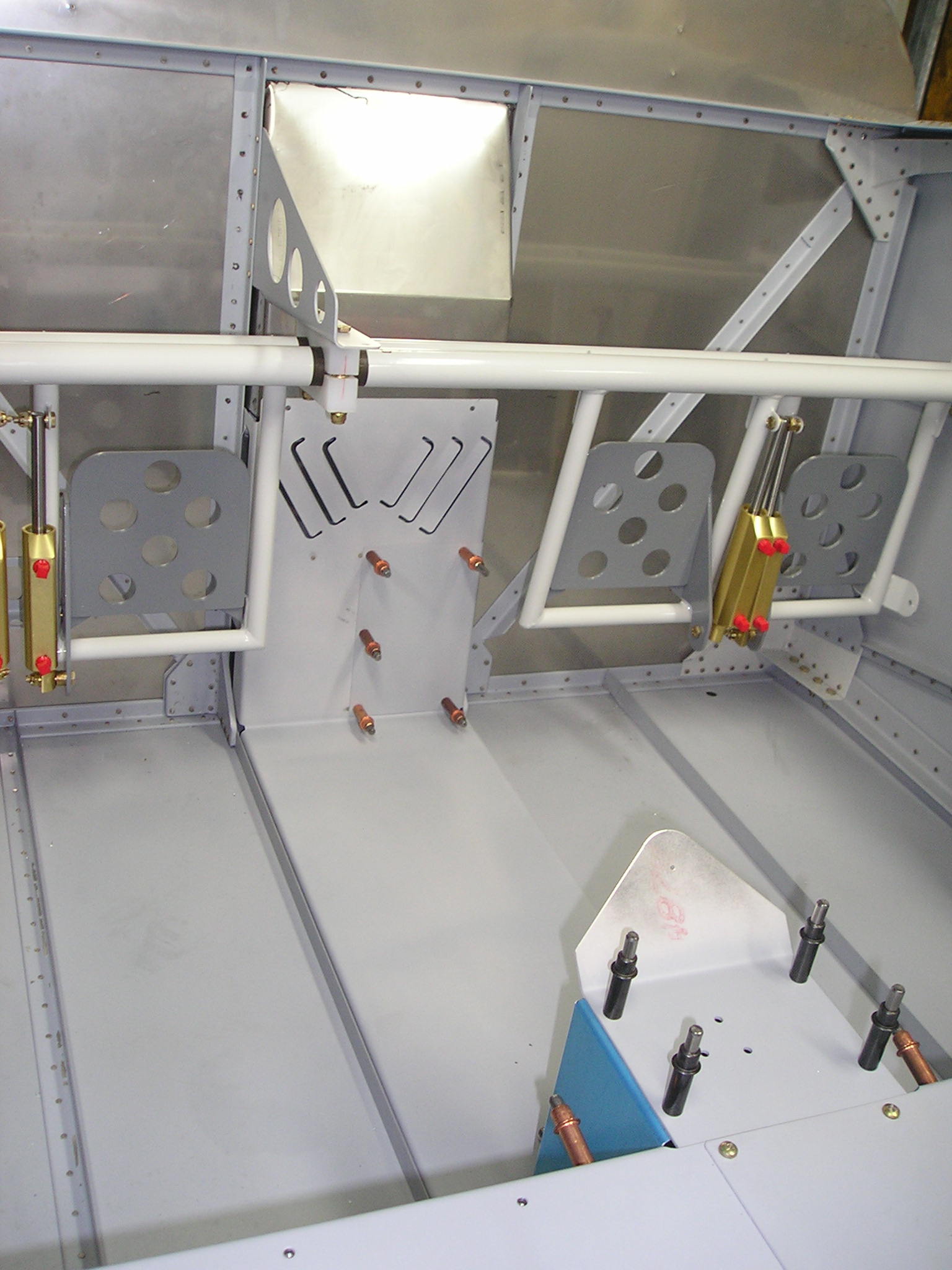

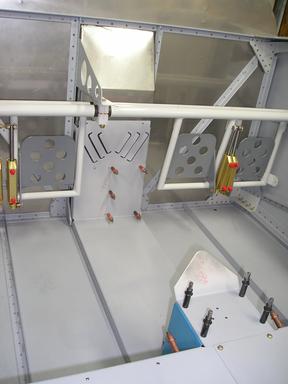

Another view

Another view full size

Fuel valve plate in place.
