4.0 Hours

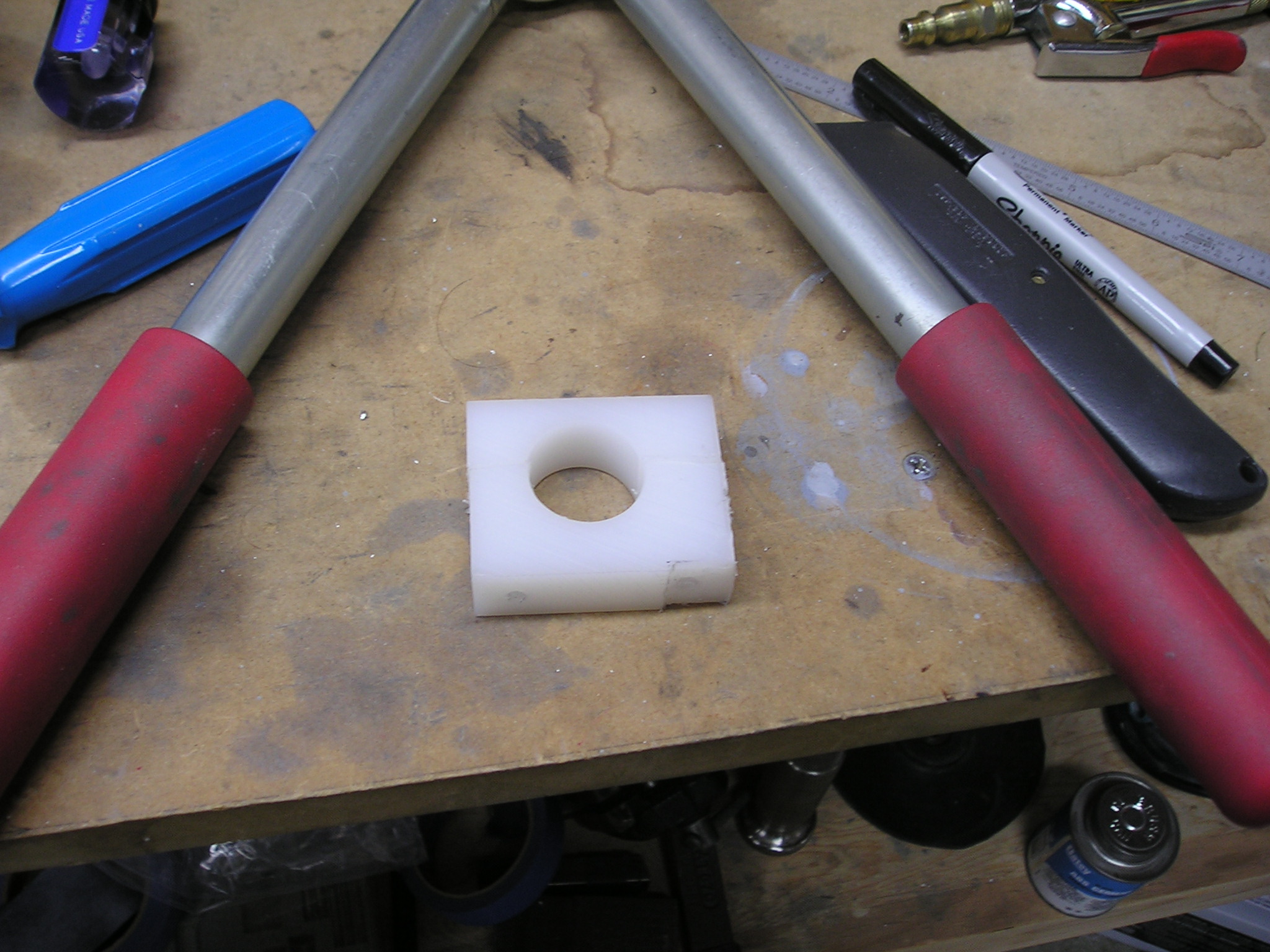

F-680 Flap Bushing Block

F-680 Flap Bushing Block full size

Cut and drilled F-680 Flap Bushing Block

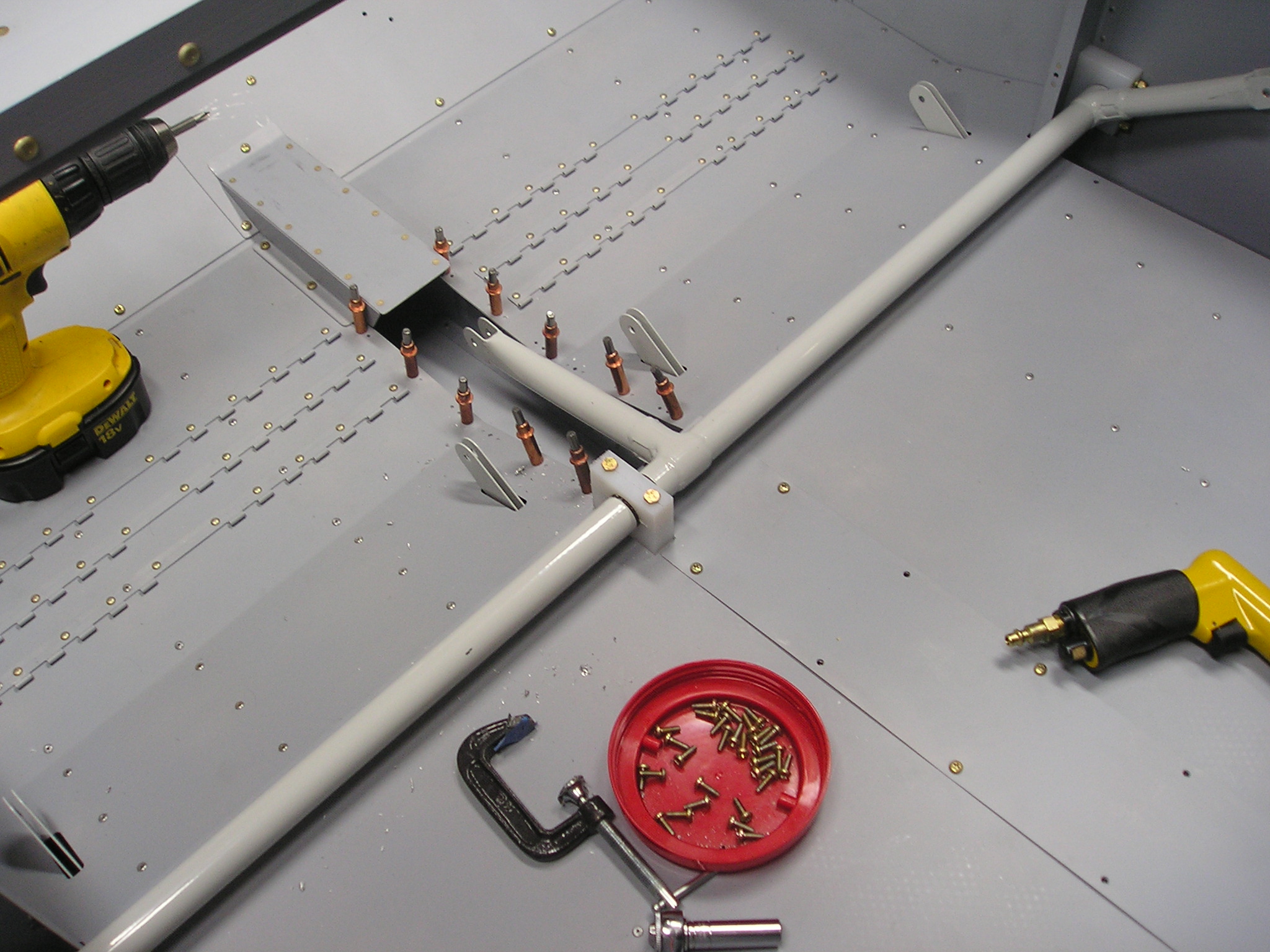

Installed F-680

Installed F-680 full size

Drilled holes for F-680.

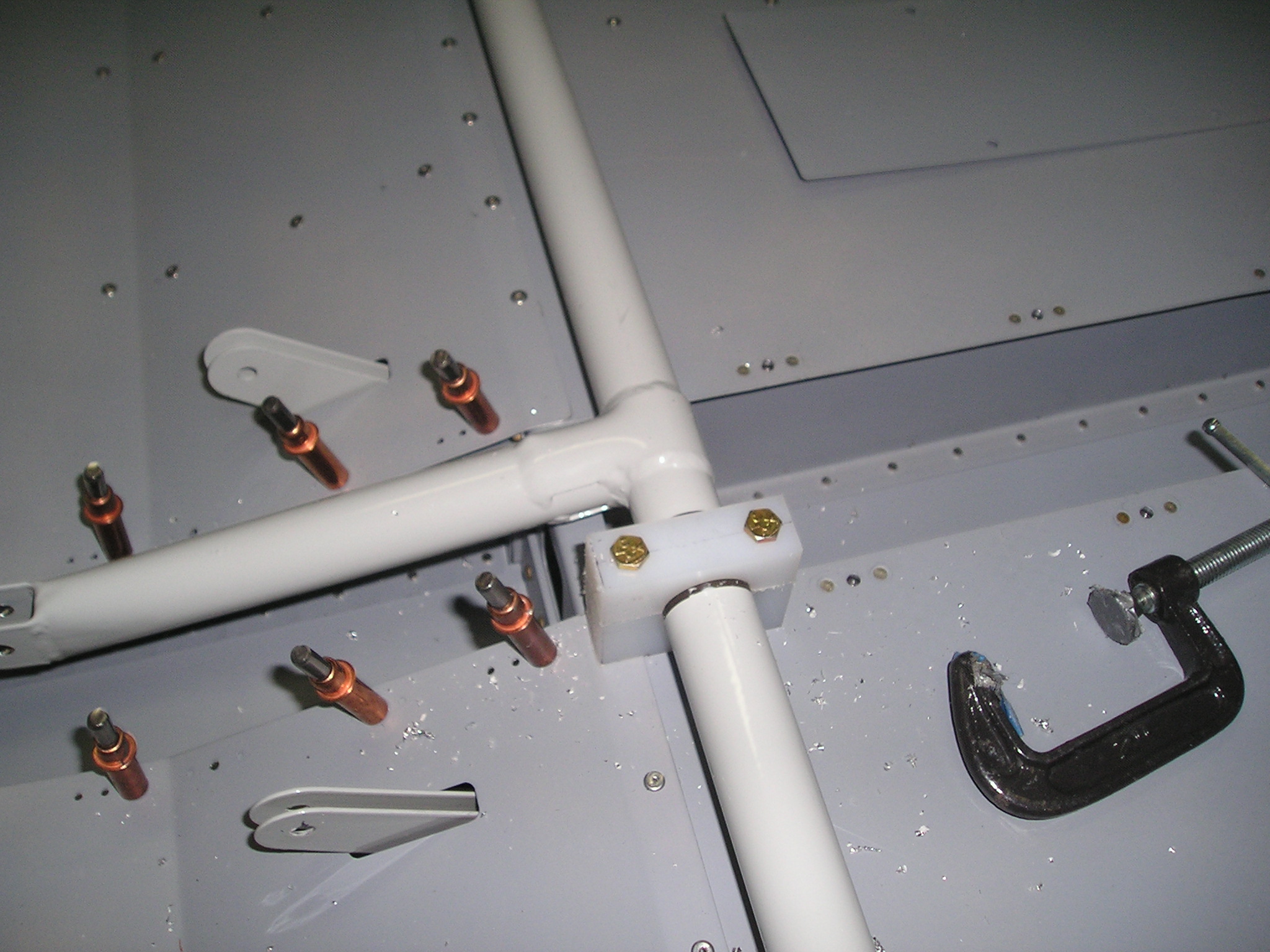

Flap weldment installed

Flap weldment installed full size

Installed the Flap weldment in the bushing blocks, made sure everything fits right.

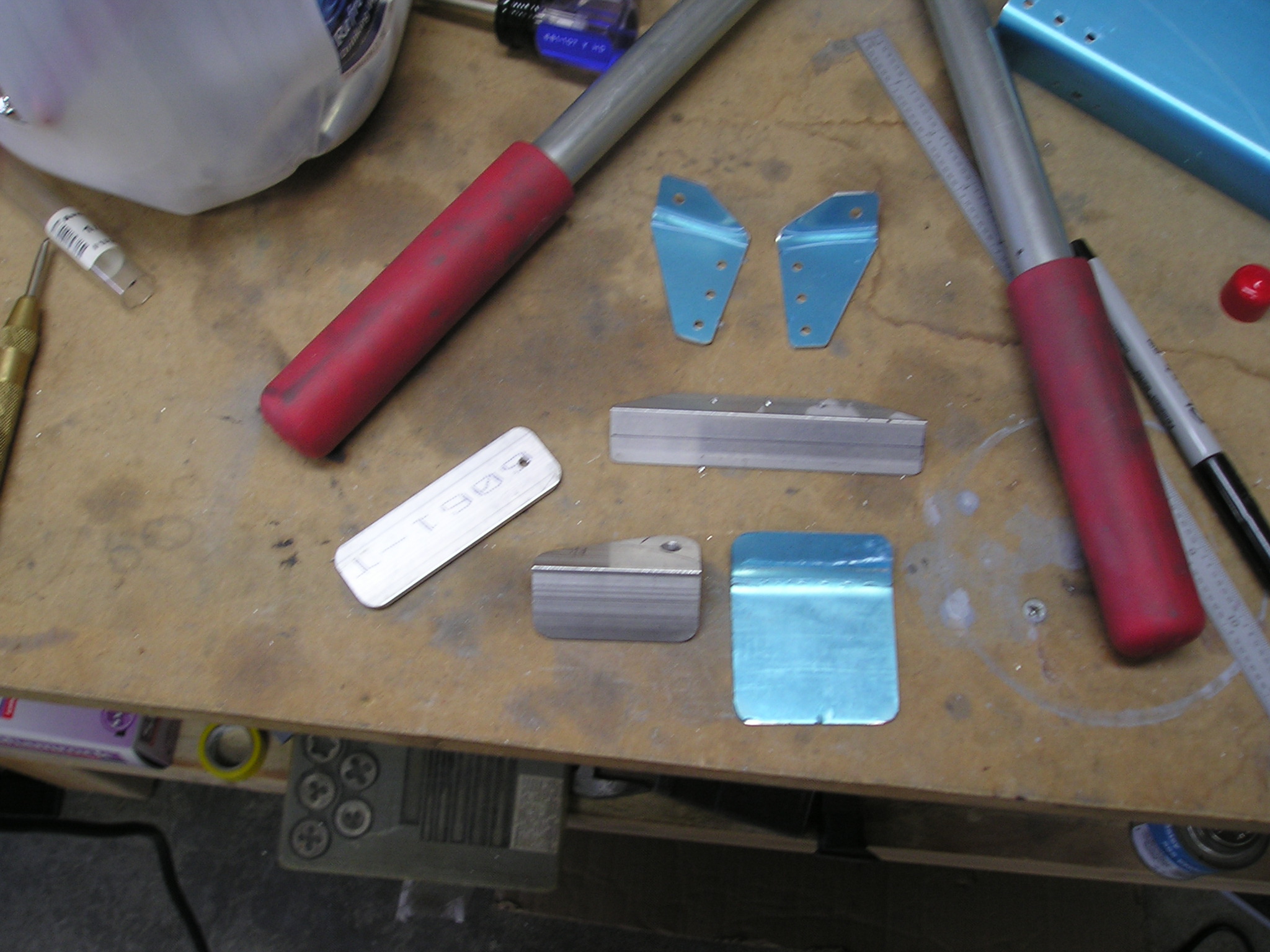

Flap motor mount parts

Flap motor mount parts full size

Fabbed F-766B, F-767, F-766C, F-785B parts.

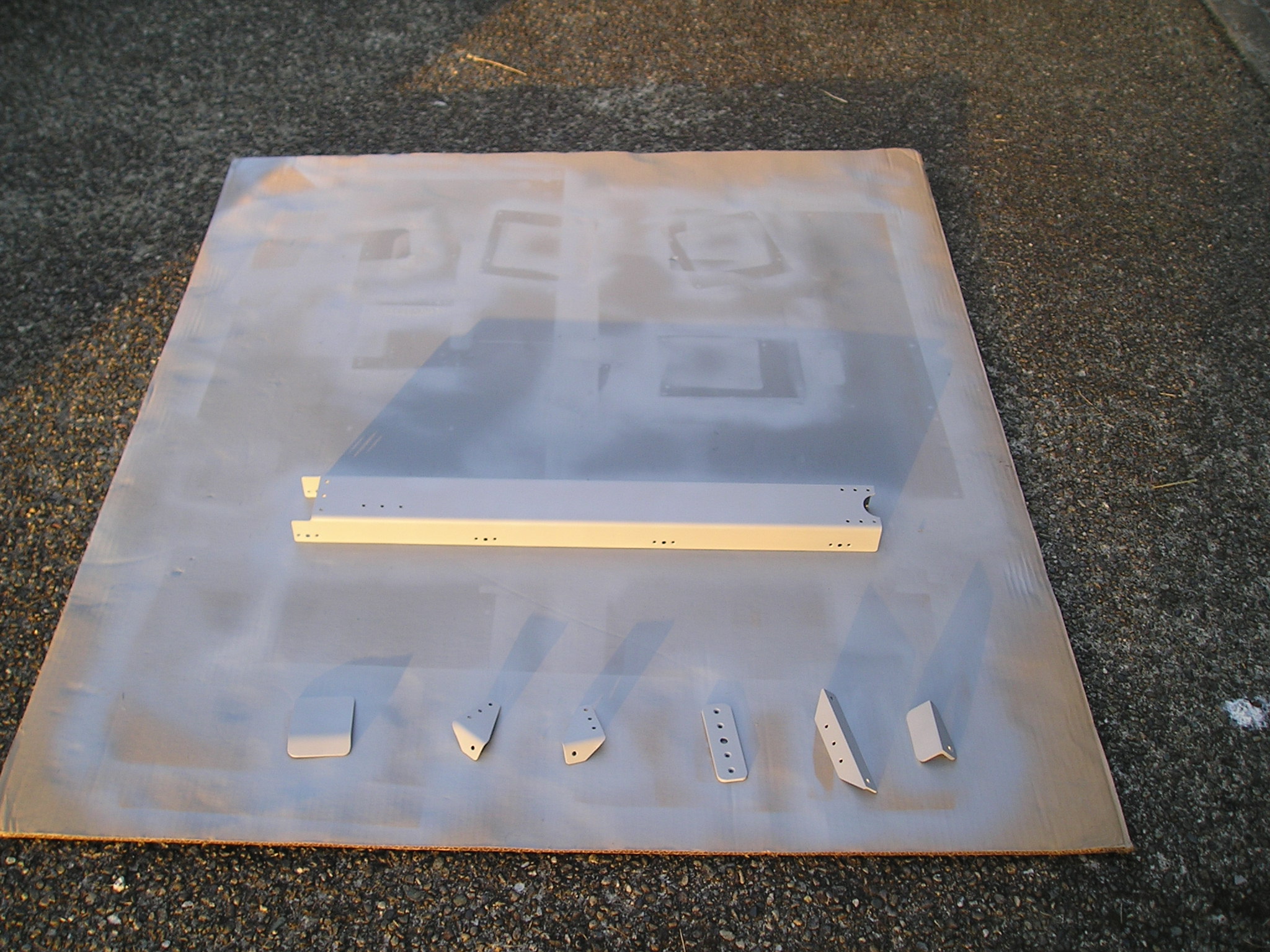

Painted motor mount parts

Painted motor mount parts full size

Cleaned and primed.

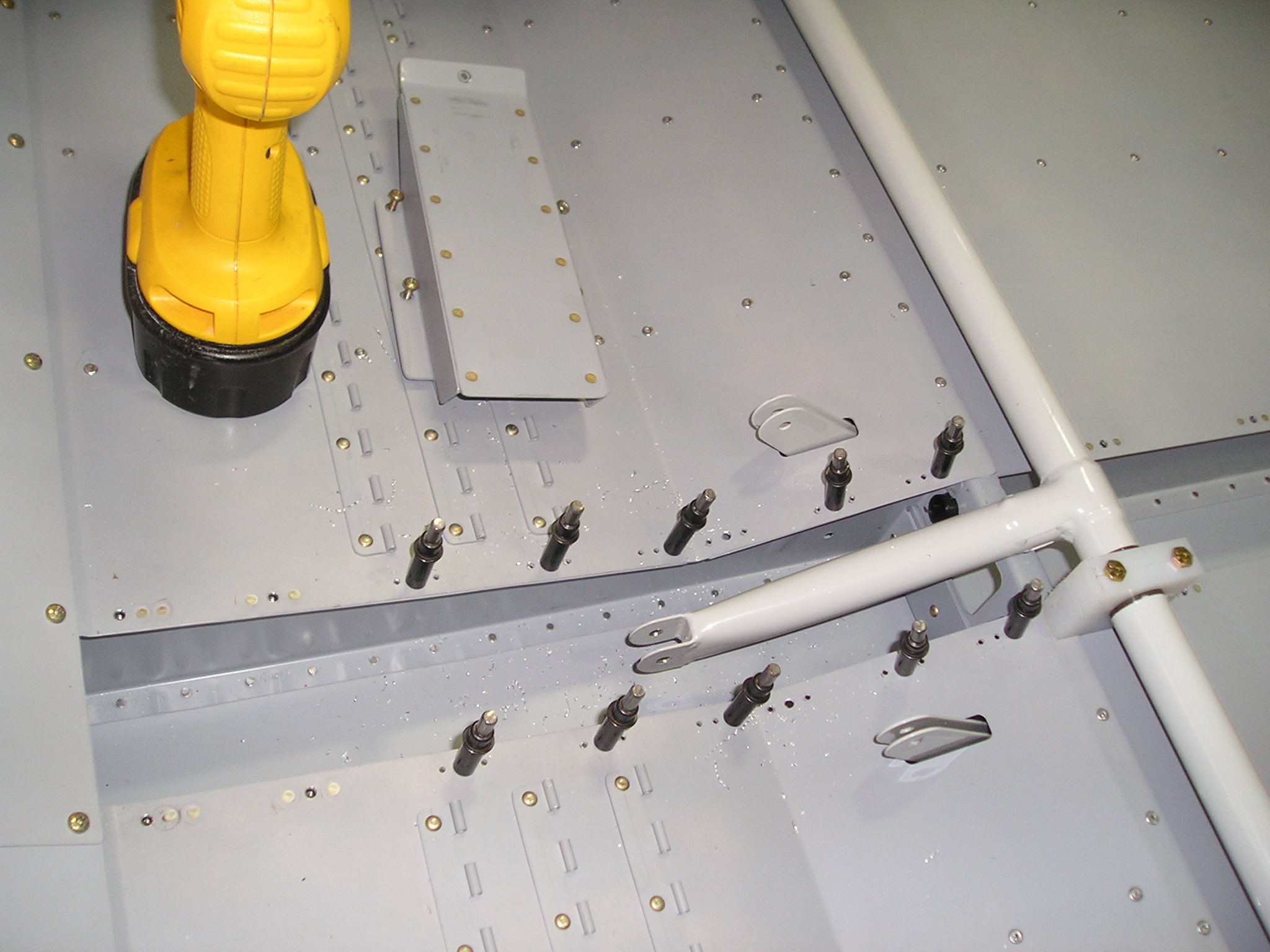

Installing nutplates

Installing nutplates full size

Drilled and installed nutplates in tunnel.

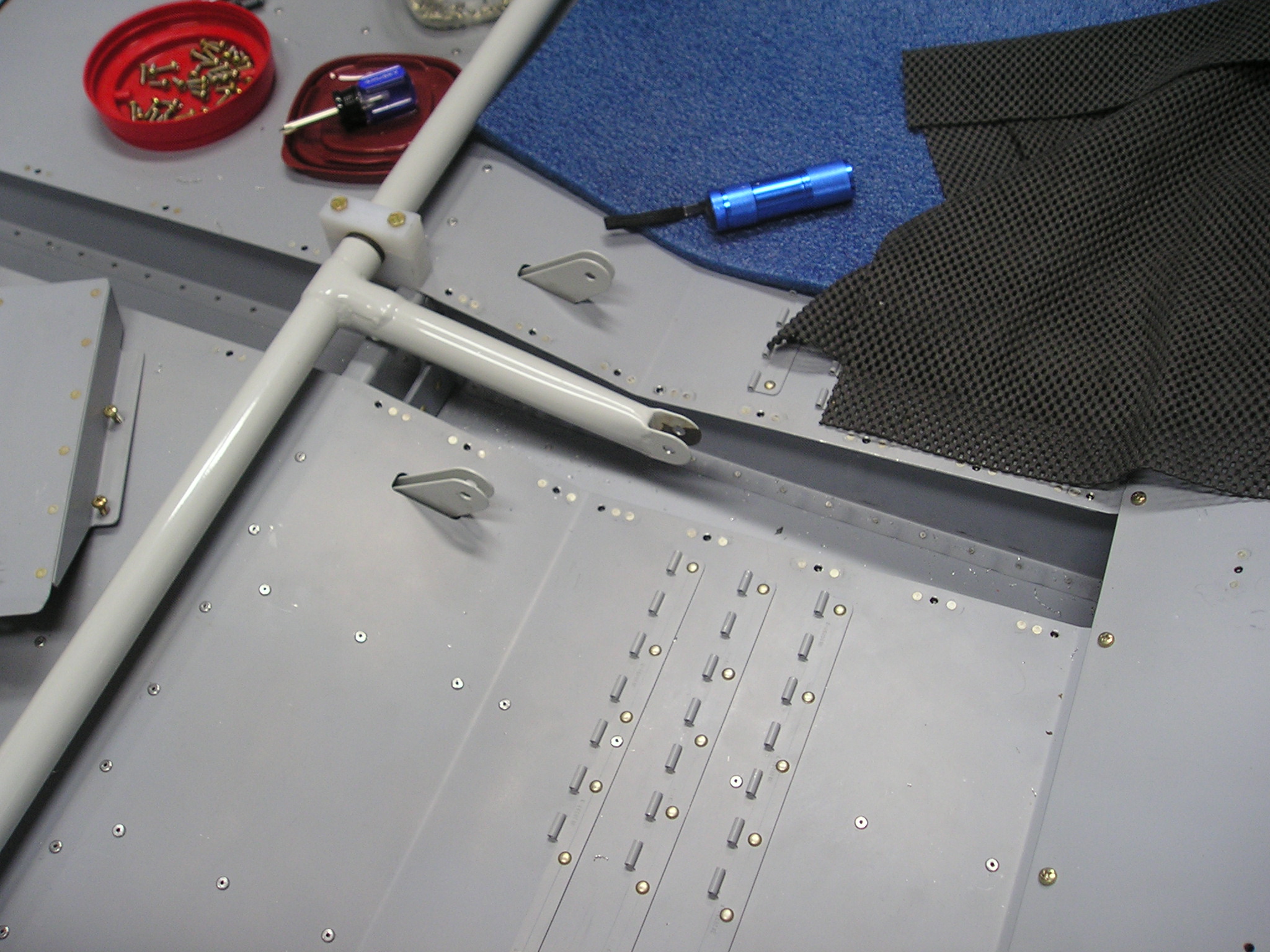

Finished with nutplates

Finished with nutplates full size

All done.
