Finishing steps
5.0 Hours

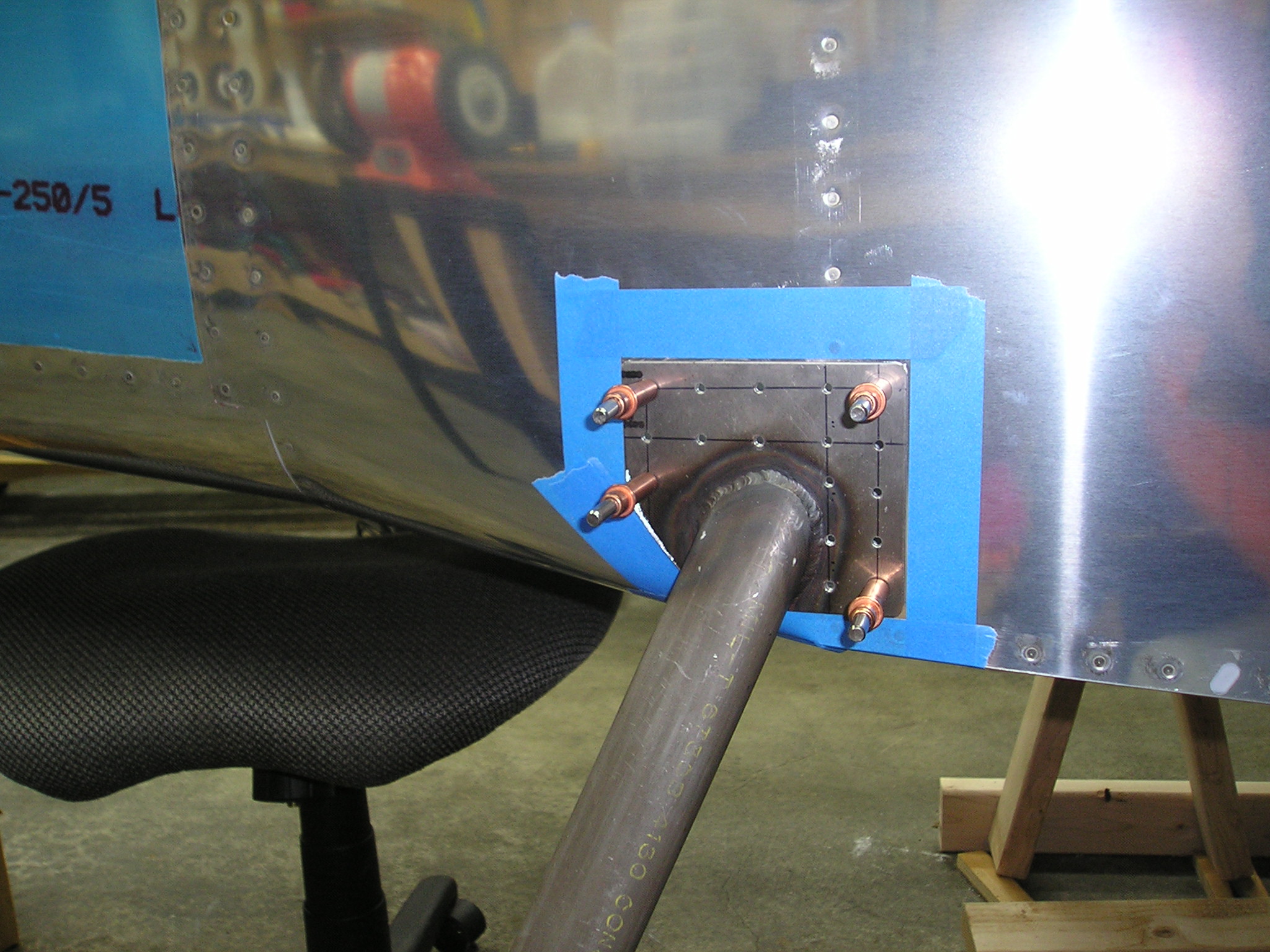

Trimming step full size
The trailing lower edge of the step needs to be trimmed off. Also the skin is taped off for priming

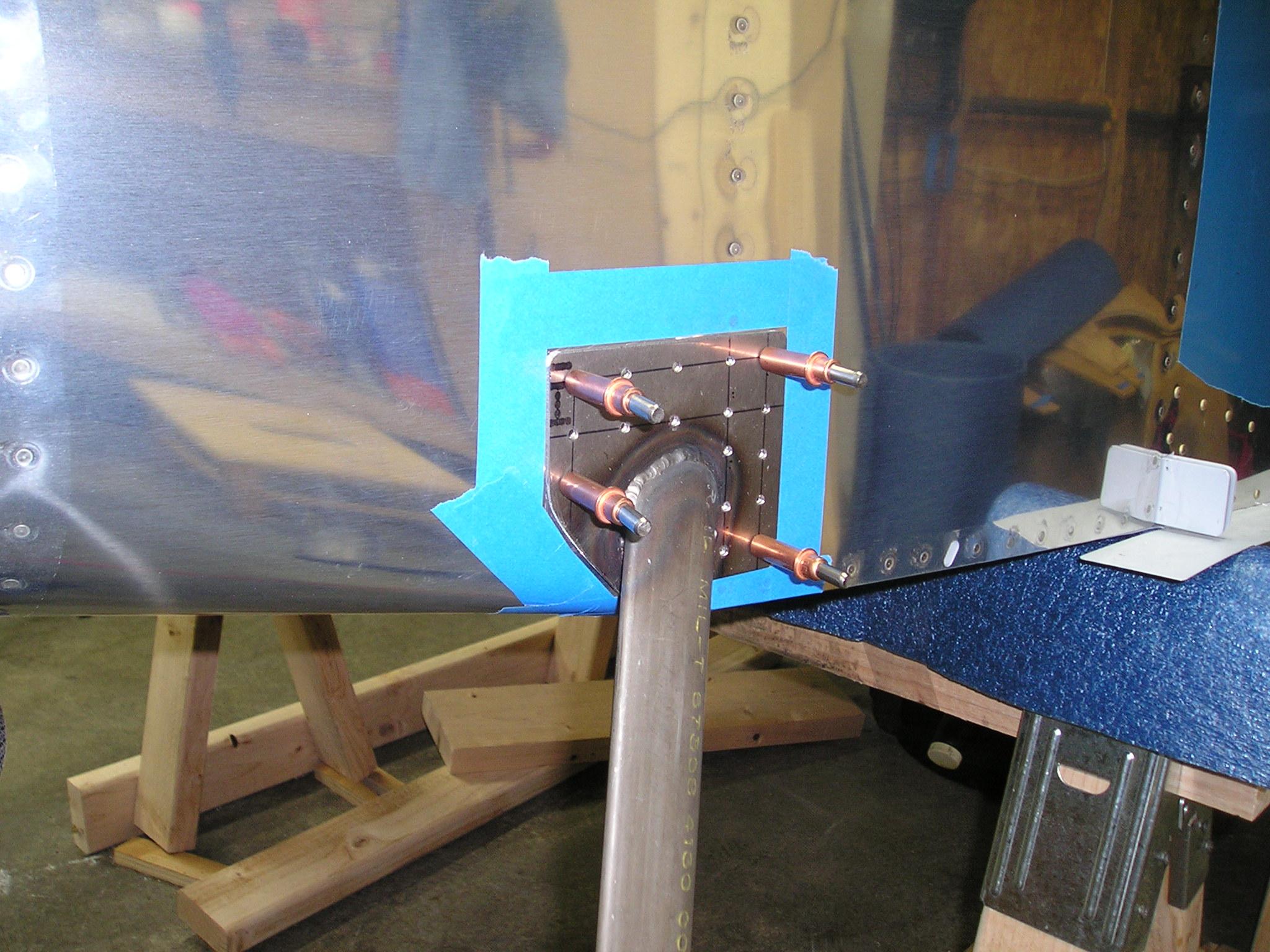

Step ready for painting, installation full size

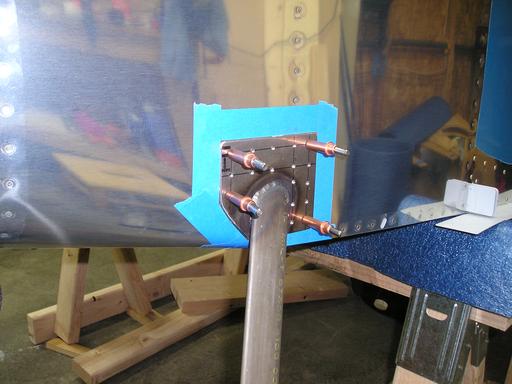

Another view

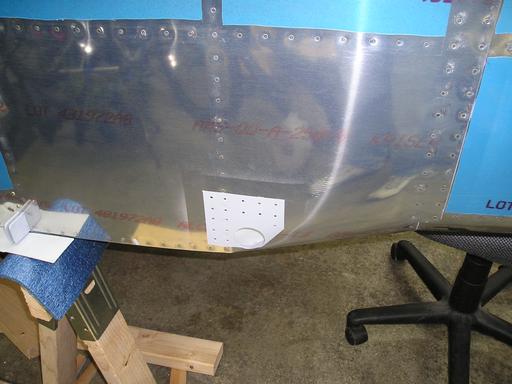

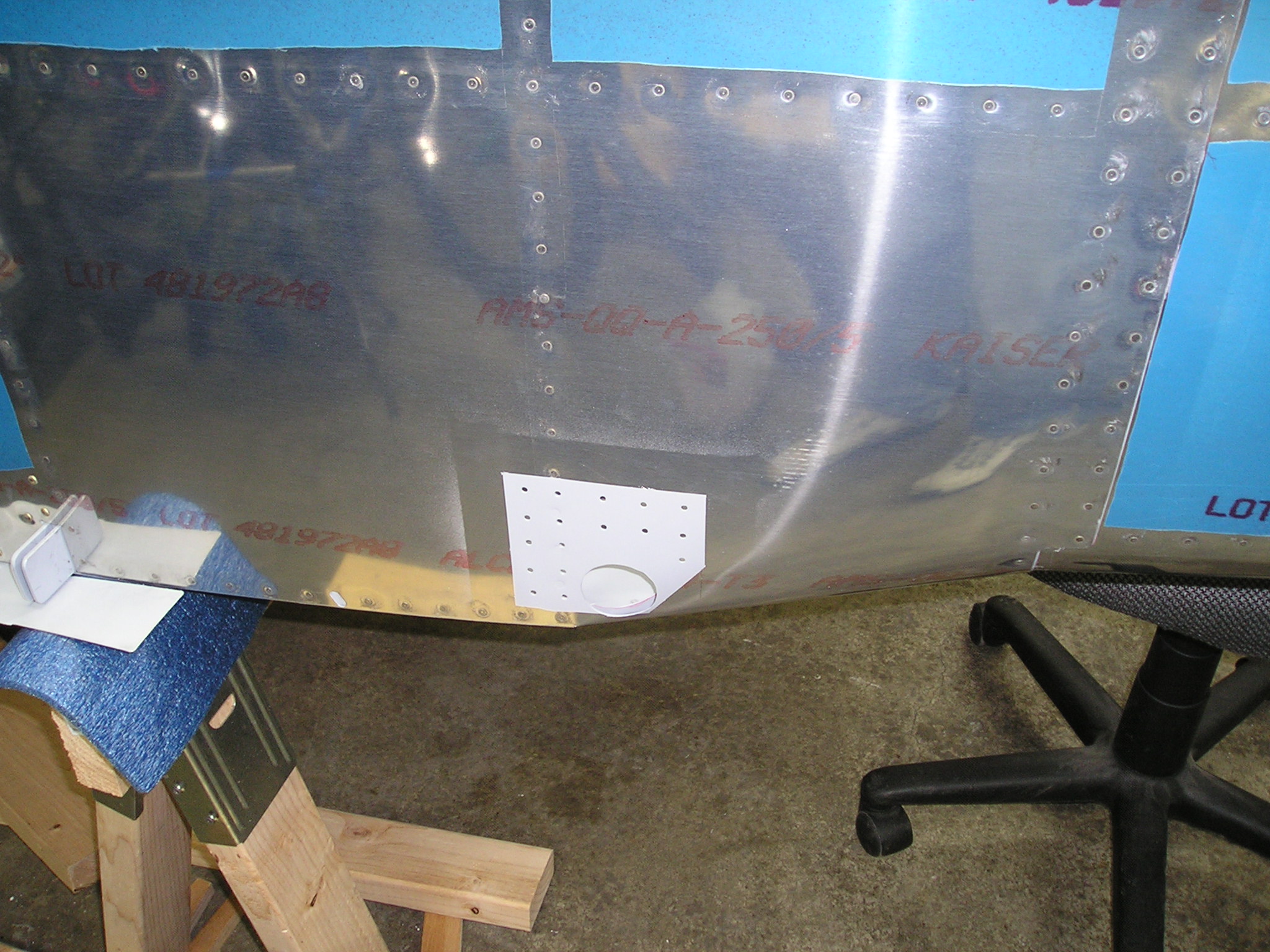

Primed fuselage skin full size
Primed the area under the step

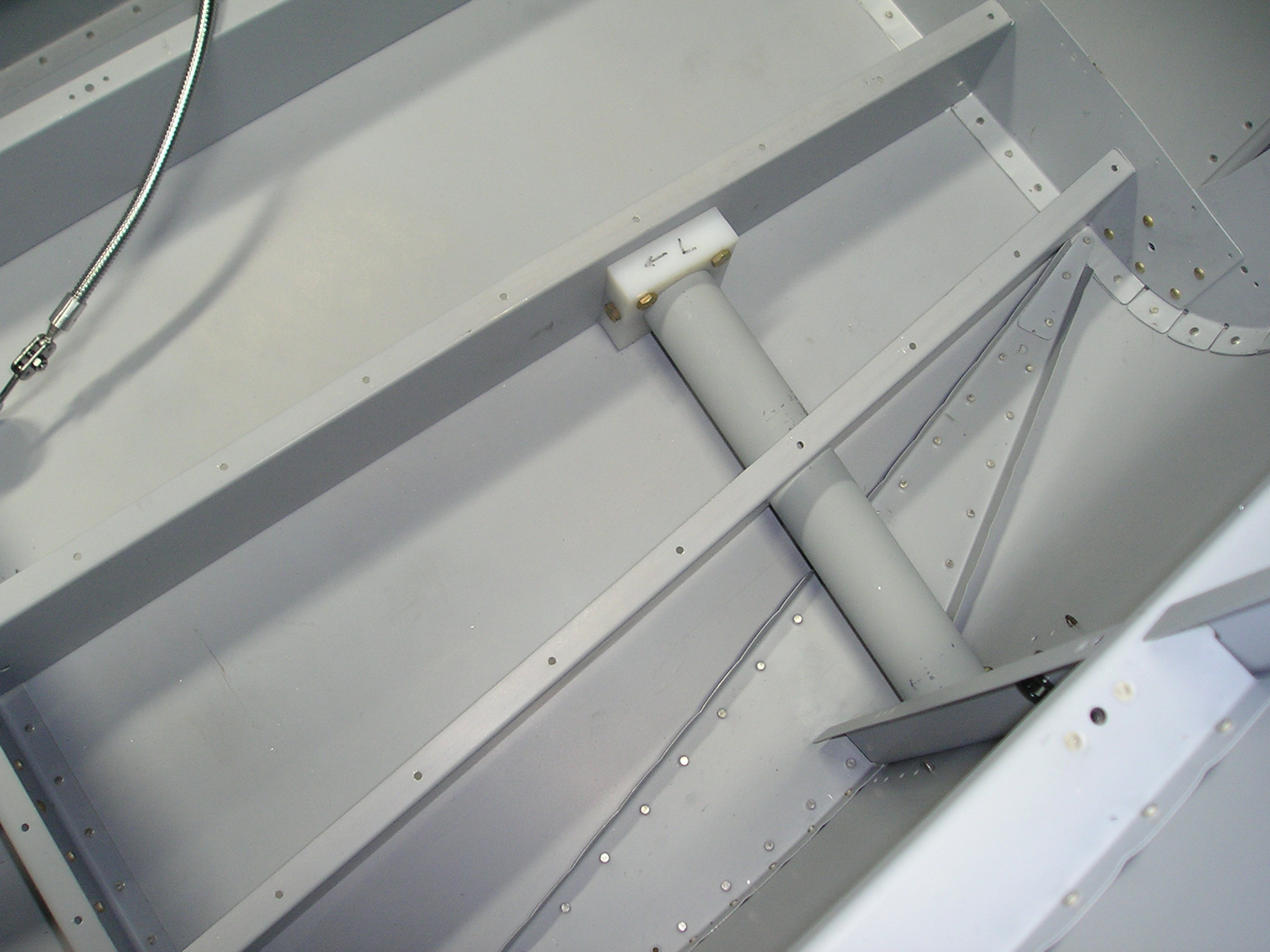

Bolting step in place full size
After priming the steps. First step is to bolt the inner ends to baggage floor ribs

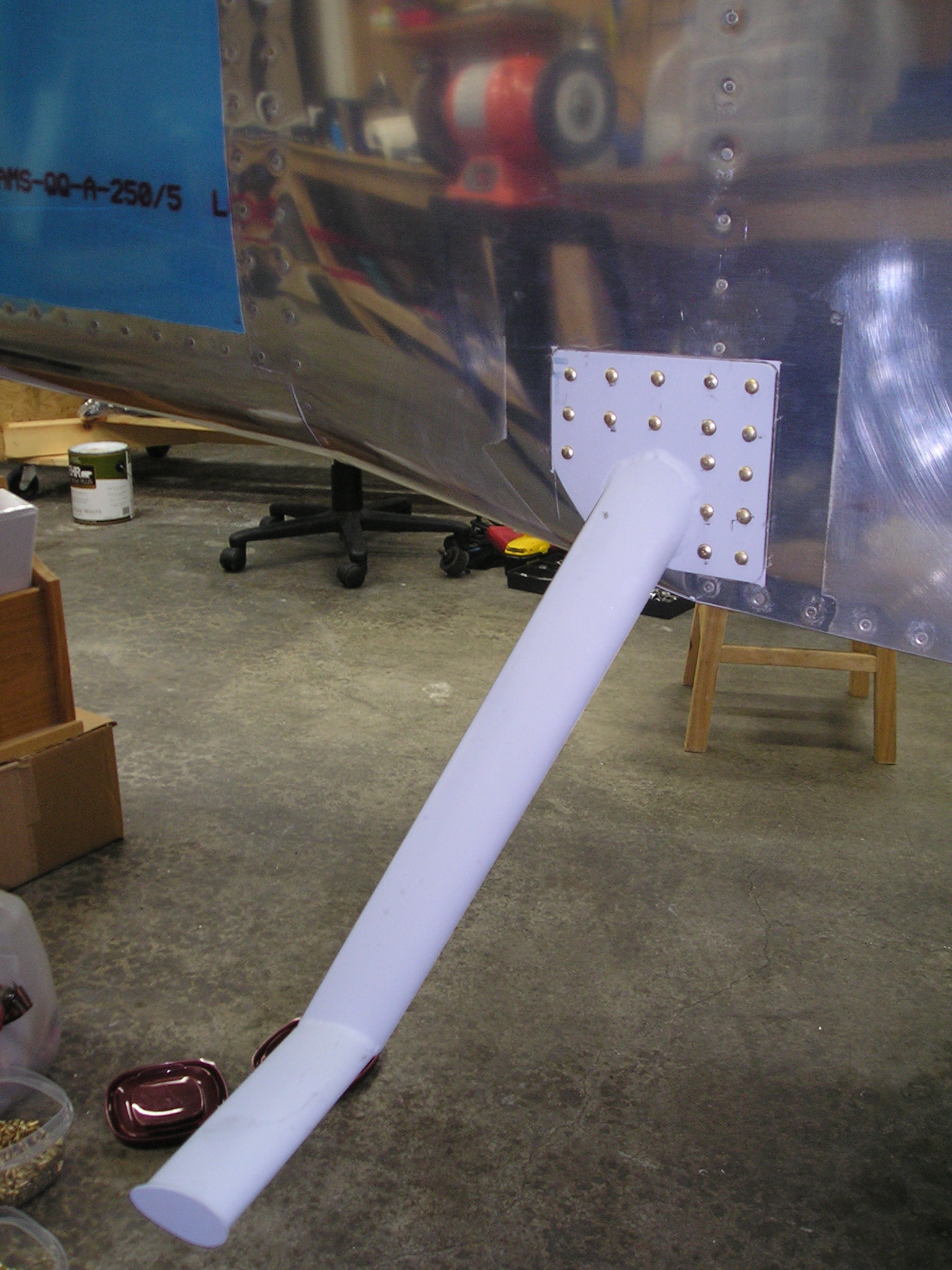

Right step riveted in place full size
The step is riveted. I used fuel sealant also between the step and fuselage.

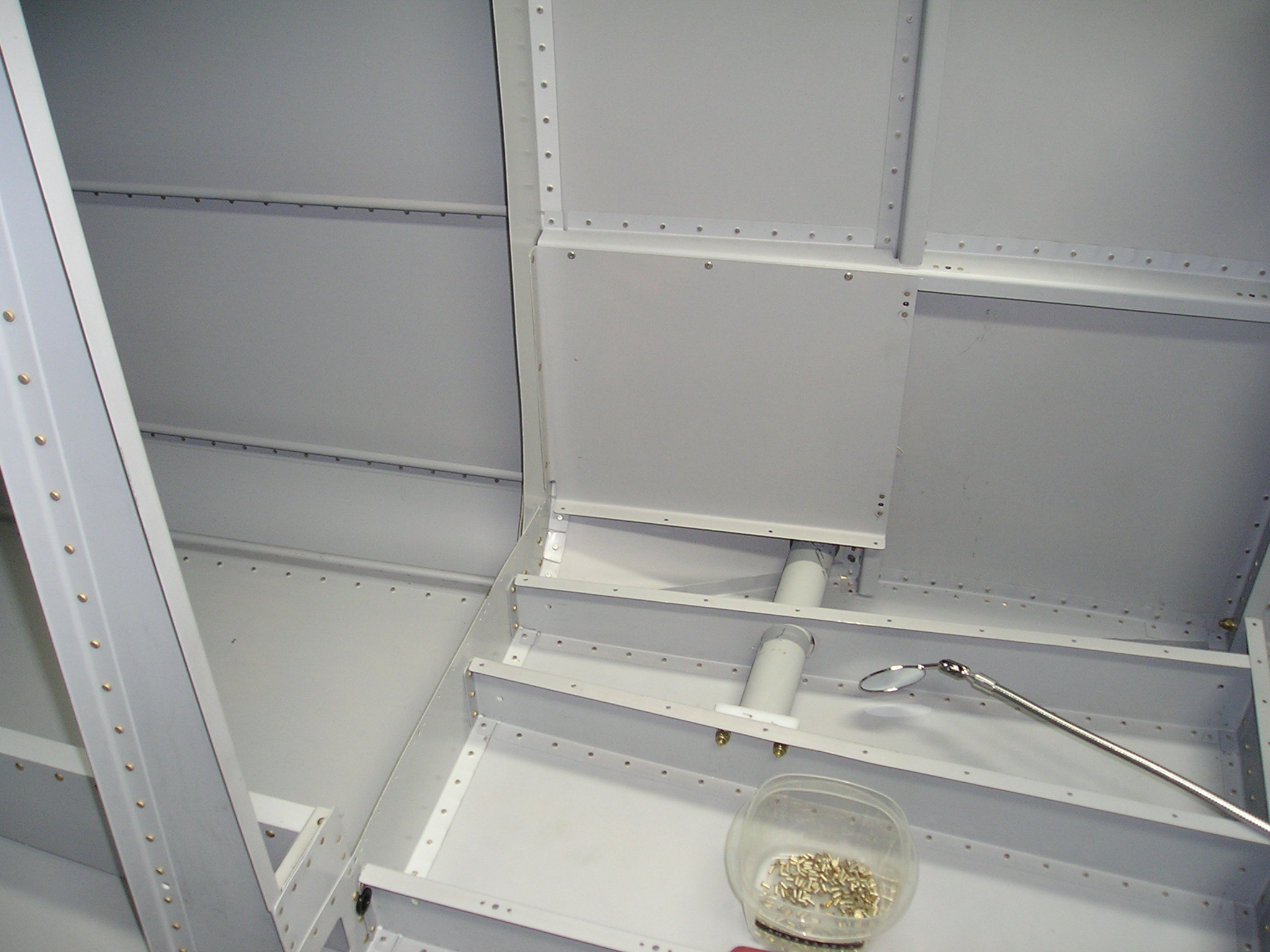

Riveted F-722-L cover full size
After finishing the steps. Riveted the F-722-L/R baggage covers in place.

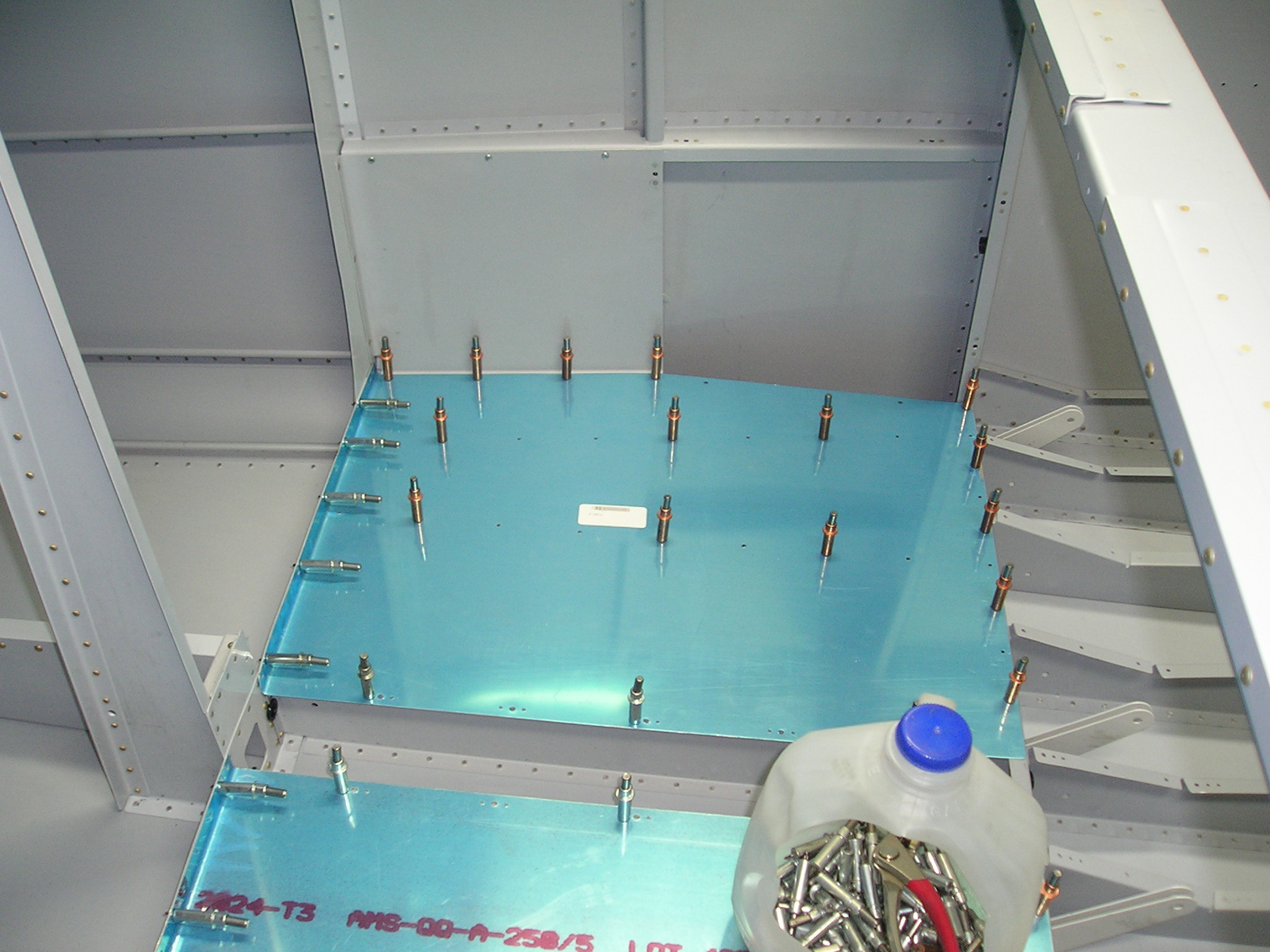

Cleco baggage compartment floors full size
The F-747-L/R floors cleco'd in position
