Adjusting W-918 aileron pushrods
Permalink: 2011-05-01 00:00:00-07:00 in RV9 tags: wings right-wing

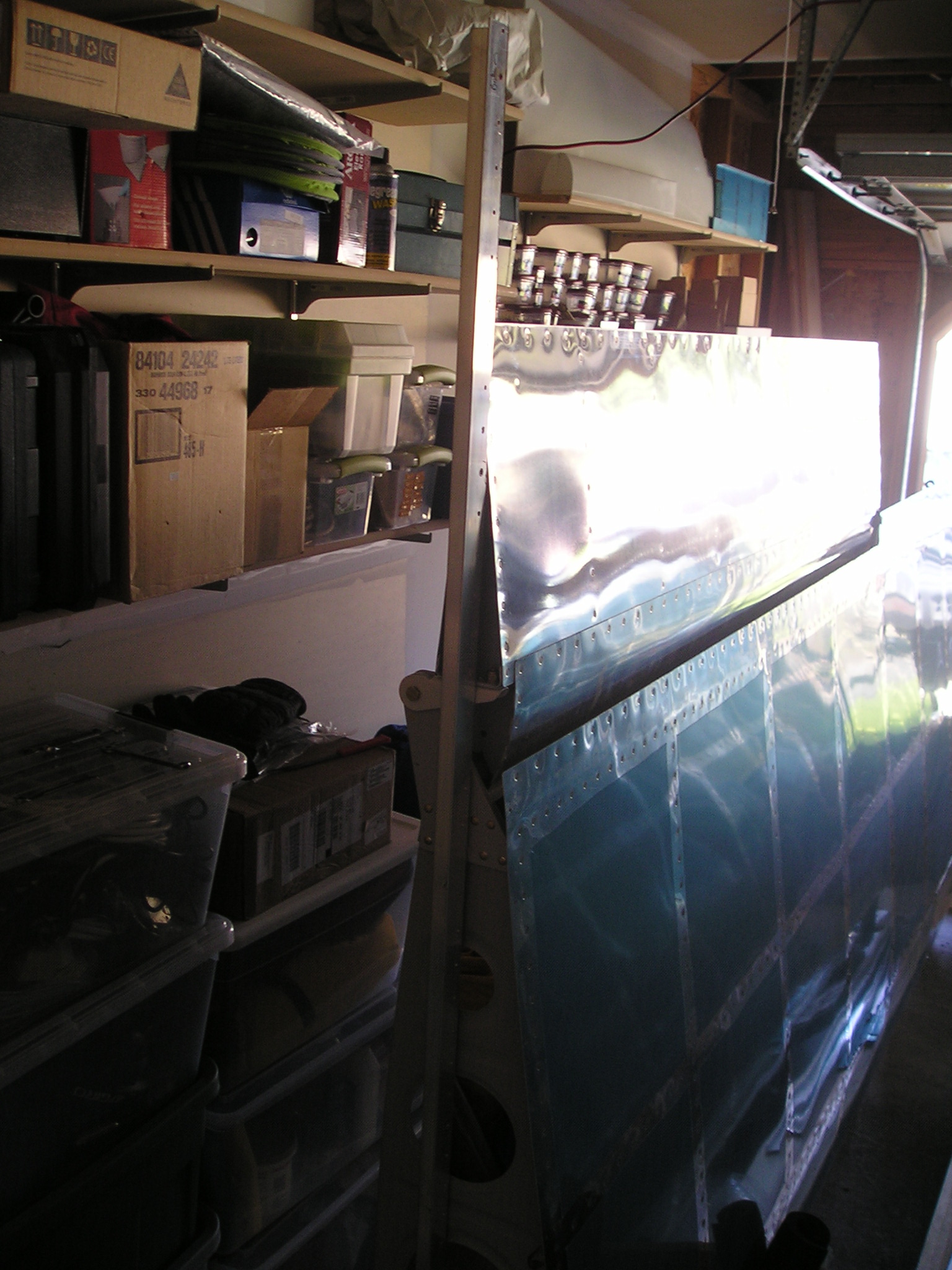

Aligning aileron with jib full size
A jig is bolted to outboard rib, then the pushrod length is adjusted so that it lines up with the bellcrank in a neutral position

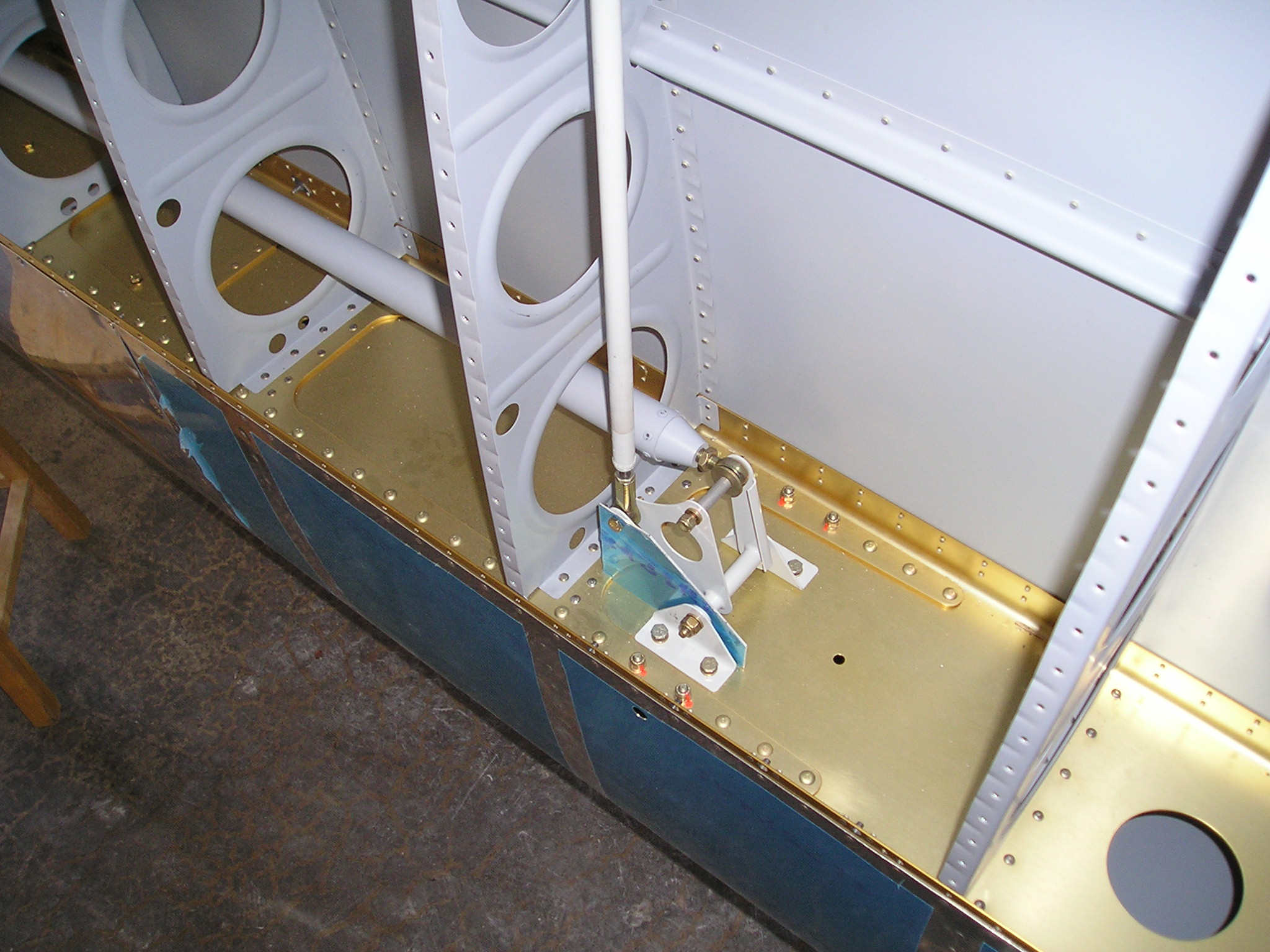

Adjusting bellcrank and pushrod length full size
Here the jig is in place. Had no grease so was not able to final bolt the pieces together here.
