Nutplates for Flap bearing block

Nutplates for Flap bearing block full size

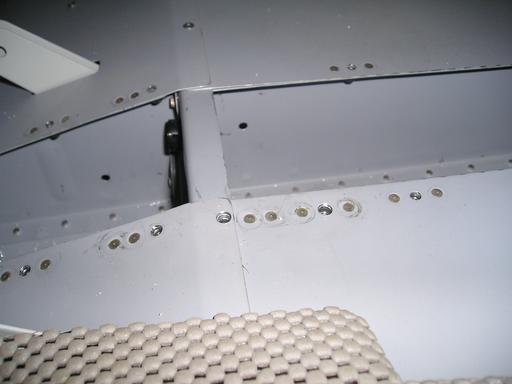

Put in the nutplates for the flap bearing block.

Last 2 bolt holes for MLG weldments

Last 2 bolt holes for MLG weldments full size

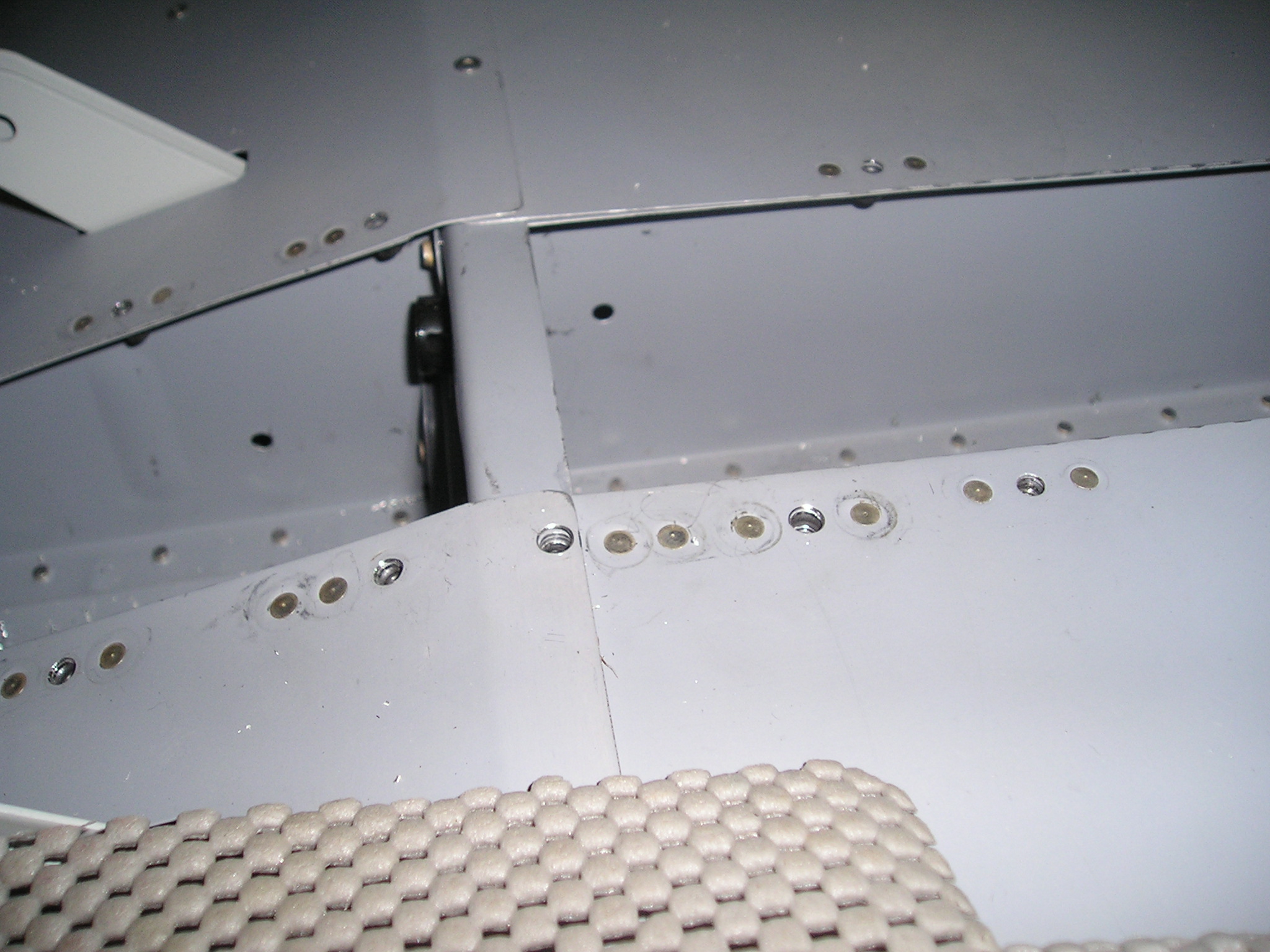

There are 2 more holes to drill for the MLG. These are countersunk on the outside to clear wing leading edge. Here the bolt holes have been countersunk.

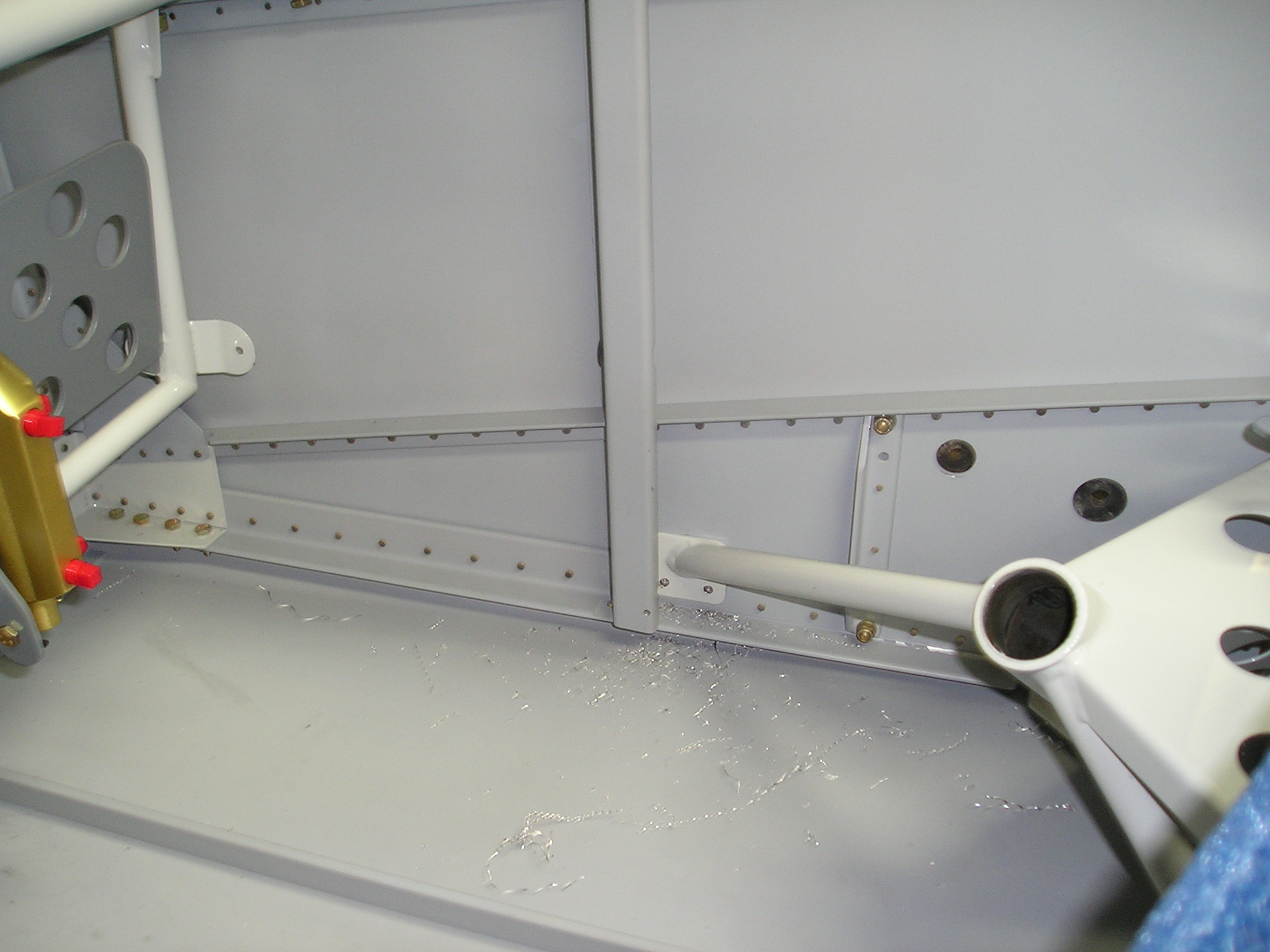

Drilling right side bolt holes

Drilling right side bolt holes full size

Just after drilling before countersinking.

Bolting right side

Bolting right side full size

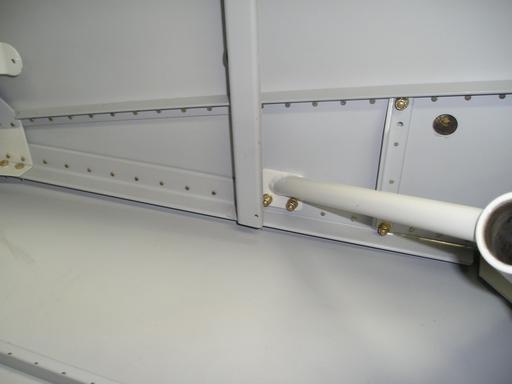

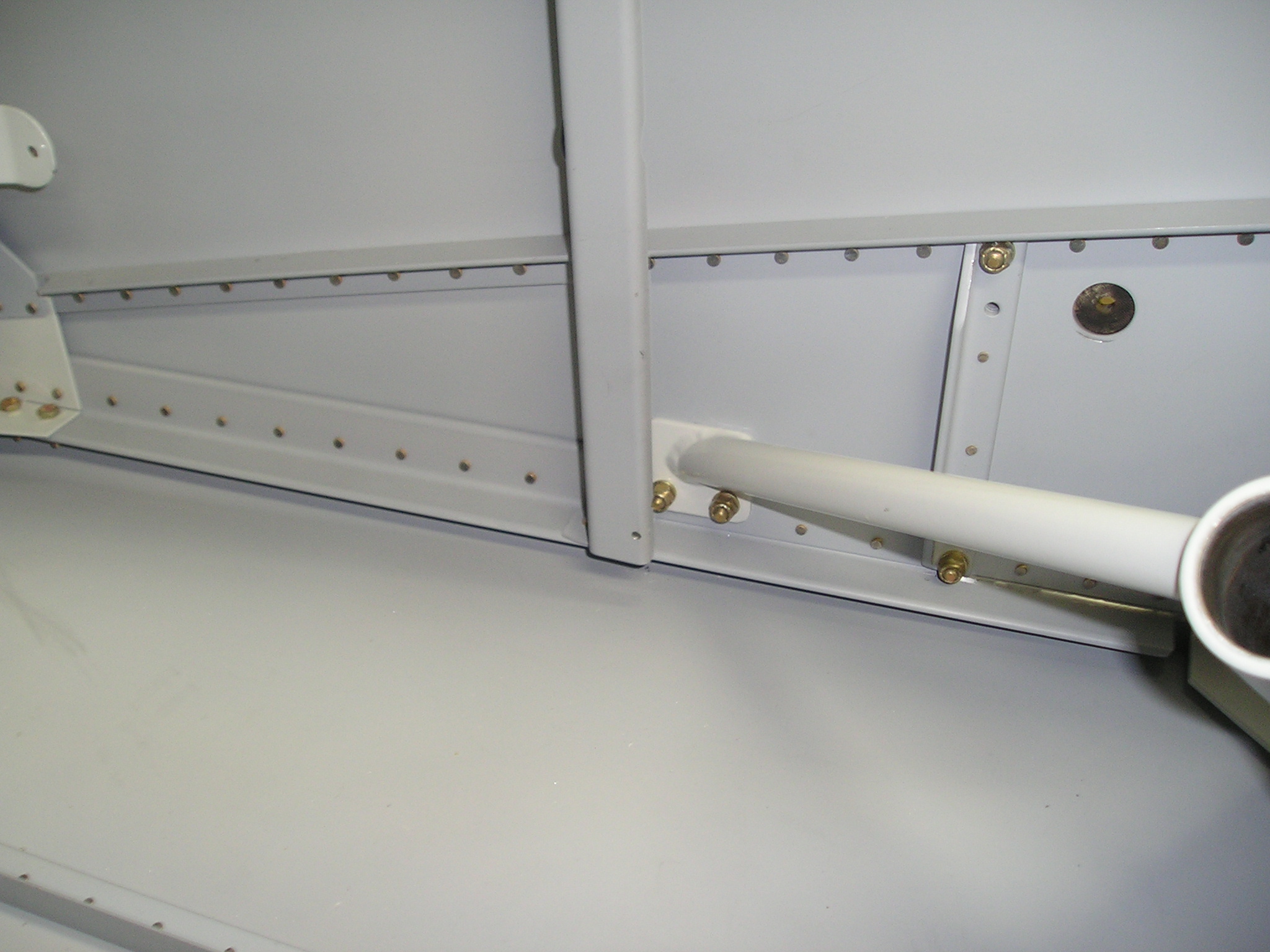

Put in the bolts on the right side weldment.

All bolts in

All bolts in full size

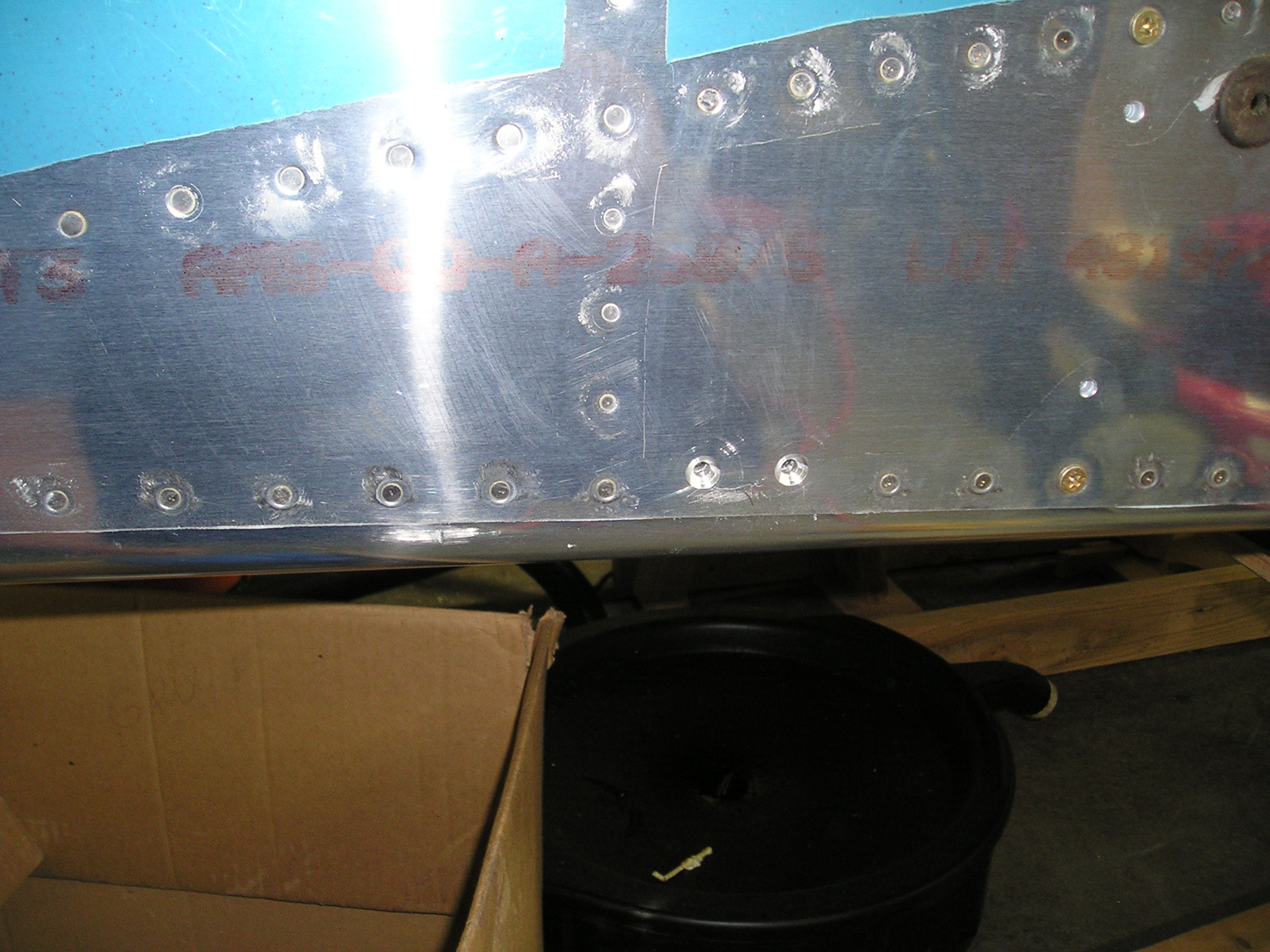

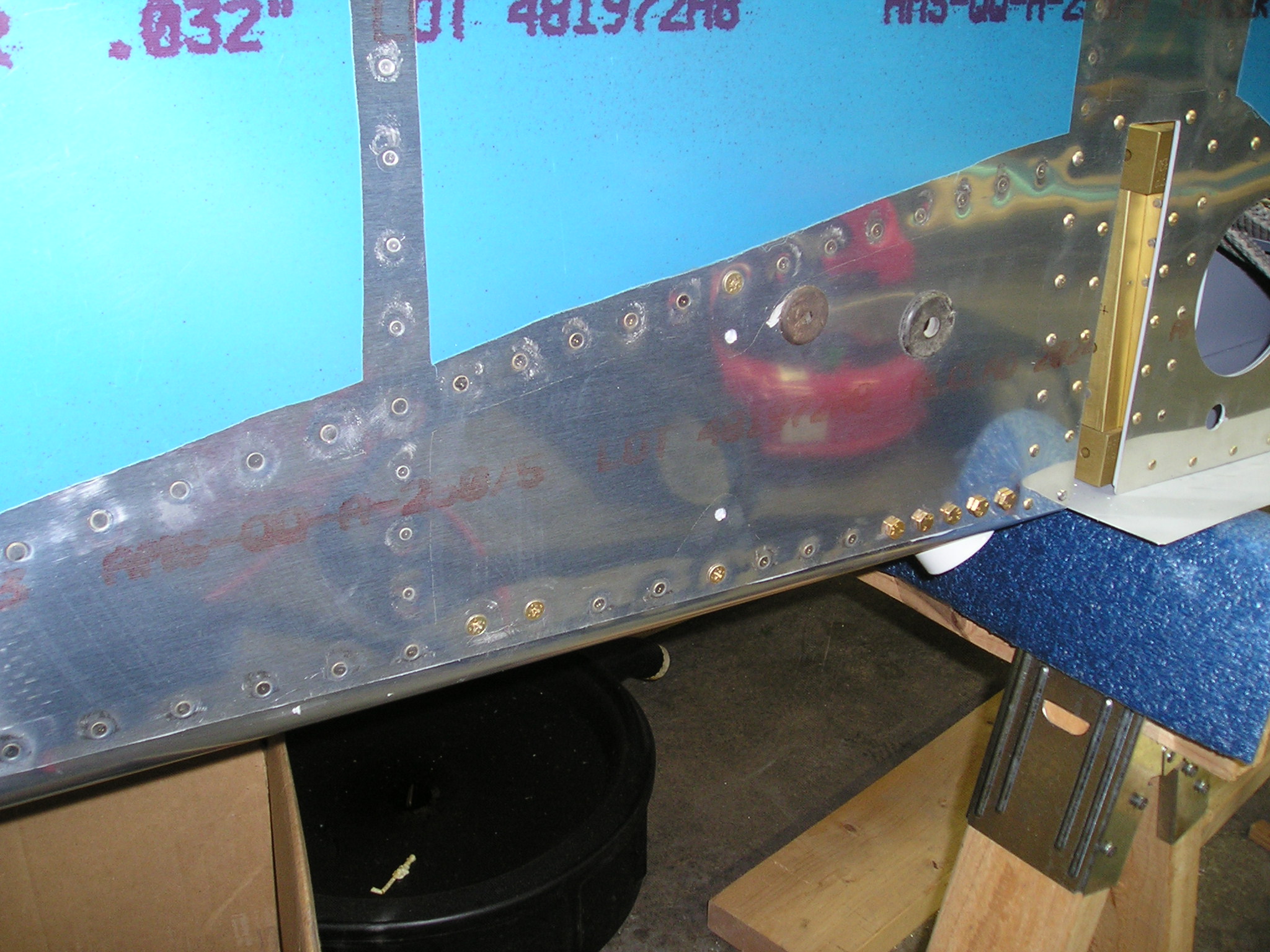

View of the fuselage outside after bolt installation.
