Drilling right flap
3.1 Hours

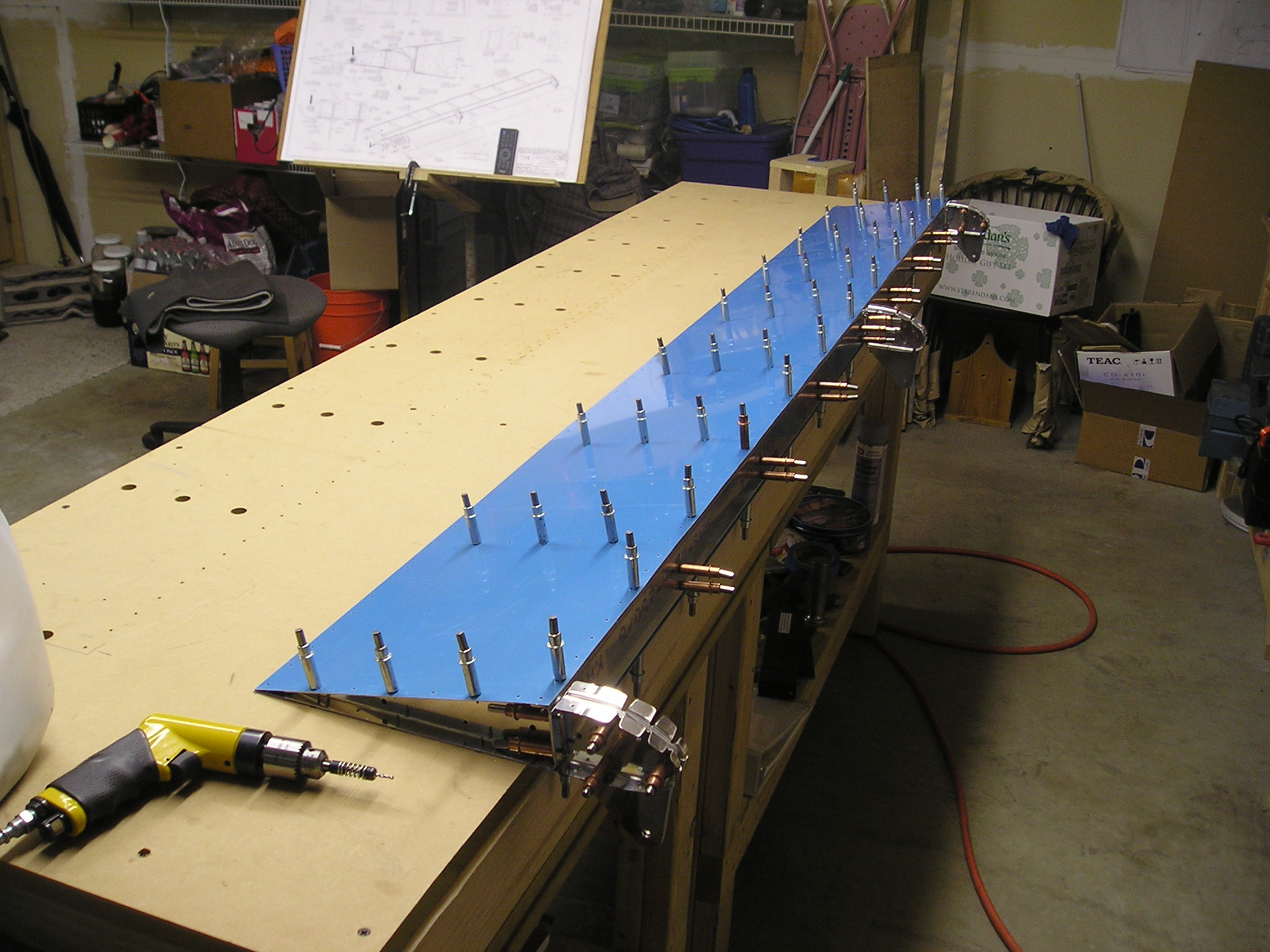

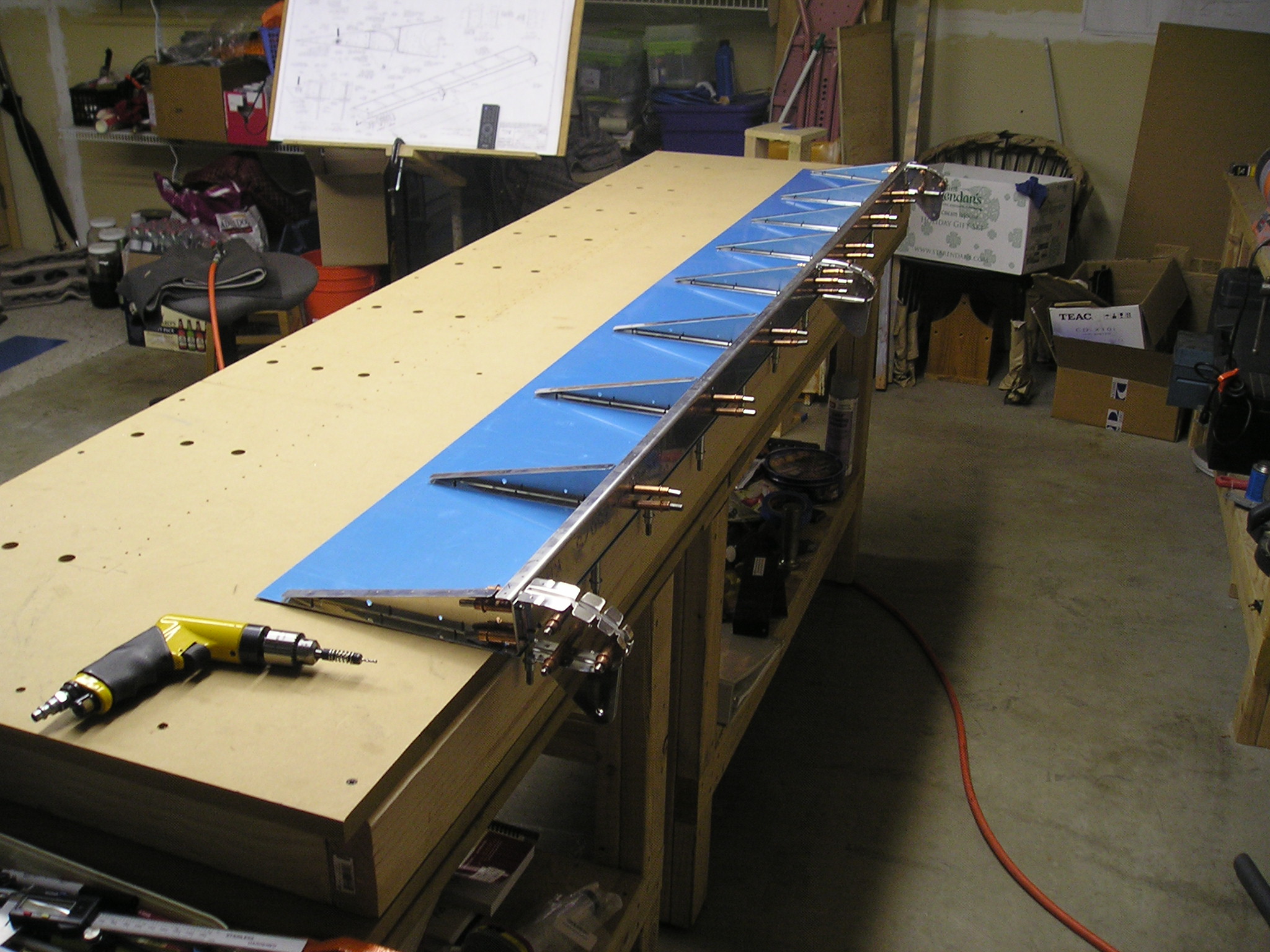

Lower skin on spar assembly full size
Drilled and cleco'd FL-905 ribs to spar assembly. Cleco'd FL-902 skin to spar assembly.

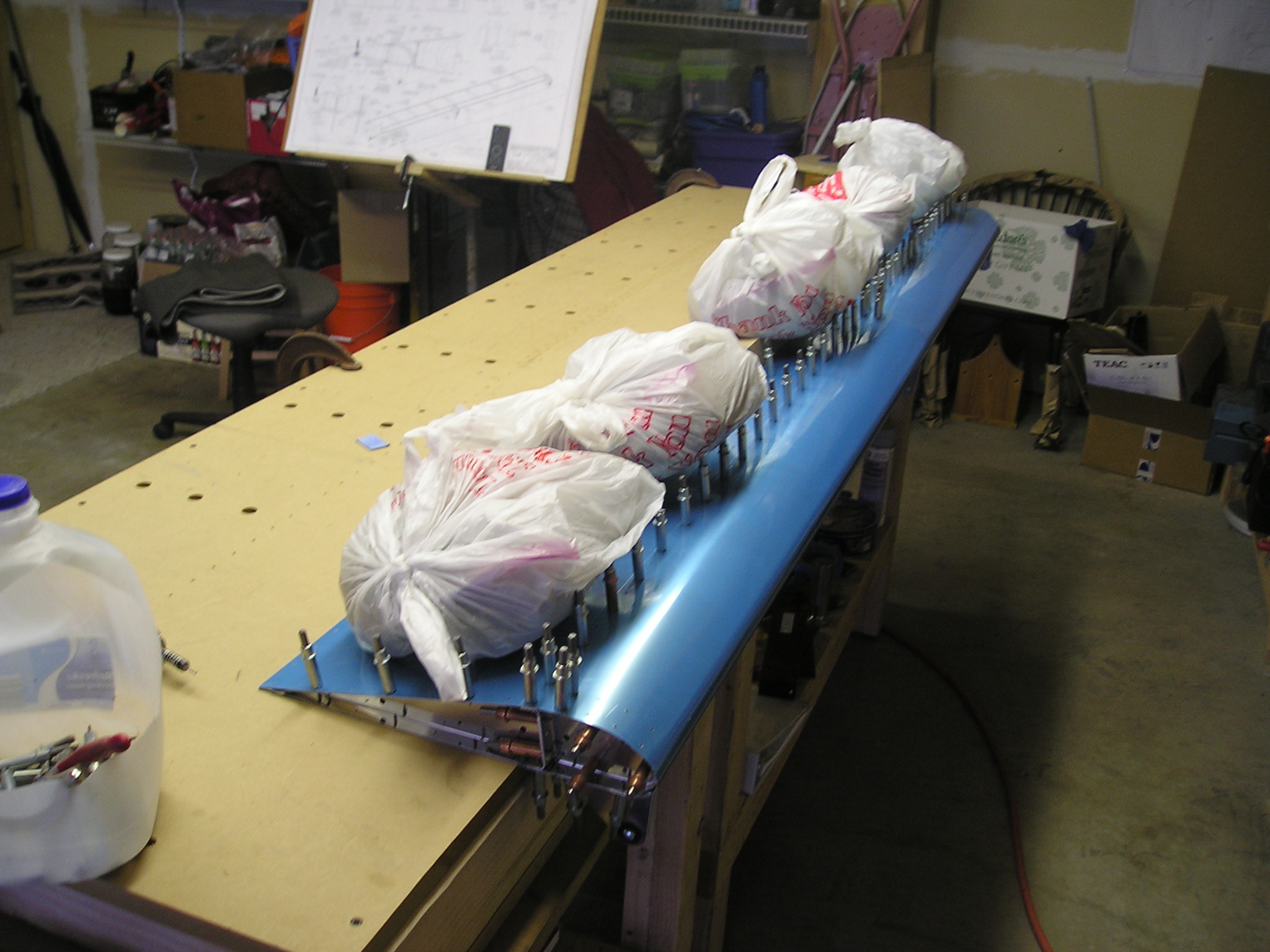

Lower skin and spar laying in cleco holes on table full size
Flipped assembly over and put it in place on the table

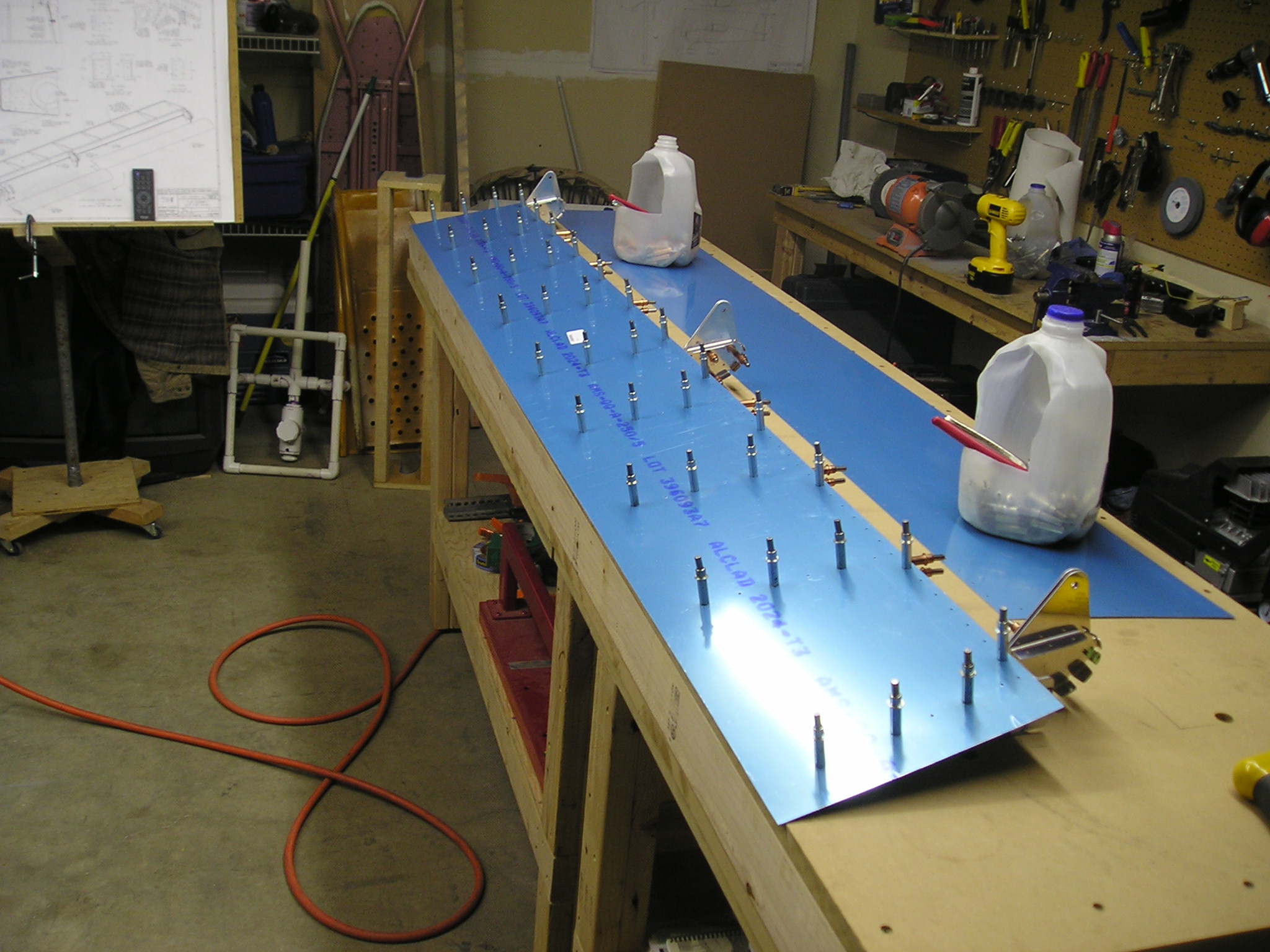

Upper skin cleco'd onto assembly full size
Put on the upper skin.
All skins in place full size
Cleco'd on the FL-901A/B skins. Drilled all holes to full size. Drilled trailing edge. Took it all apart.
