Drilling aft deck

Permalink: 2011-04-03 00:00:00-07:00 in RV9 tags: fuselage forward-assembly

1.0 Hours

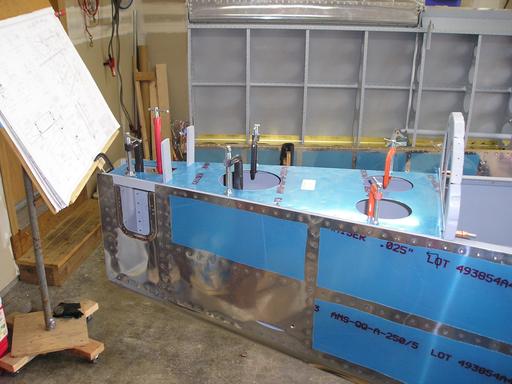

Clamping the F-714 aft deck

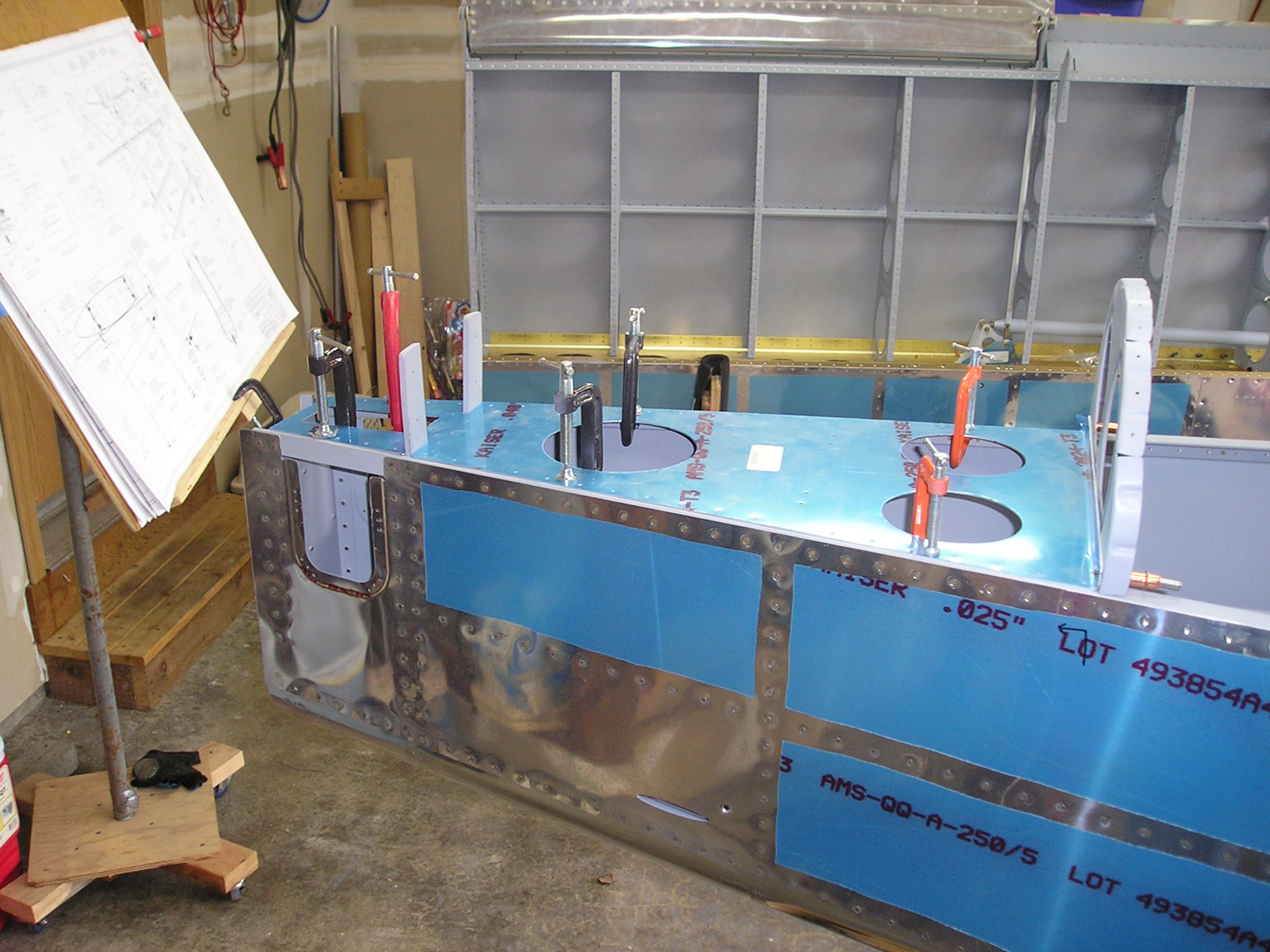

Clamping the F-714 aft deck full size

Got the deck clamped in place, made sure everything is still level so no twist in the fuselage.

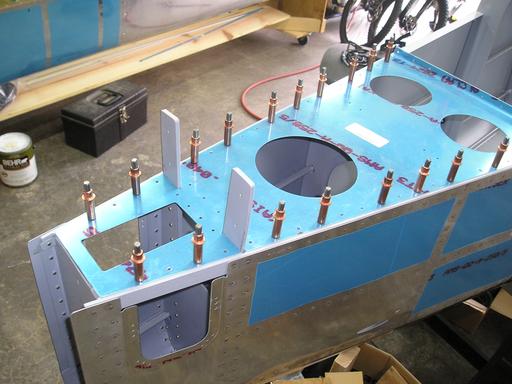

Drilling aft deck

Drilling aft deck full size

Drilled and cleco'd all the holes to full size.
