Aft deck shims
3.0 Hours

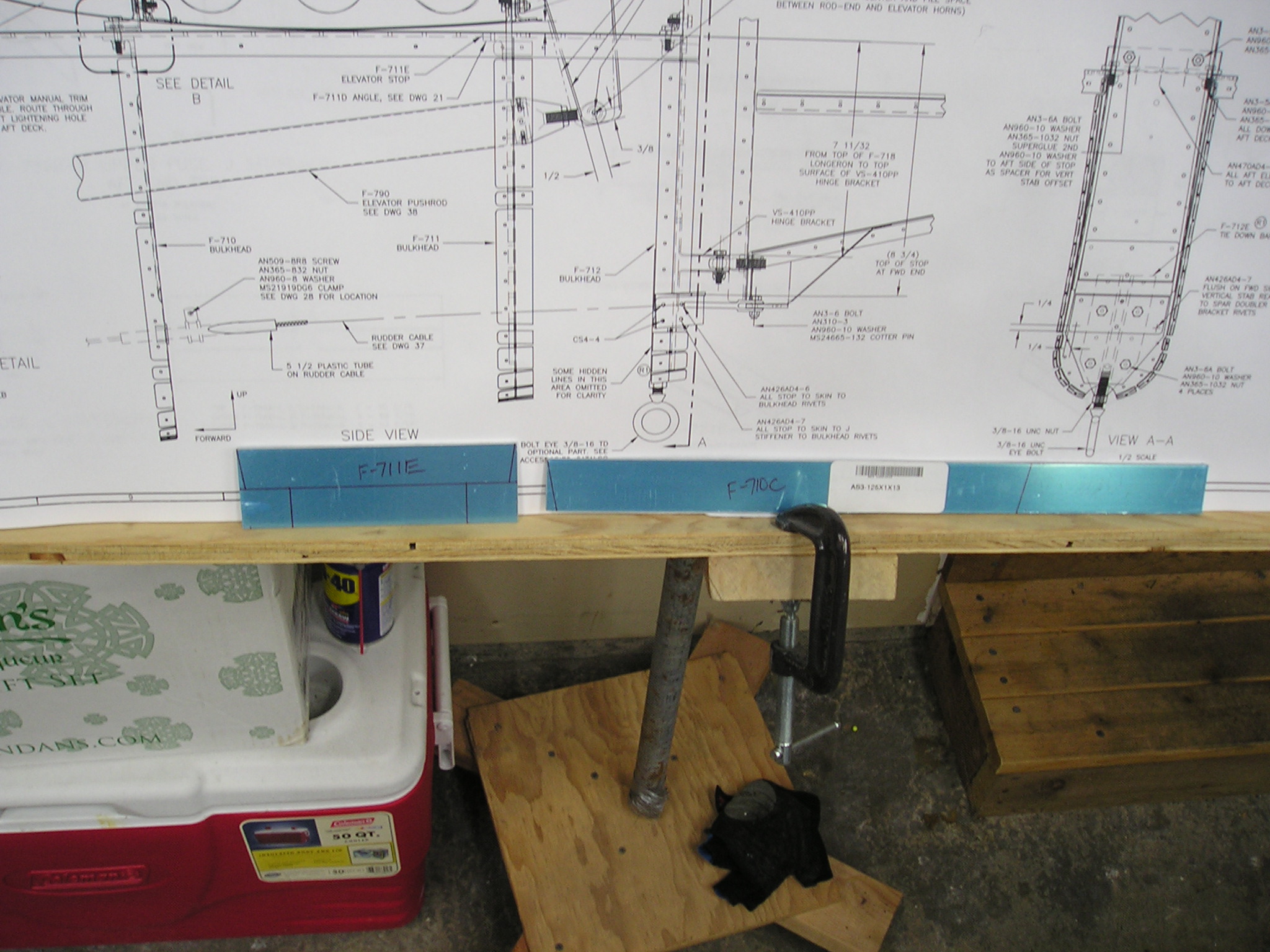

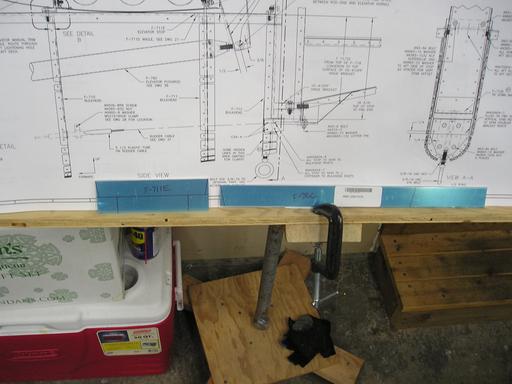

Laying out shims full size
We need 2 shims that go under the aft deck over the bulkheads. The F-710C and F-711E. Here I am laying them out on the blue plastic.

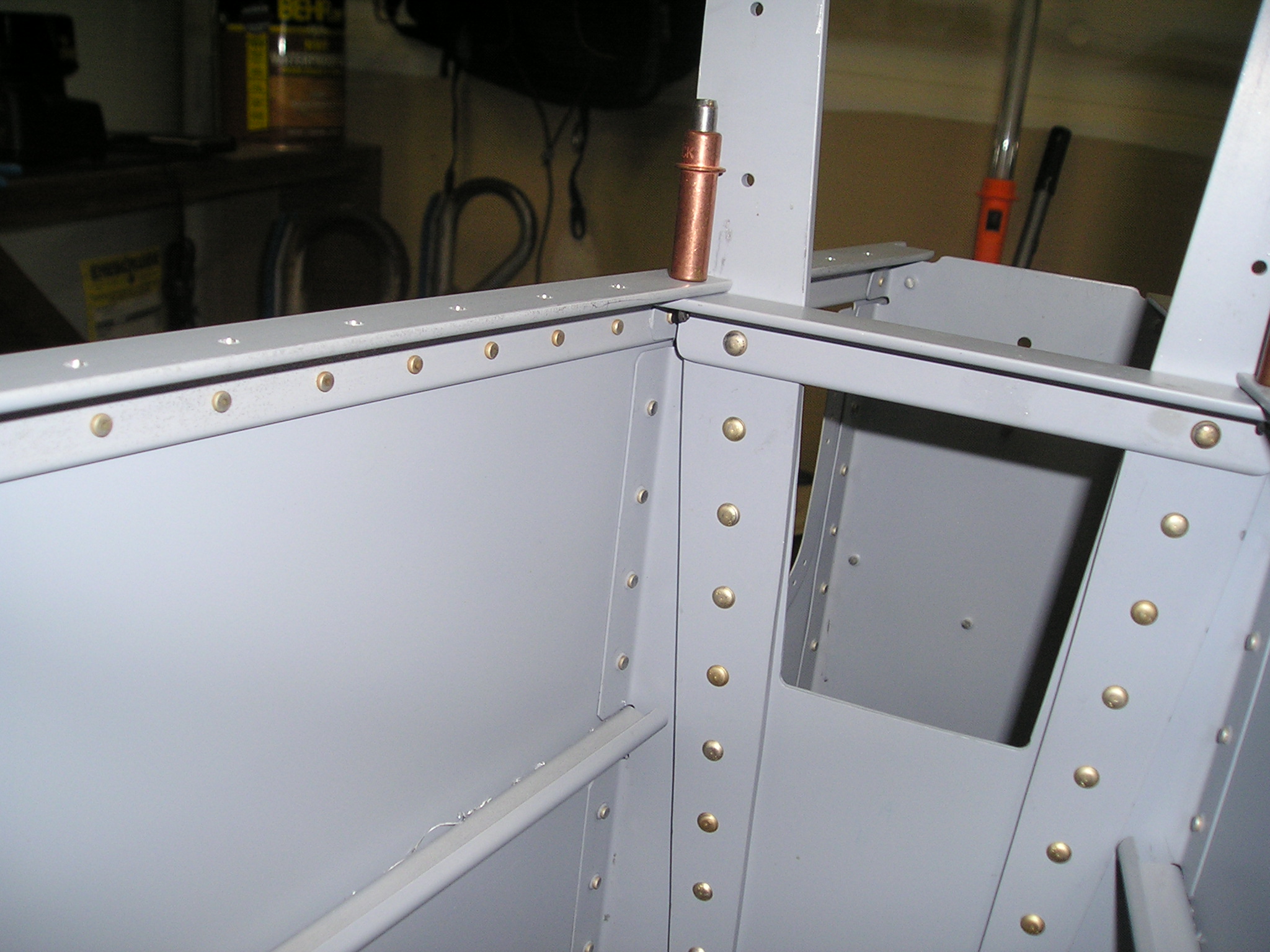

Getting ready to drill stops/shims full size
ditto

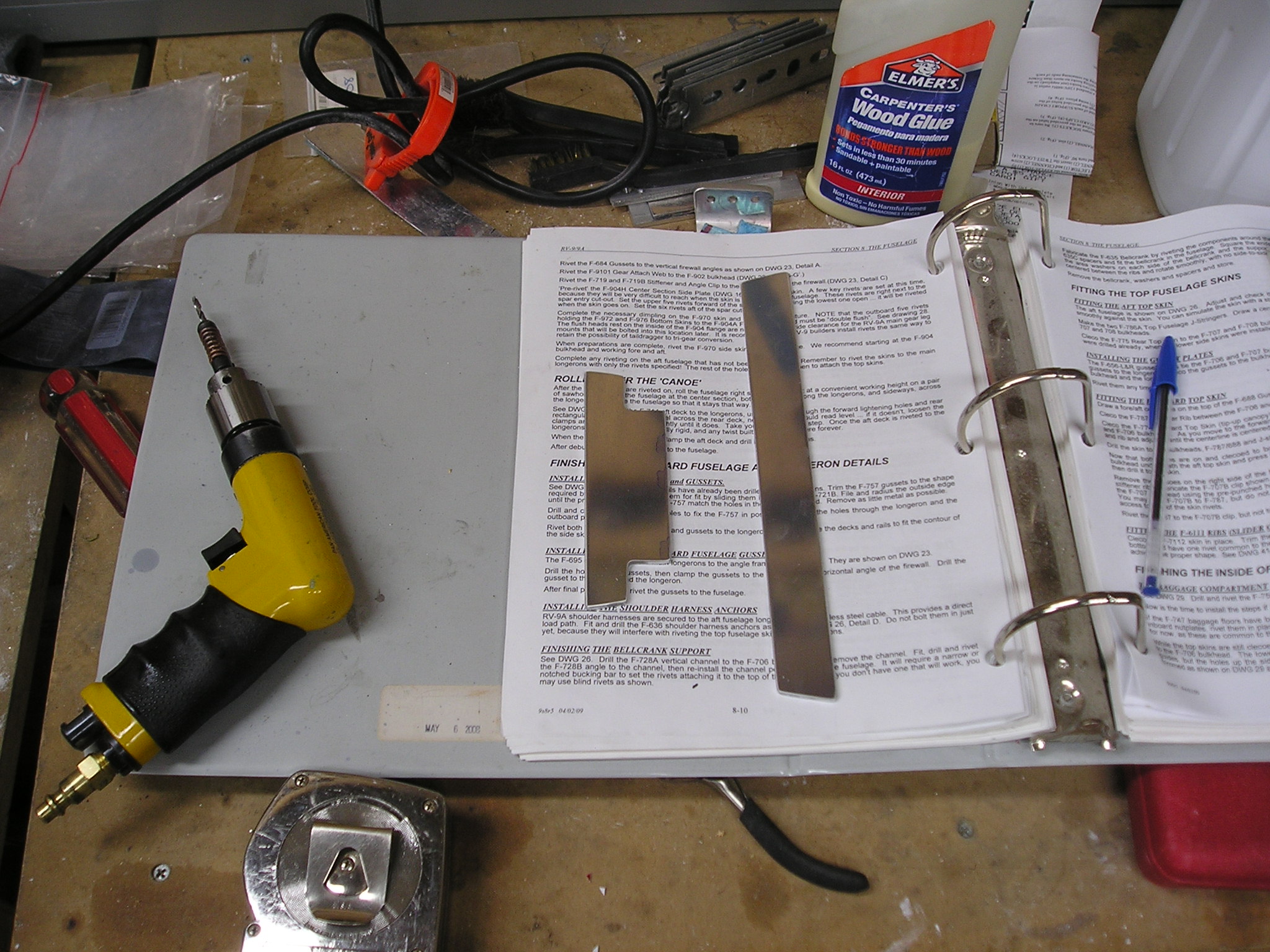

Fabbing spacers full size
Here is the F-710C spacer and F-711E stop/spacer cut out and deburred
Drilling spacers full size

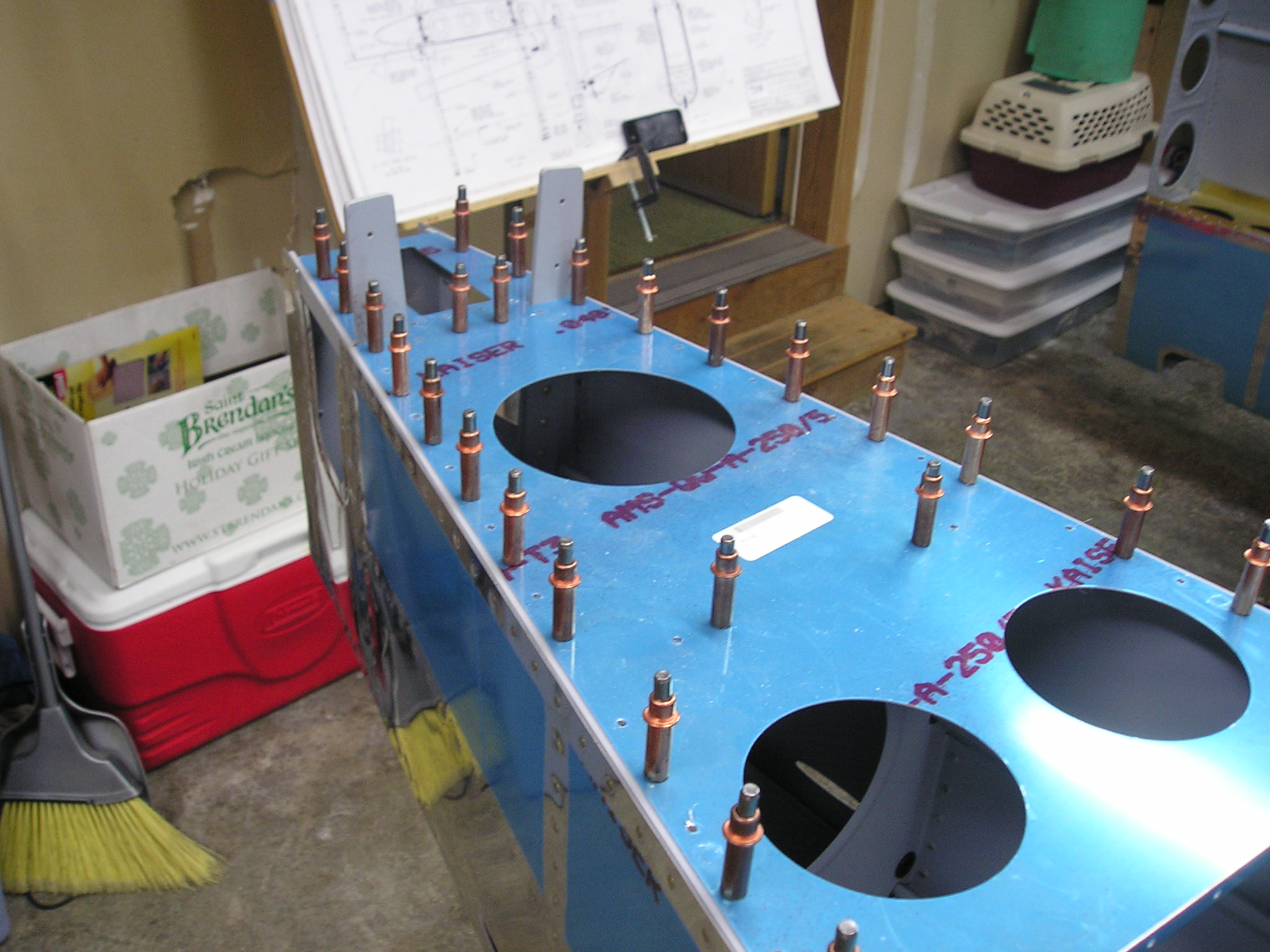

Cleco'd the aft deck back in place with spacers and drilled.

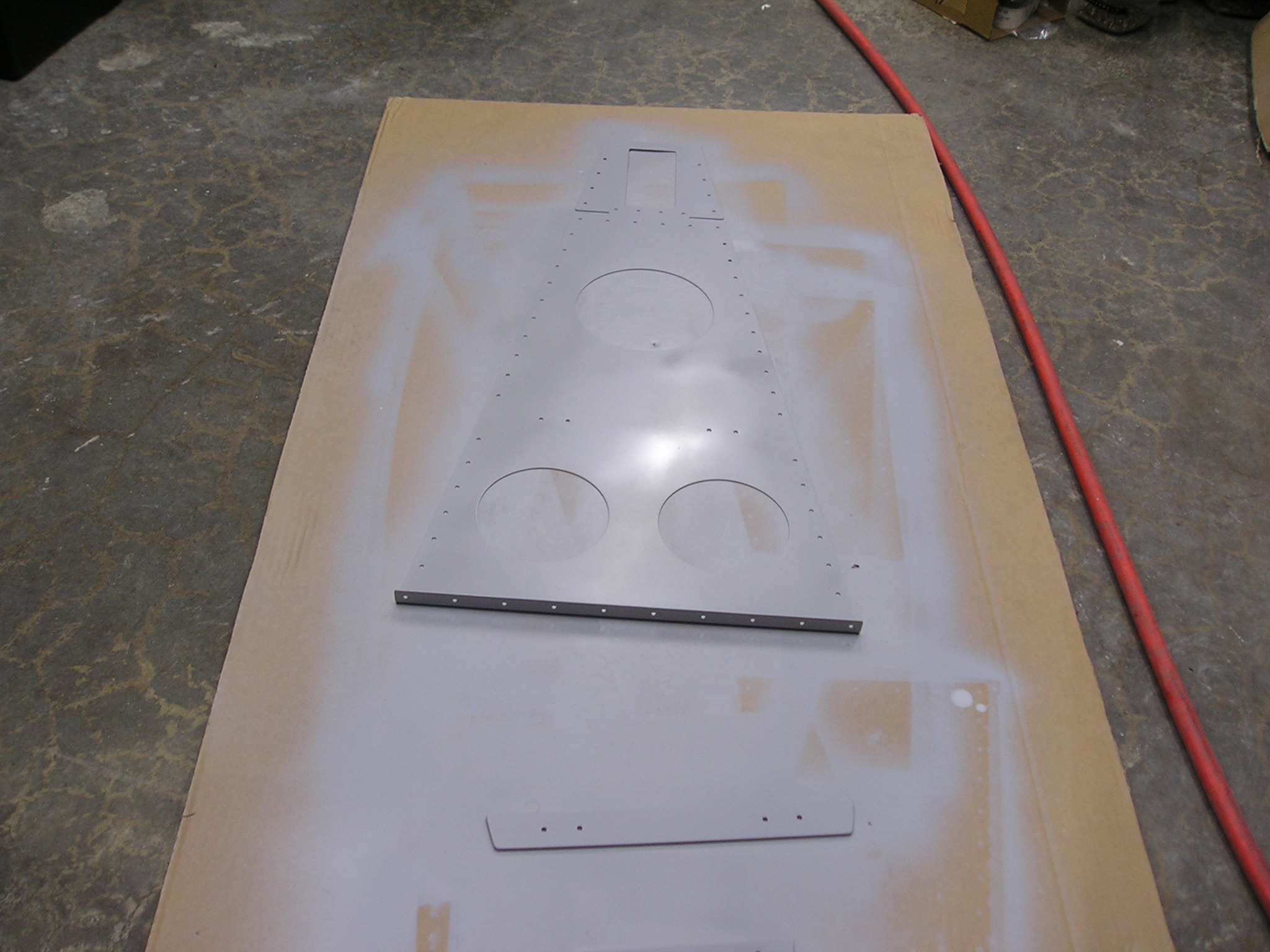

Priming aft deck parts full size
Cleaned and primed the new parts
