Deburring, dimpling, vertical stabilizer
Permalink: 2008-07-08 00:00:00-07:00 in RV9 tags: empennage vertical-stabilizer

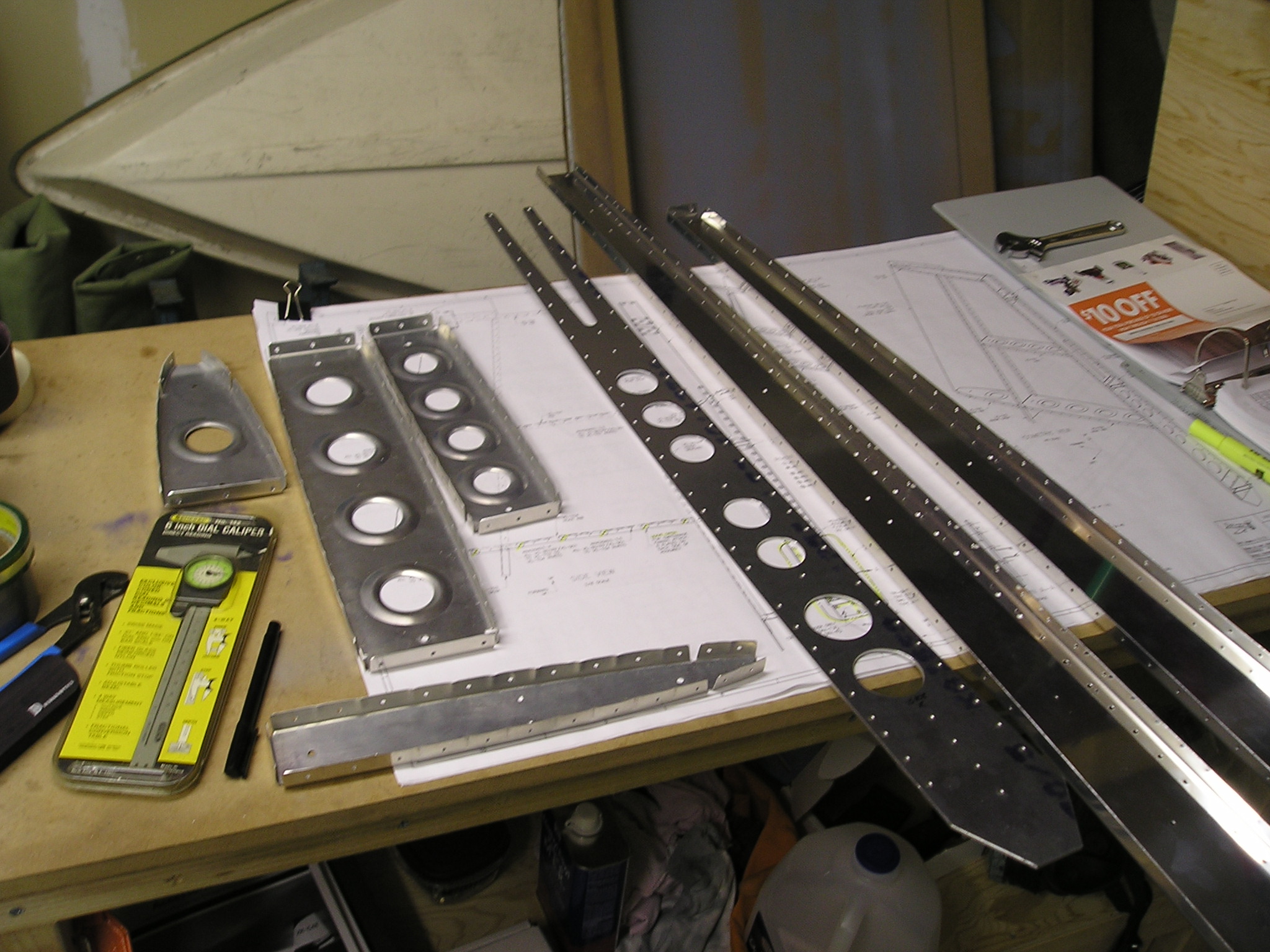

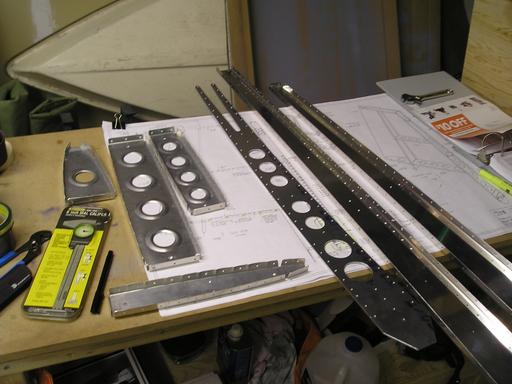

Deburring, dimpling vertical spar ribs, spars full size
I dissassembled the vertical stabilizer after drilling all the skin holes I then deburred and dimpled the spars and ribs.

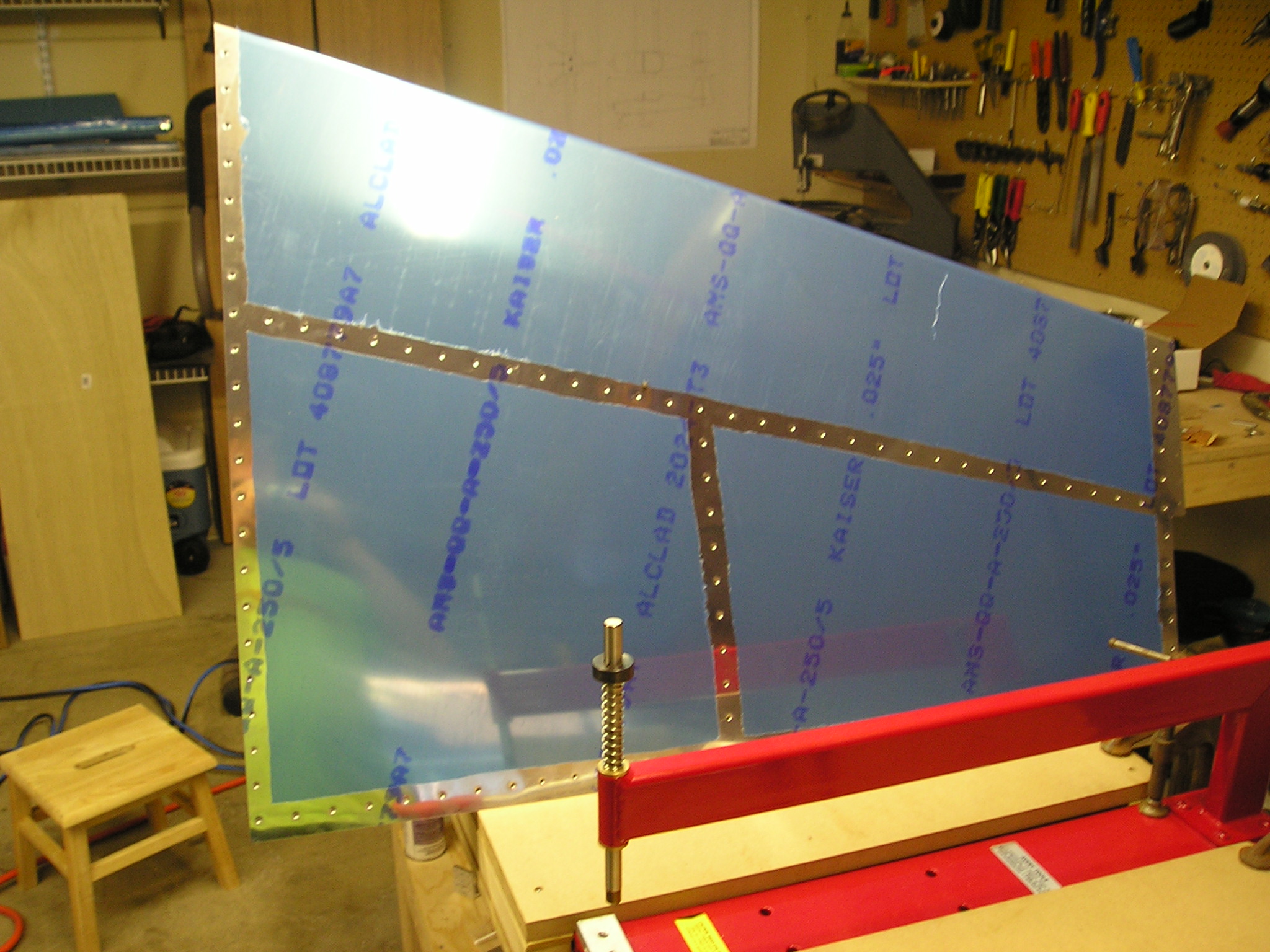

Dimpled vertical stablizer skin full size
After finishing the spars and ribs, I deburred and dimpled the skin.

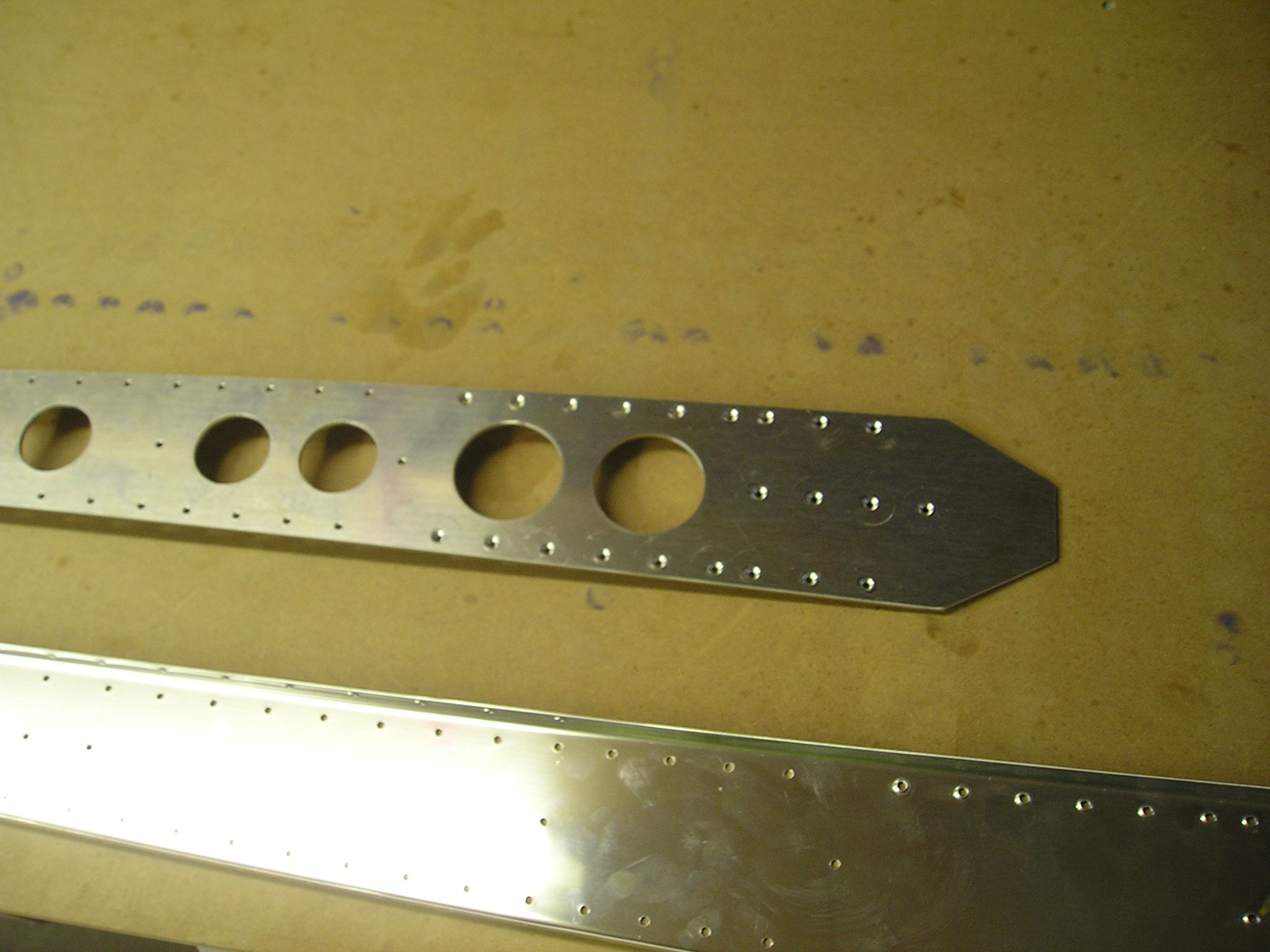

Countersunk holes on rear vertical spar doubler full size
Some of the holes at the bottom of the rear vertical stabilizer need to be countersunk. The spar is dimpled as it's 0.030 thick, but the double needs to be countersunk as its 0.125 inch thick. Here is a not so good picture of the rear spar and the doubler.
