Control Column assembly
5.0 Hours

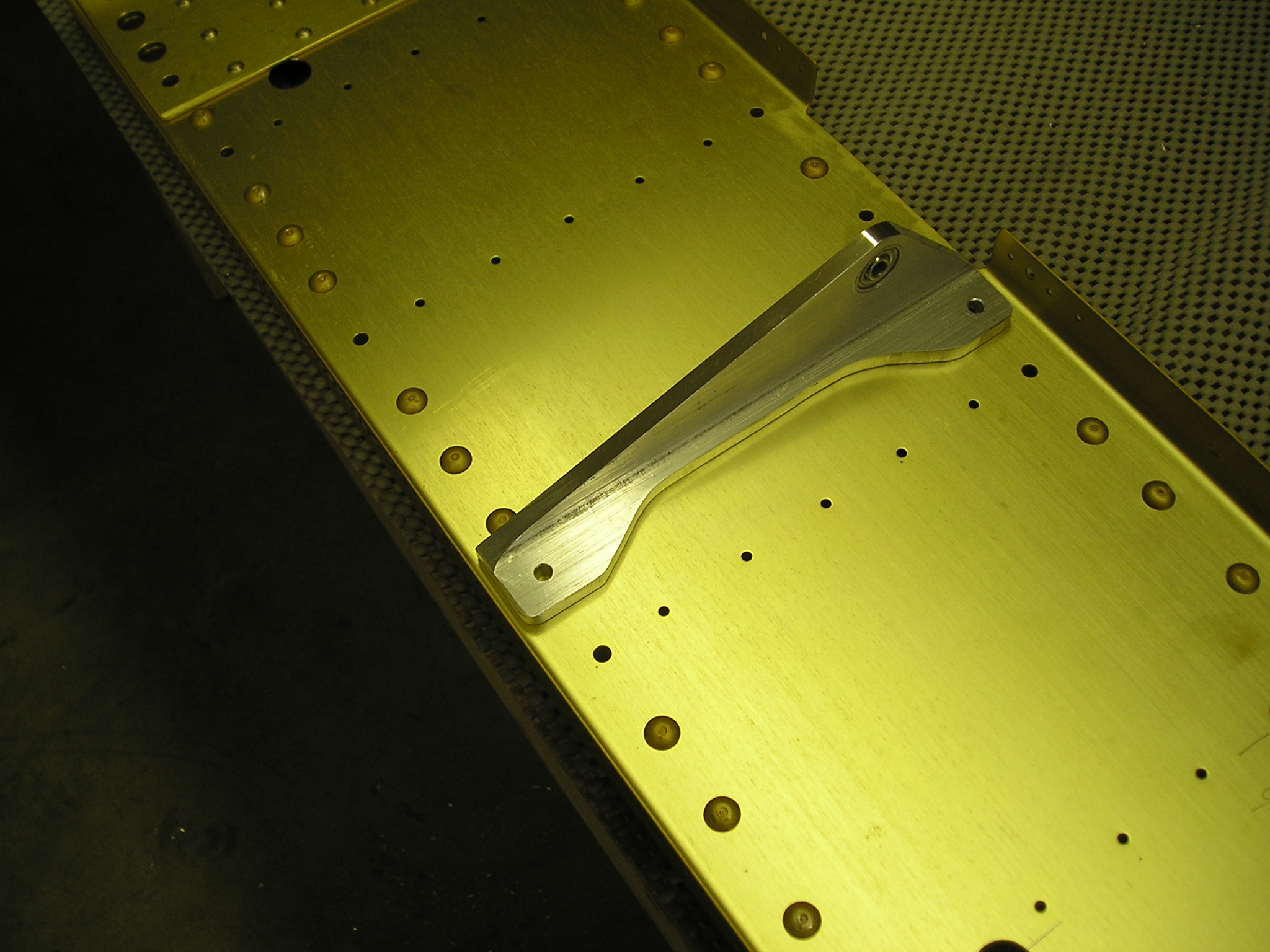

Drilling F-633R to F-904 full size
Held the F-633R in place and drilled the bolt holes at top and bottom

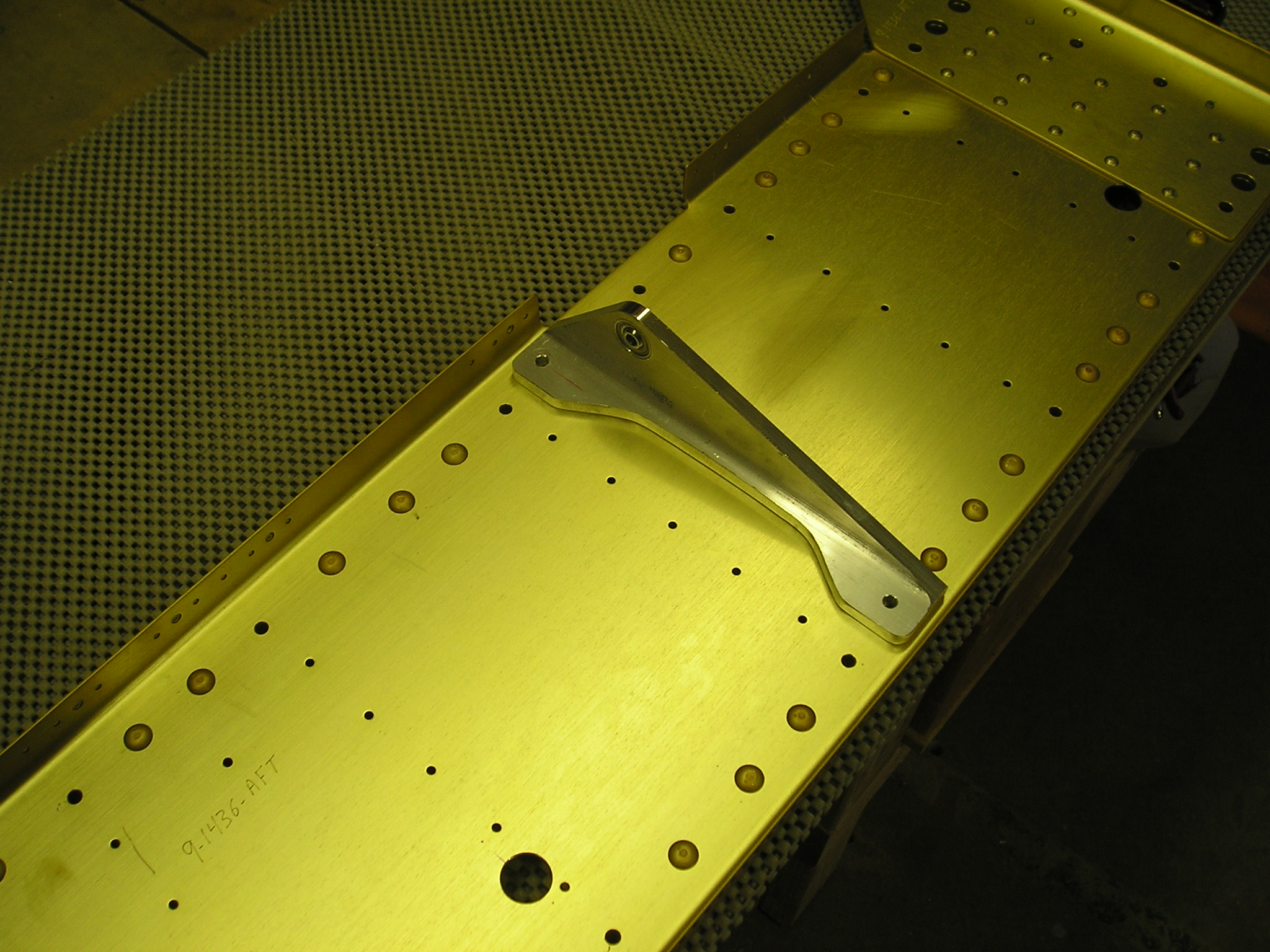

Drilling F-633L to F-904 full size
Same as the right side

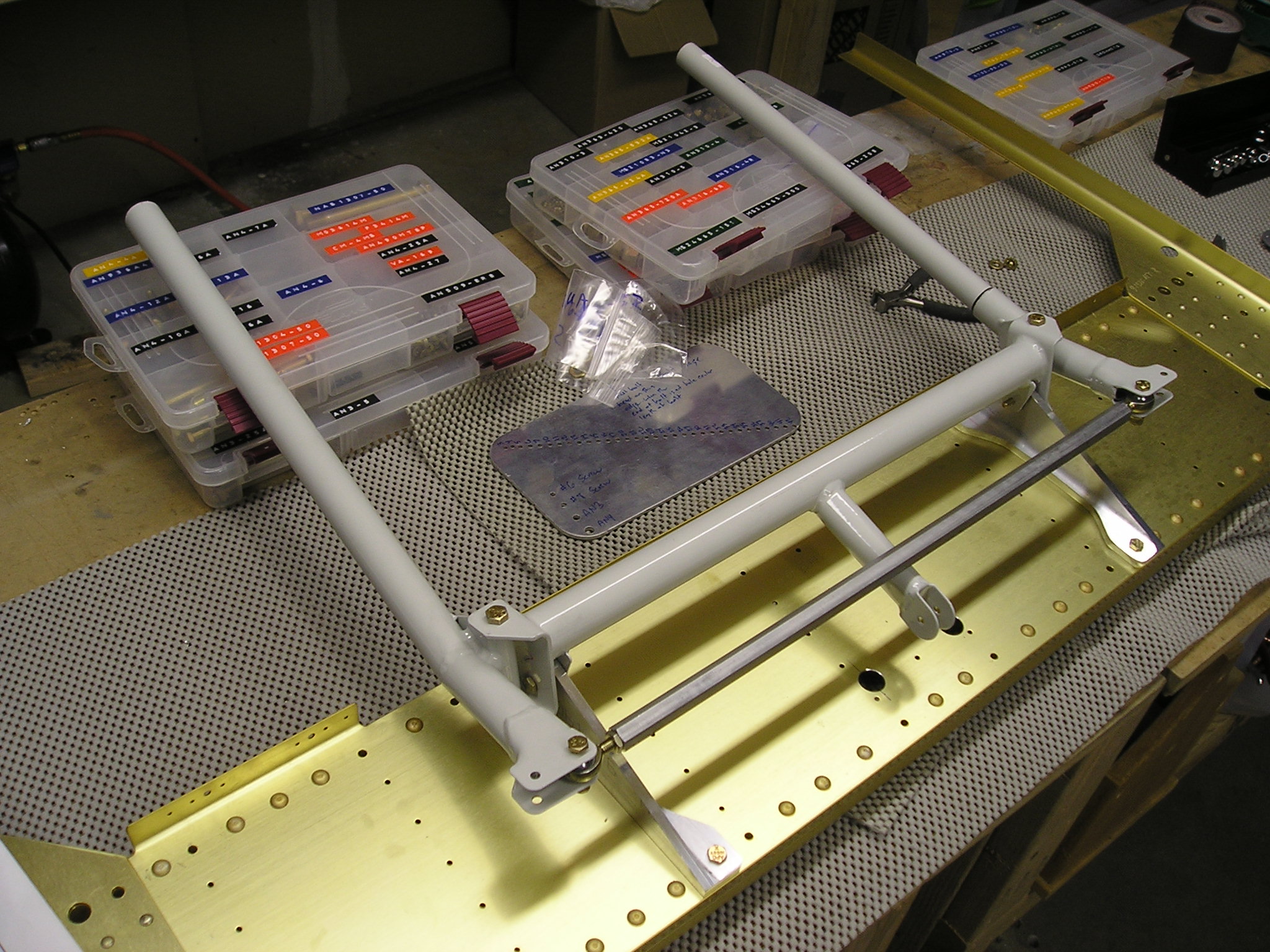

Assembled control column full size
Got all the parts together, then bolted the F-633's to the F-904 bulkhead and assembled the control column. Kind of neat to see all of this together, even though it comes right back apart again.

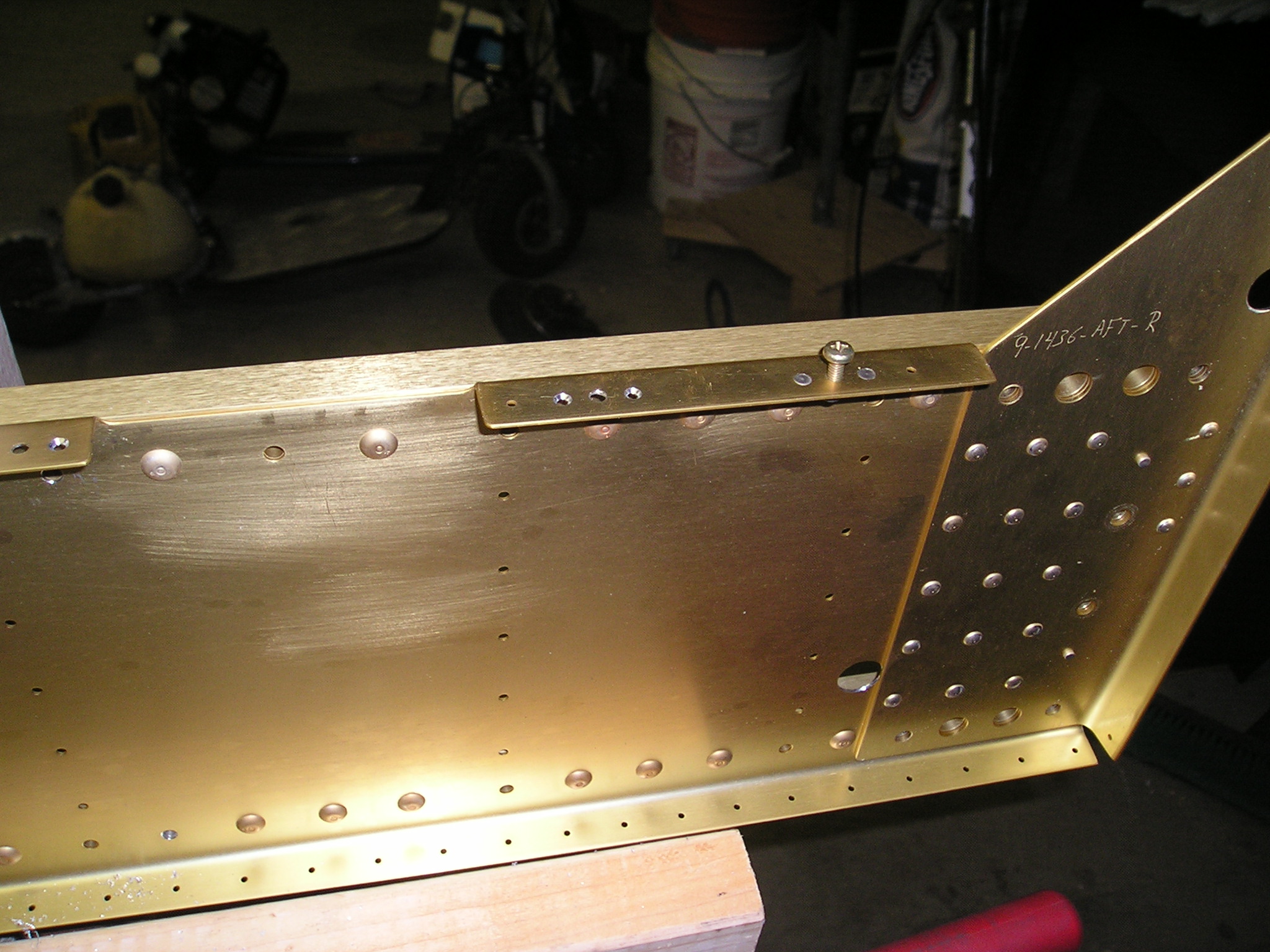

Drilling, installing nutplates on F-904 full size
Several nutplates are drilled, countersunk and riveted into place

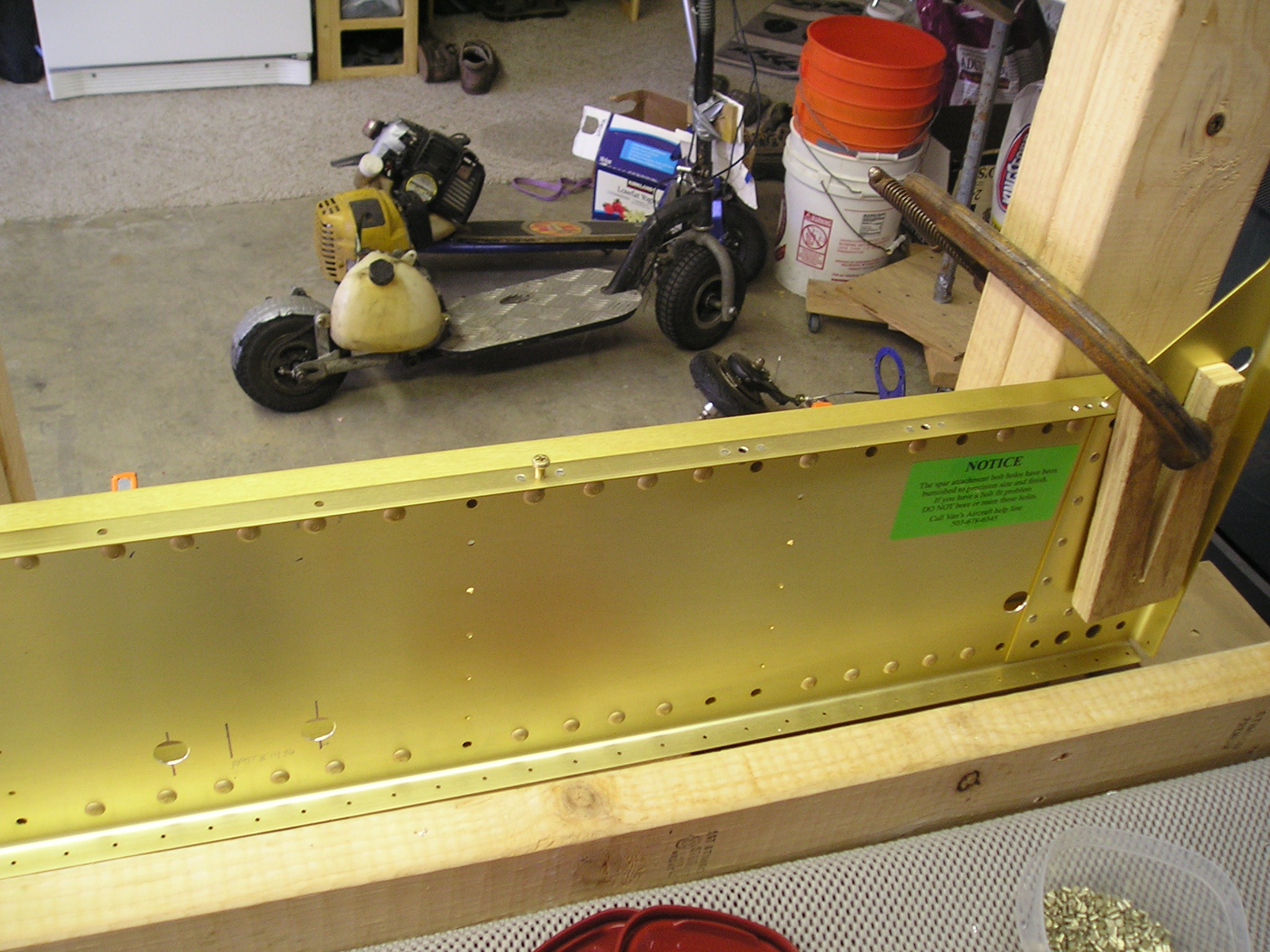

More F-904 nutplates full size
A shot of the nutplates on the front half of F-904
