Building brackets
5.2 Hours

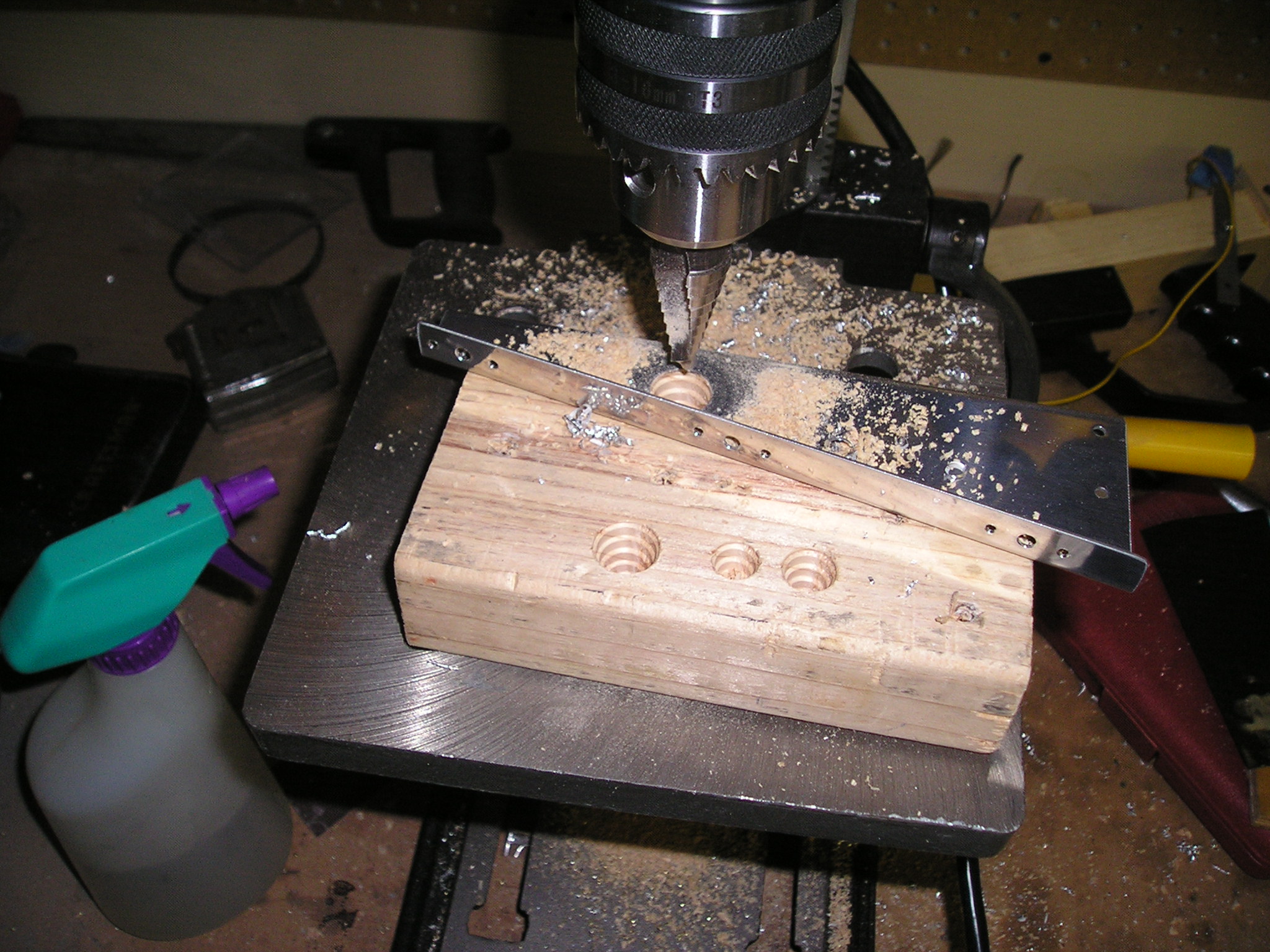

Drilling grommet holes in F-982B brackets full size
Placed the F-982/3/L/R brackets in place and drilled holes fullsize Then started drilling grommet holes in each bracket

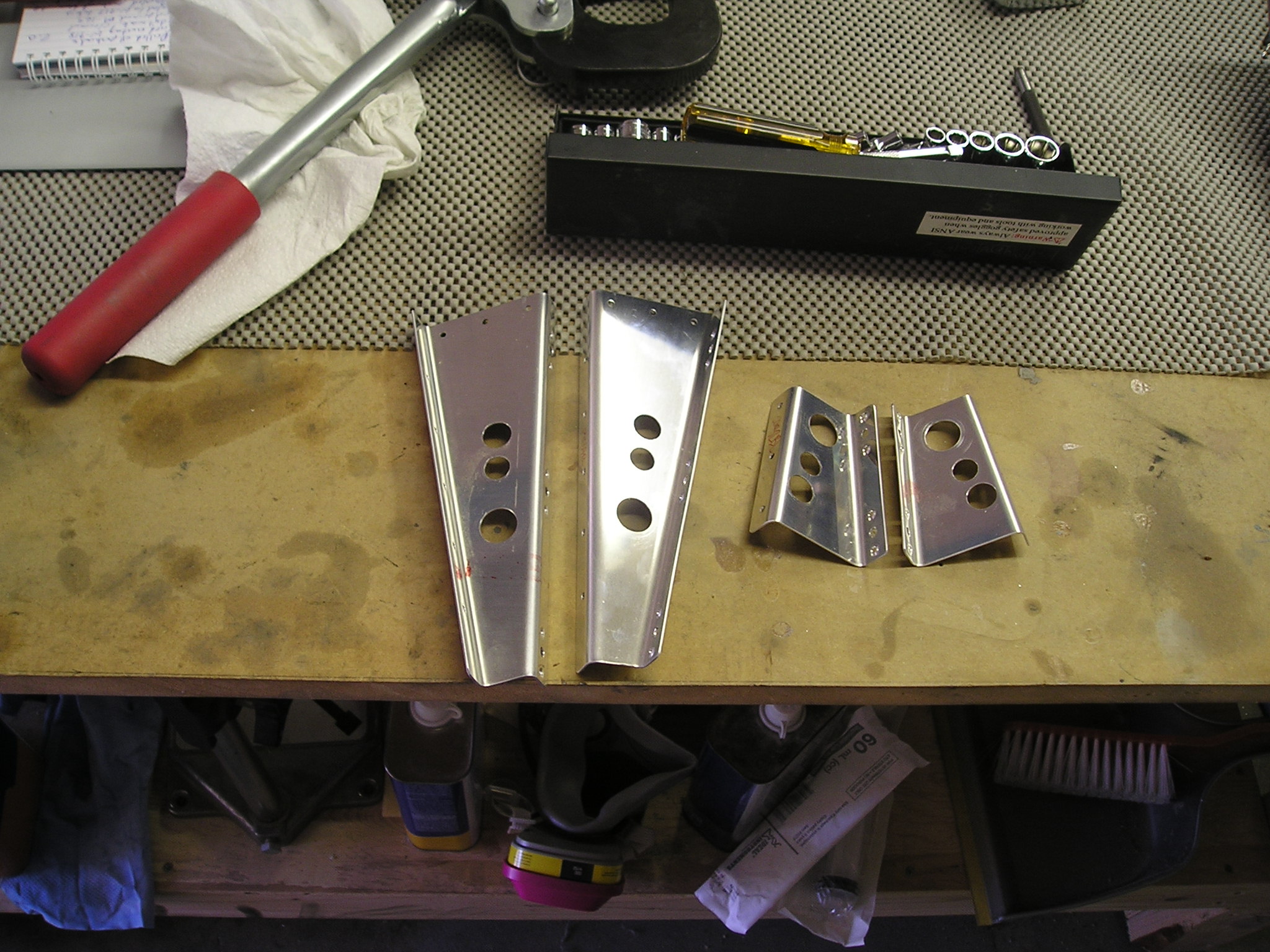

Finished brackets full size
After finishing the grommet holes, drilled and dimpled the nutplate rivet holes

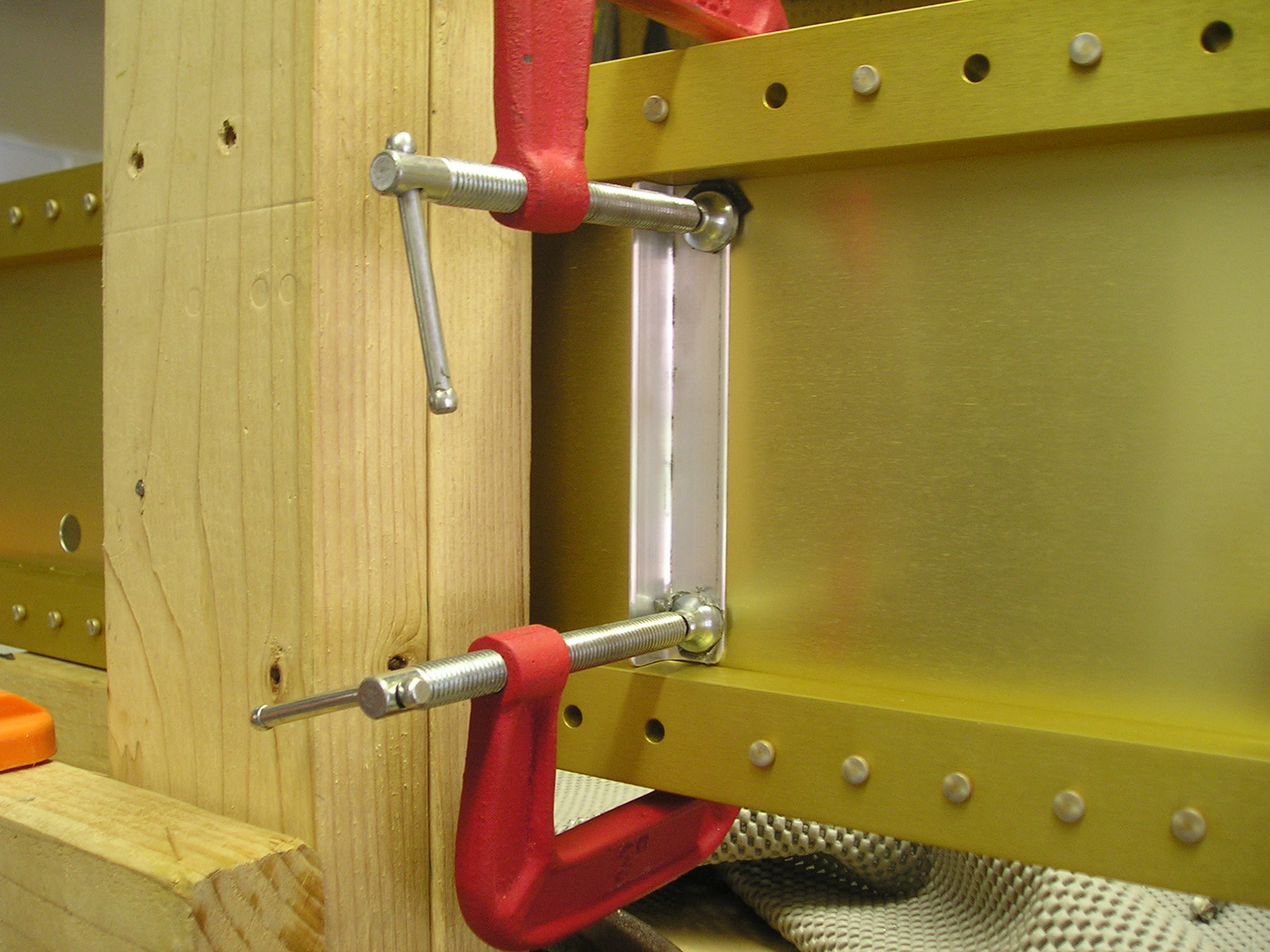

Fabbing F-904M stiffeners full size
Cut the stiffeners to length. Then clamped them in place and drilled the holes to full size

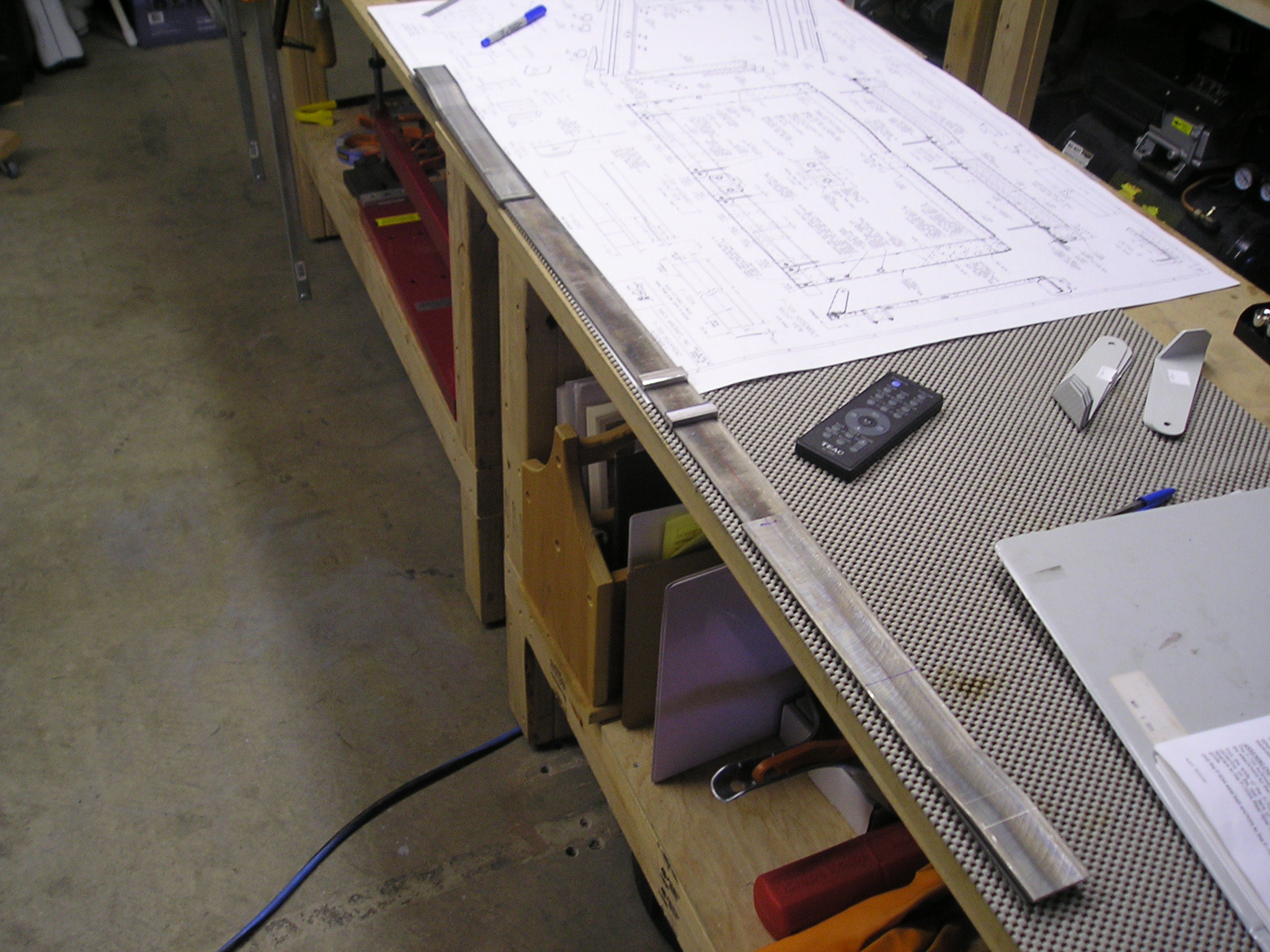

Starting F-705 bulkhead full size
First is to cut F-705B to length. Also cut F-705H's. Clamped

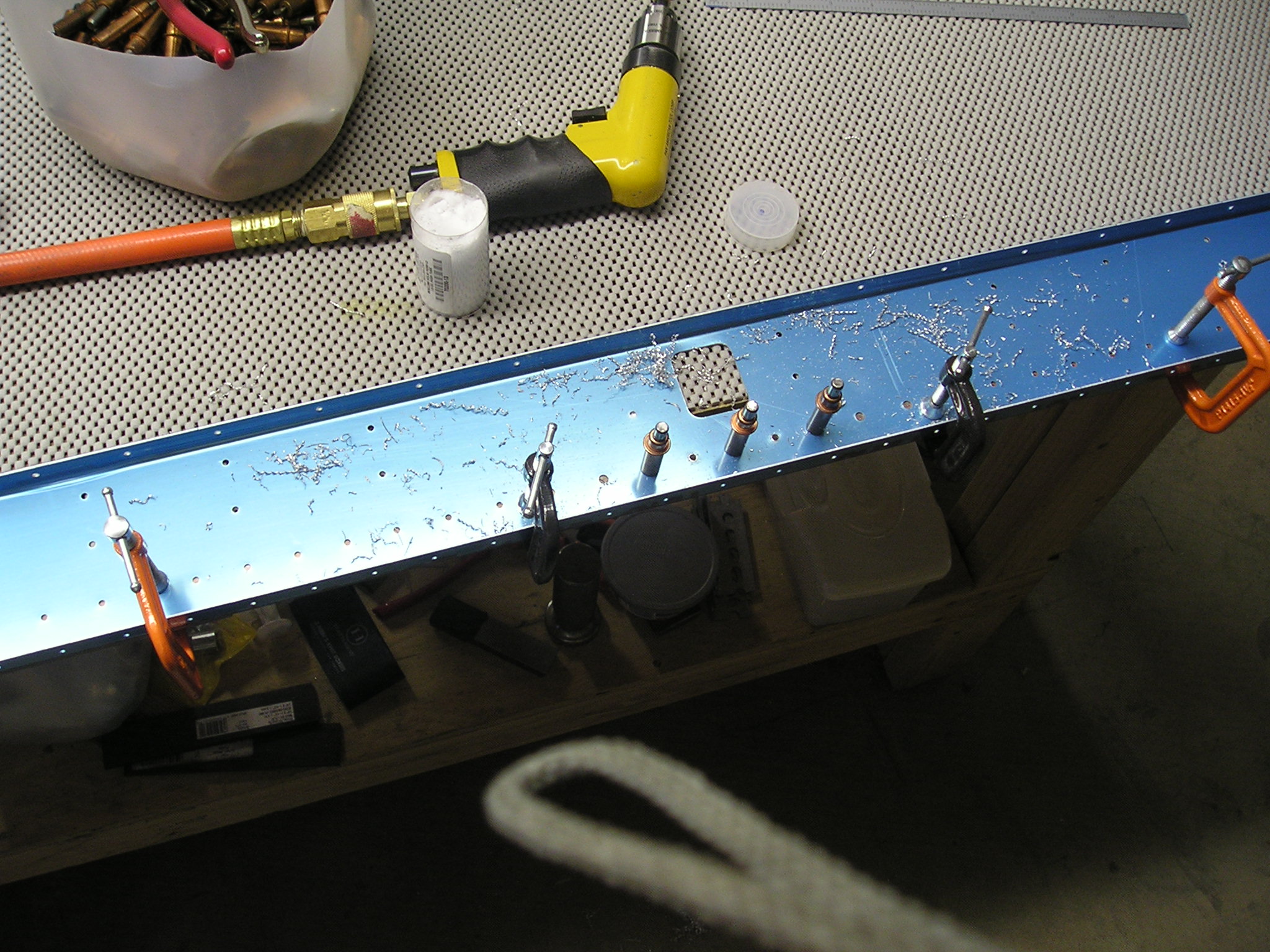

Drilling bottom bar assembly full size
Clamped F-705B/H/C's to F-705A and drilled all holes
