Building the wing jig

6.0 Hours

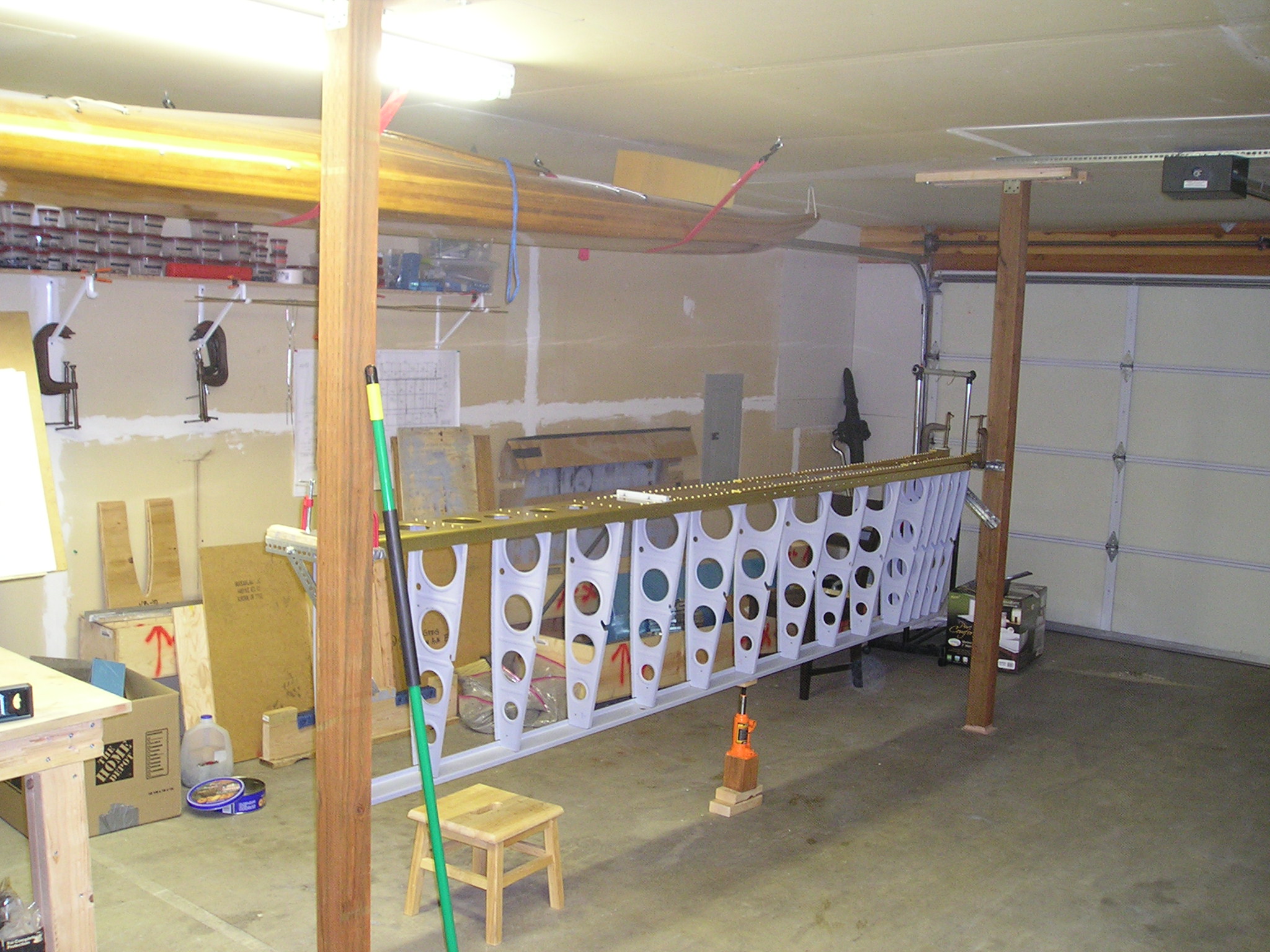

The finished wing jig full size

Now that the ribs and spars are riveted together, I need the wing jig to hold the assembly. I put up two 4x4 poles in the garage. I used bondo to attach the bottom to the floor, and some 2x4 and metal brackets to hold them to the ceiling. Then put on the cross-arms.
