Assembling tailcone for drilling
3.0 Hours

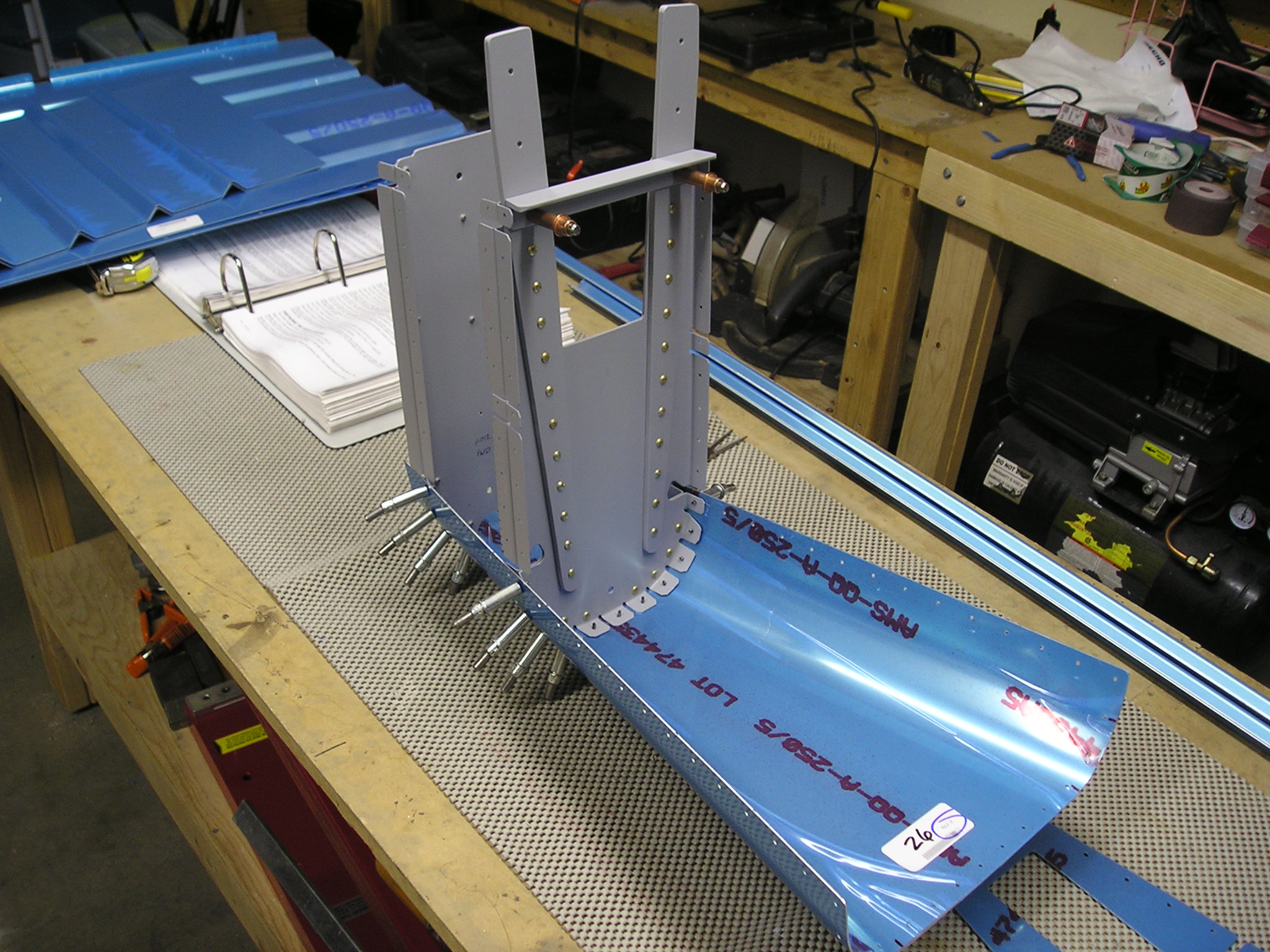

Attaching frames to F-779 full size
The last two frames, F-711, F-712 are cleco'd to the skin. This skin is pretty thick and difficult to wrestle into place.

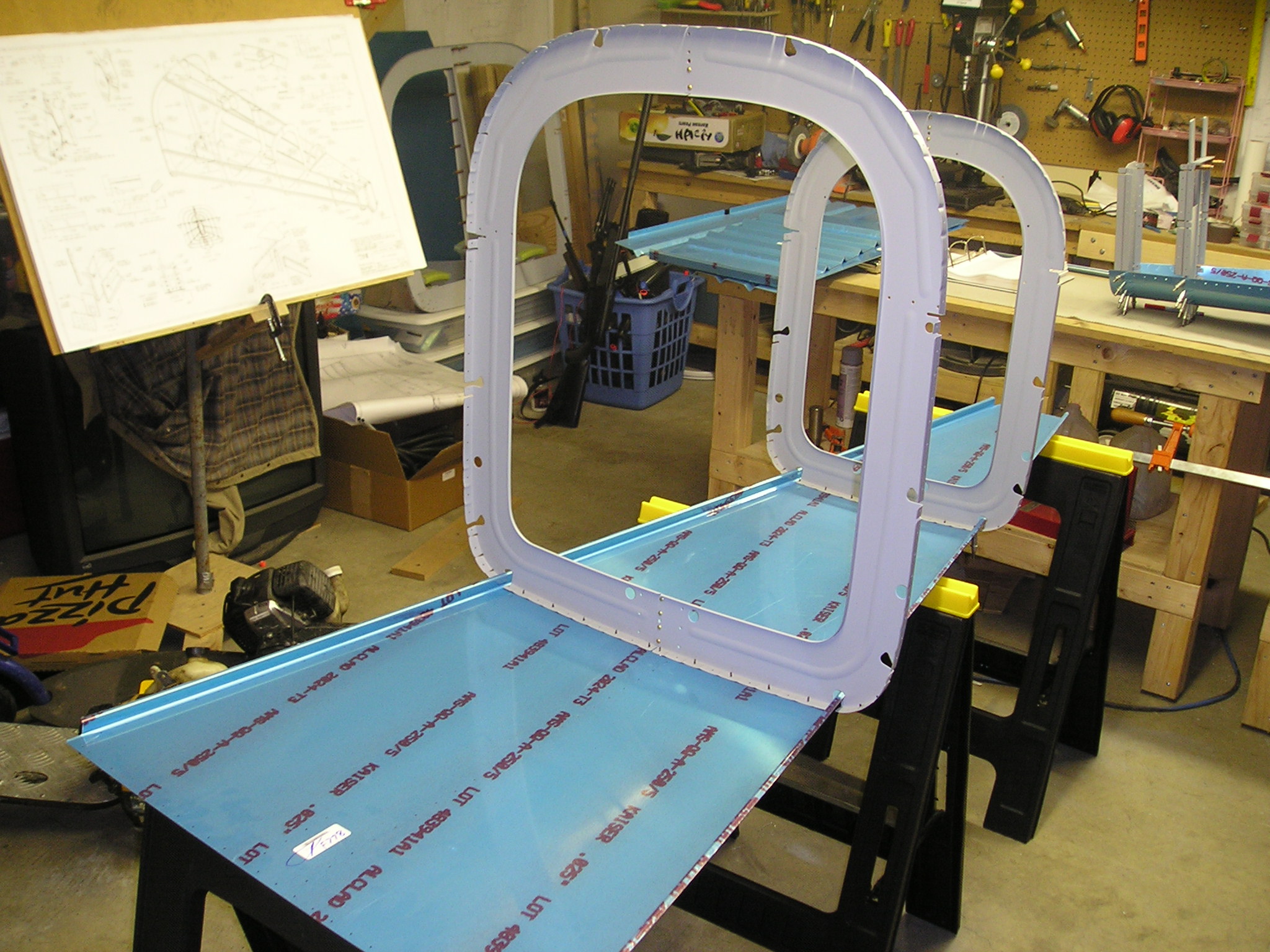

Attaching F-707, F-708 frames full size
The F-707 and F-708 frames are cleco'd to the bottom skin, F-778.

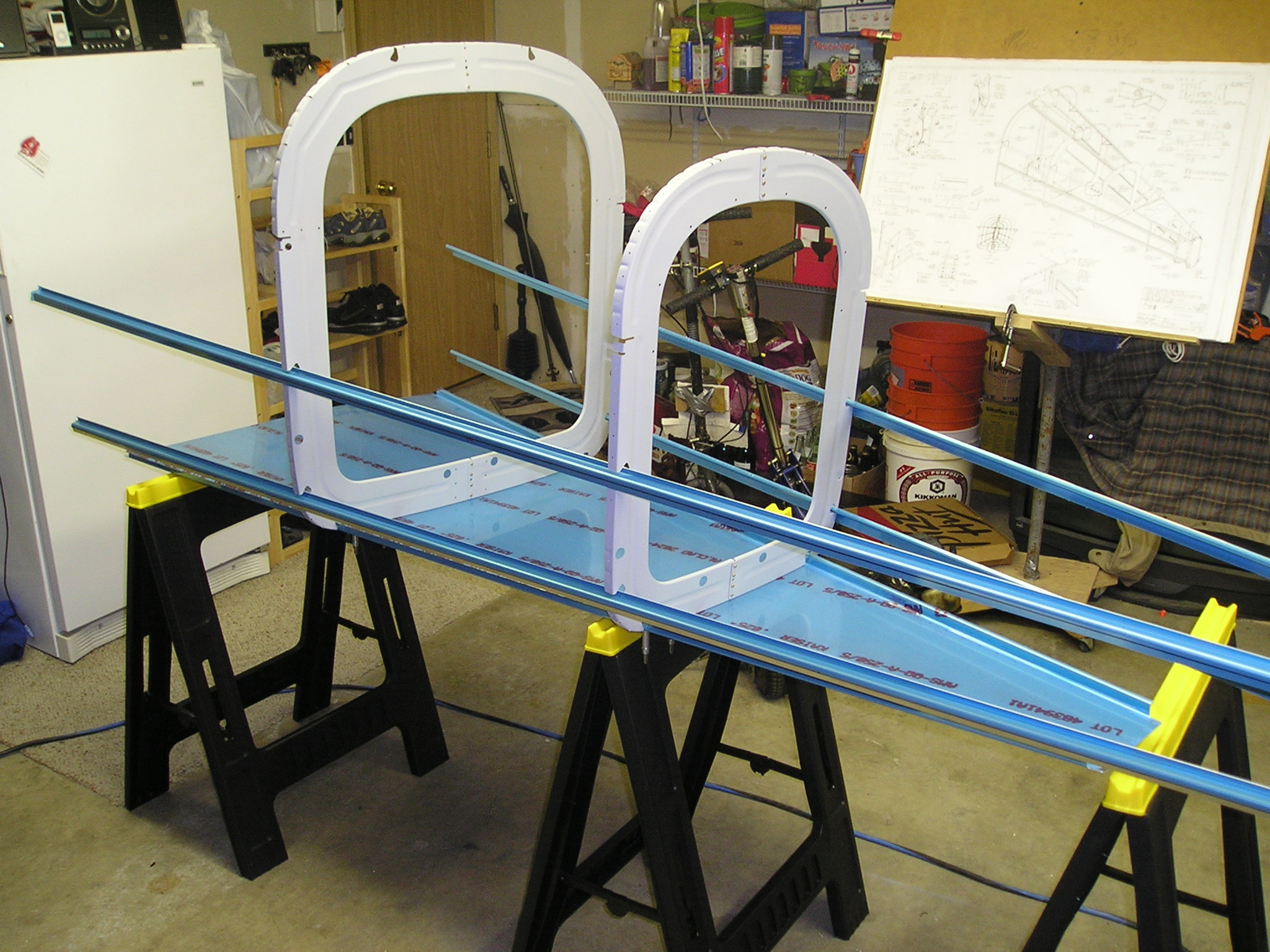

J-stiffeners placed into position full size
The F-786B/C stiffeners are put into place

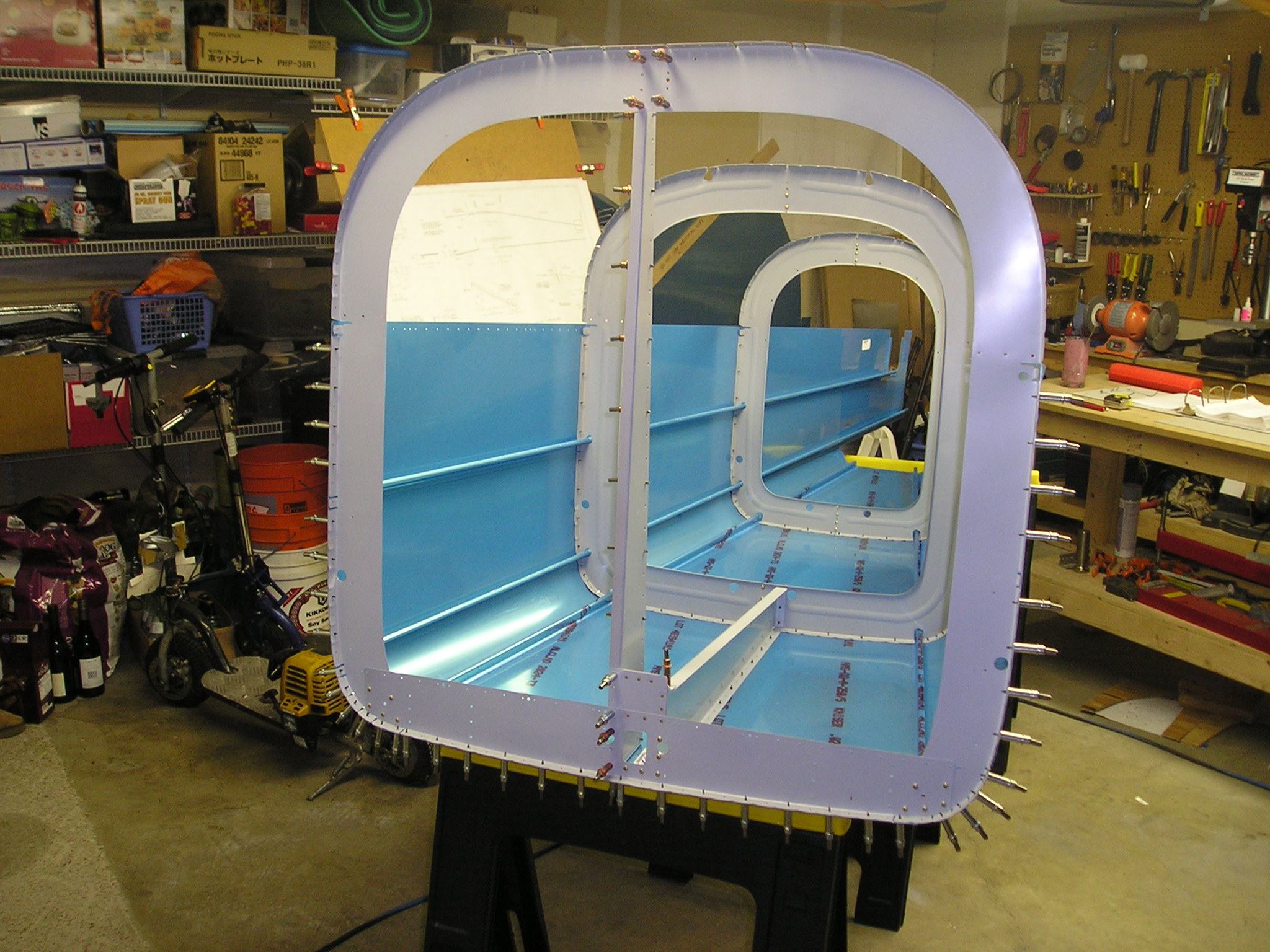

Tailcone put together full size
The side skins F-773 are cleco'd into place. Then the F-706 bulkhead is clecod on.

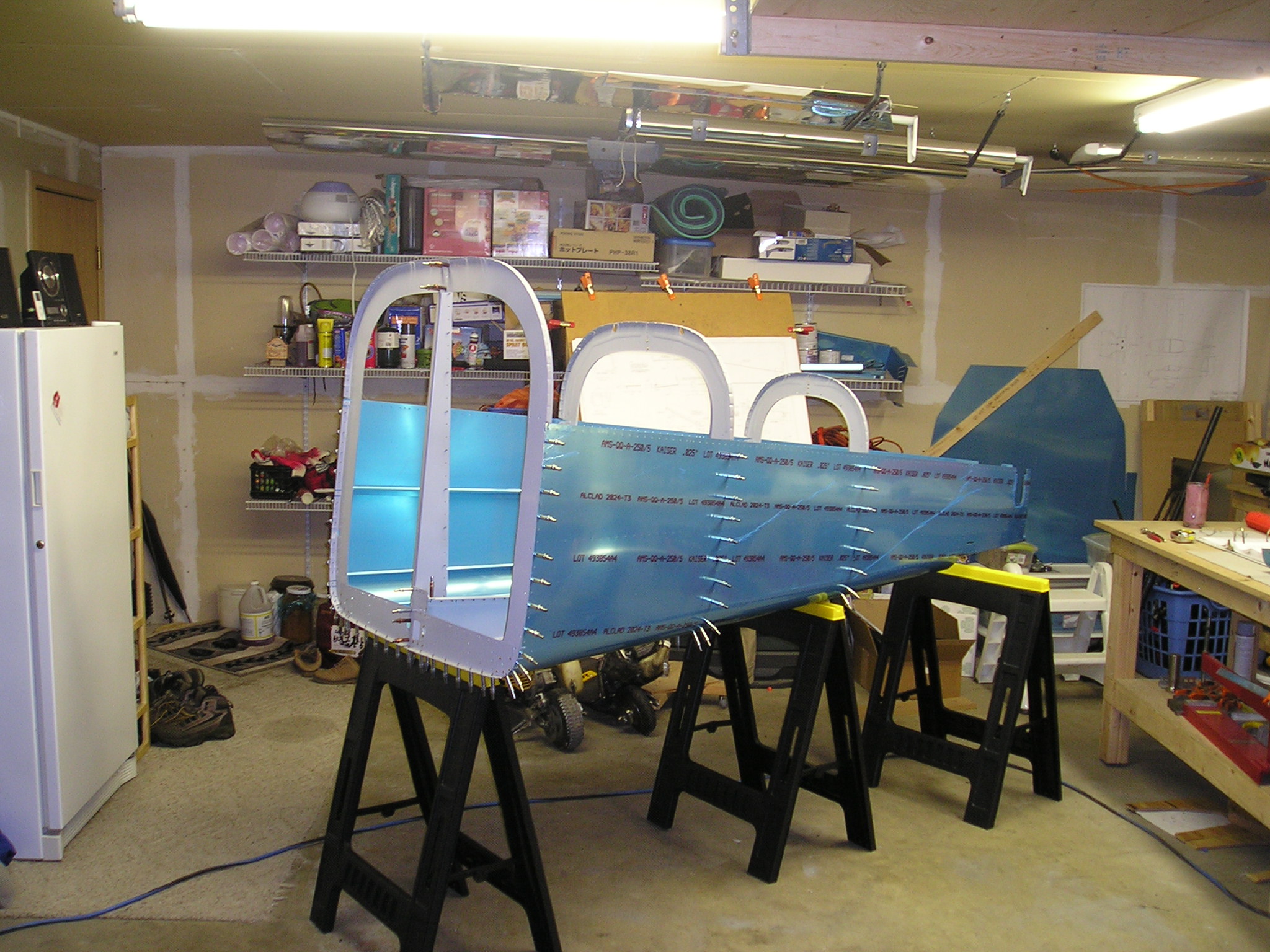

Side view of tailcone full size
Another shot of the assembly
