Tank hatch assembly and fuel vent line
1.0 Hours

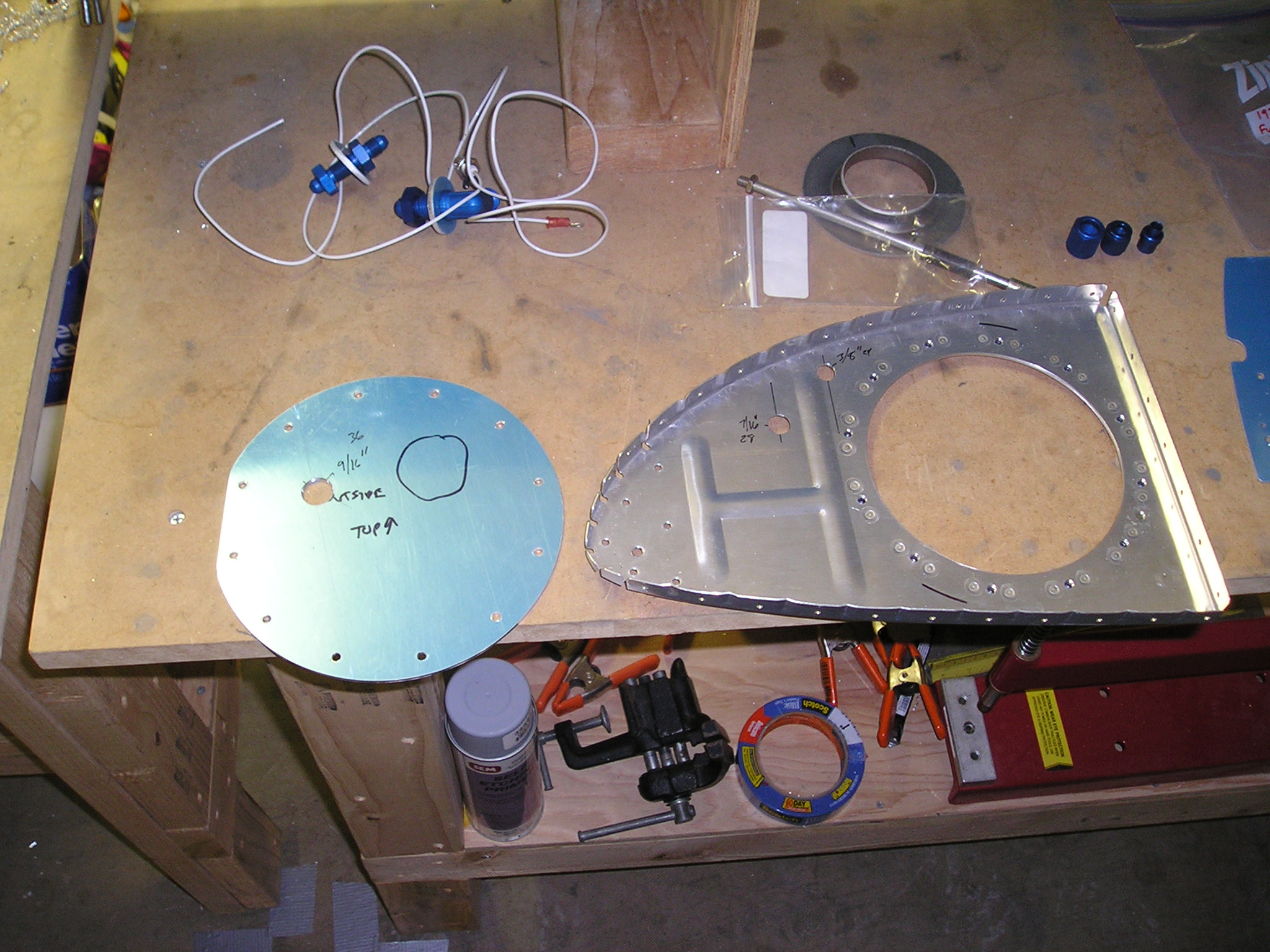

T-407 riveted to rib full size
Riveted T-407 to rib via the nutplate attach rivets. Located holes for BNC fitting and tank pickup fitting. Drilled them.

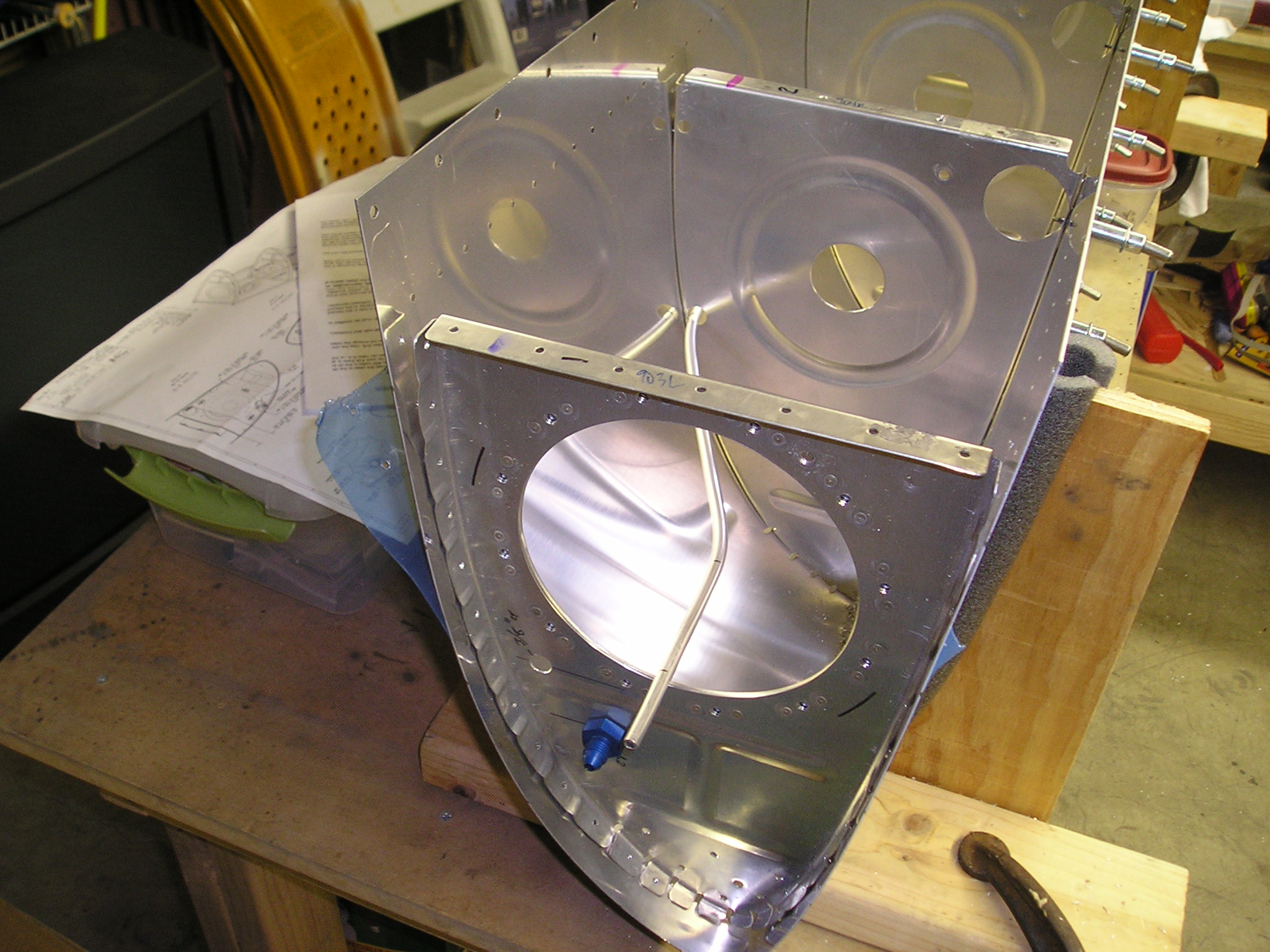

Cutting vent line full size
Cut and bent vent line. Here it is bent and in position to measure final length

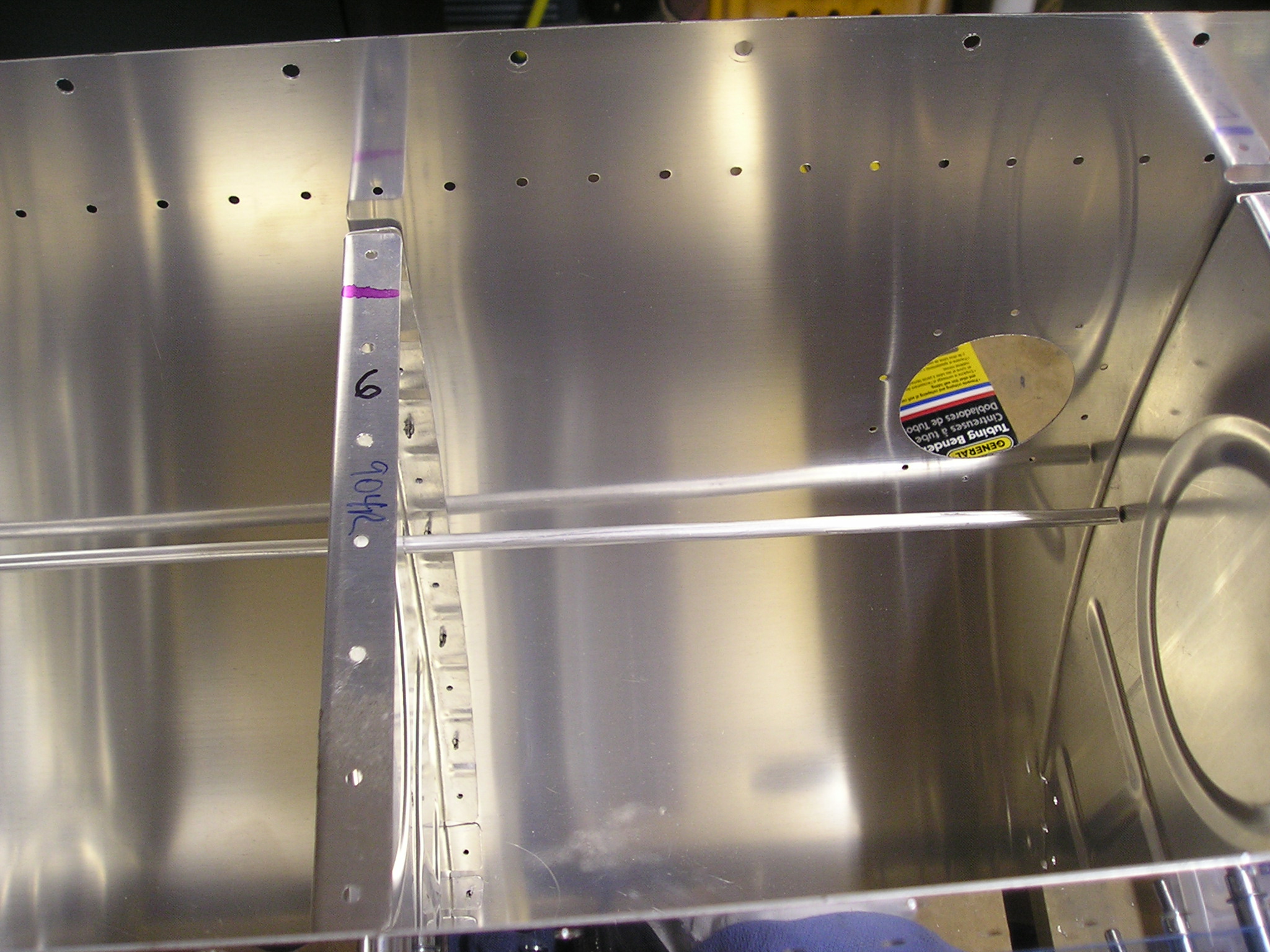

Outboard end of vent line full size
The other end of the line
