Riveting rudder skin
2.5 Hours

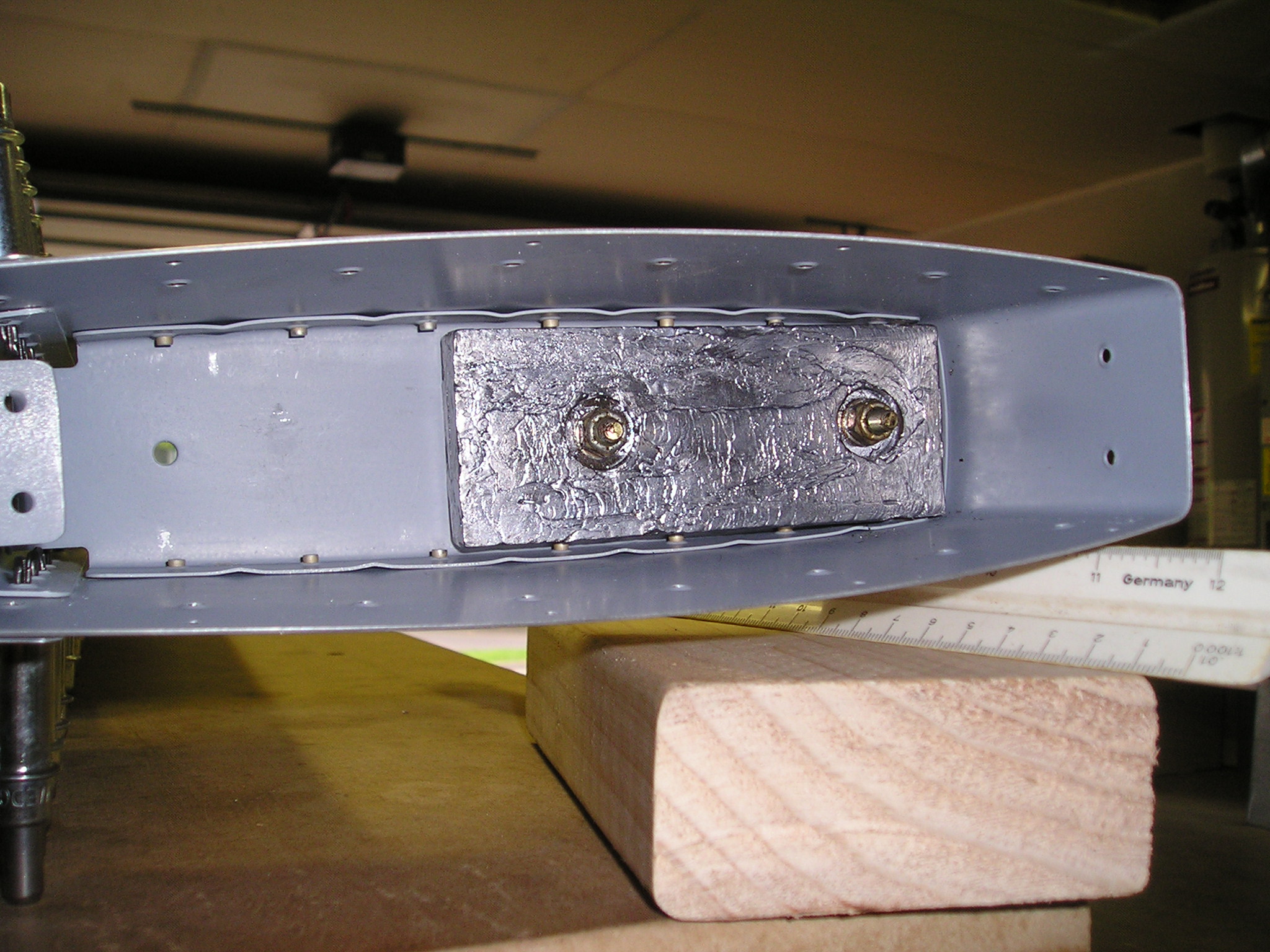

Another view of counterbalance weight full size
Another picture of the counterbalance weight, and the shop heads of the counterbalance rib to skin rivets

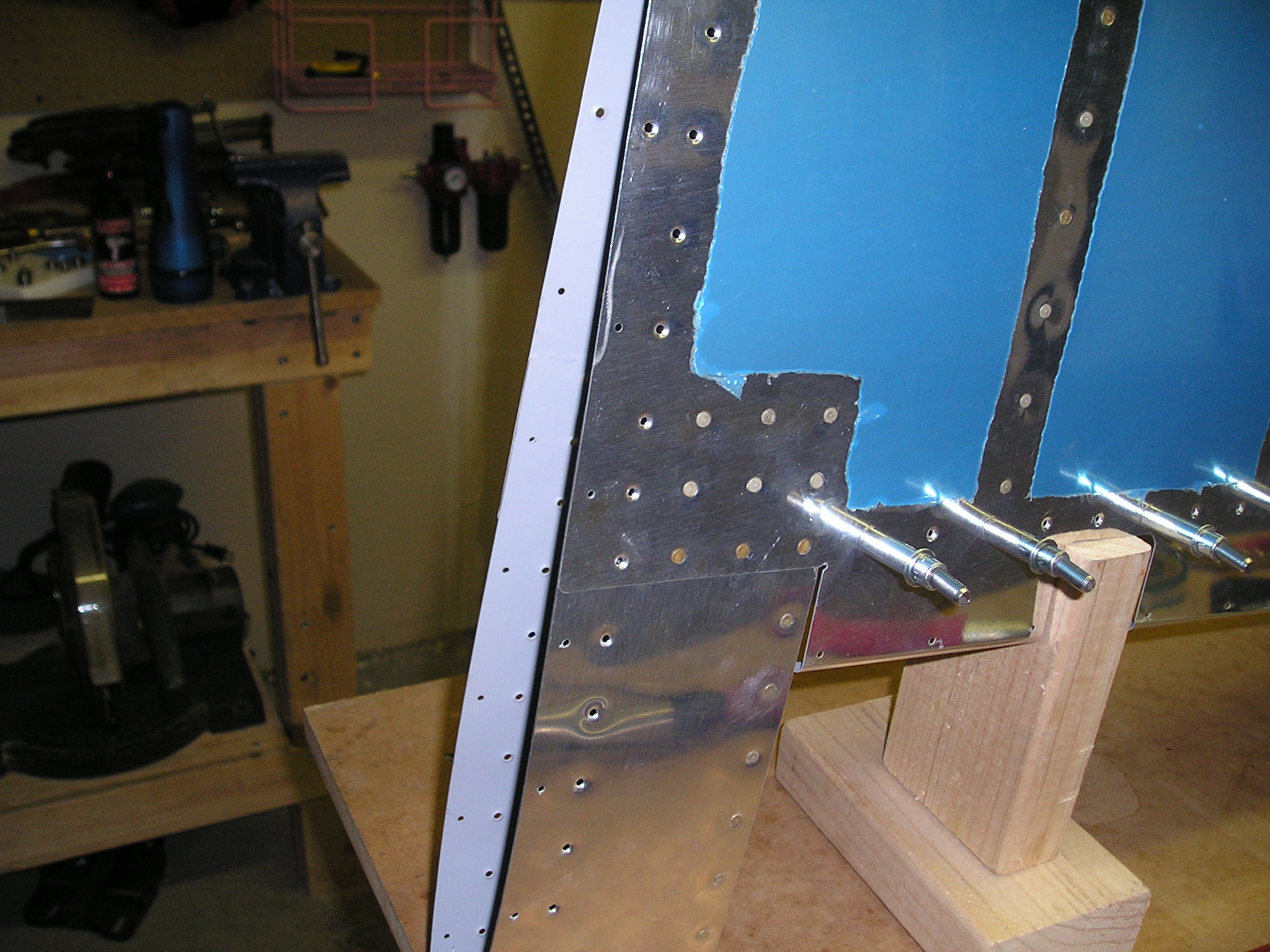

Skin rivets full size
The top 6 rivets on each side can be done with the squeezer, but the bottom 3 need to be done with the rivet gun. Had to do the lower rear rivet on one side 3 times as it is so floppy with no support. The rivet head was not seated the first two times.
