Riveting left elevator skeleton
3.5 Hours

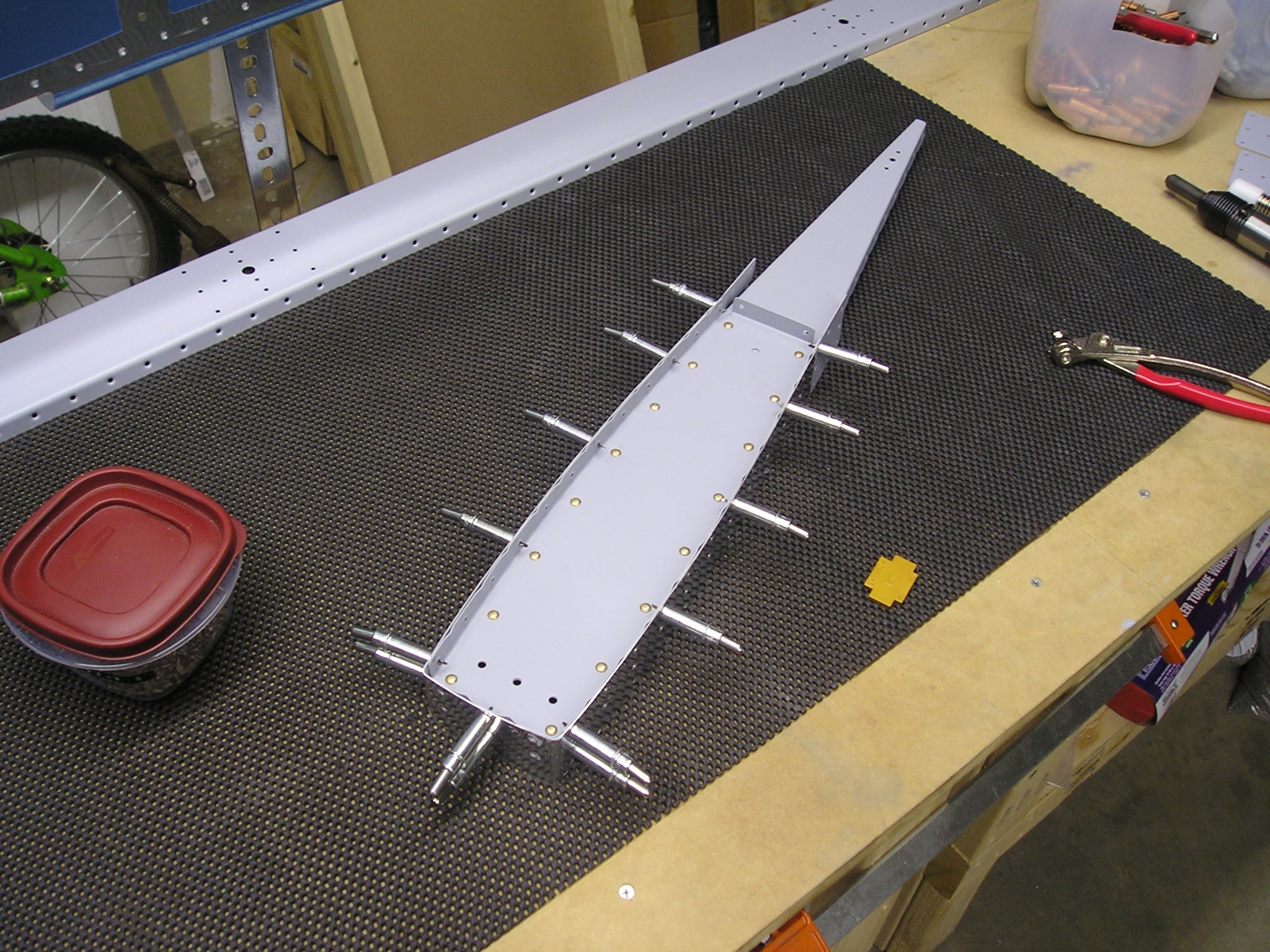

Assembling counterbalance rib full size
Riveted together the counterbalance ribs and cleco'd on the skin. Then riveted the skin to the ribs

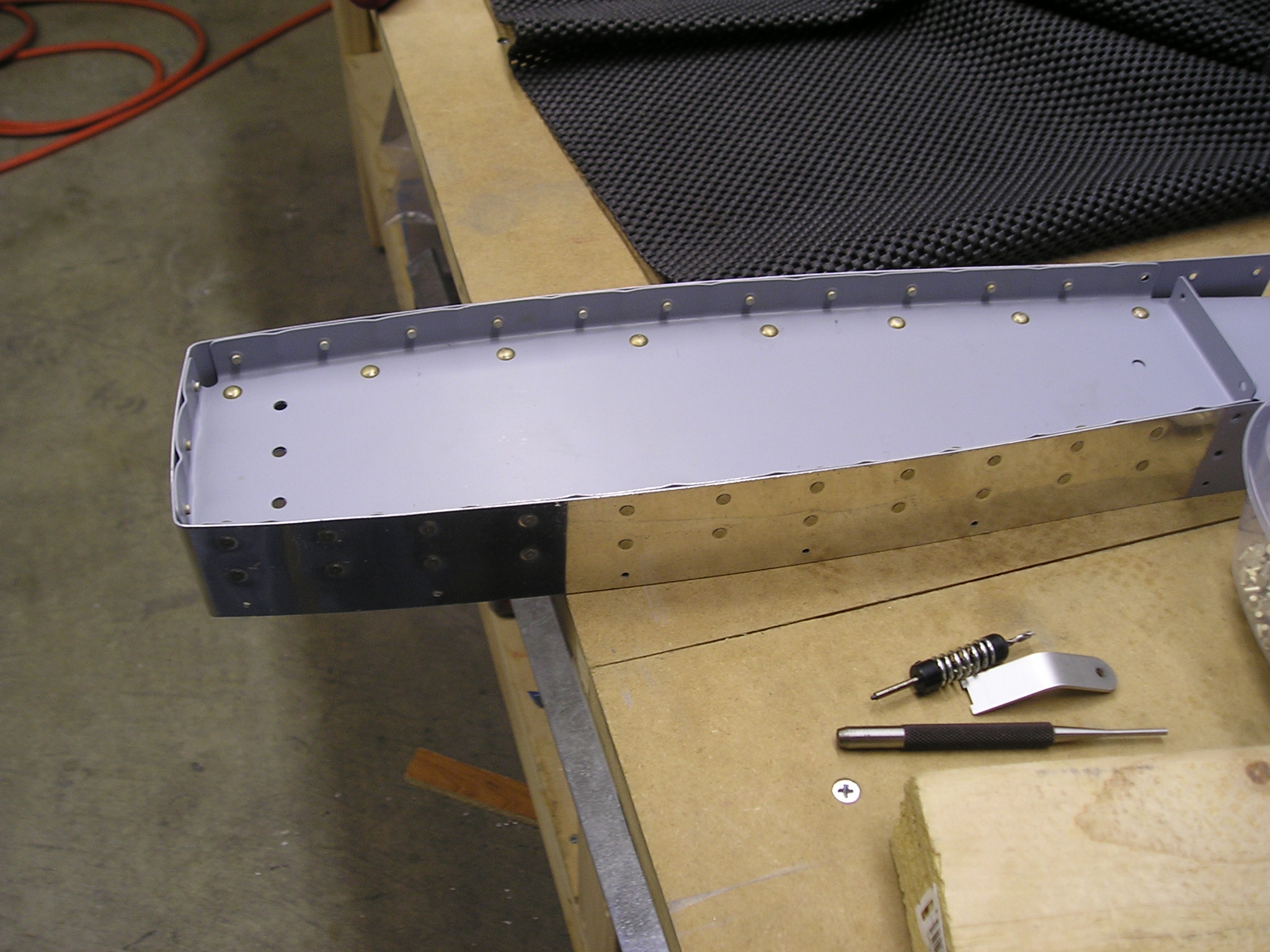

Skin riveted to counterbalance ribs full size
Here is the finished rivets on the counterbalance assembly

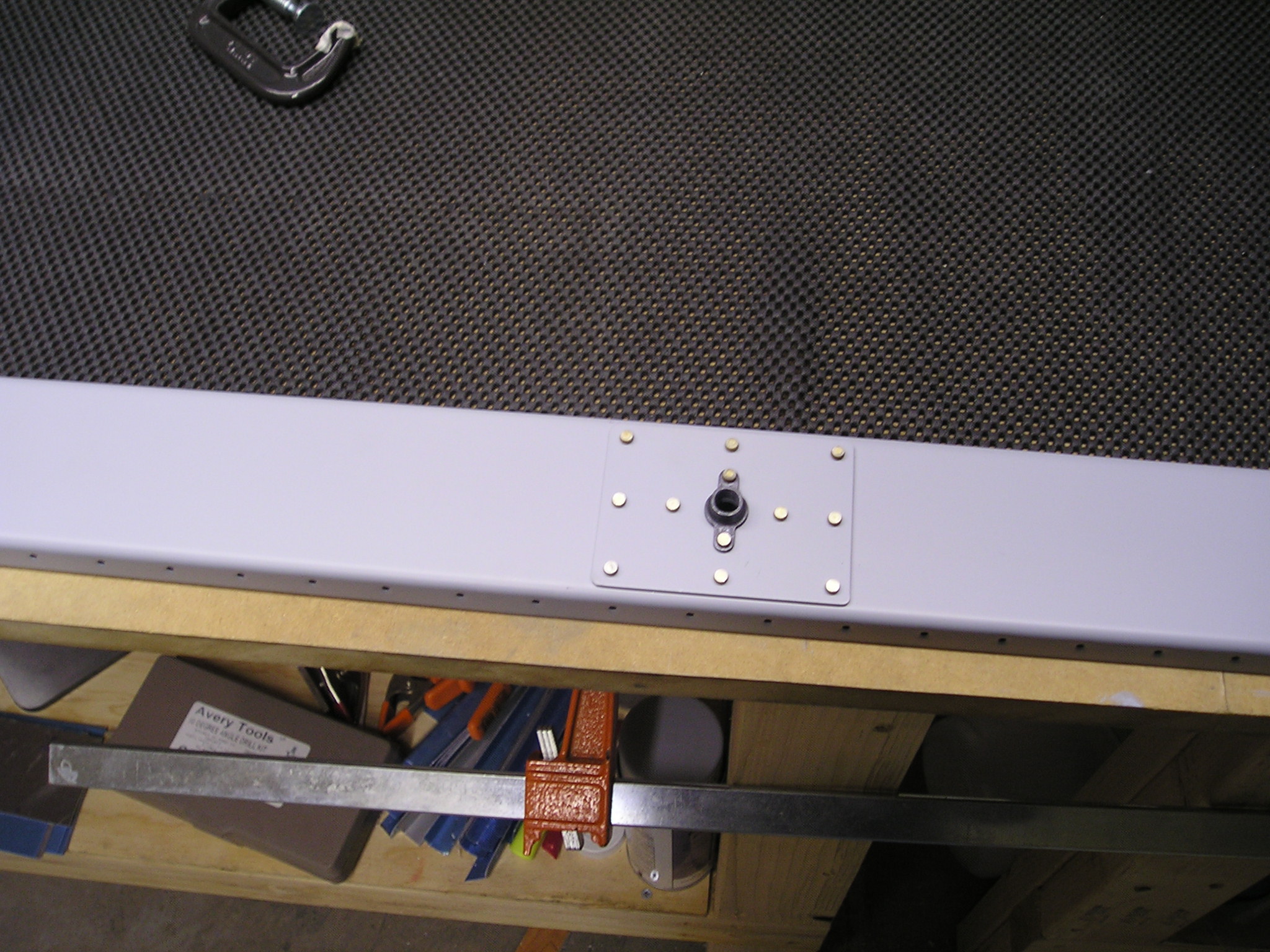

Hinge doublers full size
Cleco'd the doublers to the spar and put in the rivets and nutplates

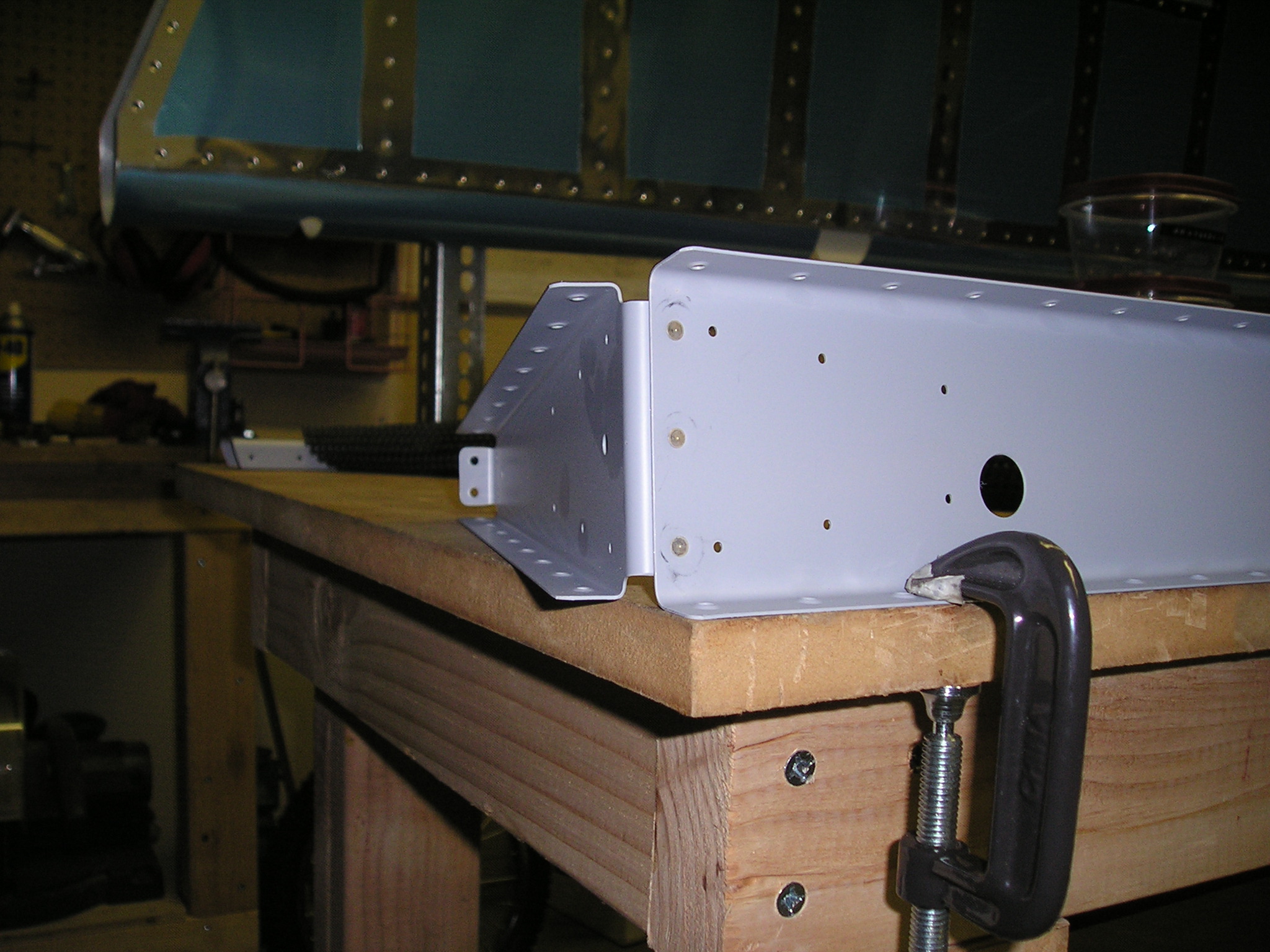

The inner rib and spar full size
The inner rib and spar are riveted together with flush head rivets so that the elevator horn assembly can be put on top of it

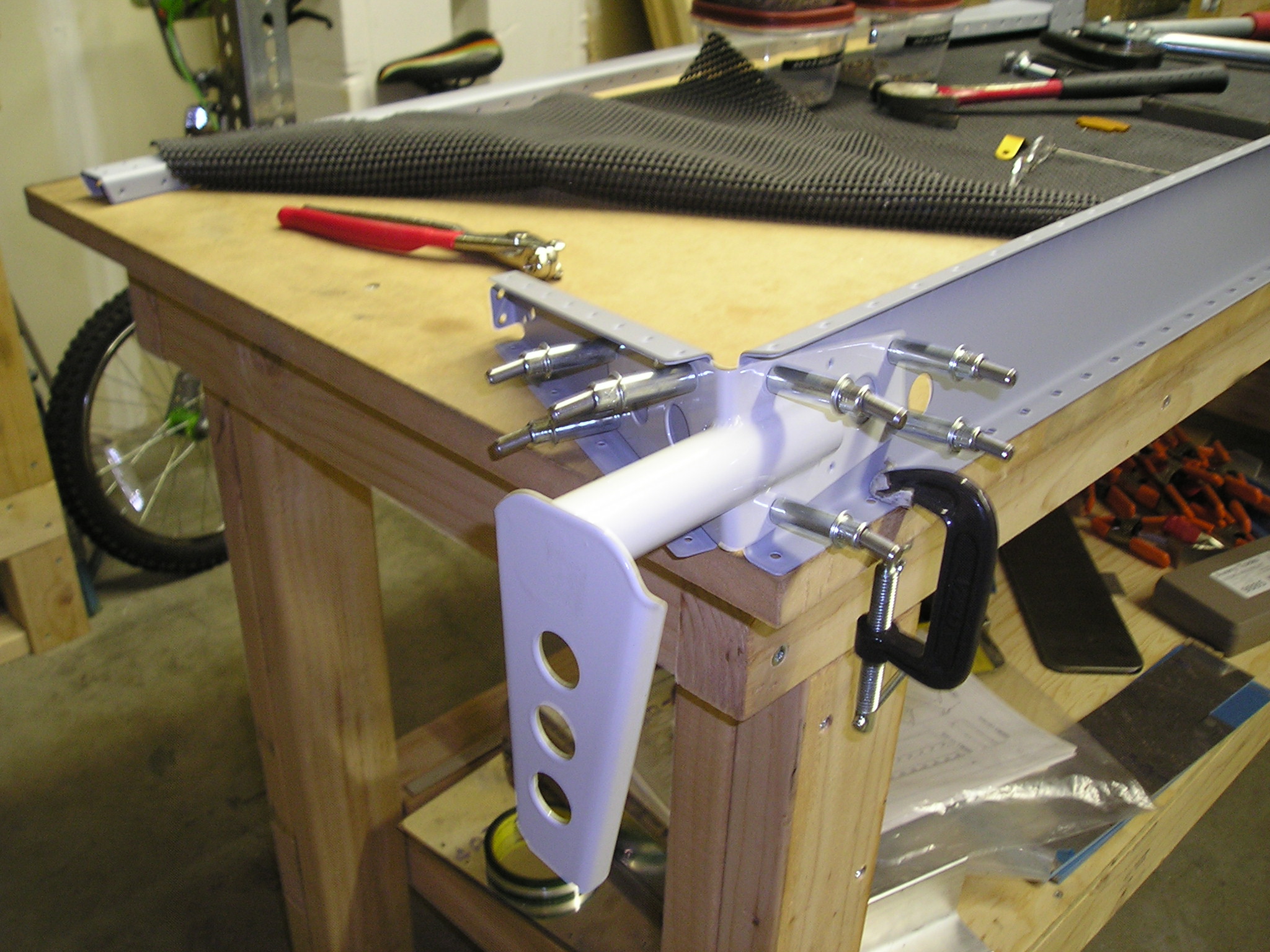

Drilling elevator horn to spar full size
The elevator horn is now cleco'd into place and positioned. Once that is done, it is drilled for -4 rivets.
