7.0 Hours

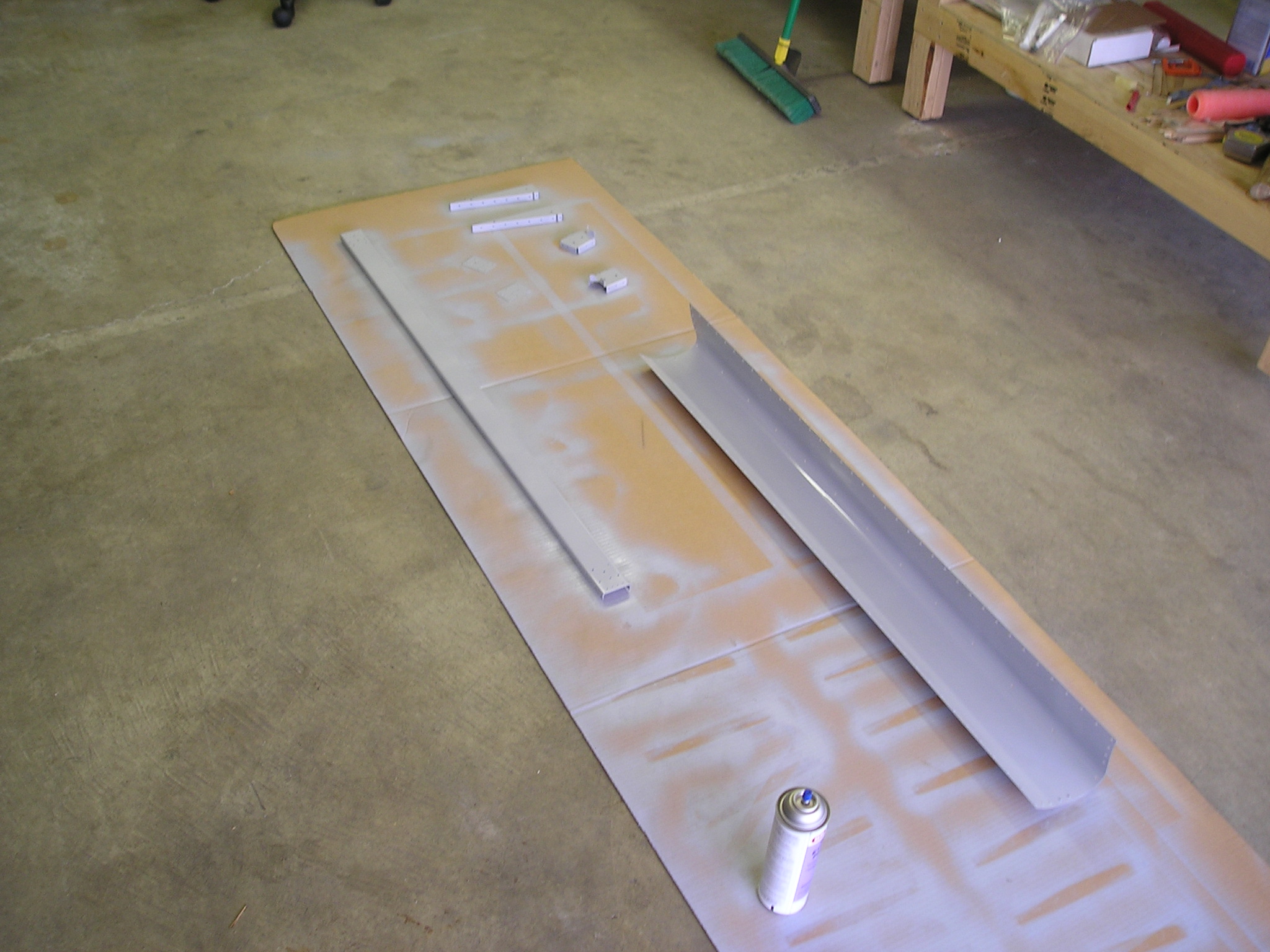

Priming aileron parts

Priming aileron parts full size

Cleaned, primed all aileron parts

Riveted A903 and A908

Riveted A903 and A908 full size

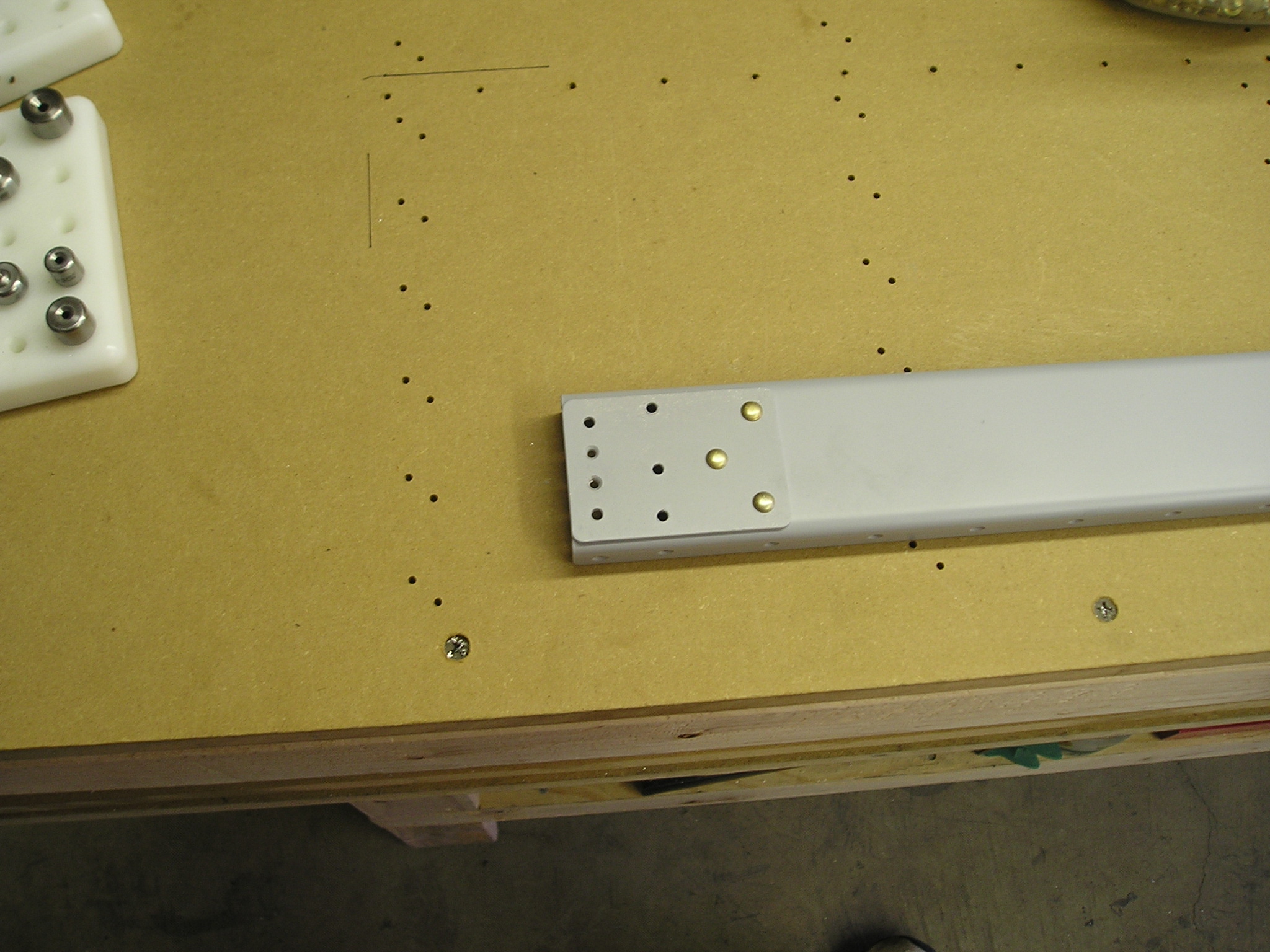

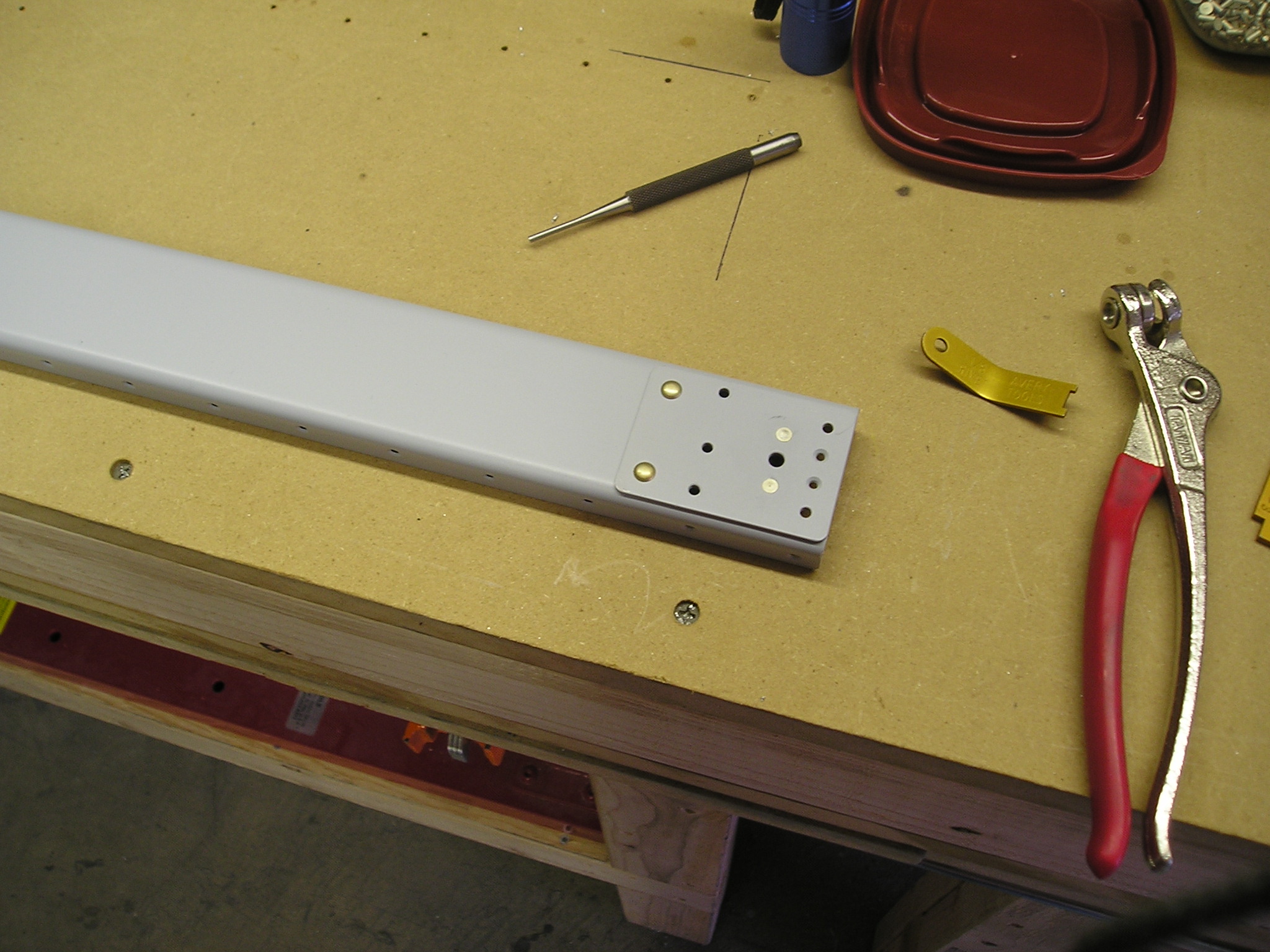

Riveted the doublers to each end of spar, plus the nutplate on the inboard end of spar

Riveted doubler

Riveted doubler full size

None

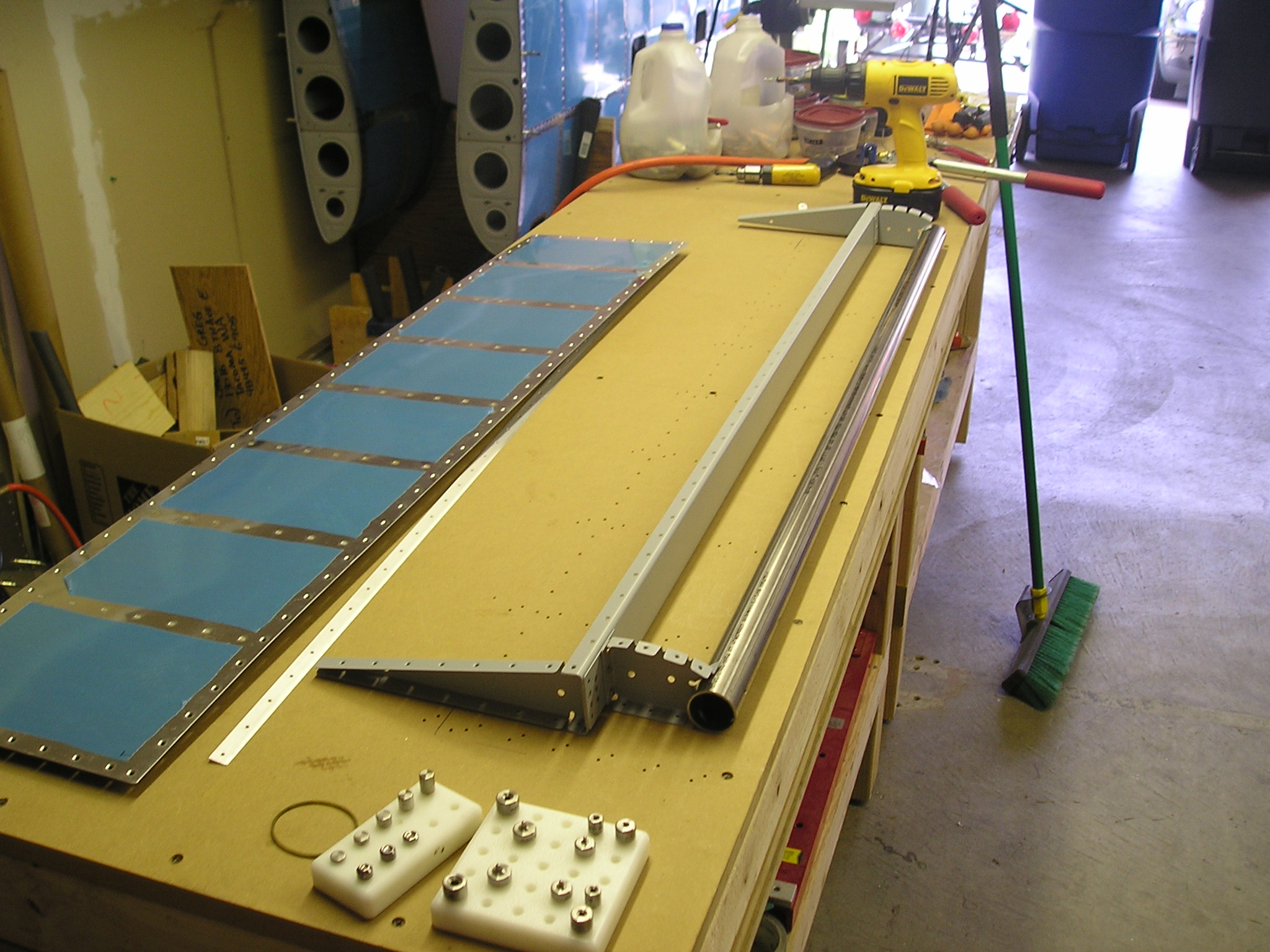

Riveted counterbalance to ribs

Riveted counterbalance to ribs full size

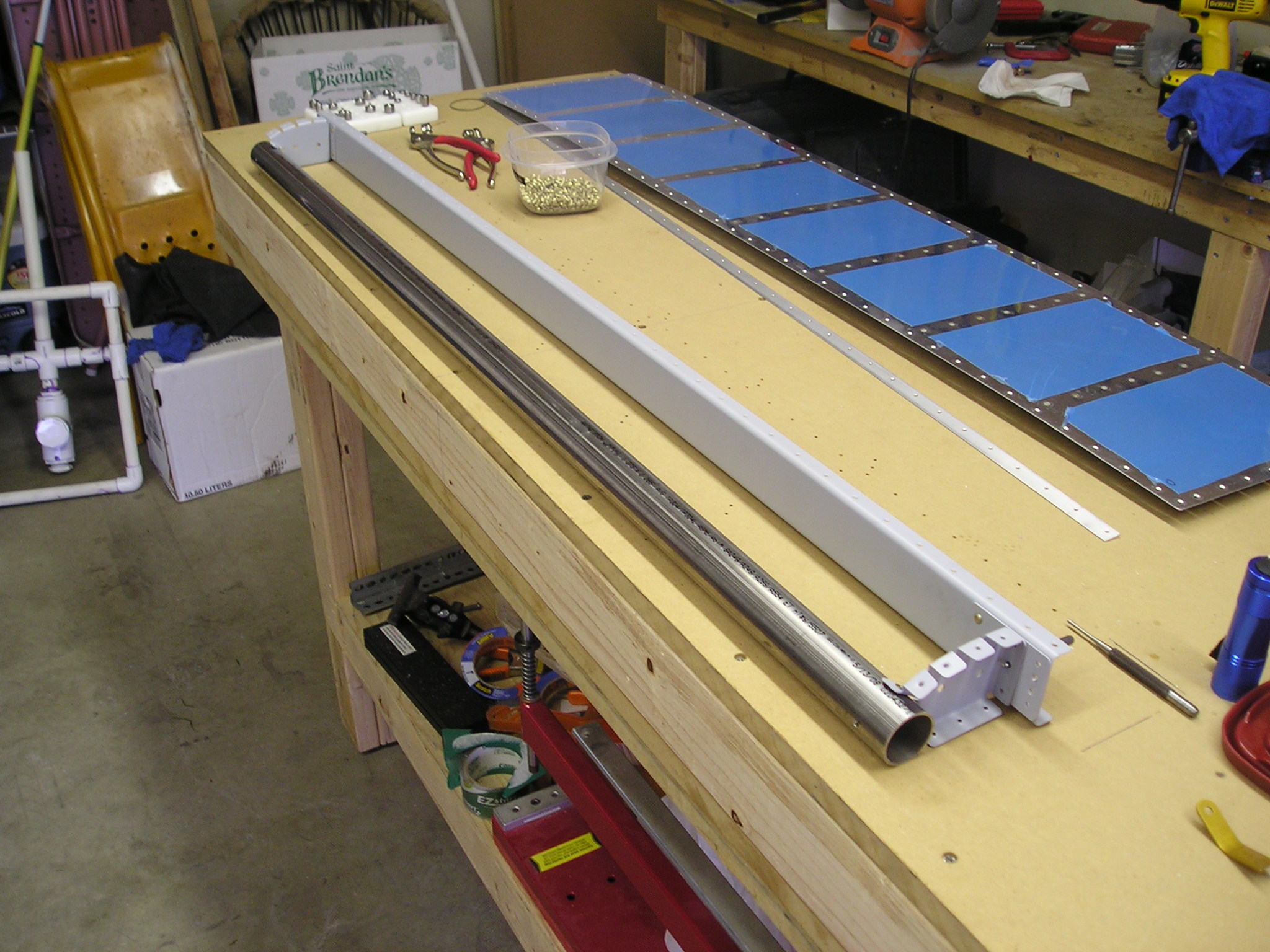

Riveted A-909 counterbalance to A-904 ribs. Then riveted this assembly to the A-903 spar.

Riveting A-905 ribs to assembly

Riveting A-905 ribs to assembly full size

Riveted the ribs to the spar.

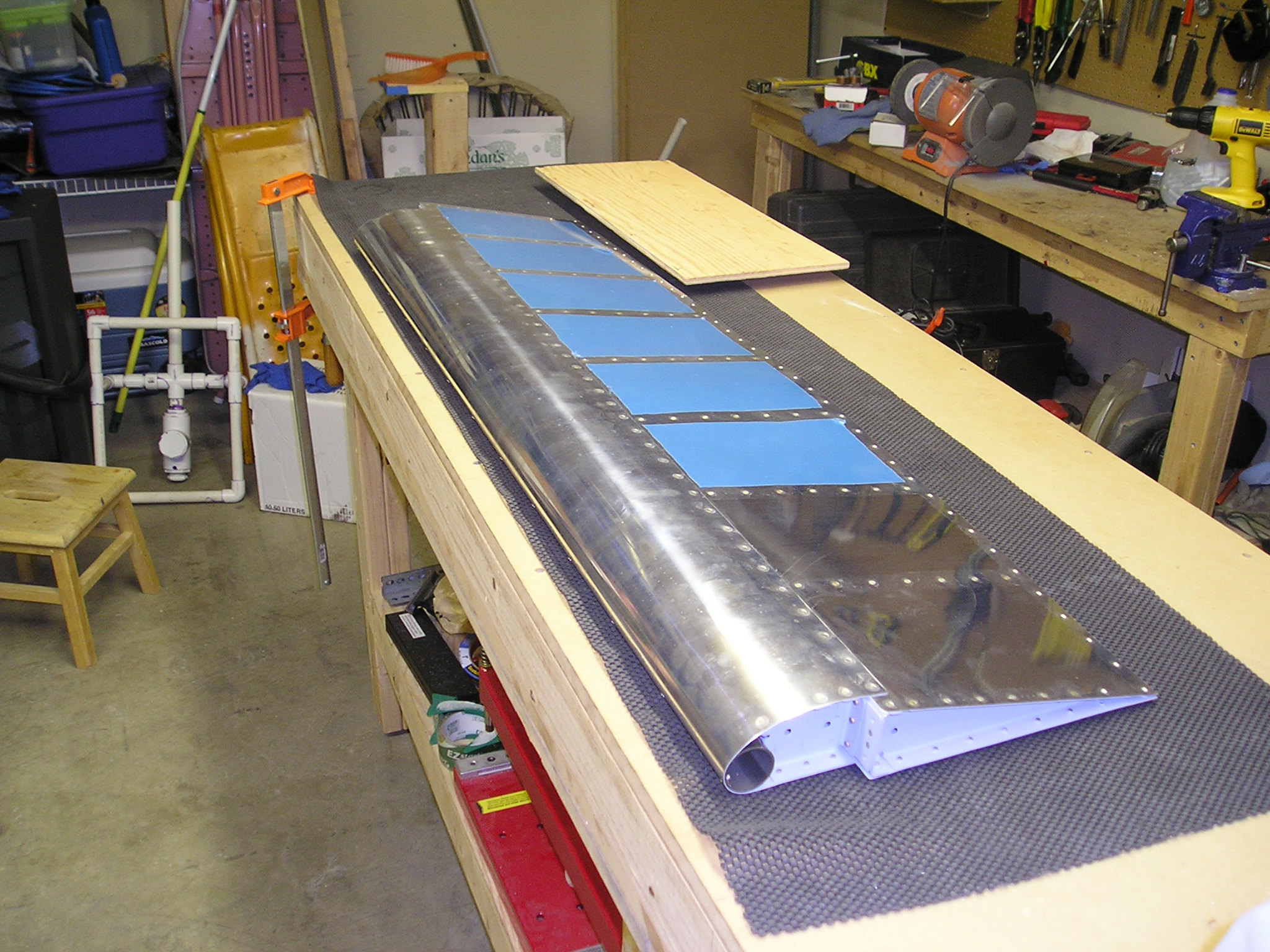

Installing skins to skeleton

Installing skins to skeleton full size

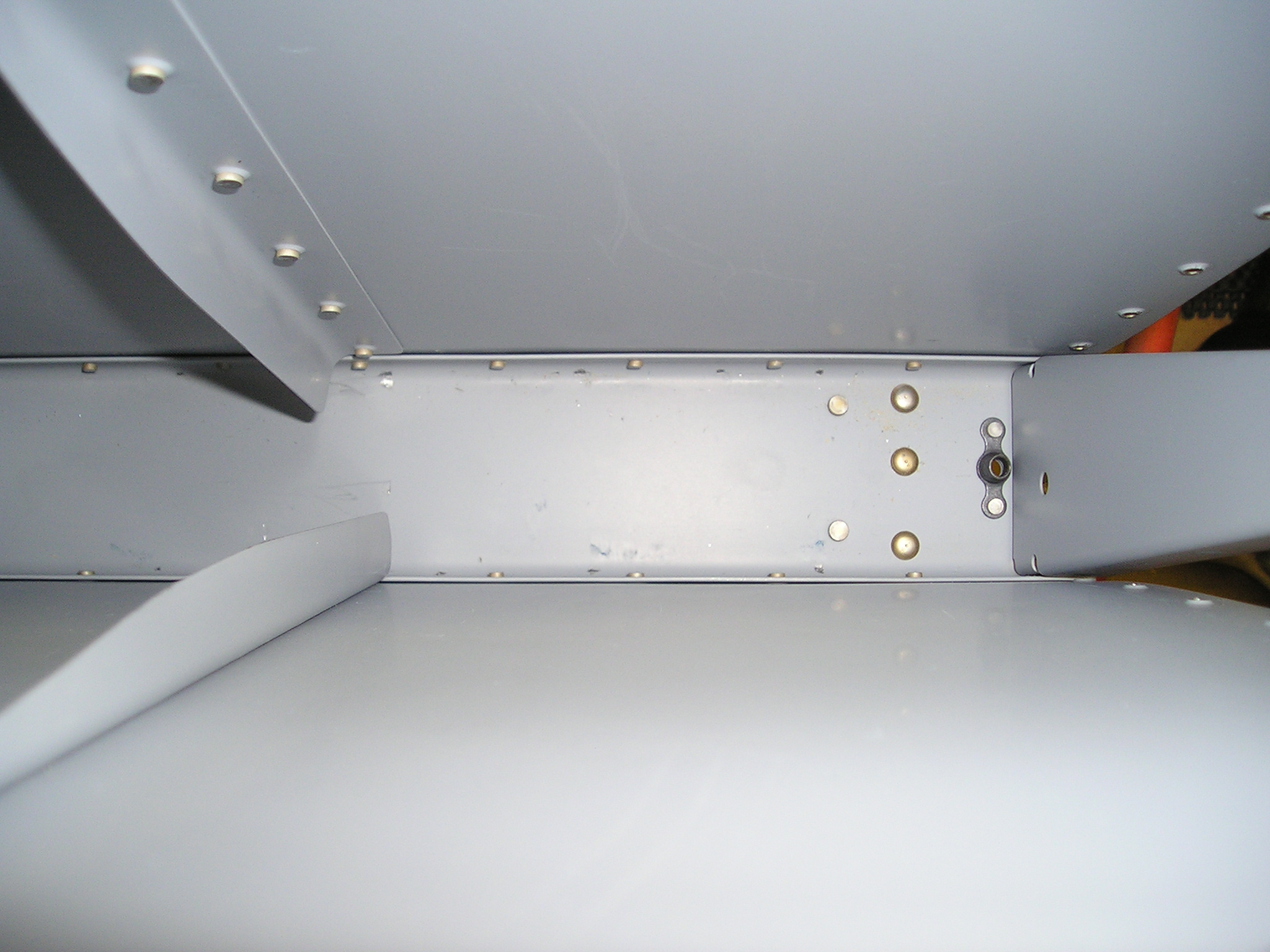

Cleco'd the upper and lower skins to assembly. Then cleco'd A-901 skin to assembly. Riveted A-901 skin to ribs.

Riveting skins to spar

Riveting skins to spar full size

Rivet the skins to the spar with the assembly in the saddle.

Rivet skins to ribs

Rivet skins to ribs full size

After finishing the spar line, took assembly out of the stand and riveted the skins to the ribs

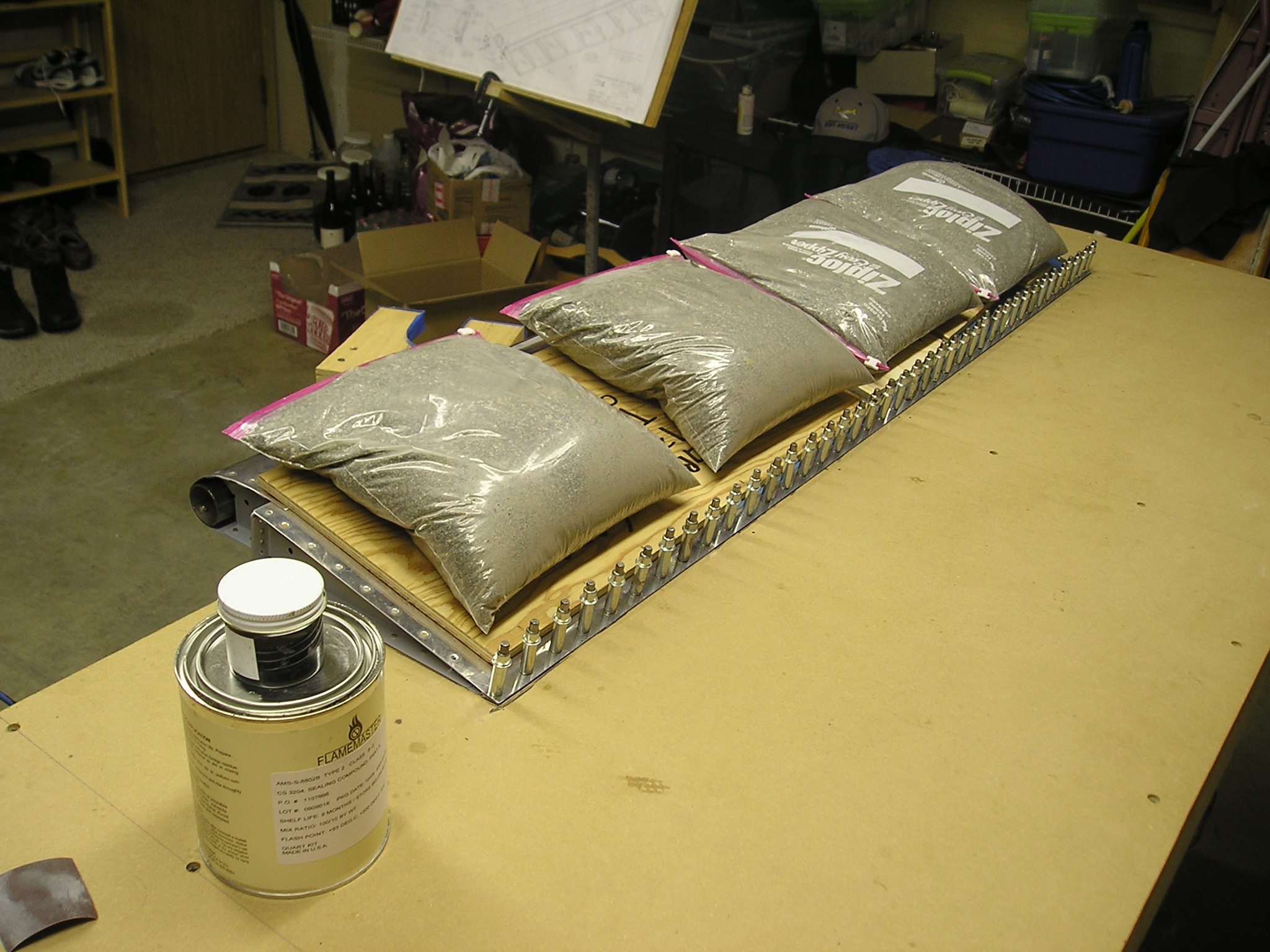

Glueing trailing edge

Glueing trailing edge full size

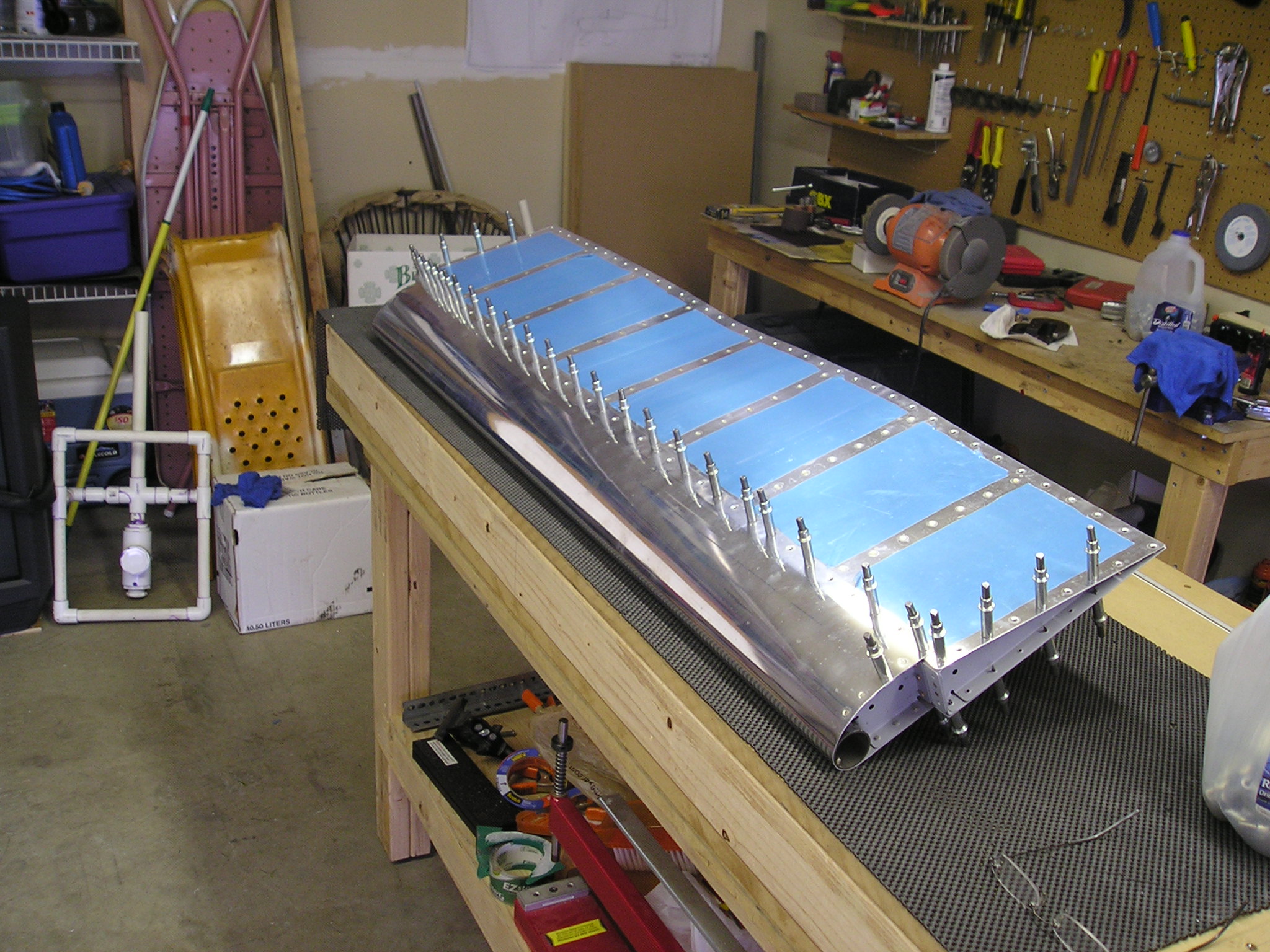

Using fuel sealent, smeared the AEX wedge and cleco'd it all together and left for cure
