1.0 Hours

F-707 bulkhead assembly

F-707 bulkhead assembly full size

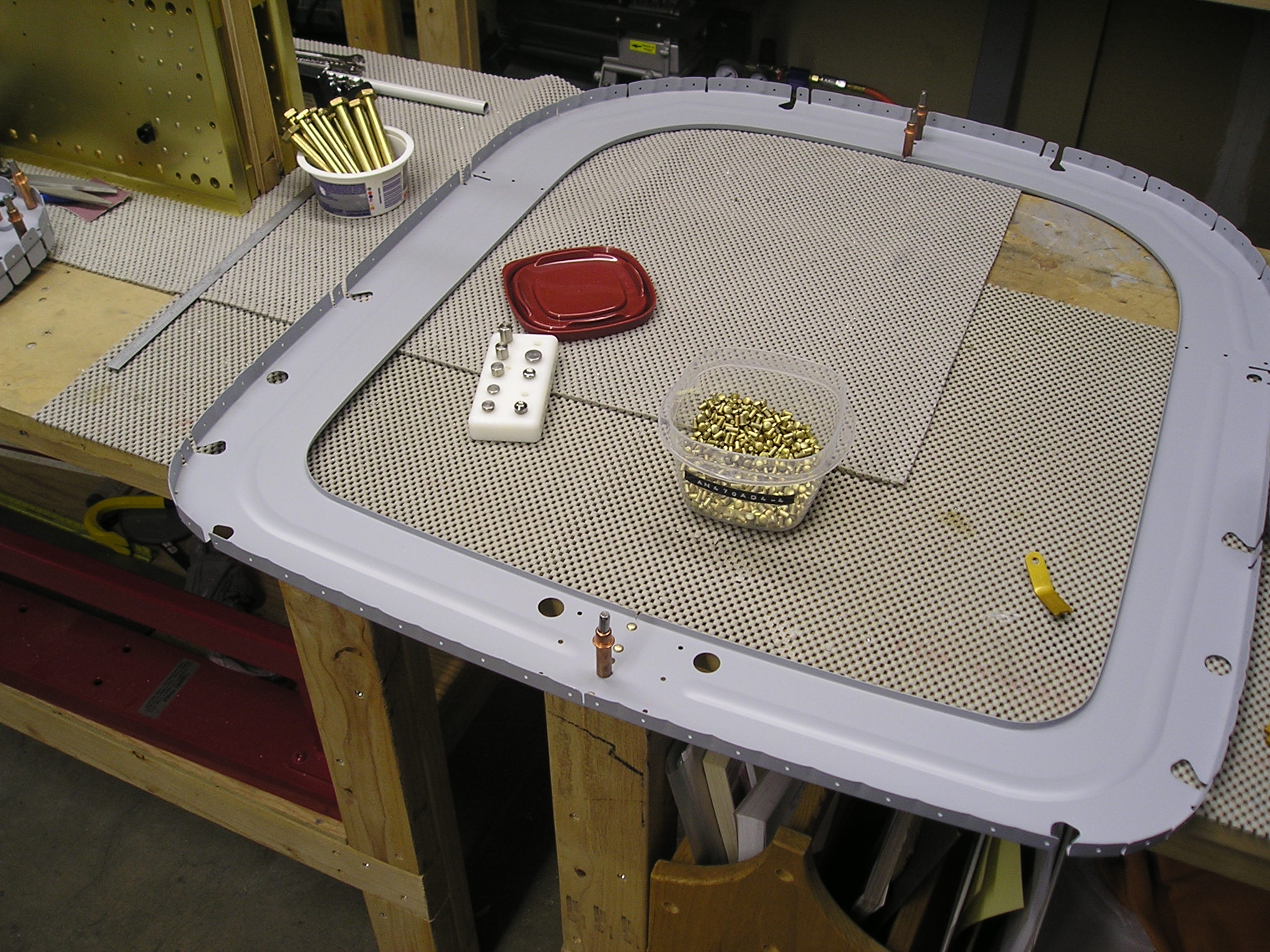

A little bit of work finished a lot of parts today. Riveted the F-707 together here

F-708 bulkhead assembly

F-708 bulkhead assembly full size

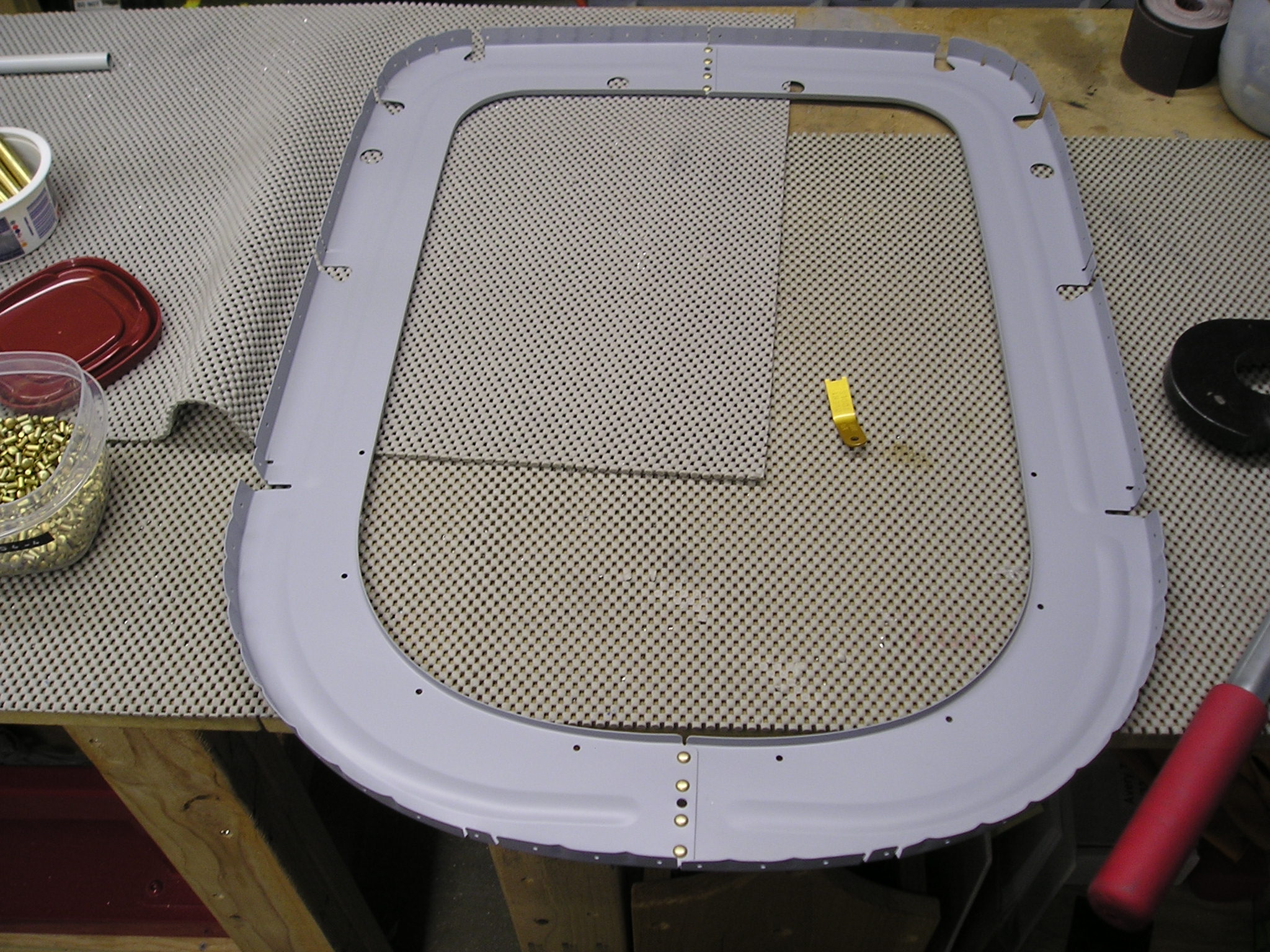

Riveting the F-708 together.

F-710 bulkhead

F-710 bulkhead full size

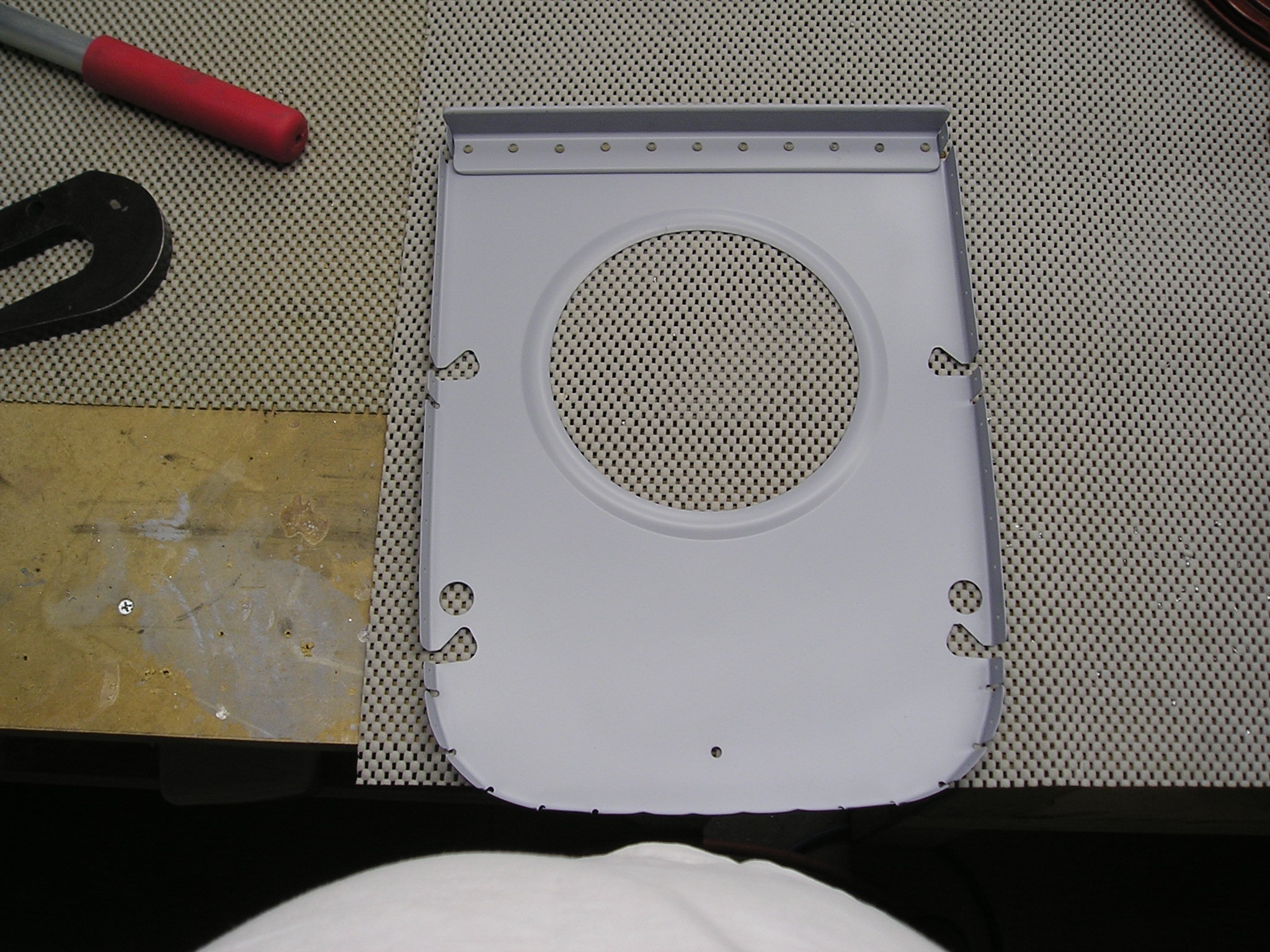

Riveted the F-710B angle to the F-710 bulkhead

F-711 bulkhead

F-711 bulkhead full size

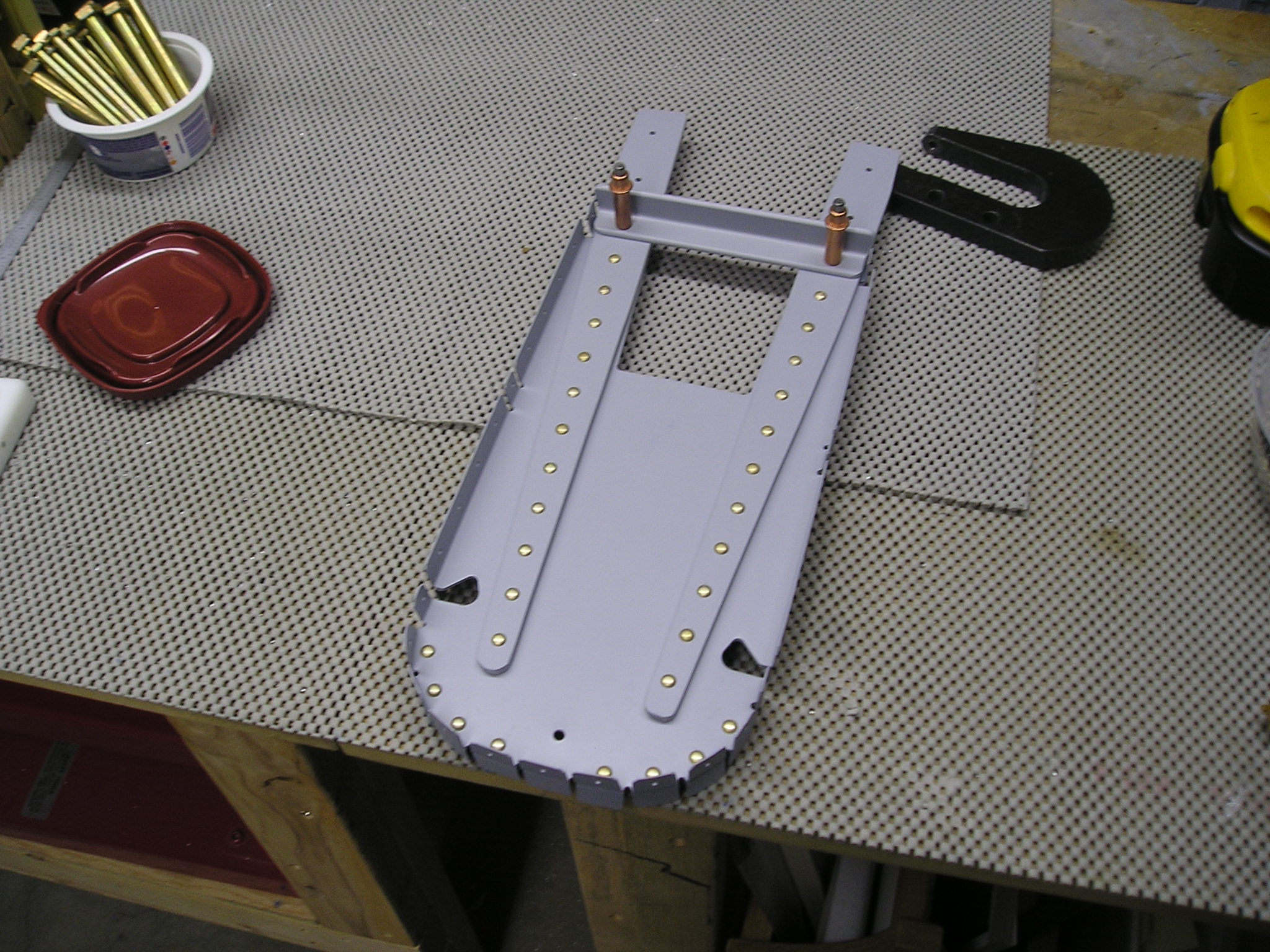

Riveted the stab attach bars to the F-711 bulkhead

F-712 bulkhead

F-712 bulkhead full size

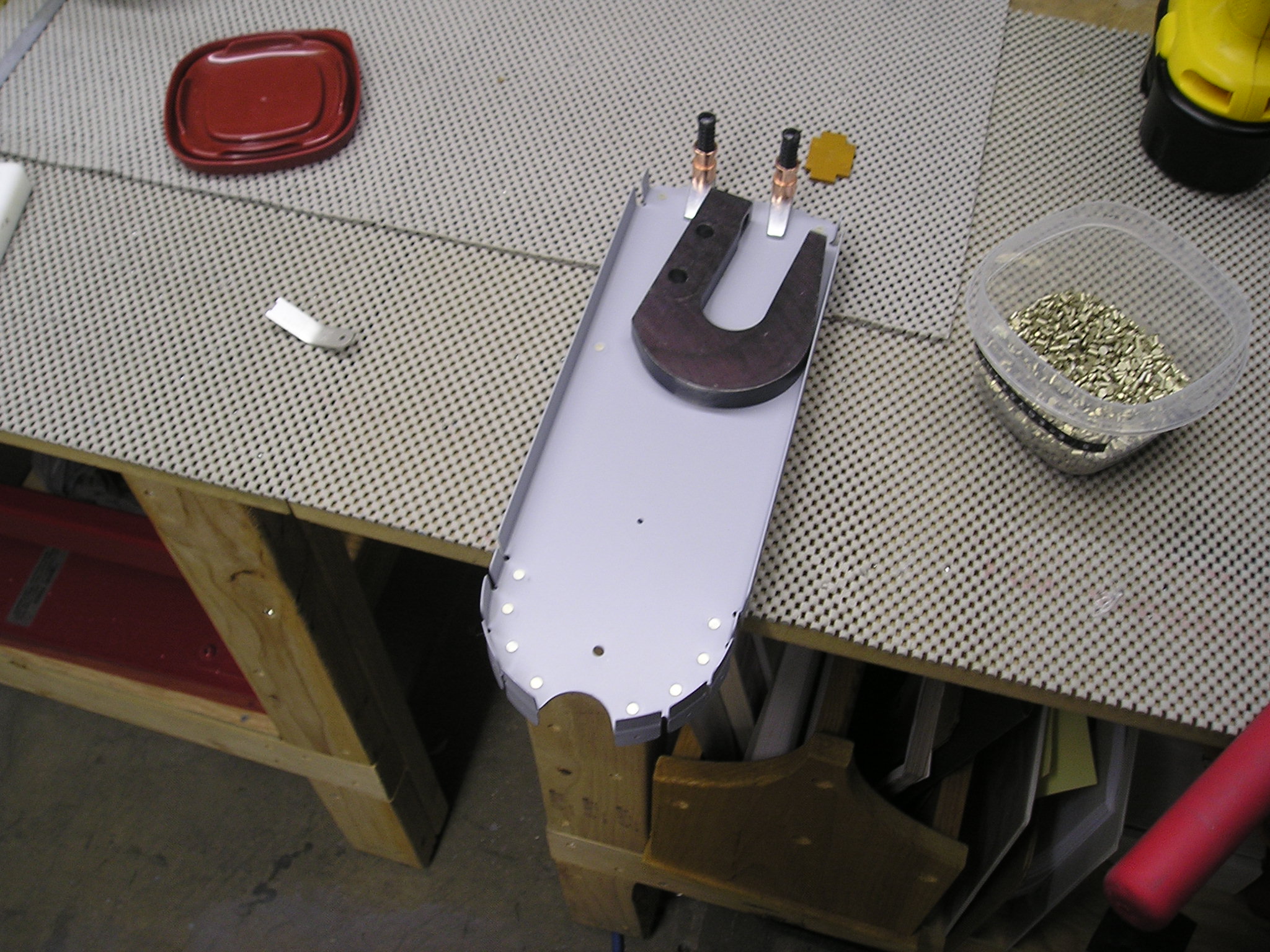

Riveted the two halves of the F-712 bulkhead together

Stack of frames

Stack of frames full size

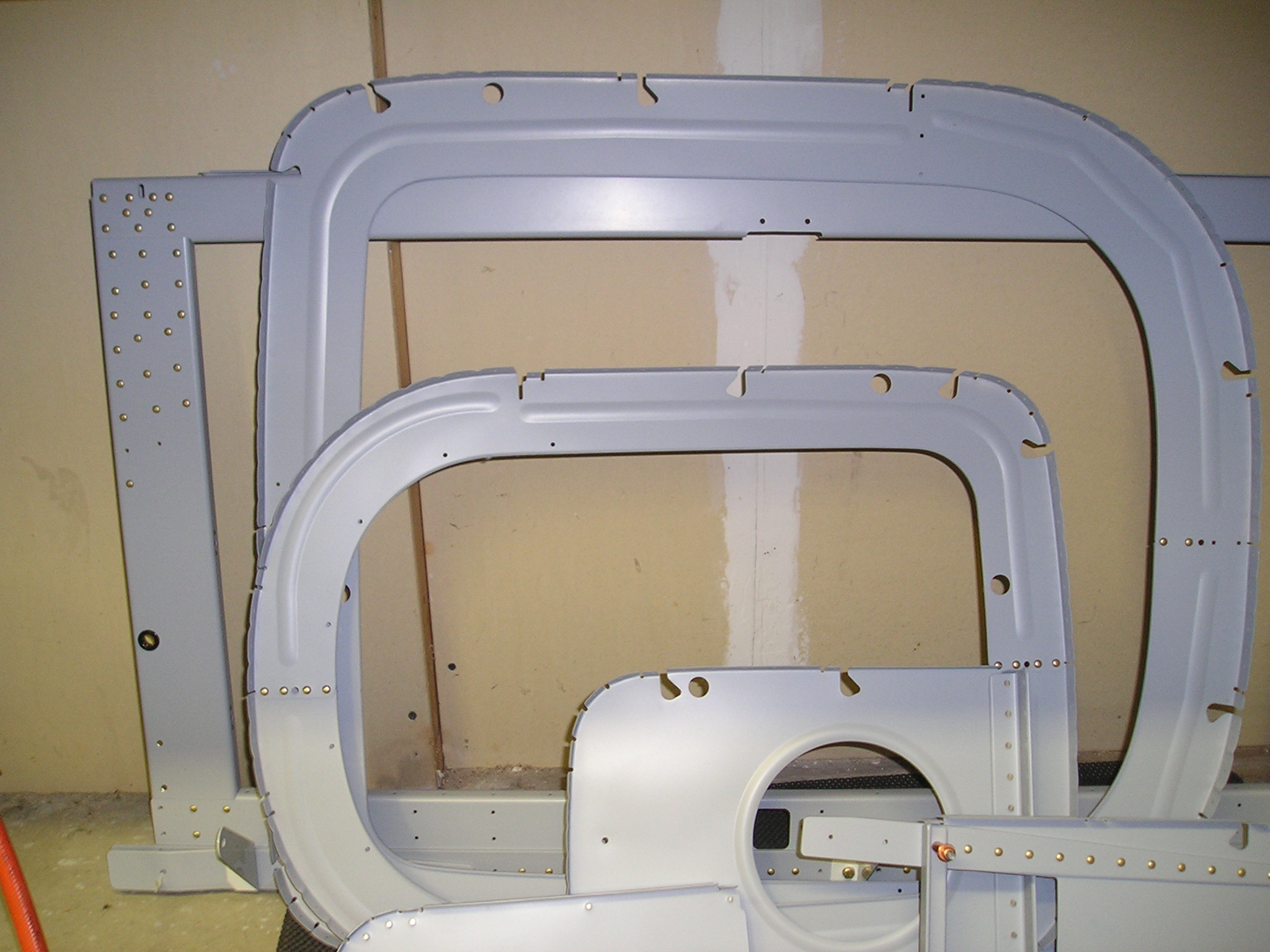

Here are all the aft fuselage frames ready to be installed in the tailcone.
