Putting in Seat Floors
5.0 Hours

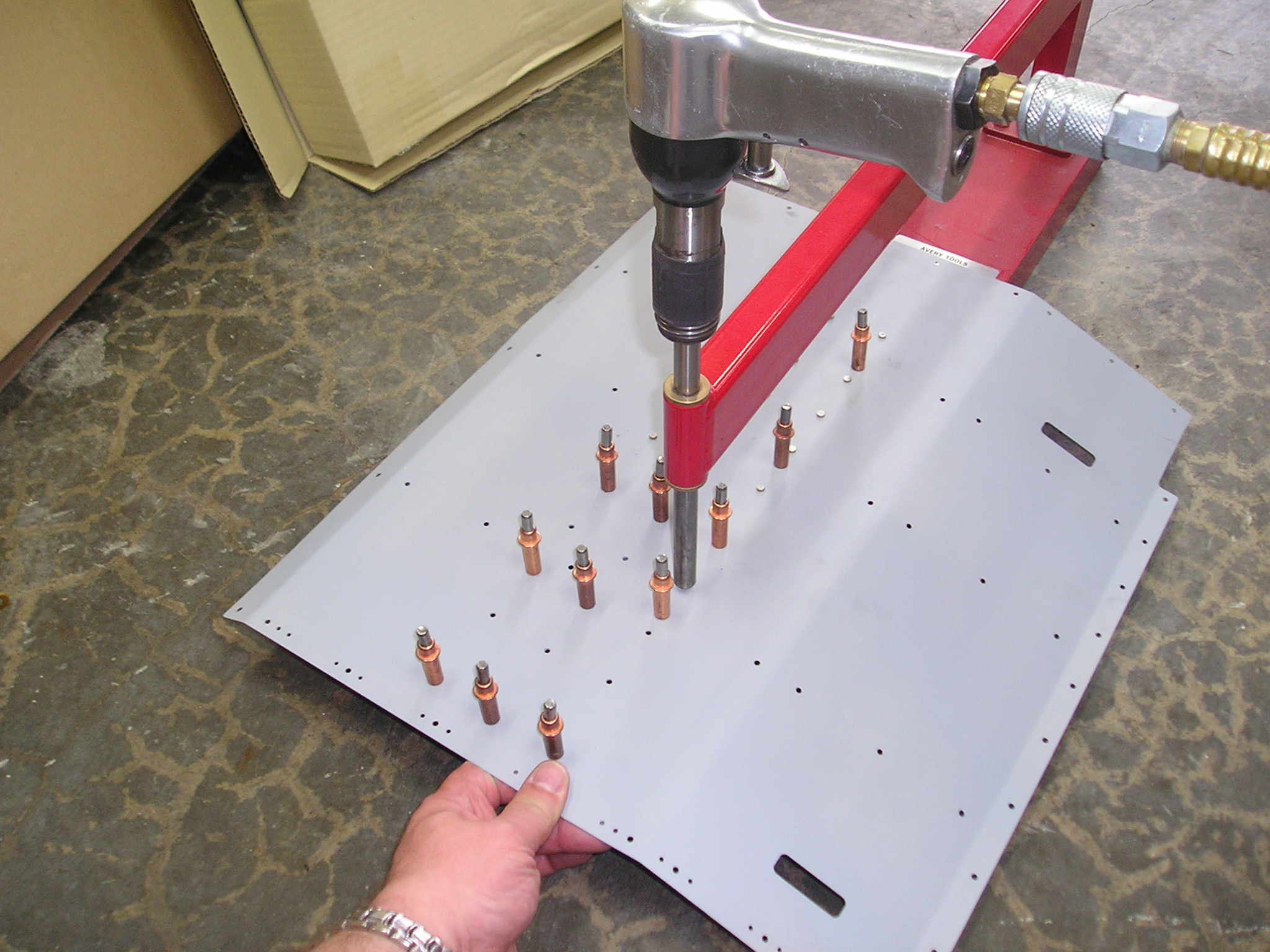

Riveting seat hinge full size
Cleaned and primed seat floors and hinges. Dimpled aft upper skins also. Riveted F-637E seat hinges to floors.

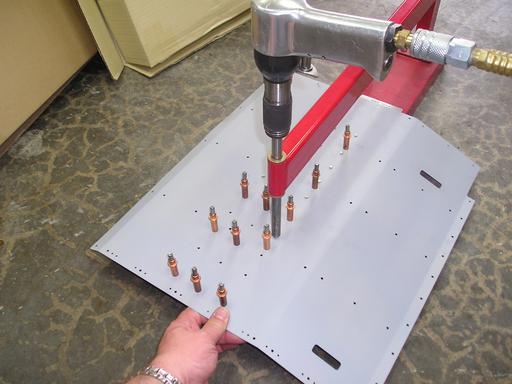

More riveting seat hinge full size
Used the C-frame and the rivet gun to put in these rivets for the seat hinge halves.

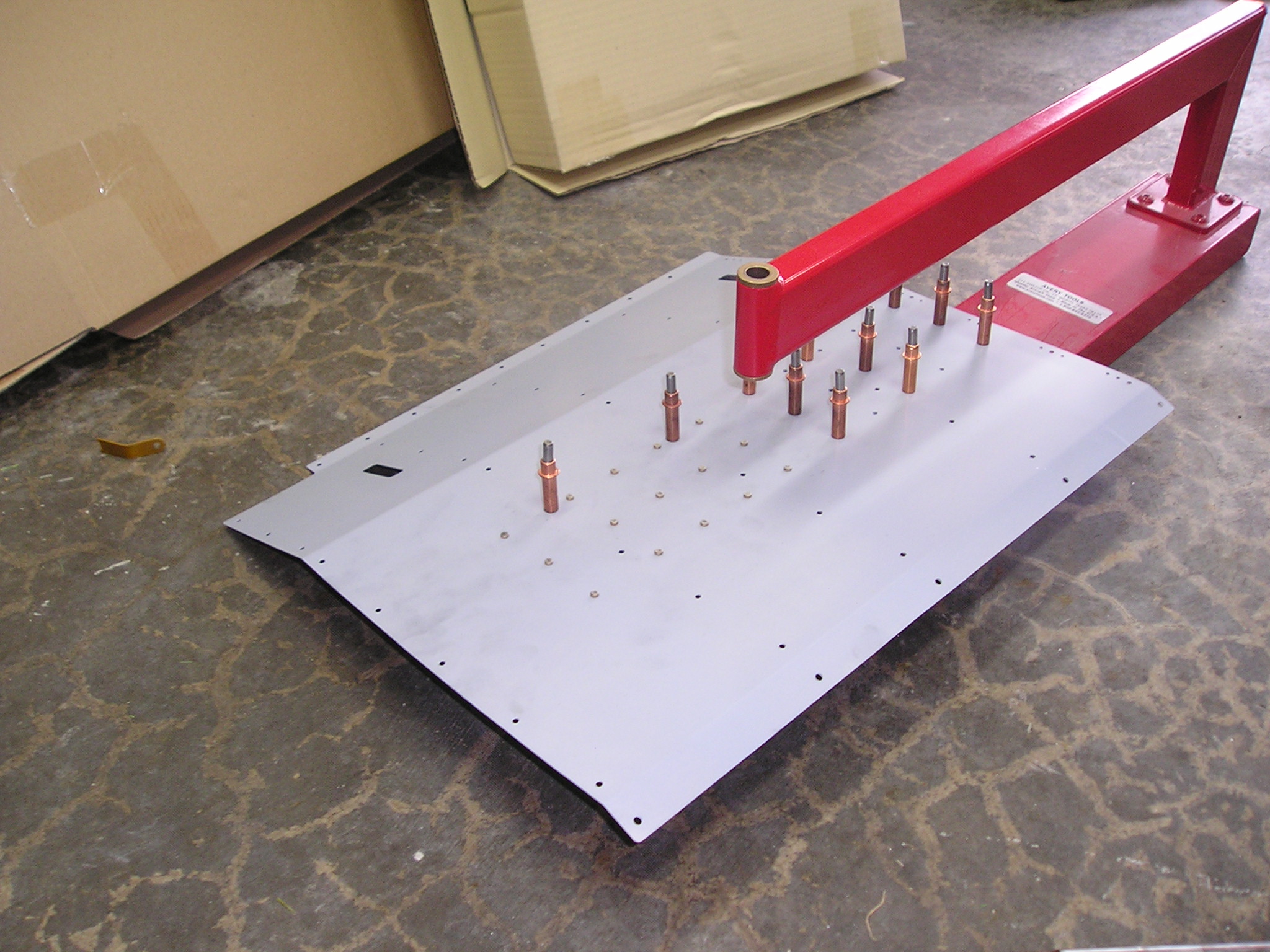

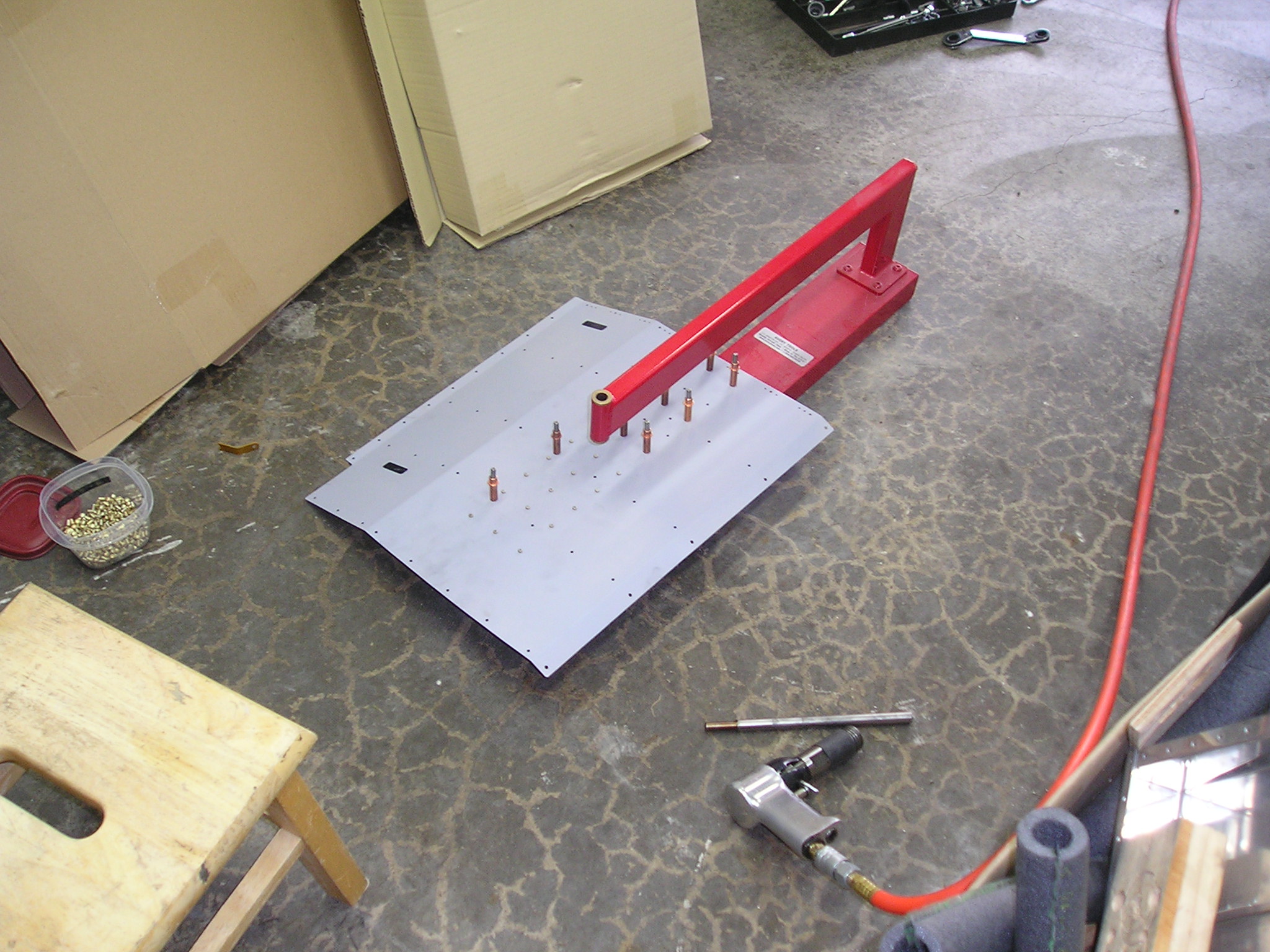

Setup for riveting seat hinge full size
Here is the setup ready to put in a rivet.

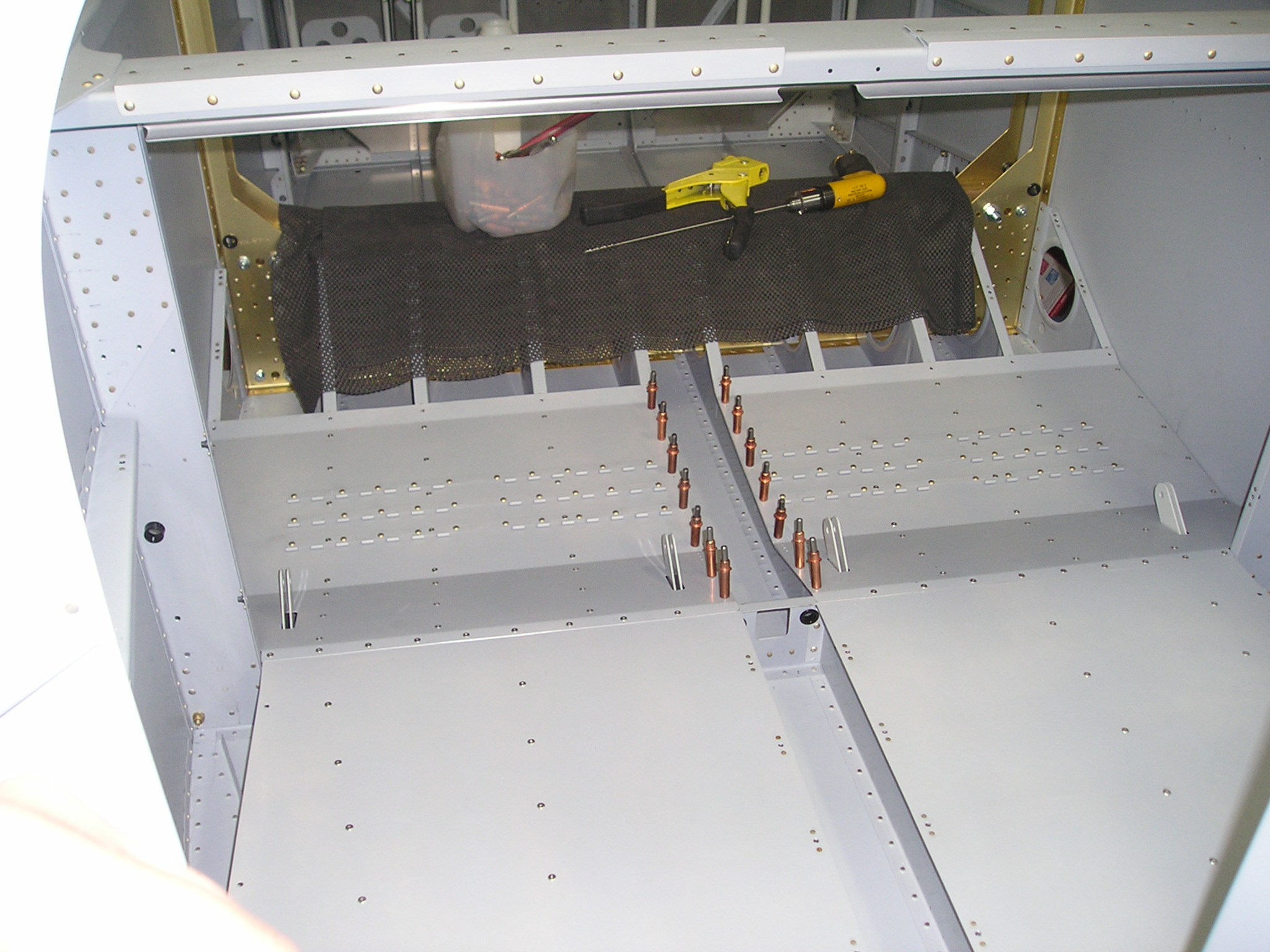

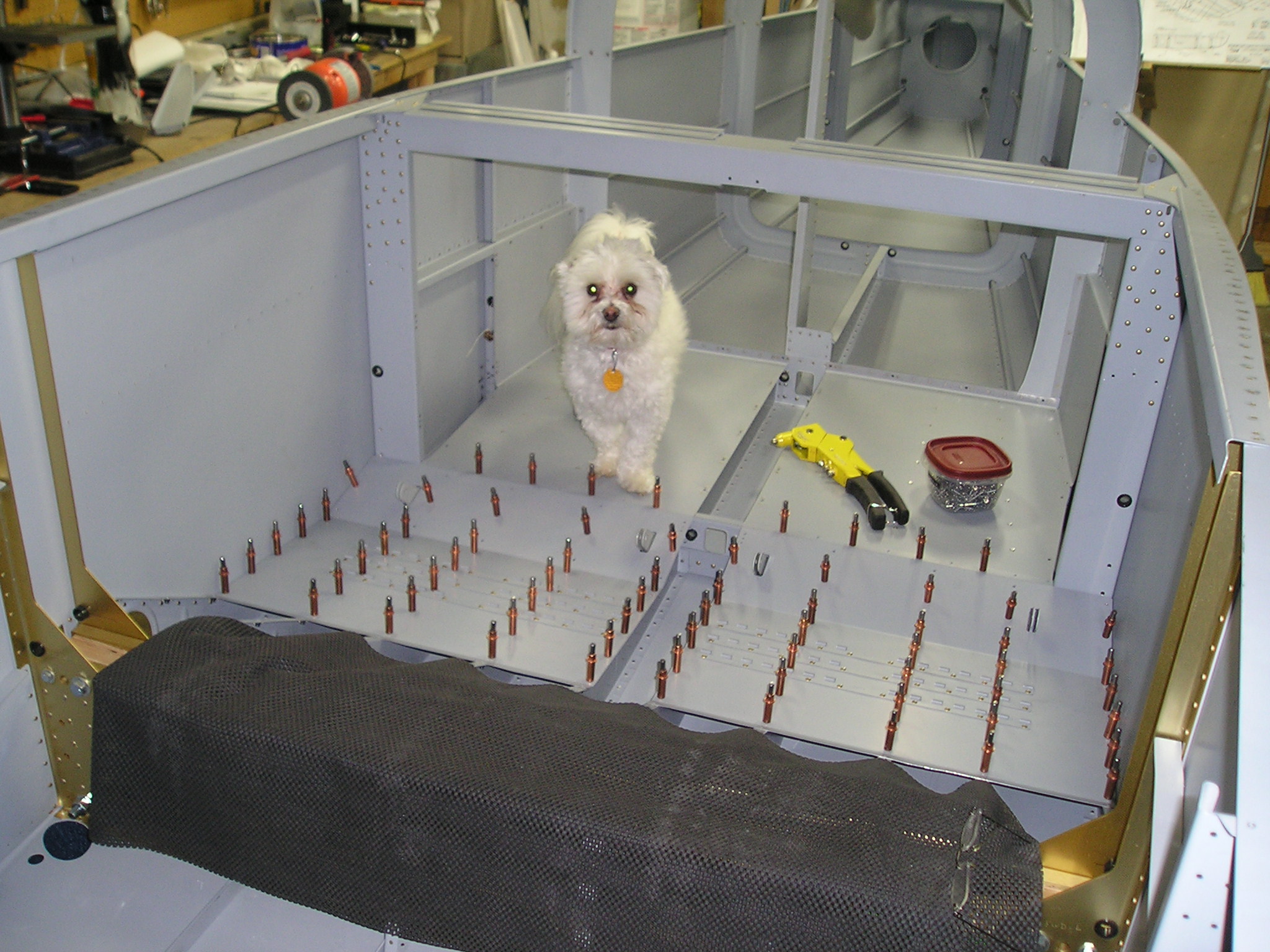

Cleco'd Seat Floors full size
After the hinges are in, cleco'd the floors into place.

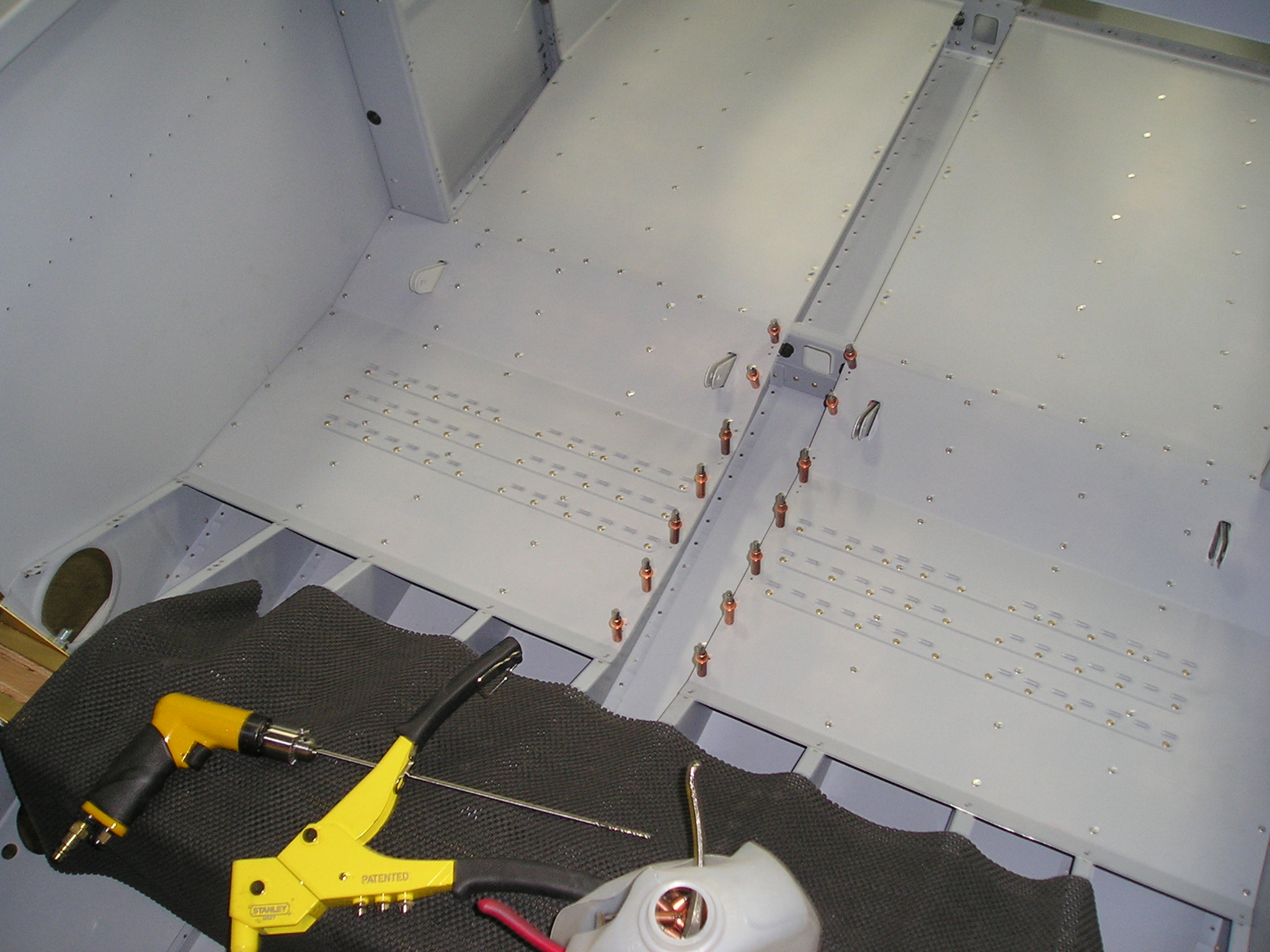

Floors in place full size
The floors are riveted using blind rivets.

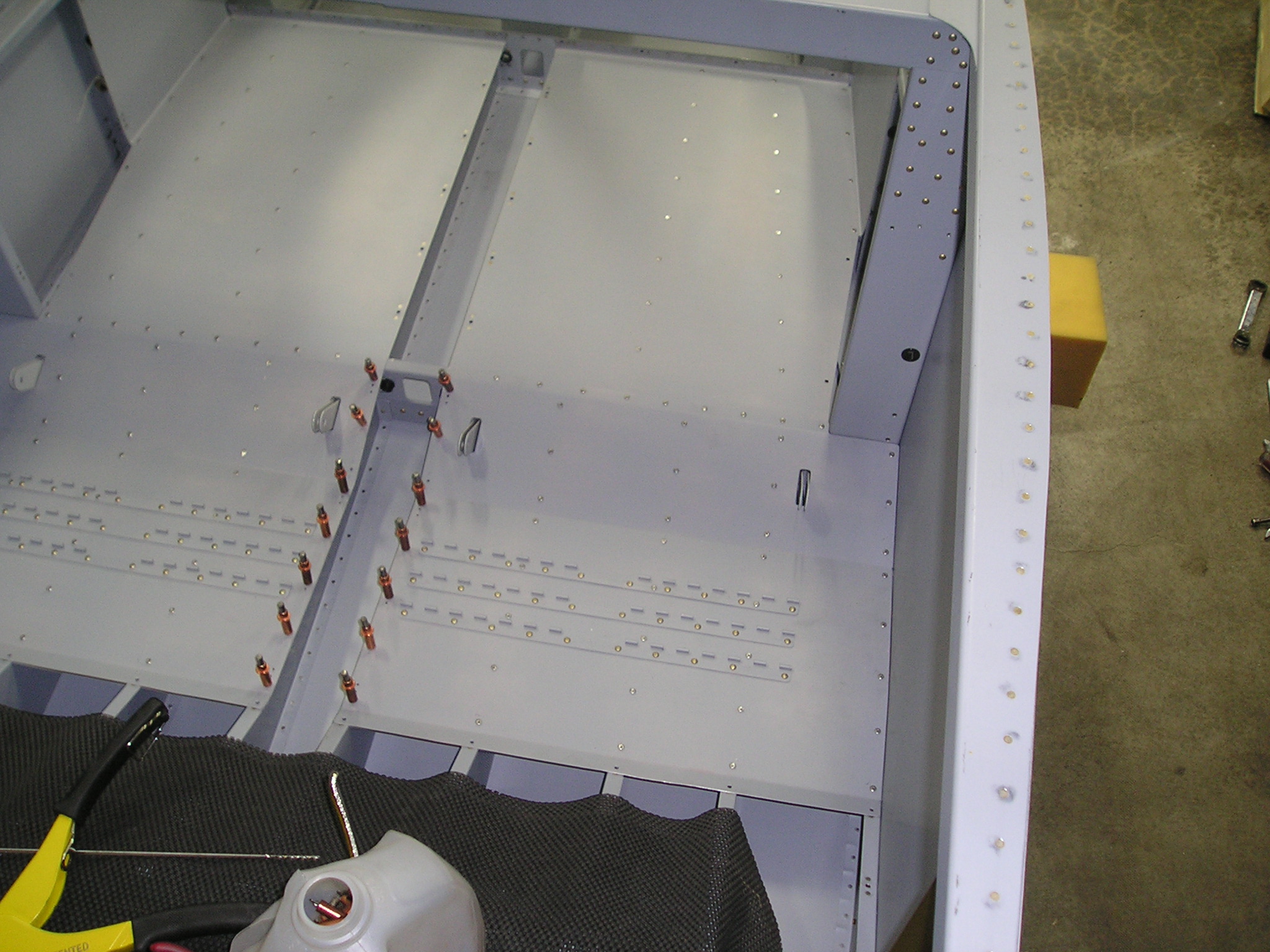

Another view of floors full size
ditto
Another view of floors full size
ditto
