4.0 Hours

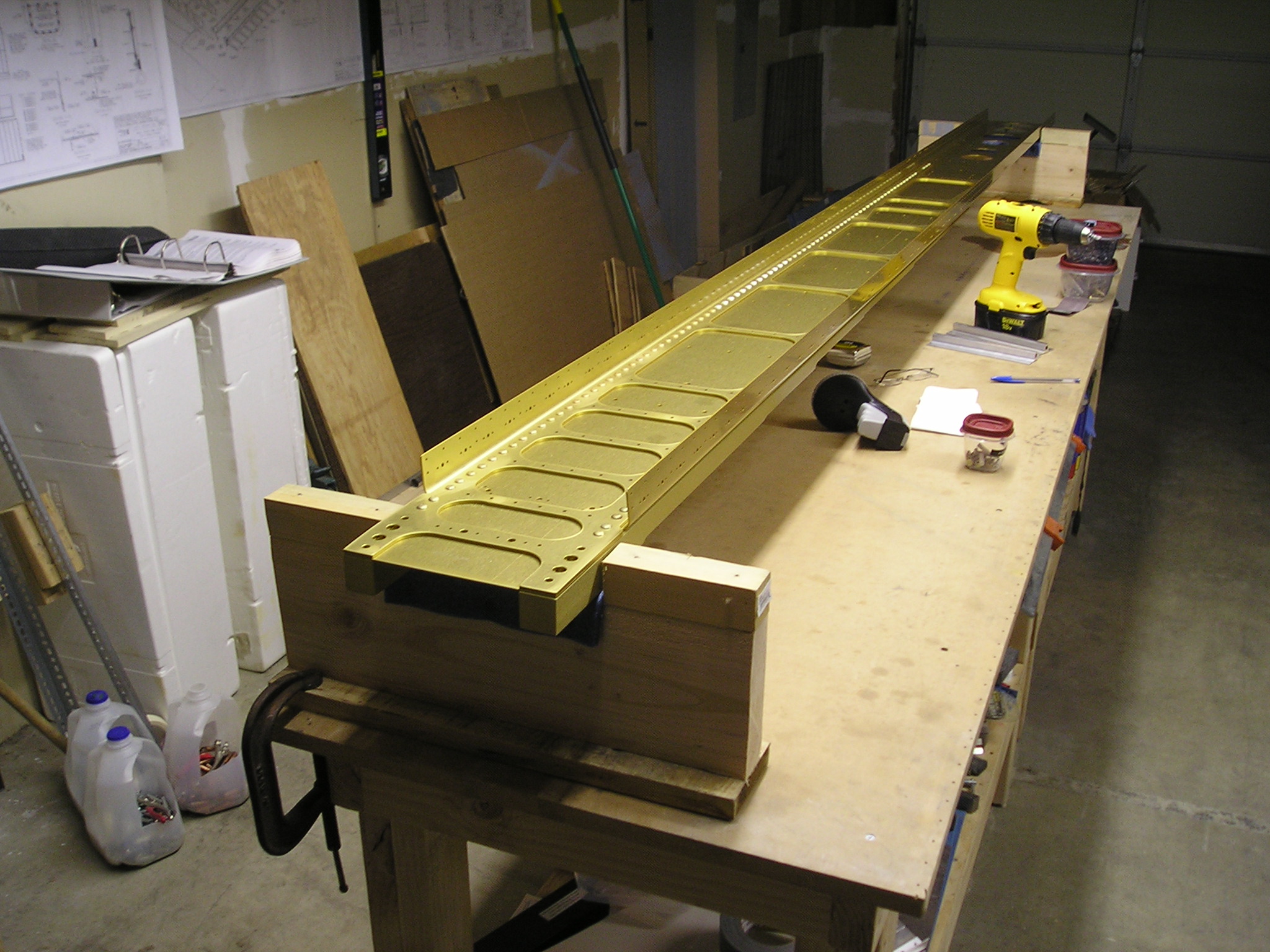

Main spar in supports

Main spar in supports full size

I pulled the left spar from the shipping crate and set it on the bench. I got the idea for the spar supports from

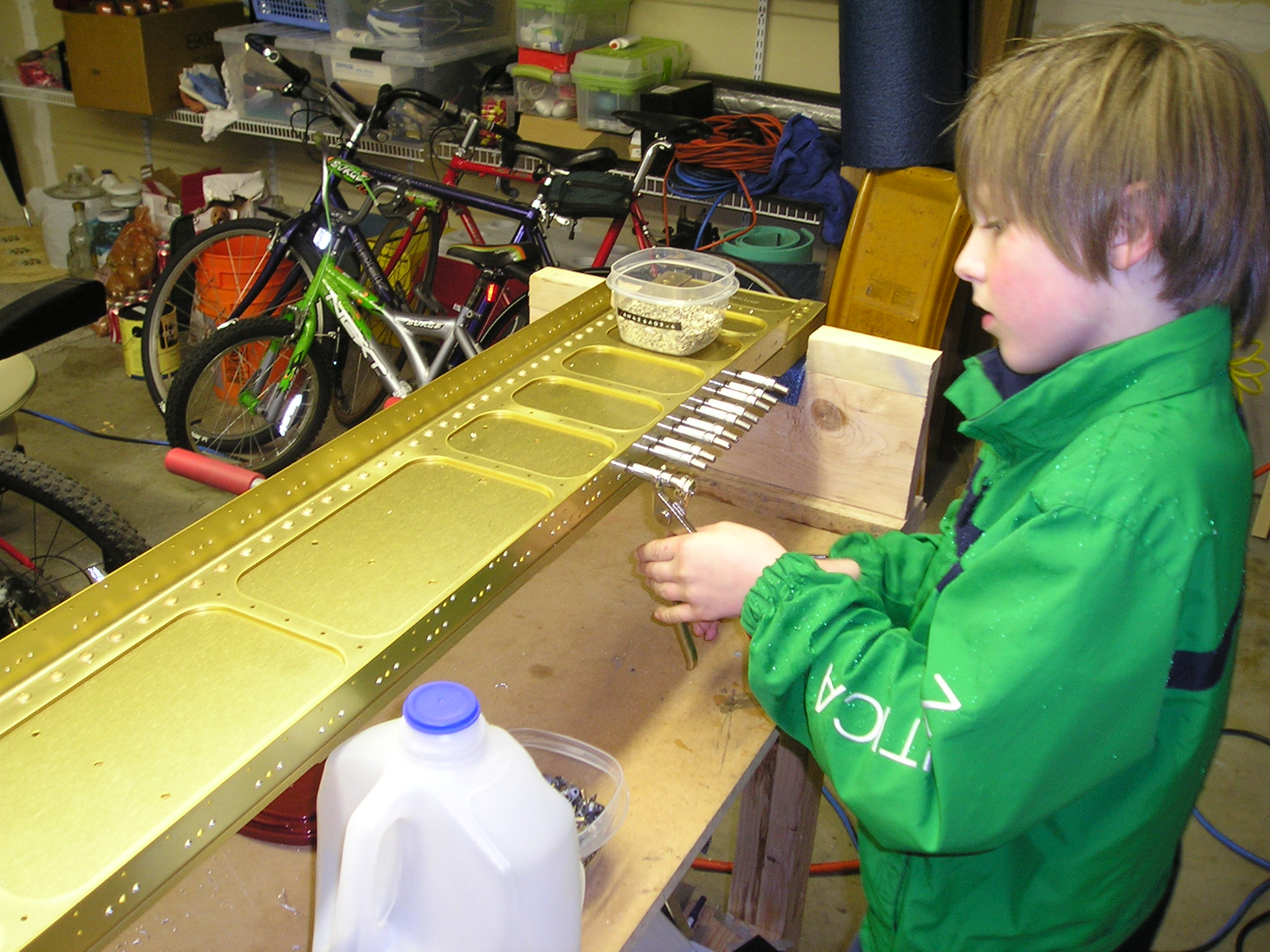

Installing nutplates

Installing nutplates full size

Here Spencer is putting the nutplates on with cleco's so that I can put in the rivets.

More nutplates

More nutplates full size

Another shot of Spencer working on his A&P

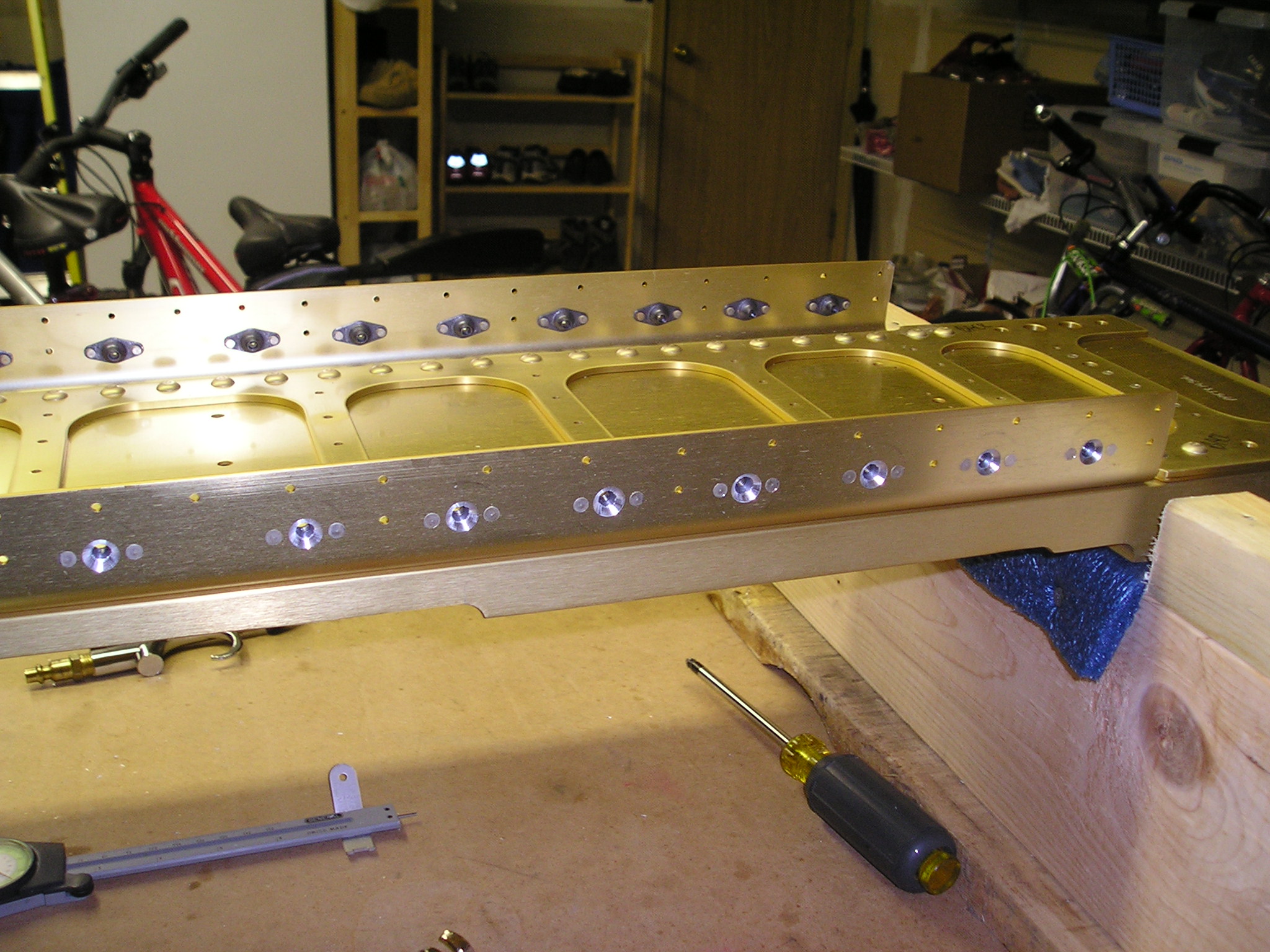

Countersinking the tank holes in spar

Countersinking the tank holes in spar full size

After getting all the nutplates in, next step was to countersink all the bolt holes. I did this as the instructions said, just using the installed nutplate to center the countersink. Worked fine.
