More tank details

4.5 Hours

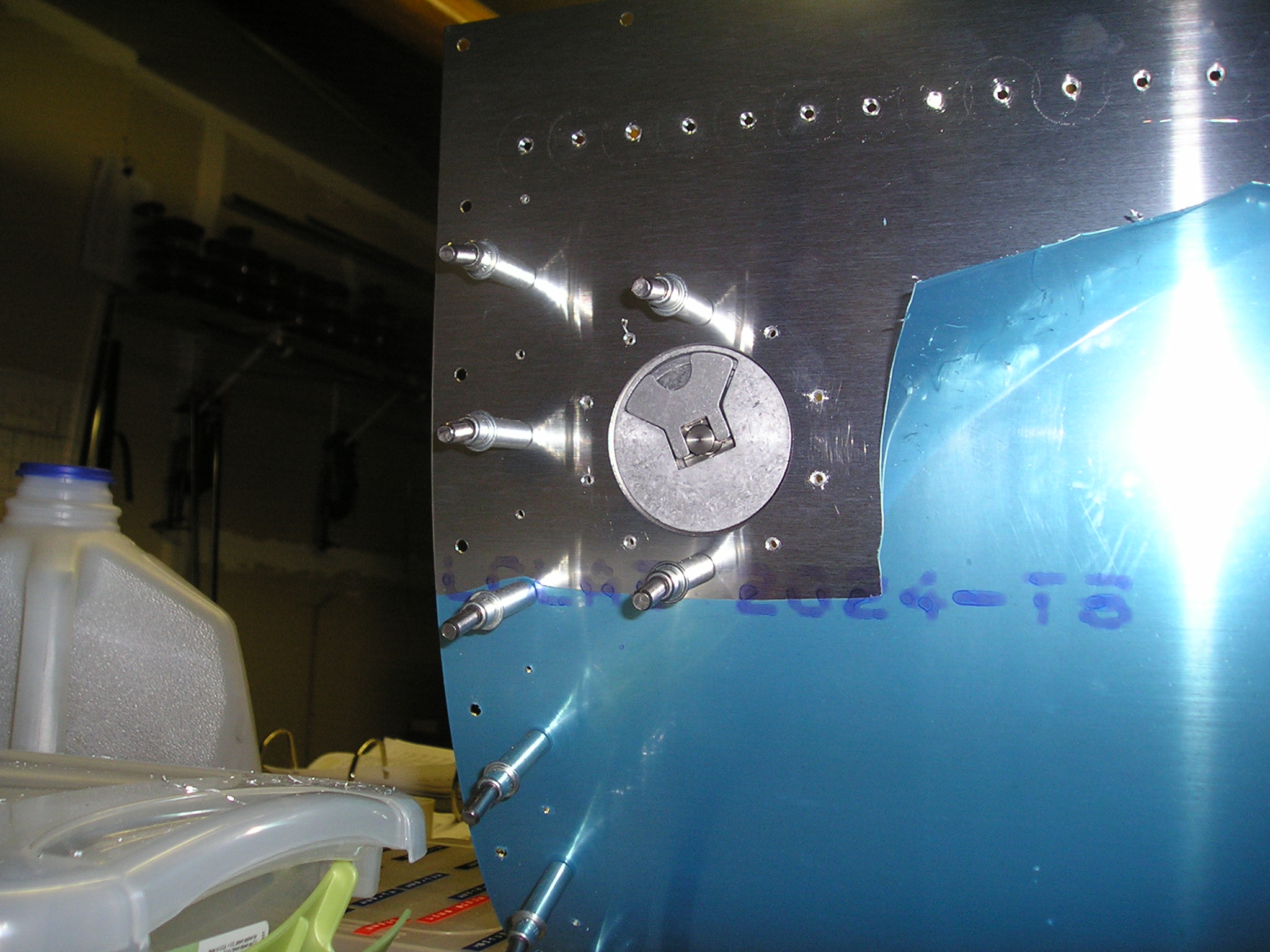

Fitting T-406B fuel cap flange full size

Fit the fuel cap, drilled the holes. Flared the end of the vent line . I had messed up one of the T-912 brackets. Drilled the replacement to the baffle, and then the nutplate holes in it. Deburred all the T-912 brackets. Countersunk the rivet holes in the fuel cap flange.

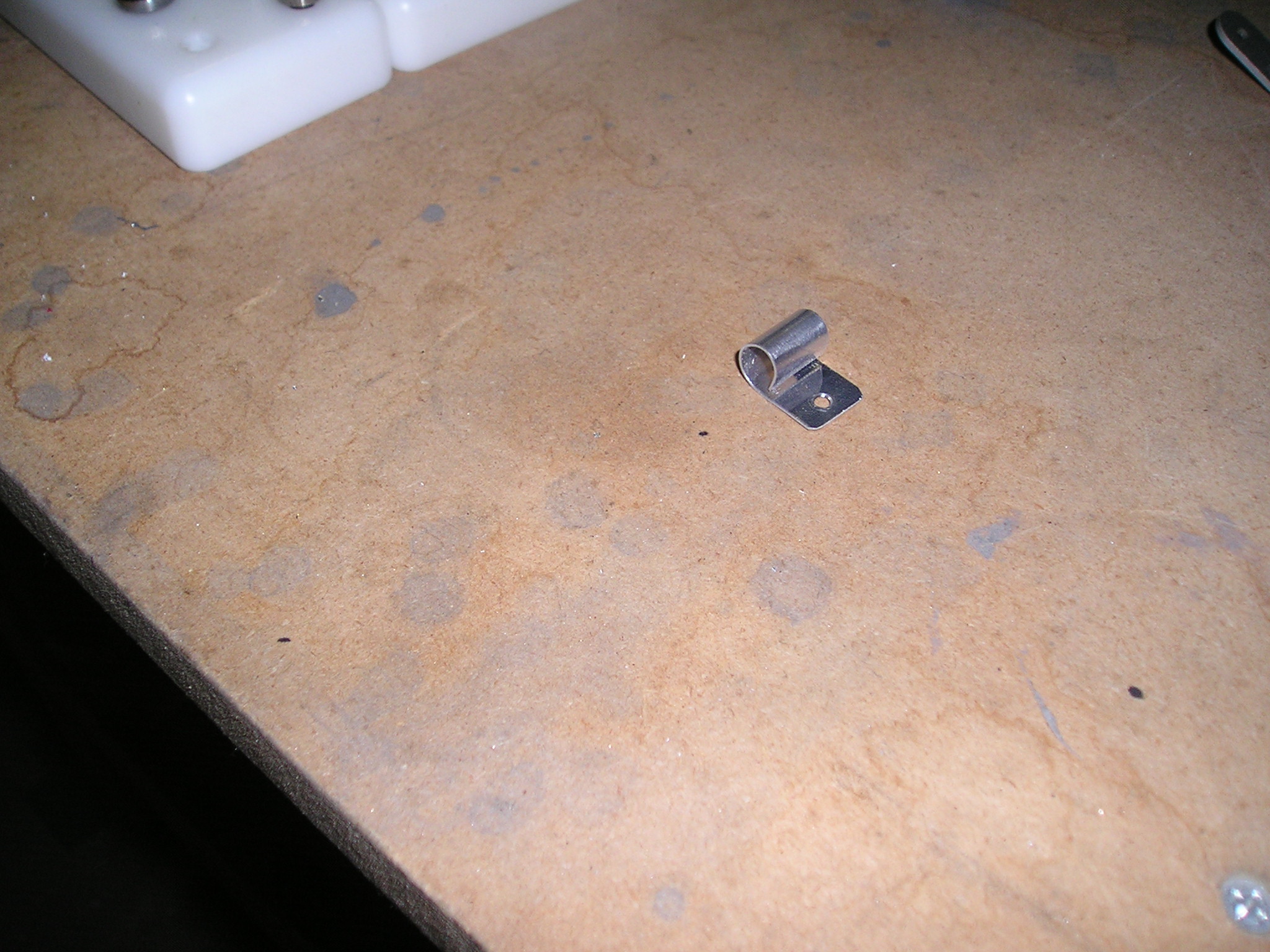

Vent line clip full size

Fabbed the T-914 clip and drilled the rivet hole.

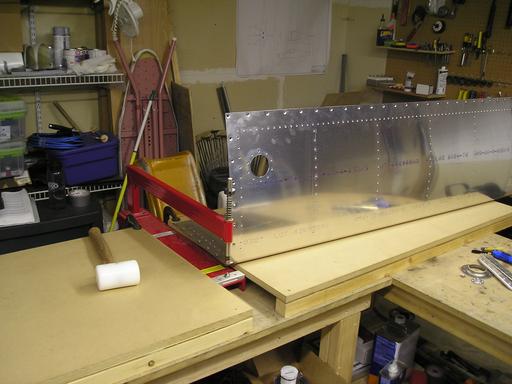

Dimpling skin full size

Deburred T-901R skin. Deburred the ribs and baffle. Dimpled T-911 stiffeners
