Lower Longeron, web, Gusset

3.0 Hours

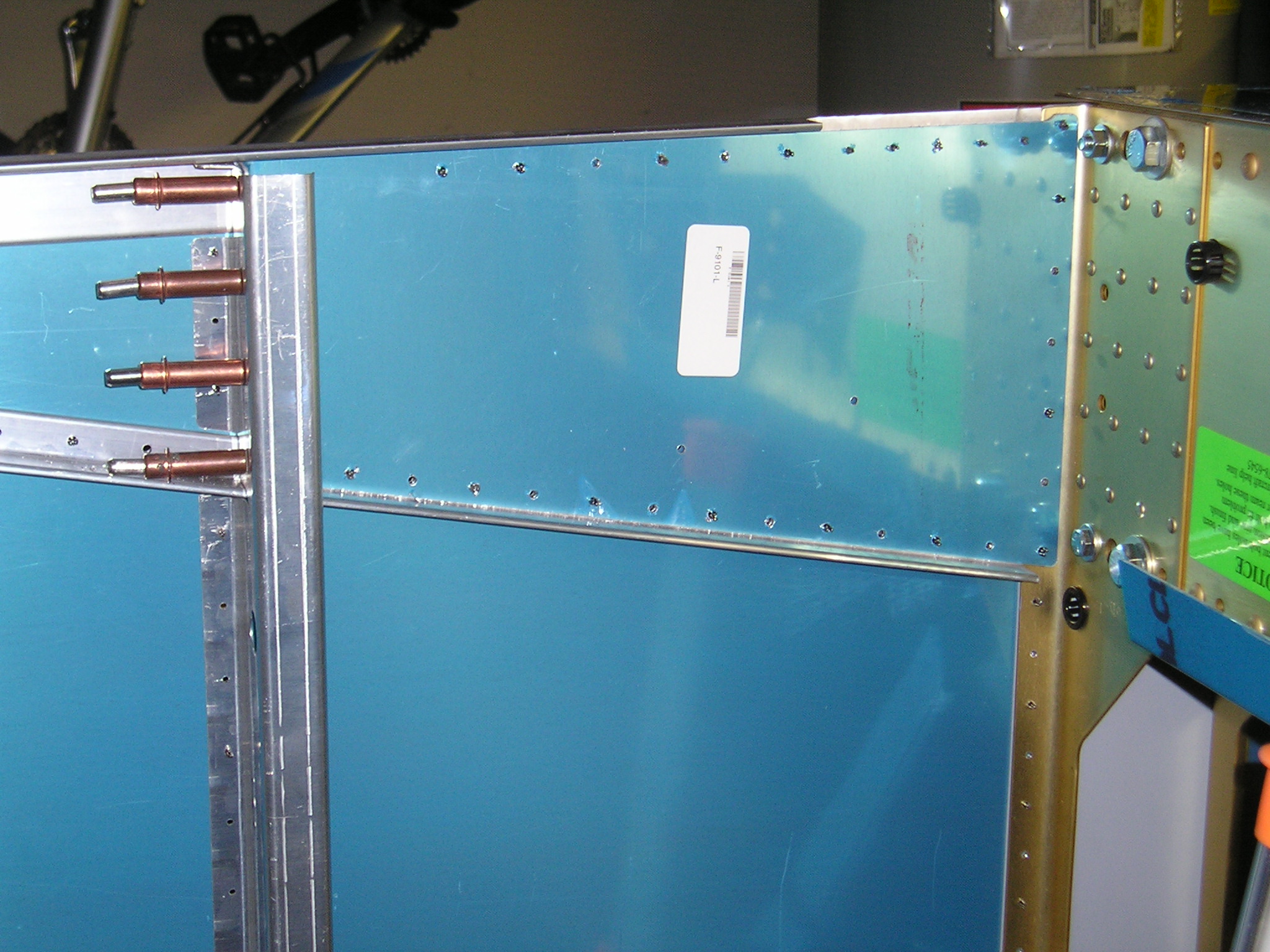

Fitting F-9101-L web full size

Cleco'd web in place, drilled.

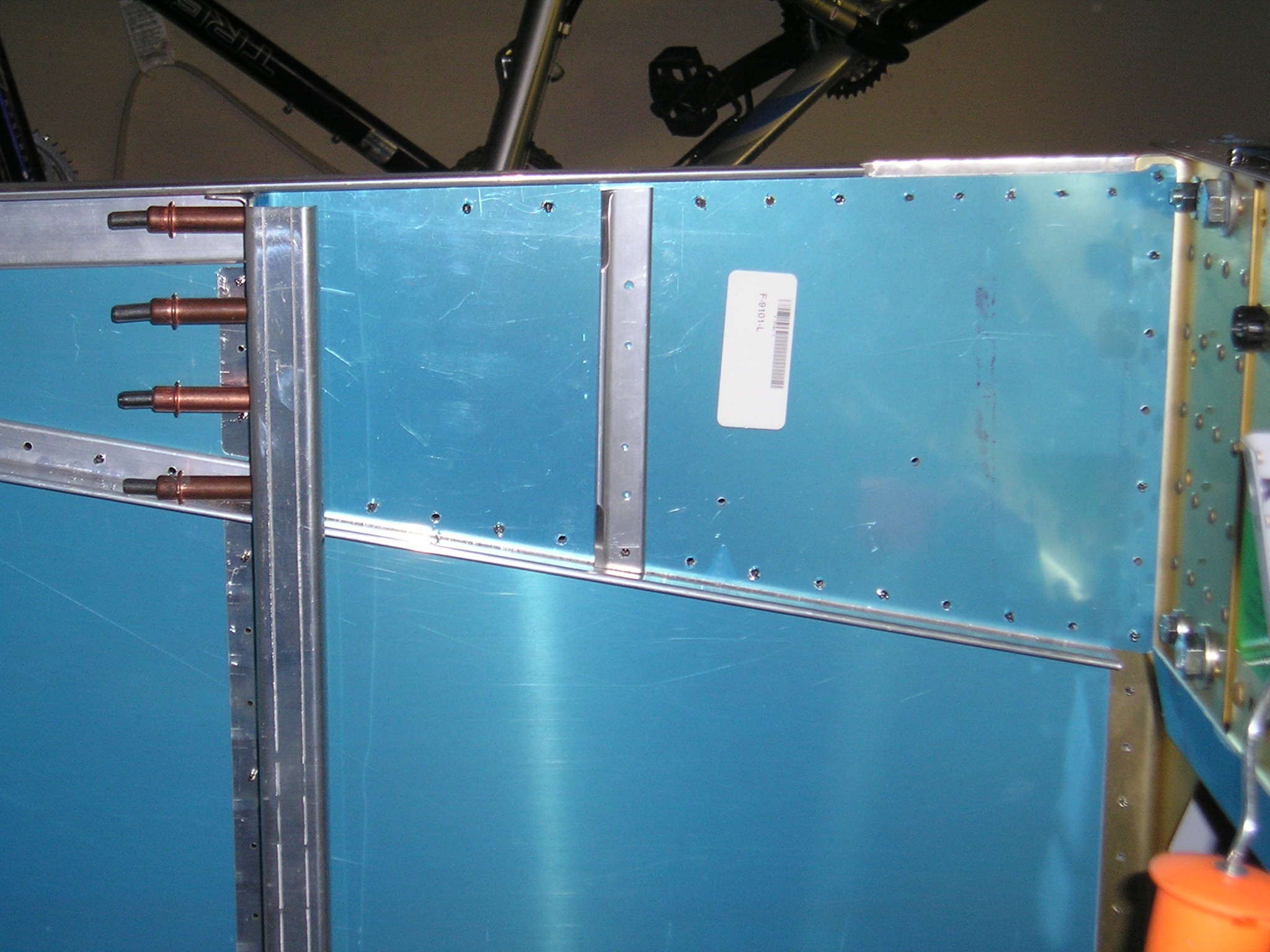

Fitting F-996-C-L full size

Put the reinforcement angle in place, drilled.

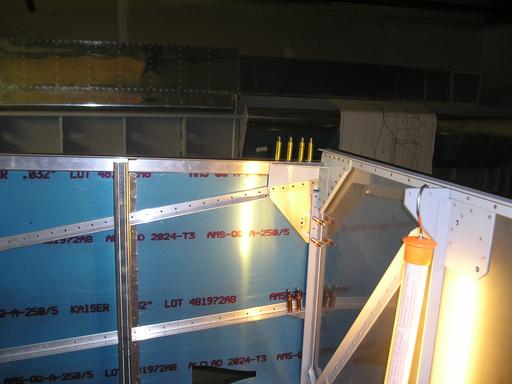

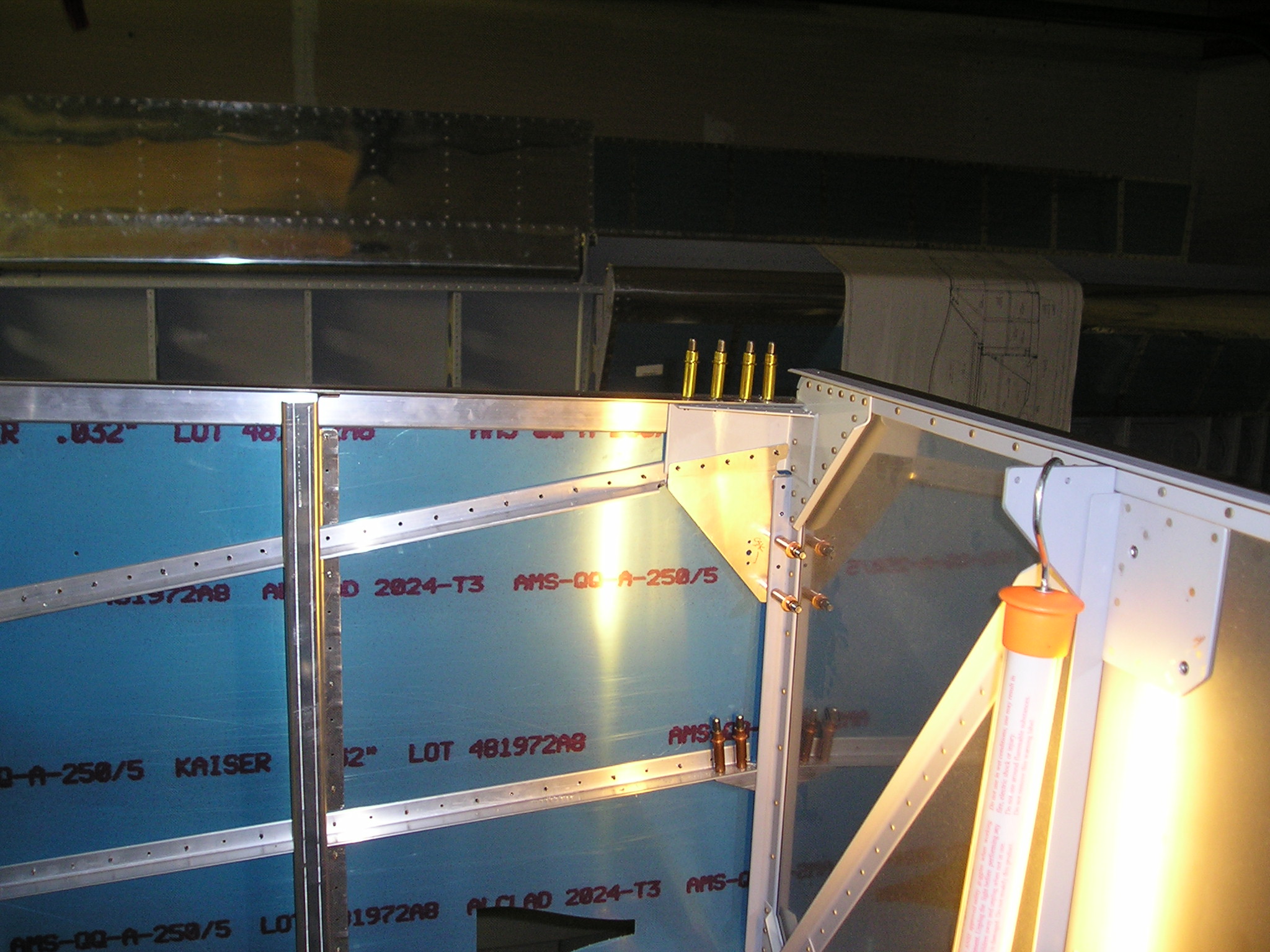

Fitting F-684-R full size

Cutout F-917-R longeron. Drilled bolt holes in same. Cut and fit F-684-R gusset. Drilled to fuselage.
