Installing nutplates on spar

3.0 Hours

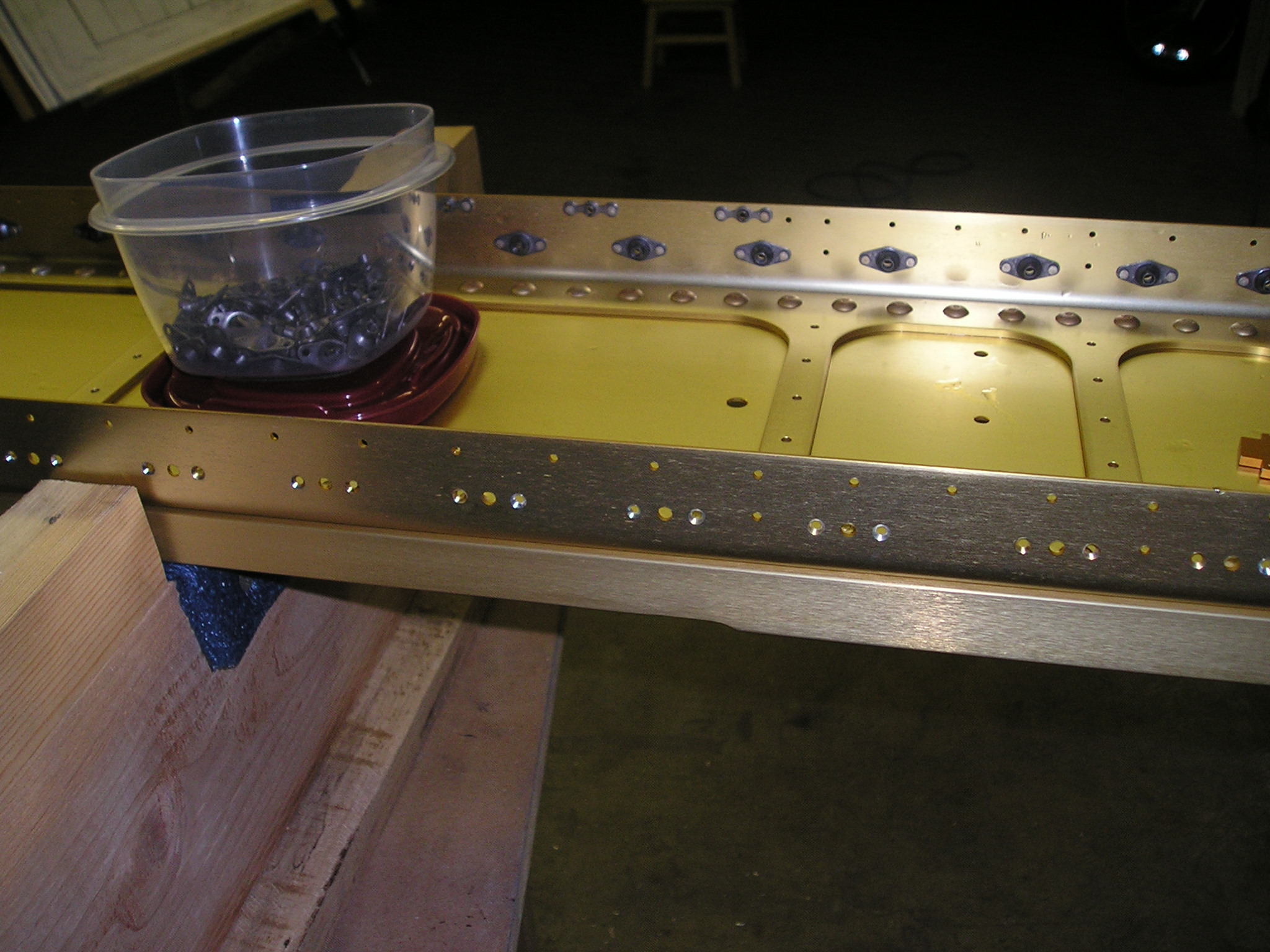

Installing nutplates full size

First thing to do is drill out the nutplate rivet holes and countersink them. Then alodine, and install the nutplates. Here I am installing the nutplates after those steps.

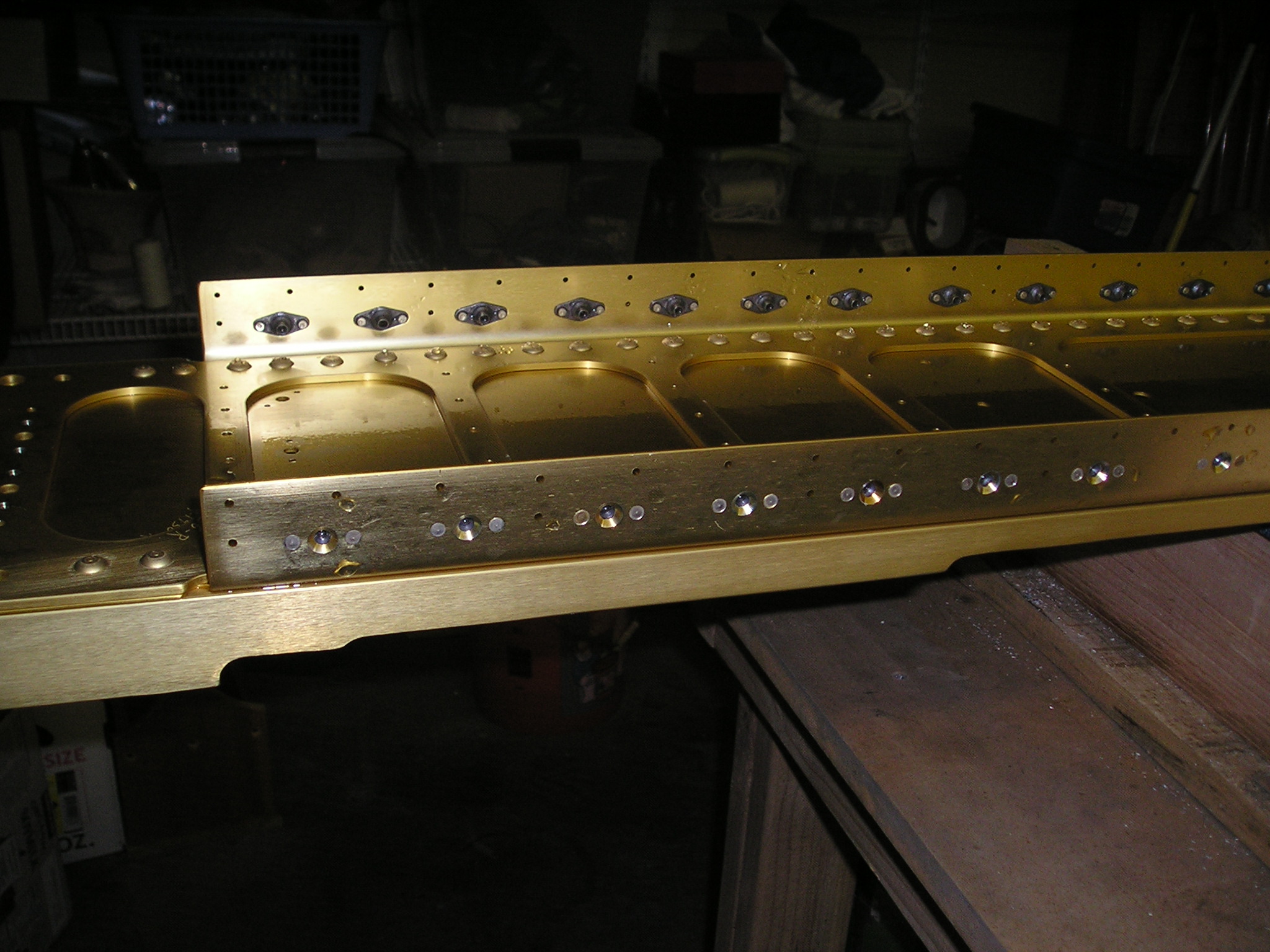

Countersinking bolt holes full size

After putting in the nutplates, the bolt holes need to be countersunk for the skin dimples. I used the cage countersink tool with a #30 pilot for the tank nutplates, and a #40 pilot for the access panel nutplates. After that, alodine the countersinks.
