Fitting F-915 ribs
3.0 Hours

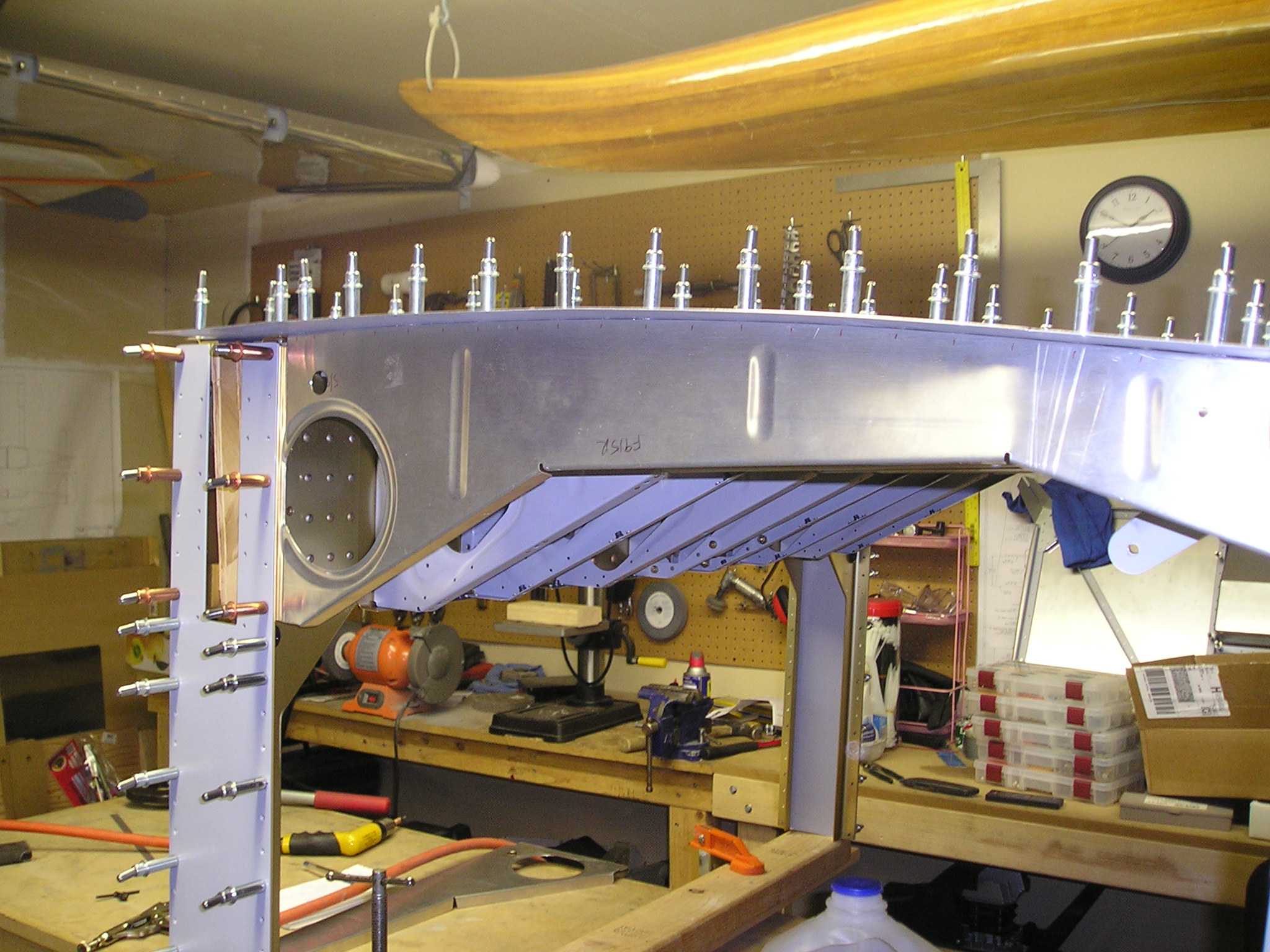

Fitting F-915 ribs full size
These need to be fluted, then clamped in place. After clamping, final drilled to the skin. Oh, before that I cleco'd the skin to the whole assembly.

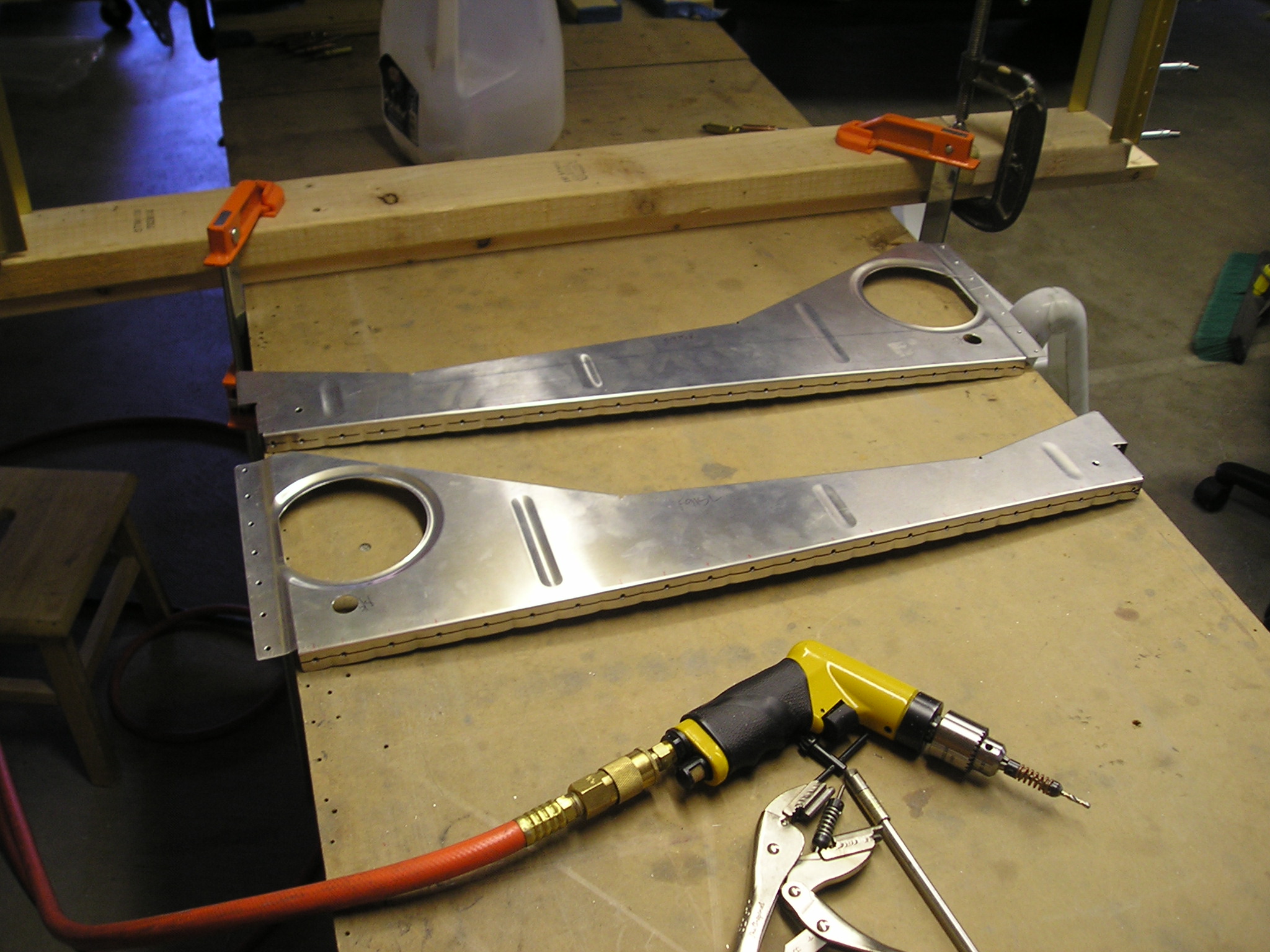

Finished F-915 ribs full size
After drilling, removed the ribs. Cleaned and primed them. Then cleco'd back into position.
