5.0 Hours

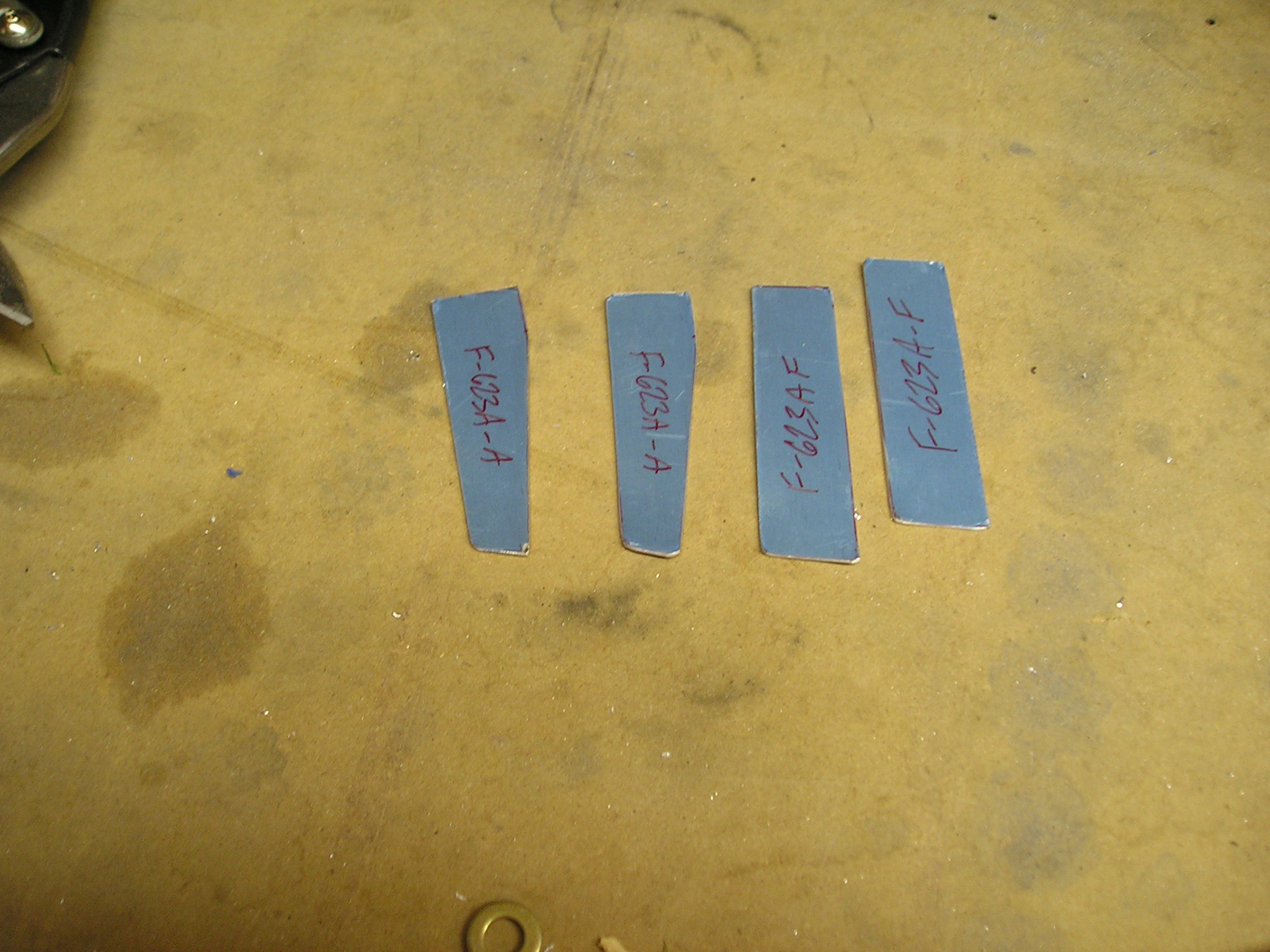

Attach strips

Attach strips full size

The F-623L/R baggage ribs have attach straps at each end. Fabbed these from sheet aluminum. They get fitted and drilled later.

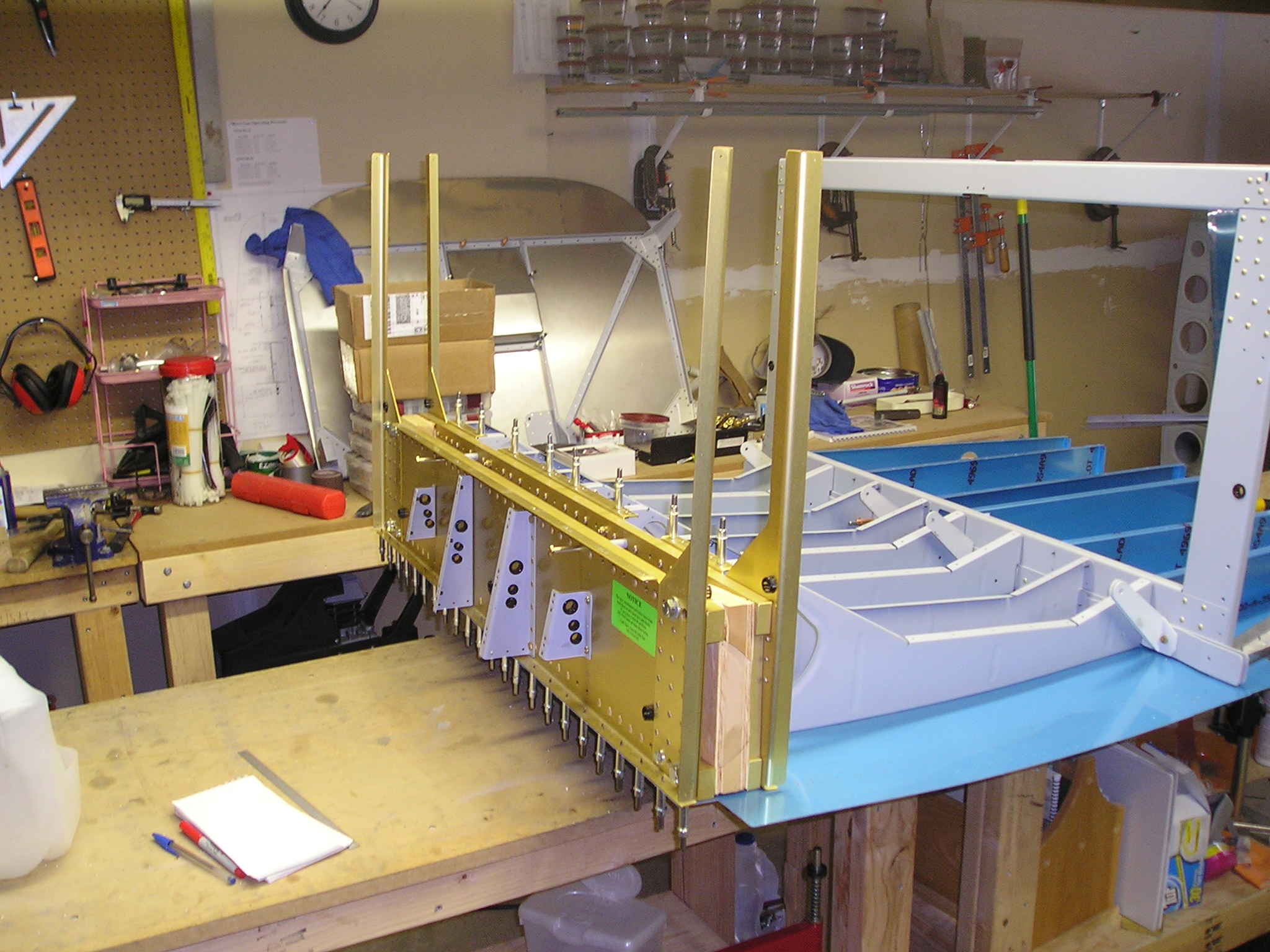

Bolting on front half of F-904 bulkhead

Bolting on front half of F-904 bulkhead full size

The front half of F-904 bulkhead is bolted using the spacers I made during it's assembly. Then the skin is cleco'd to the bulkhead.

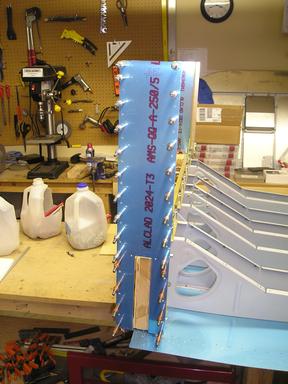

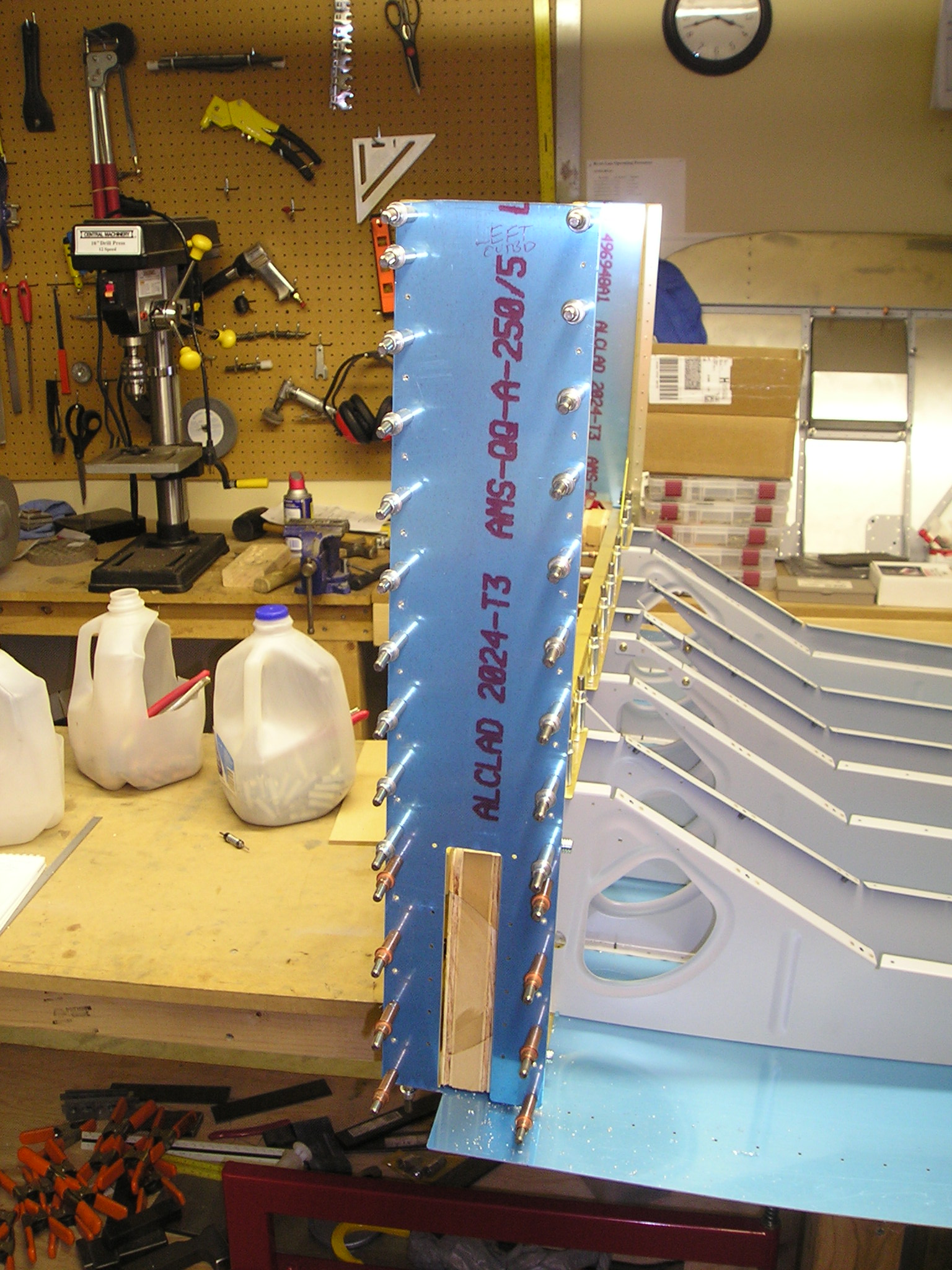

Drilling F-904H

Drilling F-904H full size

The F-904H doublers are cleco'd in place, then drilled.

A visitor to the shop

A visitor to the shop full size

I next disassembled the center section and started the deburring. I noticed this little guy came to see. I put him outside.
