Finished ribs, final drilling ribs to spars

3.0 Hours

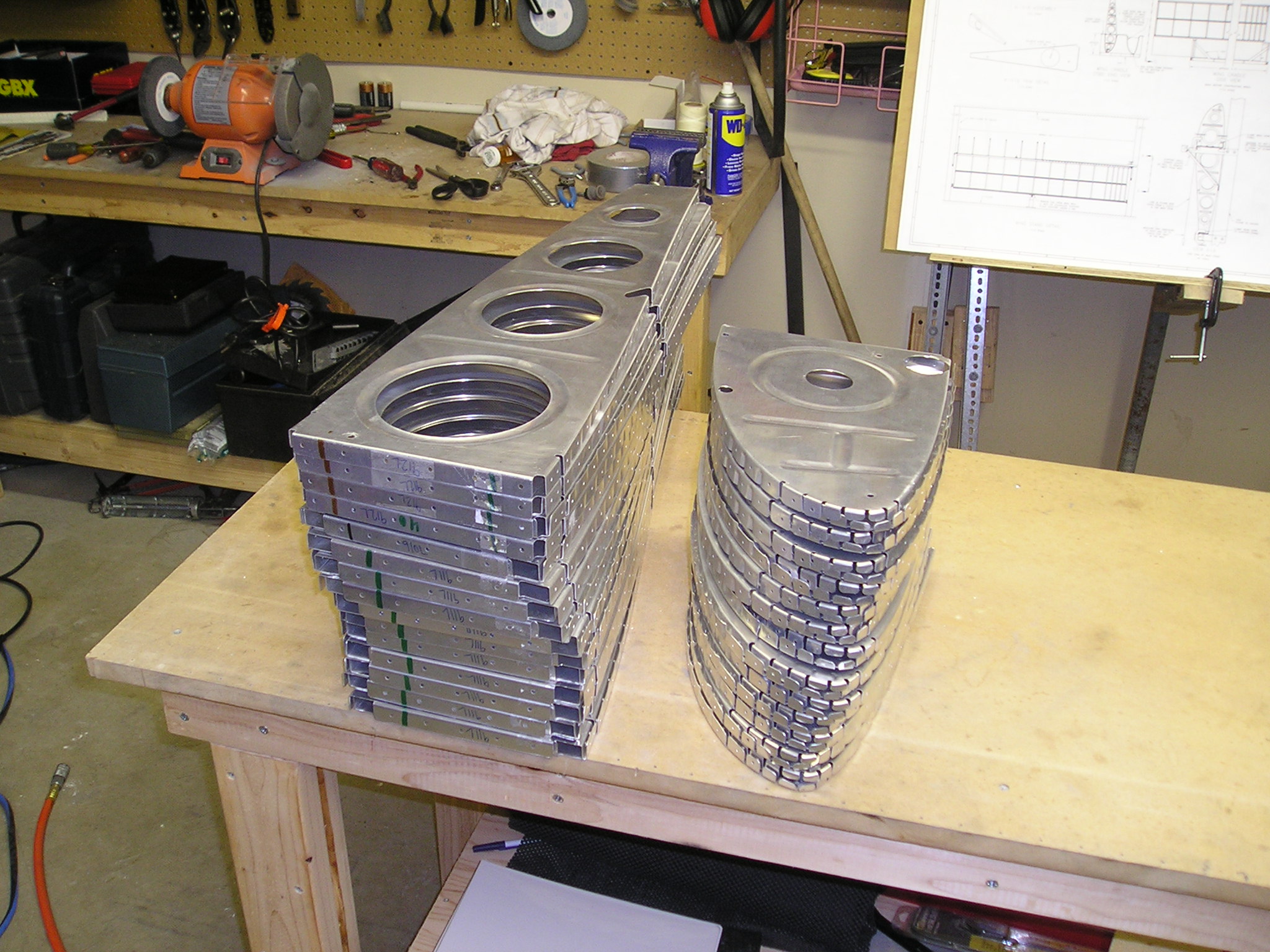

Finished ribs full size

Notice that they sit flat now. What a lot of repetitive work.

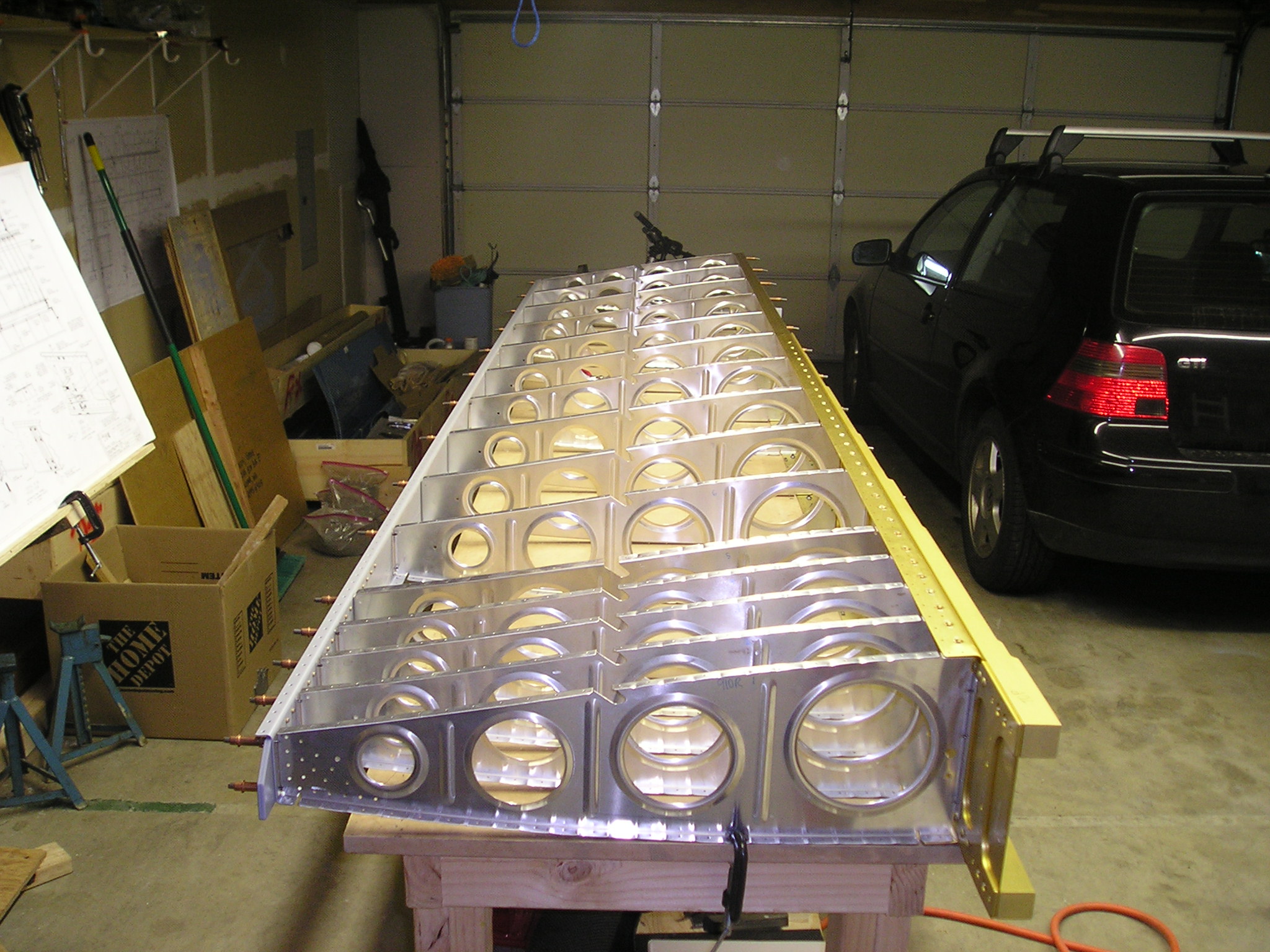

Ribs cleco'd to spars full size

Cleco'd ribs to the spars and final drilled them together.

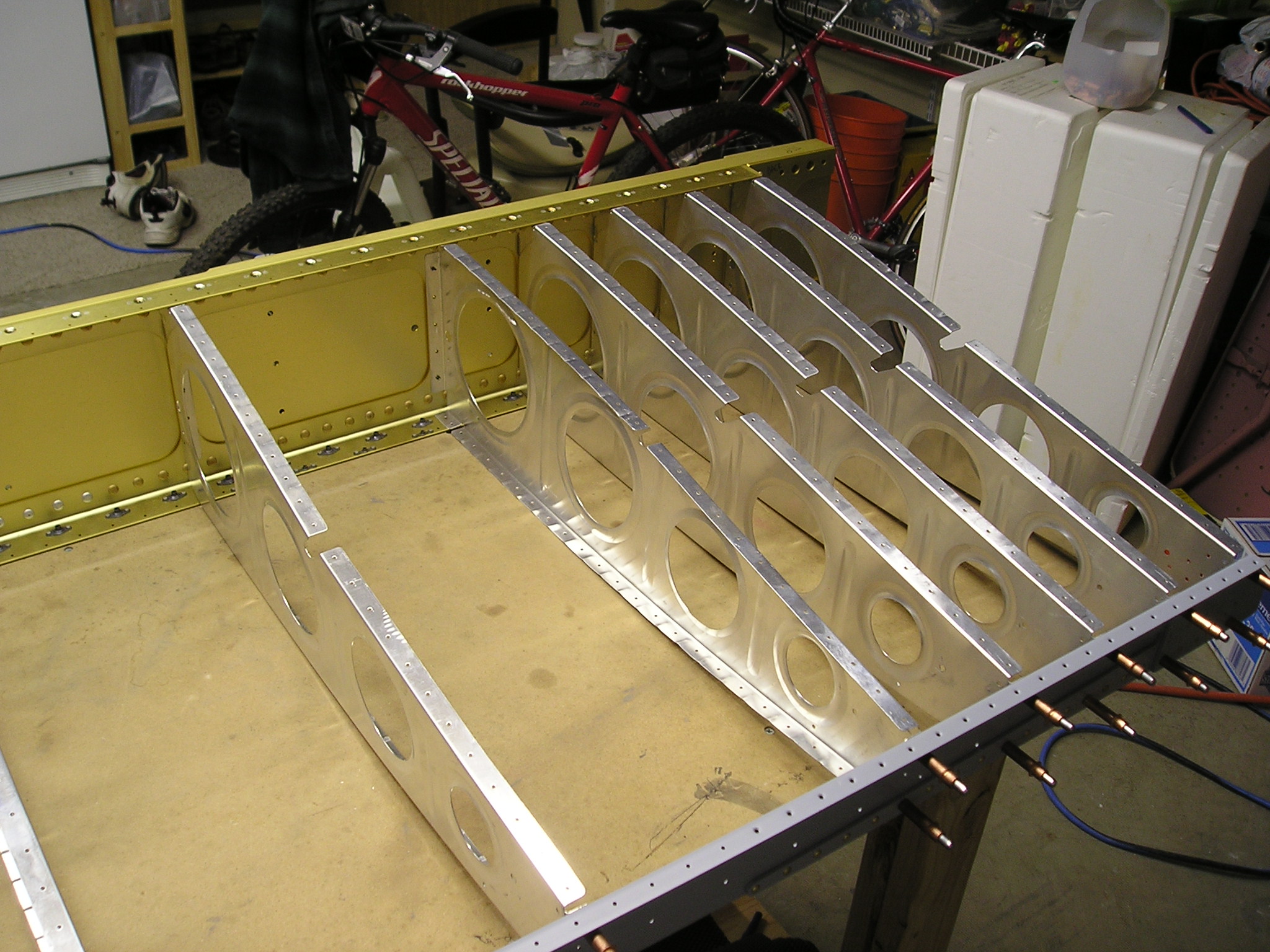

Close-up of inboard ribs full size

Here is a closer look at the ribs on the inner end of left wing.
