Deburring, dimpling rudder skeleton
Permalink: 2008-07-07 00:00:00-07:00 in RV9 tags: empennage rudder

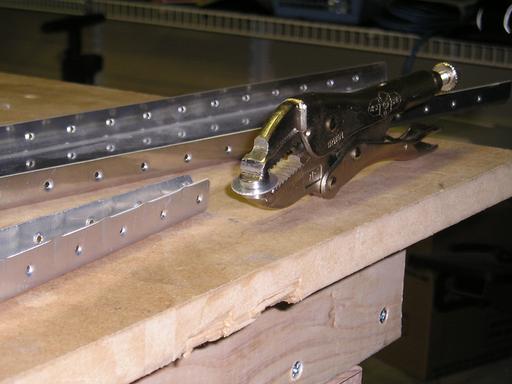

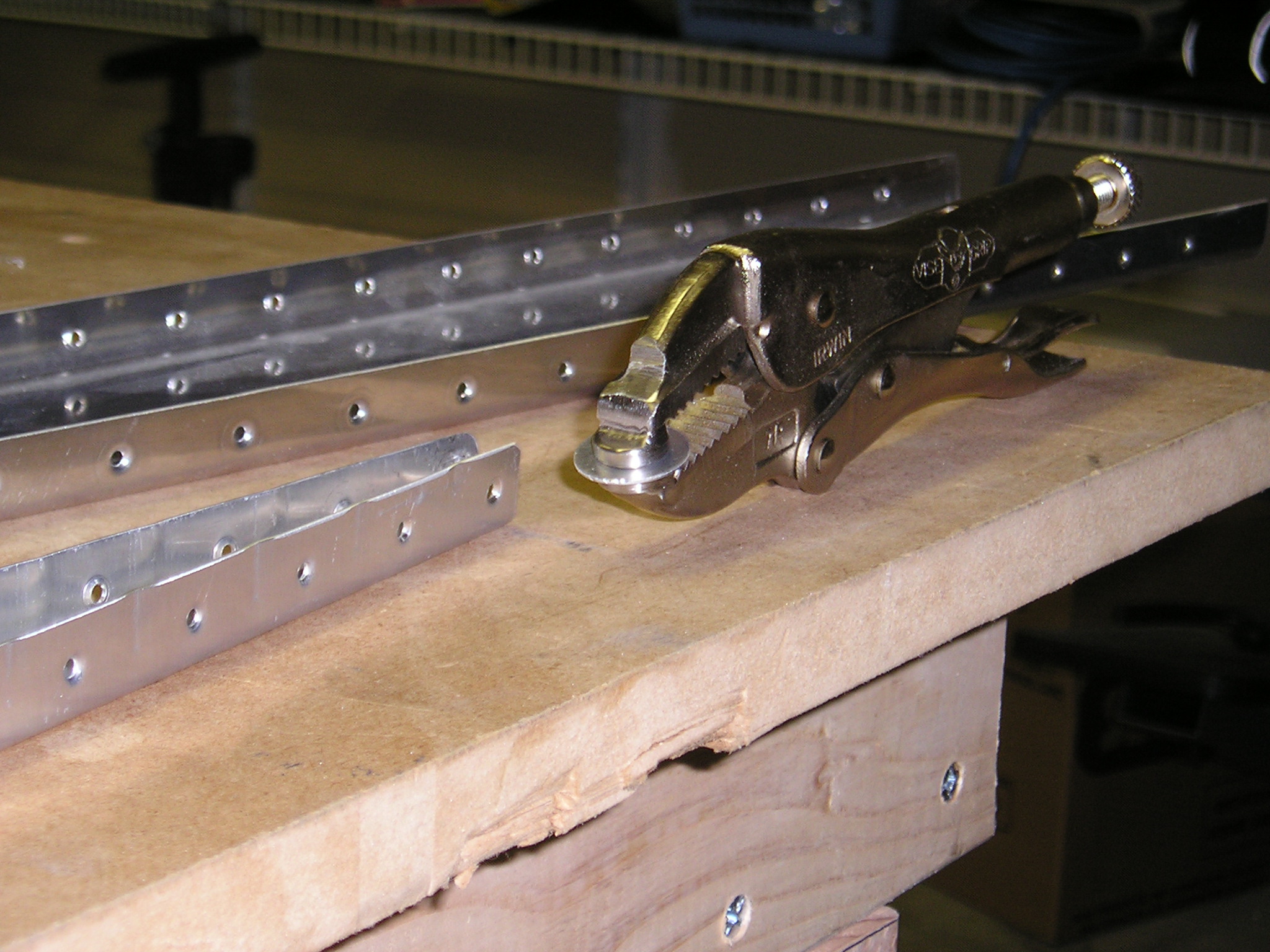

Dimpling rudder rib full size
I continued with deburring and dimpling of the rudder skeleton pieces. Some of the holes in the rudder ribs were difficult to dimple. I had to grind the tip of the avery vise-grip dimpler to get it in the tight spot. Even still I had to bend the rib some to get it in there.
